Sony VAIO Digital Studio PCV-RZ46G Manual de usuario

Welcome

Thank you for purchasing a Sony VAIO®computer! Your new computer is a superb blend of high technology and easy-to-use

functionality. The information provided here is designed to help you to become familiar with the hardware and software

programs included with your system.

View the Electronic Flyer, which provides updates and supplemental information about your computer.

Go to the Sony Online Support Web site, to view the VAIO®Computer Specifications which lists your computer's

hardware specifications and preinstalled software information.

For Sony software information, click Start and Welcome to VAIO Life.

Page 1

Getting Started

Congratulations on your purchase of the Sony VAIO®computer! Your new, high-performance, multimedia computer combines

state-of-the-art computer functionality with the latest audio, video and information technology features.

Unpacking your Computer

Planning an Ergonomic Work Space

Page 2

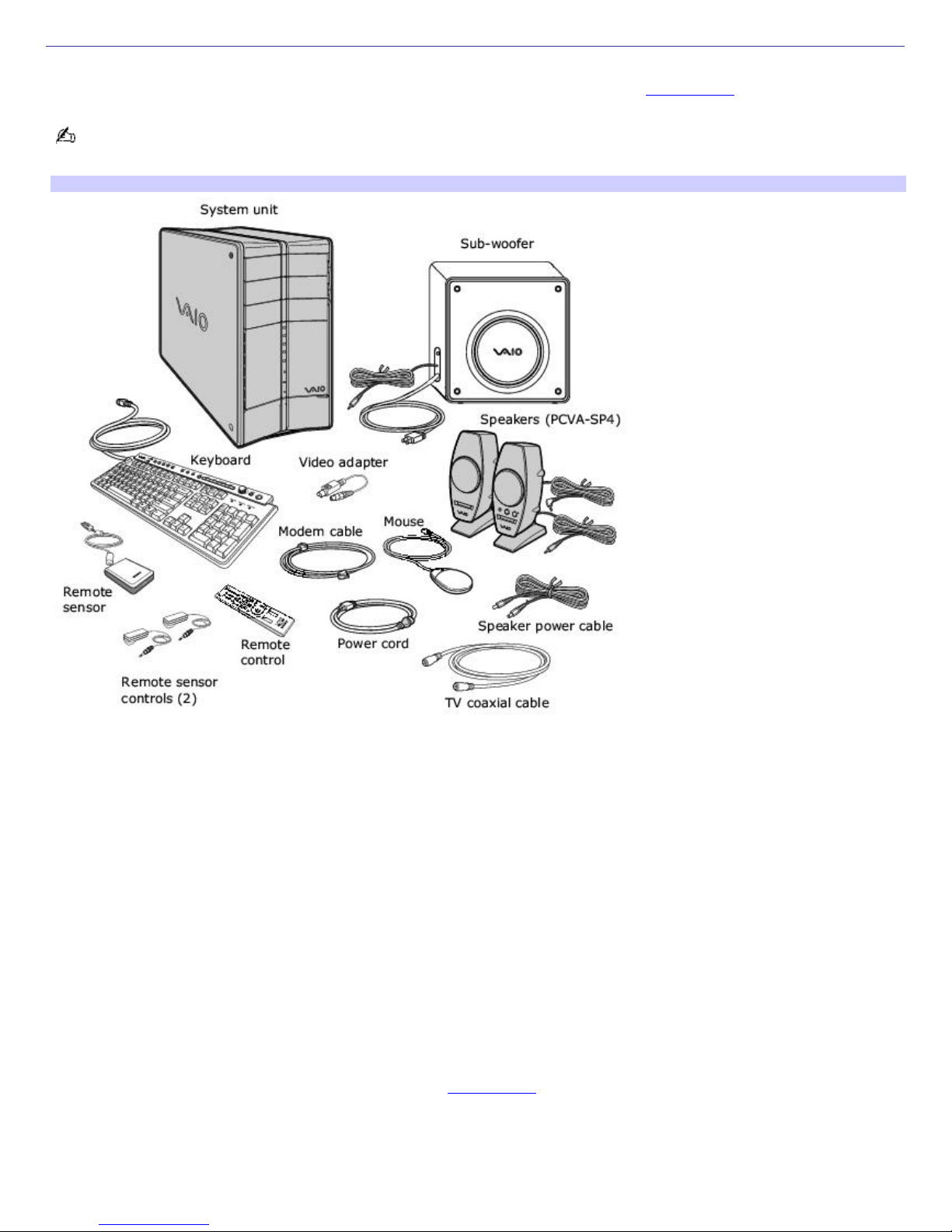

Unpacking your Computer

Your computer may not be supplied with all of the accessories shown, depending on the system configuration you

purchased. For details on the accessories supplied with your computer, see the online Specifications sheet.

Your VAIO®computer is not supplied with System or Application Recovery CDs. Use the VAIO Recovery Wizard utility to

recover your computer's operating system and preinstalled software.

Computer and supplied accessories

Manuals

VAIO®Computer Quick Start —Provides basic information on setting up and registering your computer. The Quick

Start also provides resources for technical support, safety guidelines and owner information.

Online Documentation

VAIO®Computer User Guide —Contains features and specifications of your computer. It also includes information

on the Microsoft®Windows®XP Media Center Edition operating system, the software programs included with your

system, and solving common problems.

To access the online User Guide:

1. Click Start in the Windows taskbar, then click Help and Support.

2. From the VAIO Help and Support Center menu, click VAIO User Guide.

Specifications —This online specification sheet describes the hardware and software configuration of your VAIO

computer. To access this information, go to the online Specifications sheet.

VAIO Software —Provides specific information on certain preinstalled software on your computer.

To access this online software information:

1. Click Start in the Windows®taskbar. Page 3

2. Click Welcome to VAIO Life.

Hard Disk Drive Recovery

Your computer is equipped with the VAIO Recovery Wizard utility program that recovers your computer's operating system

and preinstalled software. For more information about hard disk drive recovery:

1. Click Start in the Windows®taskbar, then click Help and Support.

2. From the VAIO Help And Support Center, click VAIO Recovery Options.

Other

A software library, containing the Microsoft®software and Sony®end-user license agreements.

Page 4

Planning an Ergonomic Work Space

Before you set up your new computer, find the best location for your new computer and plan your work space. There are

several ergonomic factors to consider when you arrange your work space:

Stable work surface —Use a stable work surface large enough to support the computer and other peripheral

equipment.

Ventilation —Leave at least eight inches of space on the left and back sides of your computer to enable proper

ventilation.

Placement of the keyboard, mouse, and other input devices —Place your keyboard, mouse, and other input

devices so that your arms and hands are in a relaxed, comfortable position. The keyboard should be directly in front

of you. Adjust the level of the keyboard so that your lower arms are parallel to the floor. Keep your wrists in a

relaxed position when you are using the keyboard —not angled up or down. Use the palmrest only briefly, for

resting. While typing, never use the palmrest or rest your hands on the table. Position the mouse at the same level

as the keyboard. Hold the mouse with a relaxed hand, and use your whole arm to move it. Take breaks during

sessions with your computer. Excessive use of the mouse or a joystick may strain muscles or tendons.

Furniture and posture —Sit in a chair with good back support and armrests. Adjust the level of the chair so your

feet are flat on the floor. A footrest may make you more comfortable. Sit with relaxed, upright posture —avoid

slouching forward or leaning far backward.

Viewing angle of the display —Position the display 18 to 26 inches directly in front of you, with the top of the

screen at or a little below eye level. Use the display's tilting feature to find the best position. You can reduce eye

strain and muscle fatigue by placing the display in the proper position.

Lighting —Choose a location where windows and lights do not create glare and reflection on the display. Use

indirect lighting to avoid bright spots on the display. You can also purchase accessories for your display that help

reduce glare. Proper lighting adds to your comfort and work effectiveness.

Page 5

Locating Controls And Ports

This section is intended to familiarize you with the controls, ports and jacks on your computer. Your computer may not be

equipped with all of these hardware features, and the location of the controls, ports, and jacks may vary from the

illustrations shown in this section. To view the specific connection capabilities for your system, see the online Specifications

sheet.

About the Front Panel

About the Back Panel

About the Sub-woofer

About the Keyboard

About the Remote Control

Page 6

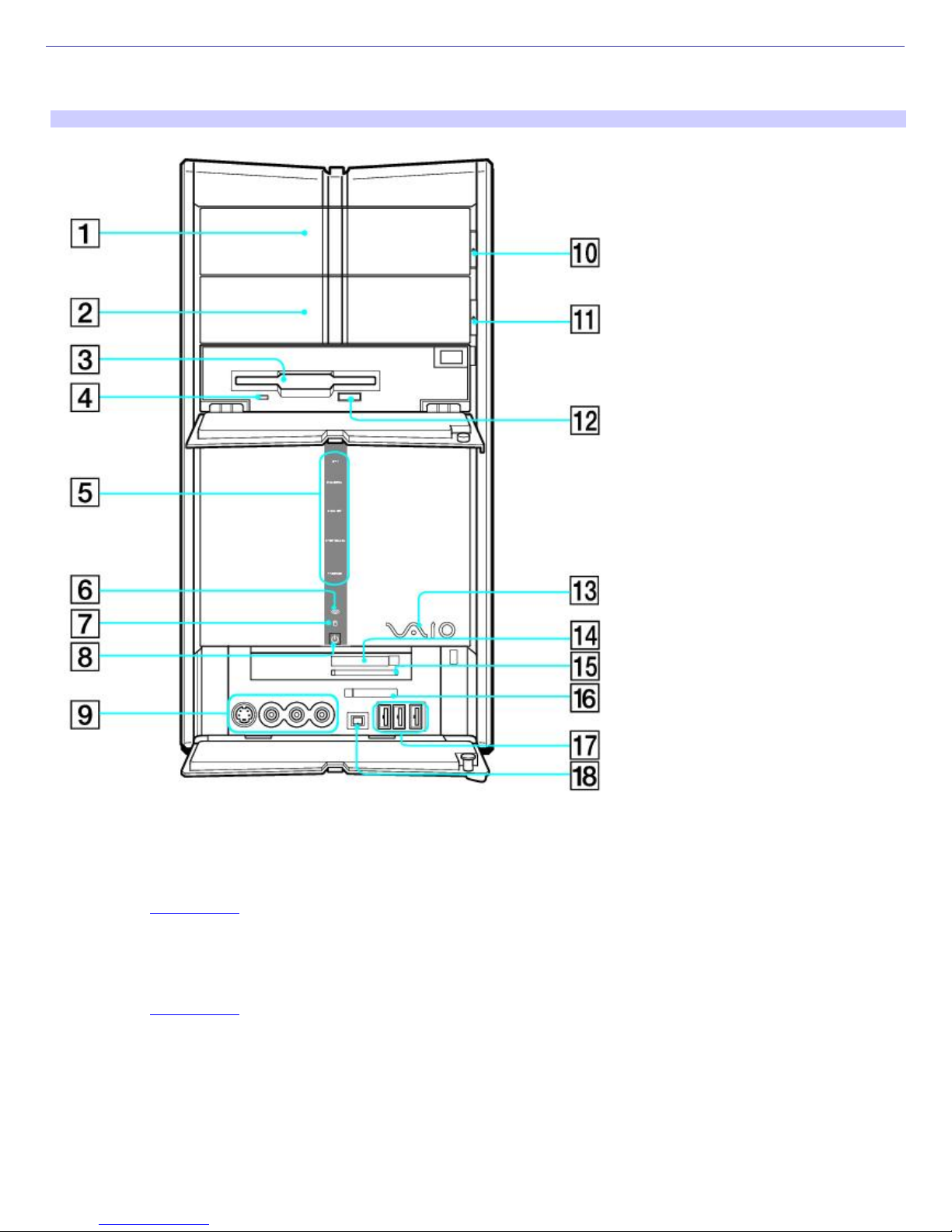

About the Front Panel

The front panel of your VAIO®Computer enables access to drives, media slots, ports and jacks that enable you to connect

compatible peripheral devices.

Front panel

1Optical drive 1

See the online Specifications sheet for optical drive information.

2Optical drive 2

See the online Specifications sheet for optical drive information.

3Floppy disk drive

Reads and writes data from and to a 3.5-inch floppy disk.

4Floppy disk drive access indicator

Page 7

Light is green while reading and writing data from and to a floppy disk.

5Media Center indicator

Light is blue when a specific Media Center feature is active.

6Optical drive access indicator

Light is amber while reading and writing data from and to the optical drives.

7Hard disk drive access indicator

Light is amber while reading and writing data from and to the hard disk.

8Power switch and Stand by indicator

Turns the computer on and off. The indicator light is amber when the computer is placed in Stand by mode.

9S-video In jack

Connection for an S-video cable (optional).

Composite video In jack

Connection for a video cable (optional).

Composite audio L In jack

Connection for an audio cable (optional).

Composite audio R In jack

Connection for an audio cable (optional).

10 Optical drive 1 eject button

Ejects a disc from Optical drive 1.

11 Optical drive 2 eject button

Ejects a disc from Optical drive 1.

12 Floppy disk eject button

Ejects a floppy disk from the floppy disk drive.

13 Power indicator (VAIO)

Page 8

Light is white while the computer is on. The indicator turns off when the computer is in Stand by mode or turned off.

14 CompactFlash®and Microdrive media slot

Reads and writes data from and to CompactFlash and MicroDrive media.

15 SmartMediaTM media slot

Reads and writes data from and to SmartMedia cards.

16 Memory Stick®media slot and access indicator

Reads and writes data from and to a Memory Stick®media. The access indicator light is amber when reading or writing

data.

17 Universal Serial Bus (USB 2.0) ports (3)

Connections for compatible high/full/low-speed USB devices.

18 i.LINK (4-pin) S400 port (IEEE 1394)

Connection for a compatible digital device.

i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connection. The i.LINK

connection may vary, depending on the software programs, operating system, and compatible i.LINK devices. All products

with an i.LINK connection may not communicate with each other.

Please refer to the documentation that came with your compatible i.LINK device for information on operating conditions and

proper connection. Before connecting compatible i.LINK devices to your system, such as an optical or hard disk drive,

confirm their operating system compatibility and required operating conditions.

Page 9

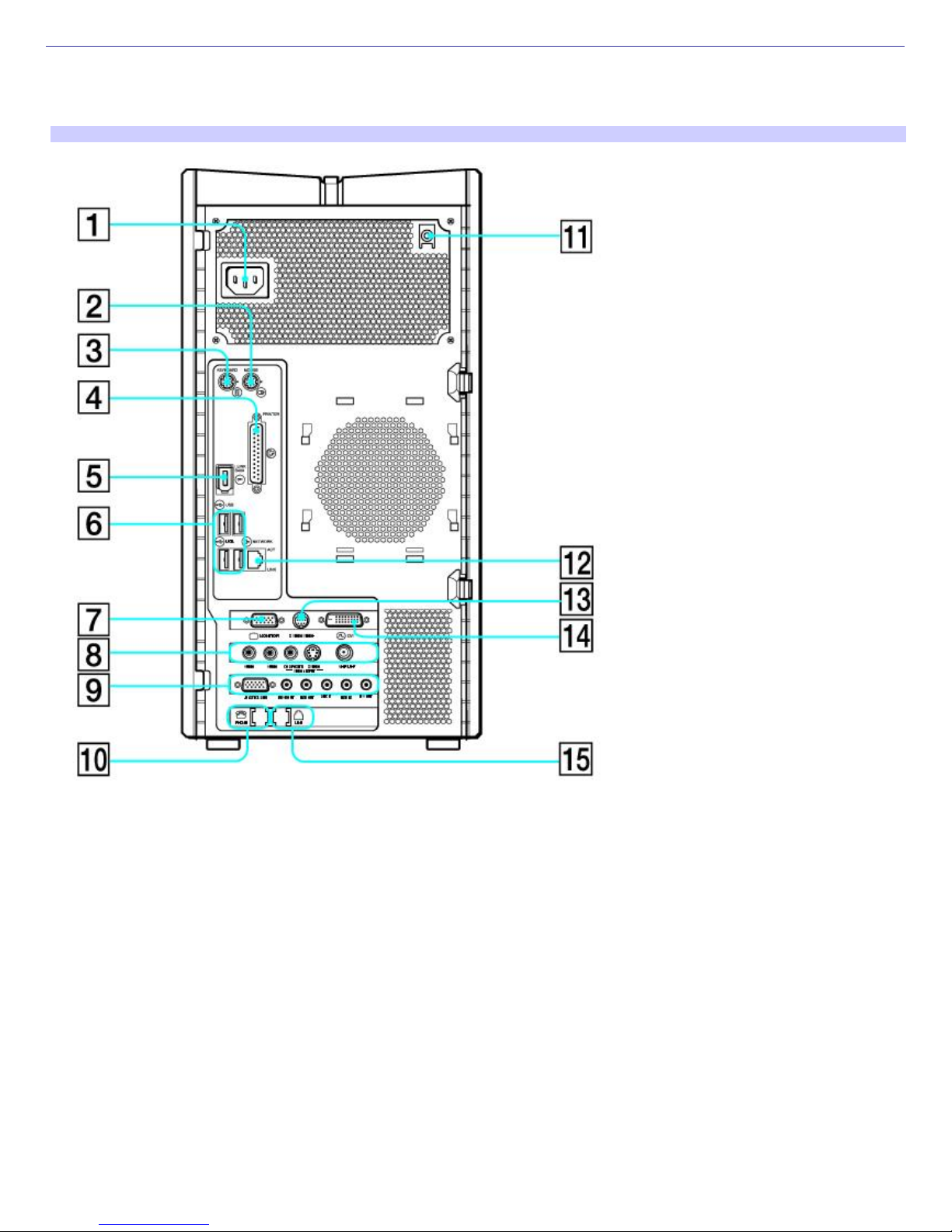

About the Back Panel

The back panel of your computer contains the ports for supplied and optional accessories. The icons on the back panel

locate and identify the ports on your computer. The location of certain ports and jacks may vary from the illustration, based

on the computer model purchased.

Back panel

1AC Input port

Connection for the supplied power cord.

2Mouse port

Connection for a PS/2®mouse.

3Keyboard port

Connection for a PS/2 keyboard.

4Printer port

Connection for a parallel device, such as a printer or scanner.

Page 10
