What is the LocationFree Base Station?

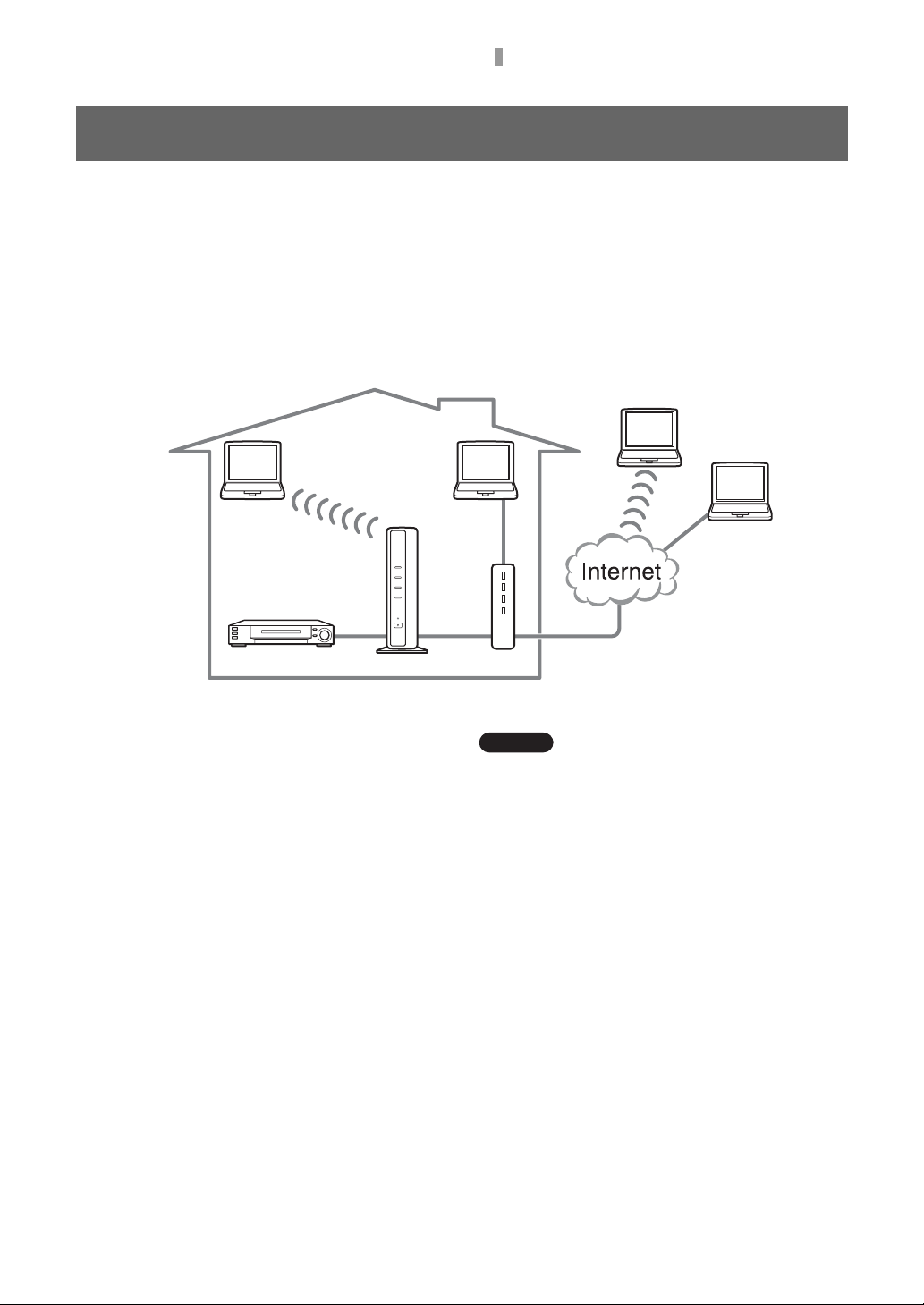

The LocationFree Base Station allows you to watch video both at home and on the go. Your home Base

Station can be accessed via the Internet while you are away from home by installing and configuring the

LocationFree Player on your computer or another LocationFree device*. Also, by placing the Base

Station in a central room, such as your living room, you can enjoy video from anywhere in your home

via your home LAN.

* LocationFree device: An equipment with LocationFree Player installed.

NetAV: A function that allows you to access the Base Station via a home network or the Internet to

watch video.

z Tips

• You cannot use NetAV when connected to the

Internet via an analog phone line that uses a dial-up

router or cellular phone.

• You may not be able to watch some video, DVDs,

and other media that are copyright protected with the

software.

• When the power is turned on, the Base Station

continuously emits a wireless signal.

• To use the NetAV function, we recommend a

broadband connection with upload and download

speeds of at least 300 kbps.

• NetAV cannot be used via a proxy server.

Notes

• The LocationFree Base Station transmits on the 2.4

GHz wireless channel. If other devices in the

vicinity emit electrical waves, such as a wireless

LAN device or microwave oven, the strength of the

wireless signal may decrease. The materials used in

the construction of a building’s walls and floors may

also affect the signal strength.

• When using NetAV, the Base Station, router, and

connected devices at home also need to be left on

when you are away from home so that you can

connect to them via the Internet.

• Use of the NetAV function for purposes other than

personal enjoyment is prohibited.

• You can use this Base Station as a Wireless Access

Point.

What is the LocationFree Base Station?

Computers

On the go

External device Base Station Home

Computers

Router

Identifying Parts and Controls (Base Station)

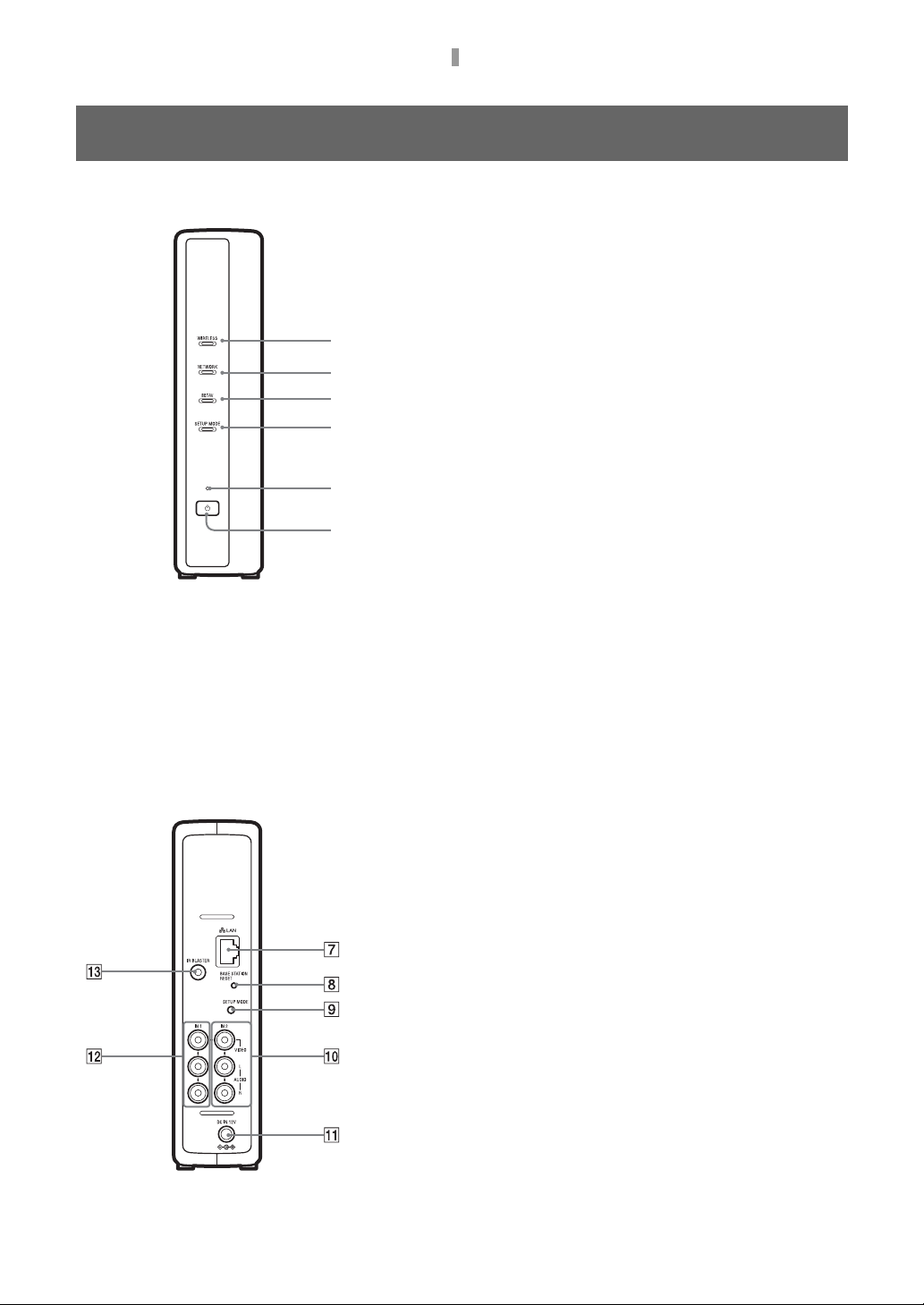

1WIRELESS LED

Indicates the wireless function status.

Green: Connected with the LocationFree device on the 2.4 GHz

channel.

Turns green momentarily, then turns off for 3 seconds: Wireless is

enabled, but wireless communication with a LocationFree

device is not taking place.

2NETWORK LED

Indicates the connection status to an external network, such as the

Internet.

Green slow blinking: Attempting to connect.

Green: Connected to the network. The LED blinks quickly when

data is transmitted.

Off: Not connected.

3NETAV LED

Indicates the connection status with the LocationFree device.

Green fast blinking: NetAV authentication has failed.

Green slow blinking: Attempting to connect with NetAV.

Green: Connected with NetAV.

Amber blinking: Updating Dynamic DNS.

Amber: Dynamic DNS failure.

Off: Not connected.

Red: The Base Station is being initialized.

4SETUP MODE LED (1page 11)

Amber: The Base Station is in Setup mode.

Amber blinking: Easy registration is possible.

5POWER LED (1page 12)

Green: The power is on.

Red blinking: A malfunction has occurred.

6POWER button (1page 12)

Turns the Base Station power on and off.

7LAN port

Connect a LAN cable.

8BASE STATION RESET button (1page 48)

Initializes all settings on the Base Station to the factory defaults.

9SETUP MODE button (1page 11)

Press to register LocationFree devices, or to make Base Station

settings.

0IN 2 (AUDIO/VIDEO) terminal (1page 8)

Connect the scart to A/V cable (supplied) or the A/V cable (RCA

pin cable, supplied).

qaDC IN jack (1page 12)

Connect the AC power adapter (supplied).

qsIN 1 (AUDIO/VIDEO) terminal

(

page 8)

Connect the scart to A/V cable (supplied) or the A/V cable (RCA

pin cable, supplied).

qdIR BLASTER port (1page 9)

Connect the IR Blaster (supplied).

Front

Rear

Base Station Preparations

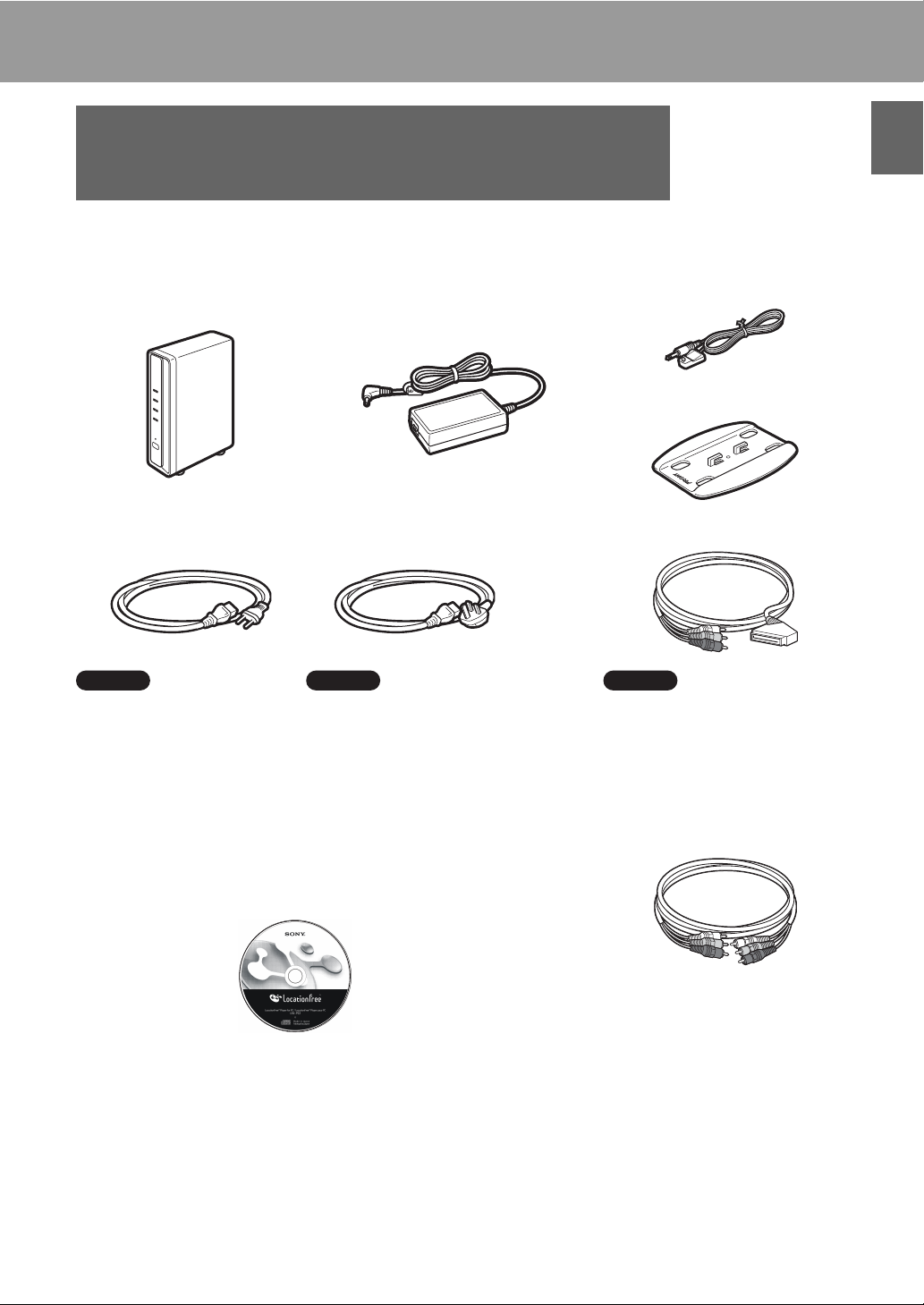

After unpacking, check that all the following items have been included:

Part 1

Checking the Package Contents

zBase Station (LF-B1) (1) zAC power adapter (AC-LX1B) (1) zIR Blaster (VM-50) (1)

zBase Station stand (1)

zMains lead (Type C-6) (1) zMains lead (Type BF) (1) zScart to A/V cable (1)

Notes

• Use this mains lead if you use

the unit outside the United

Kingdom.

• This mains lead may not be

supplied depending on the

country.

Notes

• Use this mains lead if you use the unit

in the United Kingdom.

• This mains lead may not be supplied

depending on the country.

Note

• You can use this cable only to

connect a Scart output socket of

an external device to the IN 1/2

terminal of a Base Station.

zLocationFree Player software CD-ROM (LFA-PC2) (1)

• LocationFree Player software*

• Operating Instructions (PDF file)

• License (text file)

A/V cable (RCA pin cable) (1)

zQuick Start Guide

zEUROPEAN GUARANTEE

INFORMATION

DOCUMENT (1)

* One Serial Key for LocationFree Player is supplied.

Base Station Preparations

To keep the Base Station stable, attach the Base

Station stand.

Notes

• The SSID, WEP key, and initial password are

printed on the side panel of the Base Station. Make

sure that you can easily see the side panel after

installing the Base Station. You will need this

information when you set up the Base Station and

make wireless connections.

• Place the Base Station at least 10 cm away from the

wall.

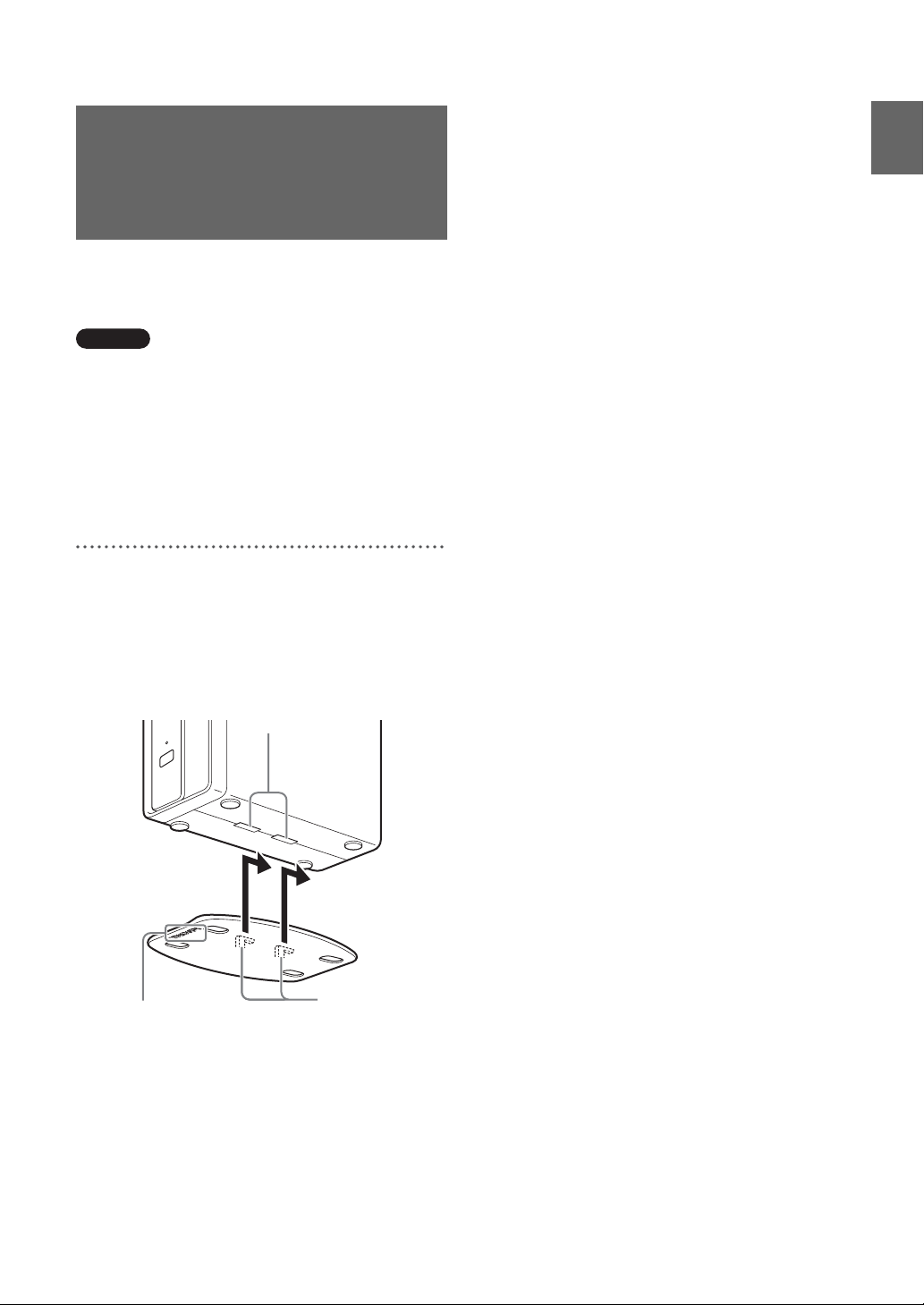

With the stand positioned so that the section

labelled as FRONT is toward the front of the Base

Station, insert the claws of the stand in the holes

on the bottom of the Base Station and slide the

stand toward the back of the Base Station to lock

it into place.

Part 2

Attaching the Base

Station Stand

Holes

Stand

Claws

FRONT

Base Station Preparations

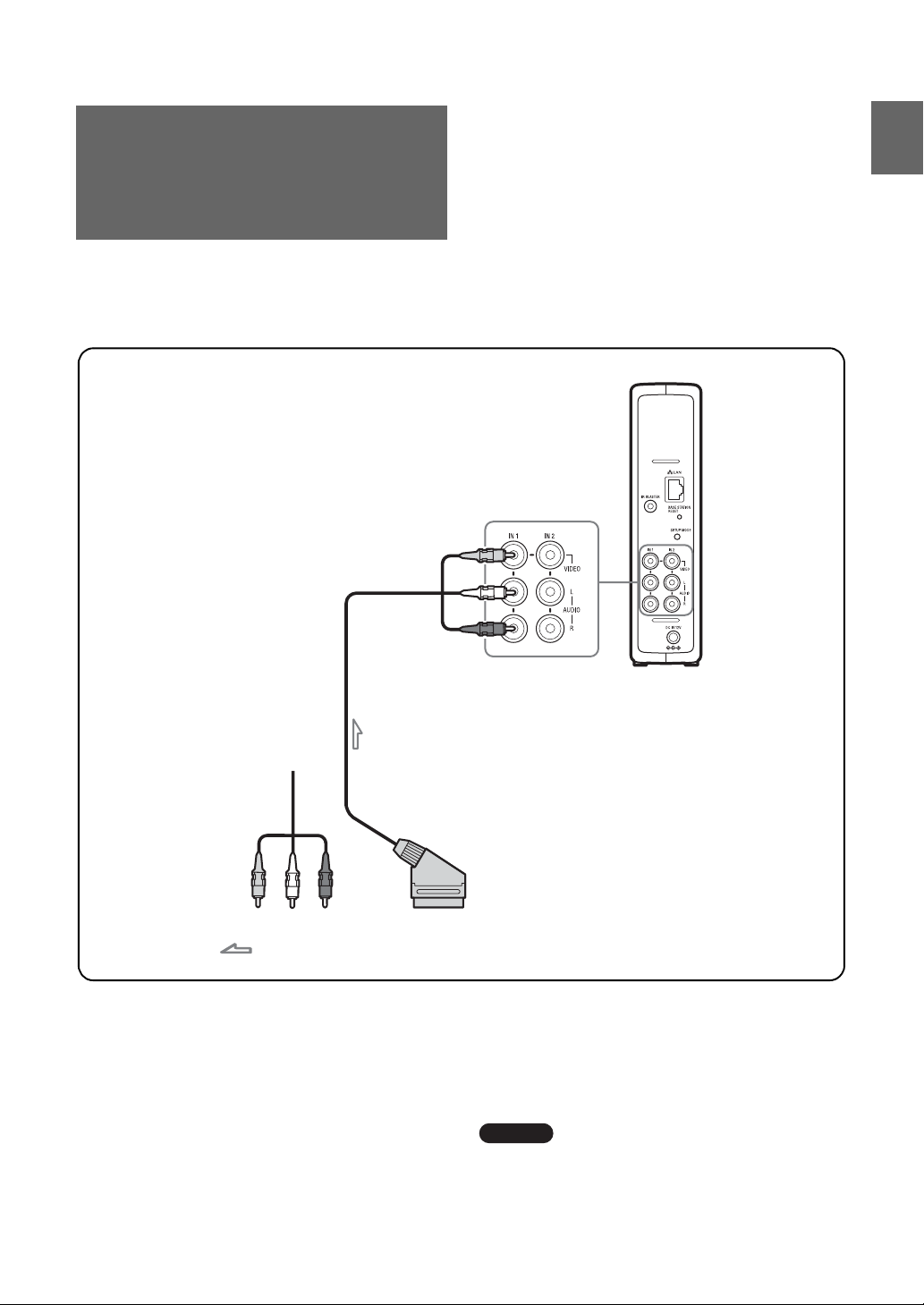

You can connect external devices featuring a scart output terminal or audio/video output terminals, such

as a STB, PVR, or DVD Recorder to the Base Station.

Refer to the operating instructions for each device.

Watching video with a connected

device

Select [Video 1] in the [Index] window. You can

operate the connected device using the on-screen

remote control. Open the [Index] window, select

[Video 1] or [Video 2] according to the input

terminal to which the device is connected.

z Tip

To operate external devices from the LocationFree

device, you must connect the supplied IR Blaster. For

details, see the next page.

Note

If you connect a DVD player to the Base Station via a

VCR, the VCR’s copy guard function may distort or

dim the DVD picture. Connect the DVD player

directly to the video input terminal on the Base Station.

Part 3

Connecting Other

Devices

to the scart socket

You can also connect to

the IN 2 terminal.

Rear of Base Station

:Audio/video signal flow

Scart to A/V cable (supplied)

A/V cable

(RCA pin cable)

(supplied)

to the audio/video

output terminals

Base Station Preparations

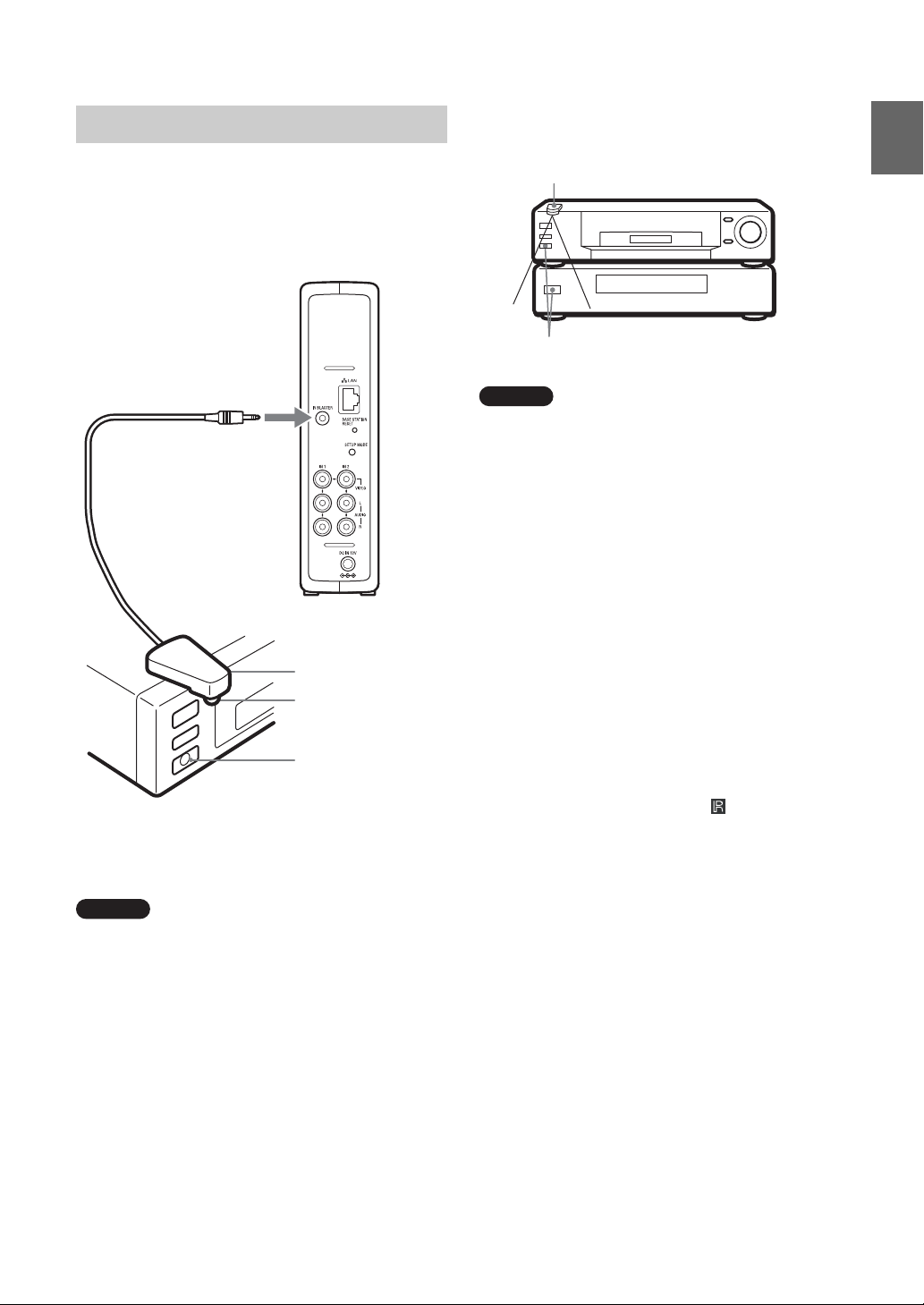

Attach the supplied IR Blaster to the device

connected to the Base Station.

You can control the device with the LocationFree

device’s on-screen remote control via the IR

Blaster.

With reference to the operating instructions of the

device, make sure to place the IR Blaster just

above the remote sensor.

Note

Do not remove the backing paper from the IR Blaster

yet.

After configuring LocationFree Player remote control

settings (1page 28), remove the backing paper from

the IR Blaster and fix it in place.

When operating two devices with the IR Blaster,

set the devices and the IR Blaster as shown.

Note

For details on setting up a device, refer to the operating

instructions of the device.

If the remote sensors on the two devices do not

line up like the picture above, you cannot control

them with the single supplied IR Blaster, and you

need to purchase a 3.5 mm jack splitter, such as

Sony Headphone Adapter PC-232S (not

supplied), and another IR Blaster. Connect the

plug adapter to the IR BLASTER port on the

Base Station and connect each IR Blaster to a port

on the adapter plug.

z Tips

• If the IR Blaster cable is too short, use the 3.5 mm

jack extension cable (not supplied).

• Remote sensors on Sony Recorders and other

products are identified with the symbol.

• You can set up two on-screen remote controls for

each video input connector. These on-screen remote

controls allow you to operate two devices connected

directly to the Base Station, and to control video

input via those devices.

Connecting the IR Blaster

IR Blaster

Infrared transmitter

Remote sensor

to IR BLASTER port

IR Blaster

Remote sensors

Setup and Connections

Use the following steps to configure.

Flow of Setup

STEP 1

Setup to watch Video at home

STEP 1-1 Turn on the Base Station (1page 12).

STEP 1-2 Connect a LocationFree device to the Base Station (1page 13).

• Connecting with a router (1page 14)

• Connecting directly to the Base Station by a wireless connection (1page 14)

Install LocationFree Player Software (1page 32)

STEP 1-3 Display Video on your LocationFree device (1page 15).

STEP 2

Setup to watch Video away from home

STEP 2-1 Check Your Internet Connection (1page 17).

STEP 2-2 Make Easy Setup Settings to Watch Video Away from Home

(1page 17).

If the NetAV Check is incomplete (1page 19).

Otros manuales para LocationFree LF-PK1

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Accesorios de computadora de Sony

Sony

Sony LocationFree LF-PK1 Manual de usuario

Sony

Sony LF-X1, LF-X5 Manual de instrucciones

Sony

Sony LocationFree LF-B20 Manual de servicio

Sony

Sony VAIO PCGA -PRV1 Manual de usuario

Sony

Sony Vaio LocationFree LF-V30 Manual de usuario

Sony

Sony PRSA-CL1 Manual de usuario

Sony

Sony Vaio VGP-PRT1 Manual de usuario

Sony

Sony MicroVault USM1GH Manual de usuario

Sony

Sony Vaio VGP-PRB1 Manual de usuario

Sony

Sony LF-X1, LF-X5 Manual de usuario

Sony

Sony BW-F101 Professionnal Disc for Data Drive Manual de usuario

Sony

Sony ERS-210 AIBO Dancer Manual de instrucciones

Sony

Sony USM512EX Manual de usuario

Sony

Sony PRSA-CL95 Manual de usuario

Sony

Sony MicroVault USM1GH Manual de instrucciones de instalación

Sony

Sony VAIO PCGA-PRGT1 Manual de usuario

Sony

Sony SFD200S-BP Manual de usuario

Sony

Sony LF-X1, LF-X5 Manual de usuario

Sony

Sony Vaio VGP-FL9 Manual de usuario

Sony

Sony Vaio VGP-PRFS1 Manual de usuario

Sony

Sony Vaio LocationFree LF-V30 Manual de usuario

Sony

Sony Vaio VGP-PRS2 Manual de usuario

Sony

Sony PCGA-PRV1 Manual de usuario

Sony

Sony PCGA-UFD5 Manual de instrucciones de instalación

Manuales populares de Accesorios de computadora de otras marcas

Motorola

Motorola ATRIX Manual de usuario

HP USB Media Docking Station Manual de usuario

Cherry

Cherry B.UNLIMITED 3.0 Manual de usuario

Logitech

Logitech IO2 Manual de usuario

ARM

ARM DSTREAM-ST Manual de usuario

Bartec

Bartec TC 7 Series Manual de usuario

Philips

Philips SPC3540 Manual de usuario

Logitech

Logitech mk220 Manual de usuario

SilverStone

SilverStone LC02 Manual de usuario

Flexispot

Flexispot ML2B Manual de usuario

Hamlet

Hamlet UNIVERSAL COVER 101 KBT2 Manual de usuario

Adam Equipment

Adam Equipment RS-485 Manual de usuario

Vivo

Vivo MOUNT-KB05-4DW Manual de usuario

Kvaser

Kvaser Memorator Professional Manual de usuario

DRC

DRC D-Imaging Manual de usuario

Sven

Sven Base 305 сombo Manual de usuario

Hama

Hama 108310 Manual de usuario

SpeechWare

SpeechWare FlexyMike FMK03 Manual de usuario
