Connections .................................................. 2
Listening to CDs or Radio Broadcasts
.................................................................... 5
Using the Hard Disk Drive ........................ 7
Using the Internet.....................................14
HDD Network Audio Component
NAC-HD1E
This manual explains the basic connections and
operations that will allow you to enjoy music on
your GIGA JUKE.
For a fuller explanation of the various operations,
refer to the supplied Operating Instructions.
Quick Connection and
Operation Guide
Troubleshooting ........................Back cover
NAC-HD1E.GB.3-213-272-11(1)
2GB
Connections

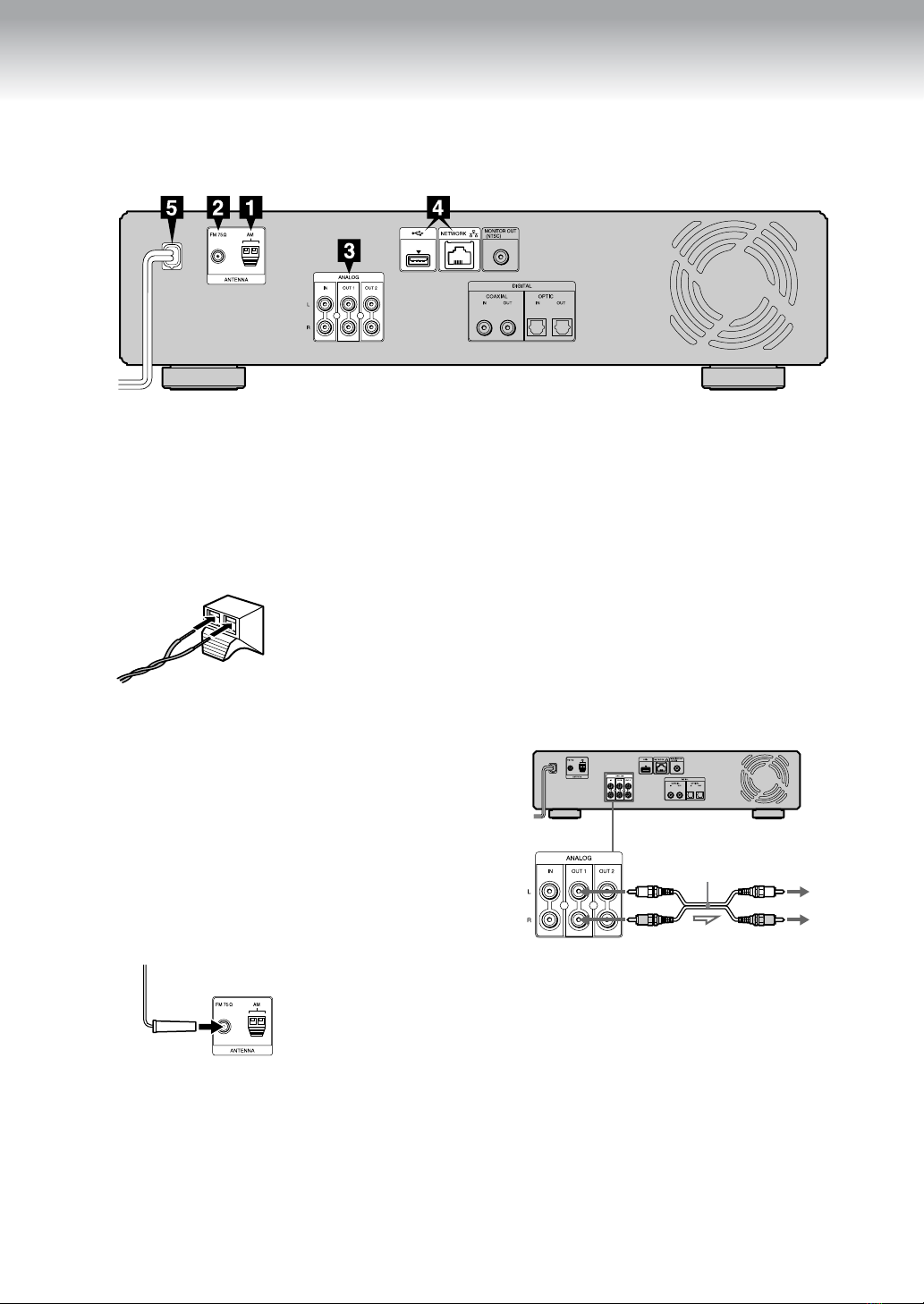

Connect the AM loop antenna.
Connect the AM loop antenna to the AM
antenna terminals on the unit.
Pull on the cord lightly aerwards to conrm
that the antenna is rmly connected.
Notes
Make sure to keep the AM loop antenna away
from the unit or other AV equipment as this may
produce noise in the radio reception.
Make sure the metal leads (not the part covered
with vinyl insulation) are securely inserted into
the antenna terminals.
Connect the FM wire antenna.
Connect the FM wire antenna to the FM
antenna jack on the unit.
FM wire antenna
Notes
Make sure not to wind the FM wire antenna up
during use.
Aer connecting the FM wire antenna, lay it out
so that it is as parallel to the oor as possible.
Connect the amplier.
Use the supplied audio connecting cord to
connect the ANALOG OUT 1 jacks of the
unit to the input jack (TAPE, MD, etc.) of the
amplier. Make sure to match the color-coded
cords to the appropriate jacks of the unit; red
(right) to red and white (le) to white.
Audio connecting
cord (supplied)
: Signal flow To the input jack (TAPE, MD,
etc.) of the amplifier
NAC-HD1E.GB.3-213-272-11(1)
3GB
When connecting the unit to a digital
amplier or other digital component
You can connect a digital amplier or other
digital component to the DIGITAL COAXIAL
OUT jack or DIGITAL OPTICAL OUT
connector of the unit. Refer to page 80 of the
operating instructions for details.
Connect the unit to a network.
If you have a network environment, you can
easily connect the unit to the Internet as
shown in the gure below.

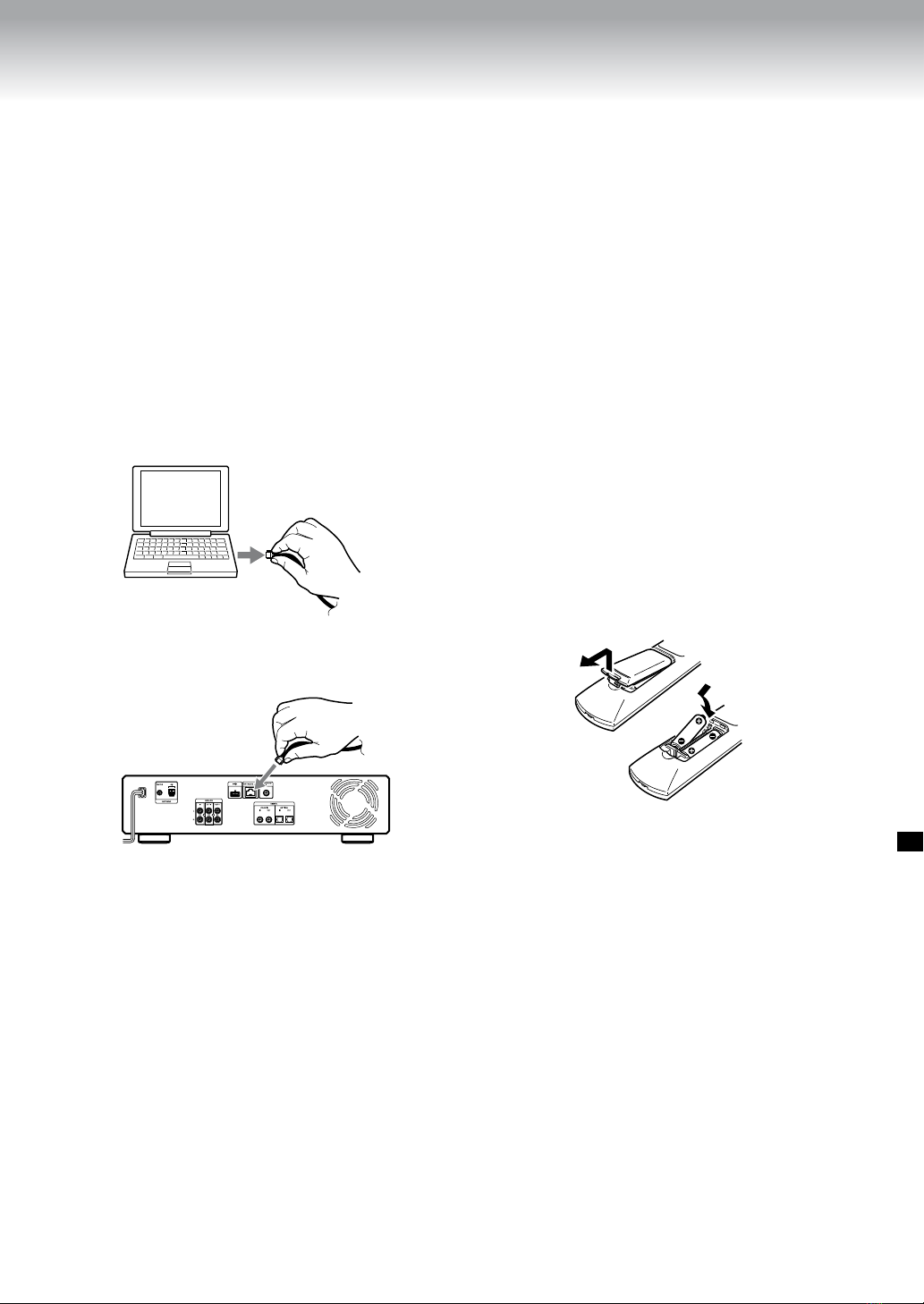

Disconnect the network cable from your
computer.
Connect the network cable to the
NETWORK port of the unit.
Notes
is method of accessing the Internet may not
be possible for some Internet service provider.
While the network cable is connected to the
unit as described above, you will not be able to
access the Internet on the computer. If you want
to connect to the Internet from the unit and
the computer at the same time, you must use a
separate network cable to connect the computer
to the network. For details on connections, refer
to the page 82 of the Operating Instructions or
the customer support site of Sony Europe, http://
support.sony-europe.com/ (for the customers in
Europe only).
Connect the power cord.
Connect the power cord to a wall outlet aer
all other connections have been made.
The unit turns on automatically and
starts making the initial settings. Wait
until the unit turns o again.
e initial settings may take a few minutes
depending on the unit’s condition.
WARNING
Do not disconnect the power cord while the initial
setup is in progress. Doing so may cause the unit to
malfunction.
Inserting the batteries into the
remote control
Insert two size-AA (R6) batteries (supplied)
into the remote control with the and
terminals matching the polarity markings.
When the remote control is no longer able to
operate the unit, replace both batteries with
new ones.
NAC-HD1E.GB.3-213-272-11(1)
4GB

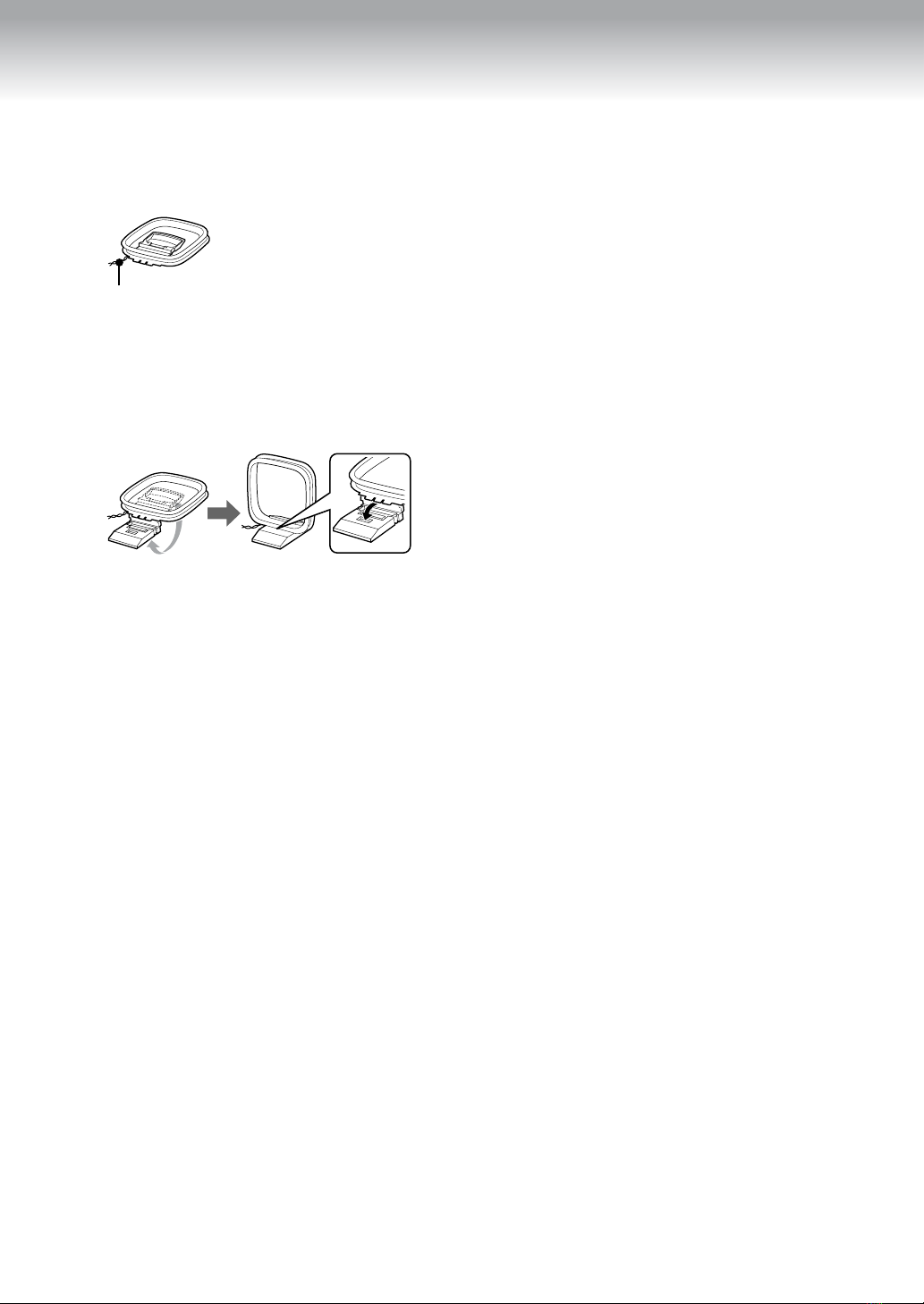

Setting up the AM loop antenna
1
Unroll the antenna cord from the antenna.
Antenna cord
2
Assemble the AM loop antenna so that it
stands vertically.
Unfold the stand, raise the antenna vertically
and insert it into the slot as shown in the gure
below.
NAC-HD1E.GB.3-213-272-11(1)
5GB

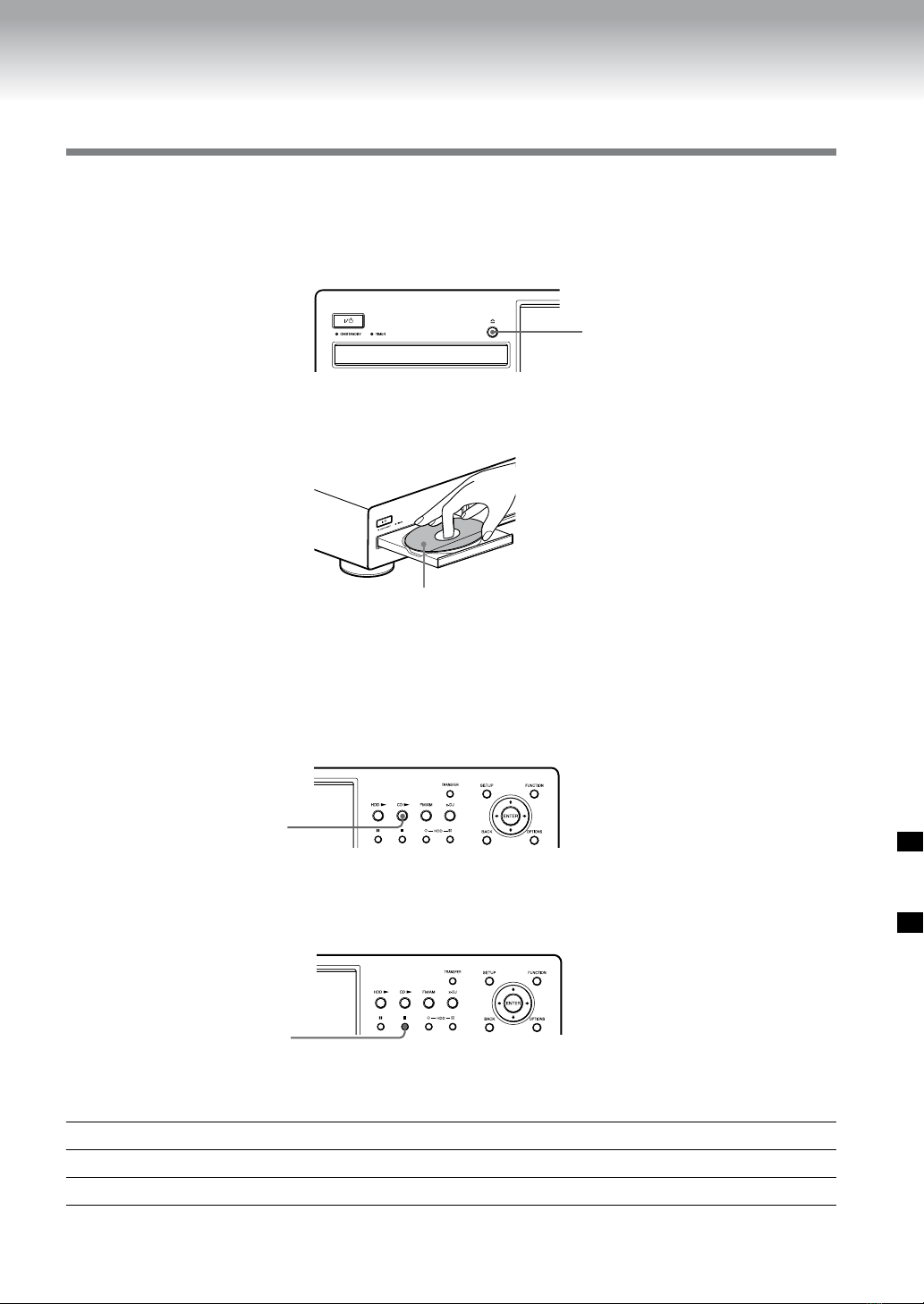

Listening to an audio CD
1
Press .
e disc tray slides out.
2
Place an audio CD into the disc tray.
Load a CD with the label side up.
3
Press CD.
e disc tray closes and playback starts.
When an audio CD is loaded, the unit automatically starts searching for title information
within its database or over the Web (when connected to the Internet).
CD
To stop playback
Press .
To perform other operations on the remote control
To pause playback Press .
To select the previous/next track Press /.
To fast rewind or fast forward Press and hold down /.
Listening to CDs or Radio Broadcasts
NAC-HD1E.GB.3-213-272-11(1)
6GB

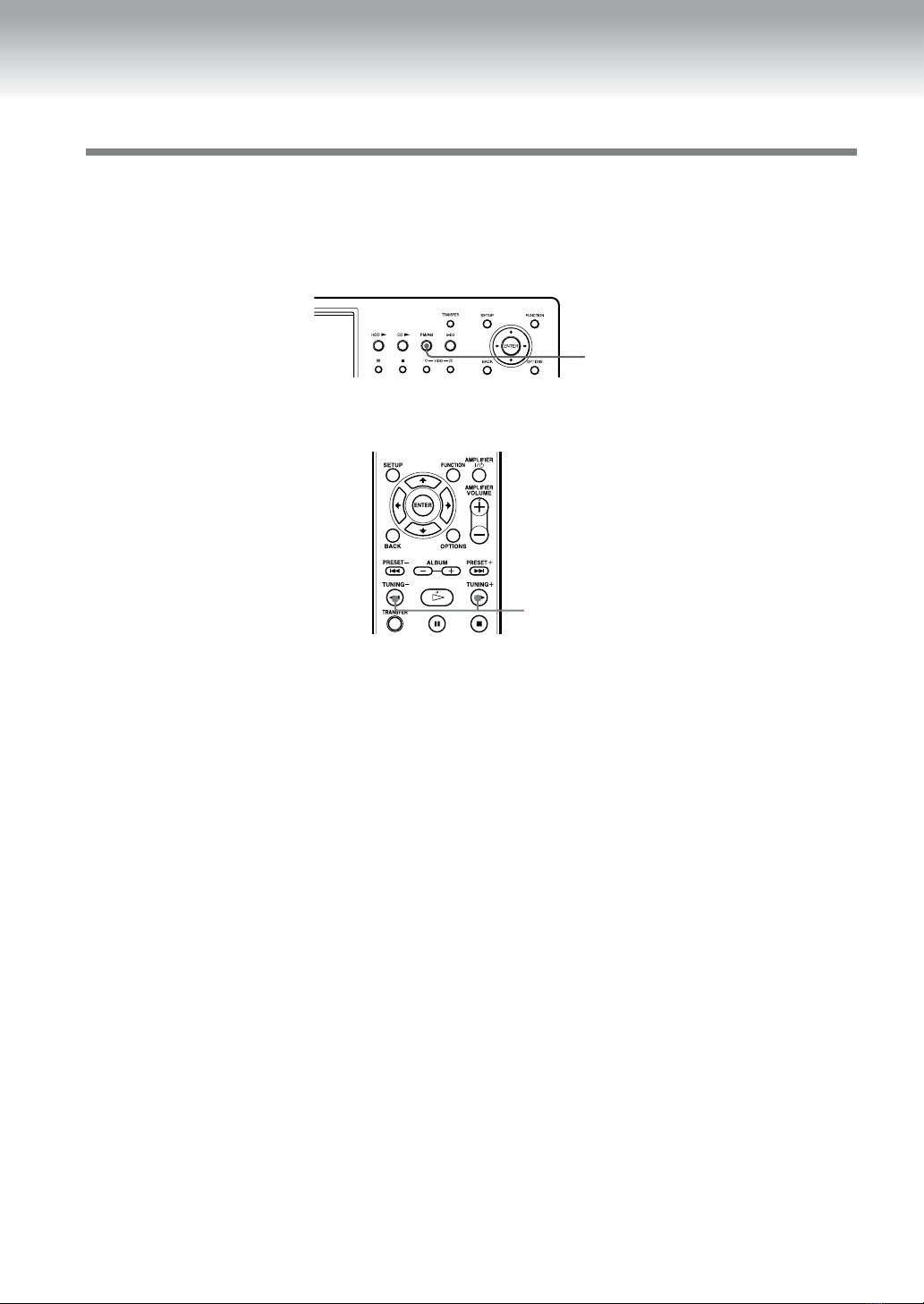

Listening to the radio
1
Press FM/AM.
Press the button repeatedly to select FM or AM.
FM/AM
2
Press TUNING + or TUNING – on the remote control to tune in a station.
TUNING +/–
Listening to CDs or Radio Broadcasts (continued)
NAC-HD1E.GB.3-213-272-11(1)
7GB

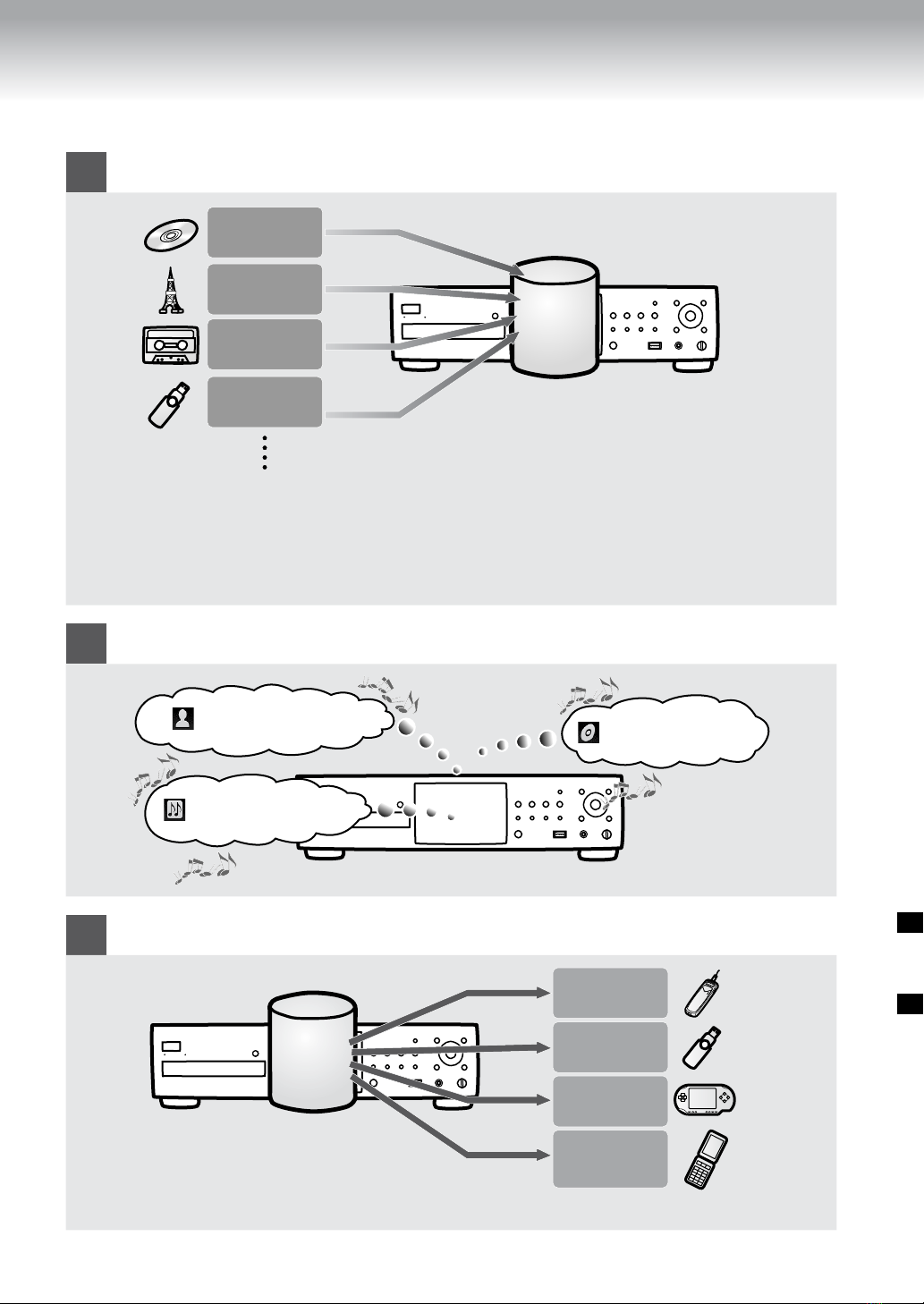

Using the Hard Disk Drive
For details on recording from an audio CD or importing from a USB storage device: See page 8
SSaving
Audio CDs
FM/AM
External
component*
USB storage
device
Hard Disk
Drive
(HDD)
* You can connect an analog component (such as a cassette deck) to the
ANALOG IN jacks of the unit to make analog recording.
You can connect a digital component (such as a digital tuner) to the
DIGITAL COAXIAL IN jack or DIGITAL OPTICAL IN connector of the
unit to make digital recording.
LListening
See page 11
Playback by artist
Playback by genre
Playback by album
TTransferring
For details on transferring data to a “WALKMAN”: See page 13
Hard Disk
Drive
(HDD)
USB storage
device
PSP
“WALKMAN”
phone (mobile
phone)
“WALKMAN”
NAC-HD1E.GB.3-213-272-11(1)
8GB
Saving ~ Recording from an audio CD ~

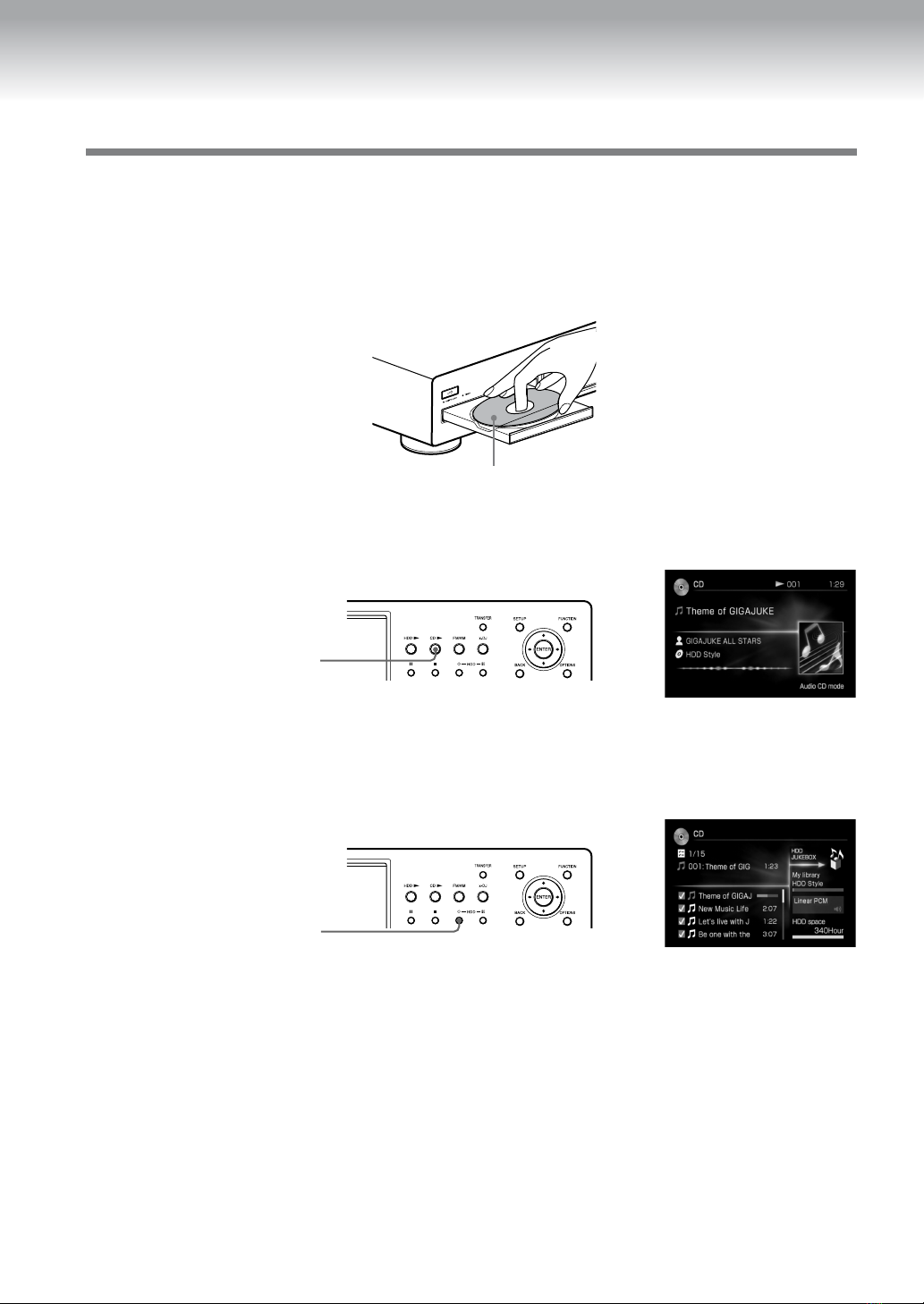

1
Press and place an audio CD into the disc tray.
e unit automatically starts searching for title information within its database or over the
Web (when connected to the Internet).
Load a CD with the label side up.
2
Press CDand start playback.
CD
3
Press HDD .
e unit starts recording from the rst track and adds title information to the recorded
tracks.
HDD
To stop recording
Press .
Using the Hard Disk Drive (continued)
NAC-HD1E.GB.3-213-272-11(1)
9GB
Saving ~ Importing files from a USB storage device ~

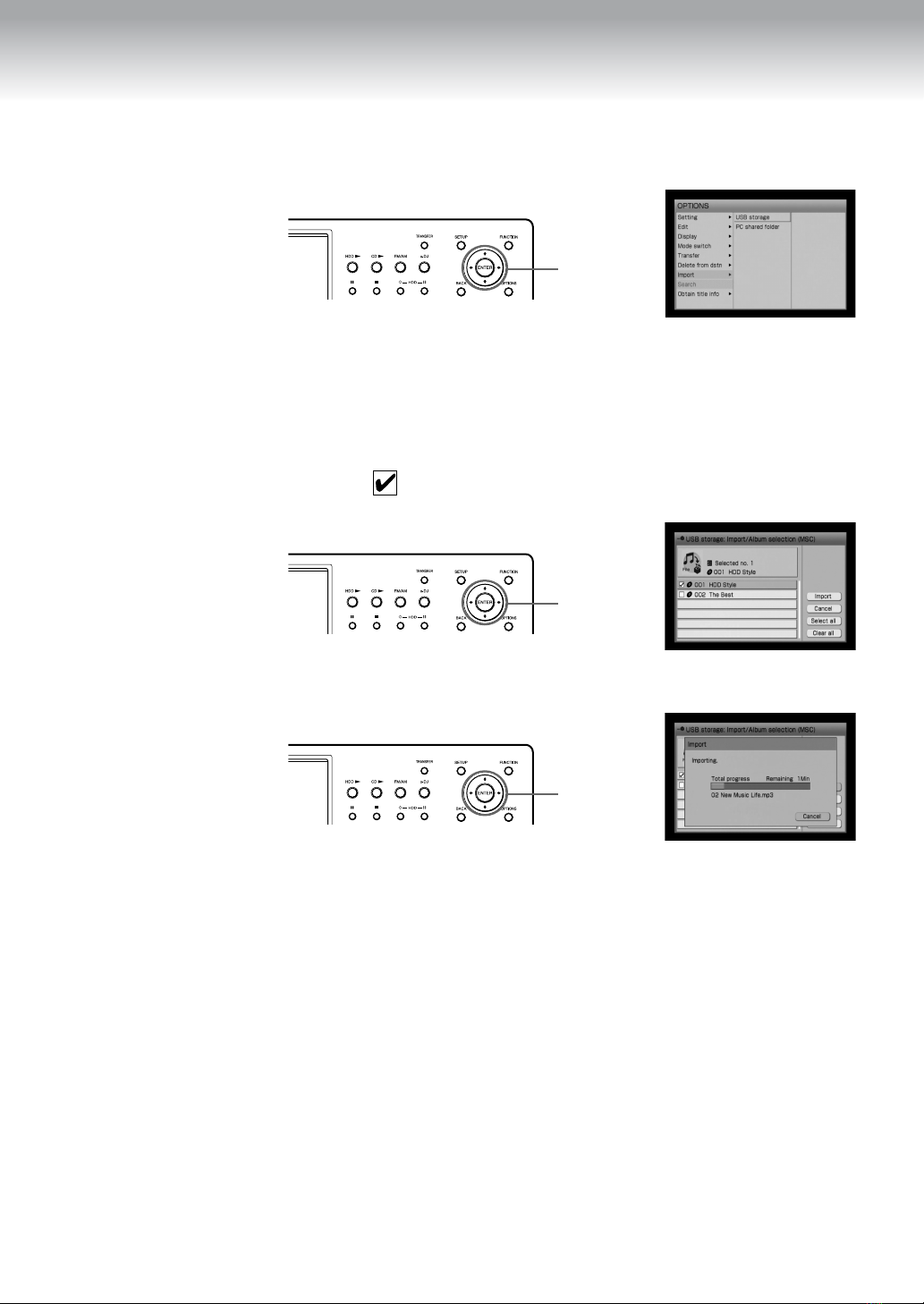

1
Press FUNCTION to display the Function menu.
FUNCTION
2
Press ///to select [HDD JUKEBOX].
///
3
Press ENTER.
ENTER
4
Connect the USB storage device to the USB connecting jack of the unit.
Refer to the operation manual of the USB storage device as well.
USB connecting jack
USB storage device
5
Press OPTIONS to display the Option menu.
OPTIONS
Continued
NAC-HD1E.GB.3-213-272-11(1)
10GB
6
Press //to select [Import] – [USB storage] and press ENTER.
///
ENTER
7
If the drive selection display appears, select the drive.
If the connected USB storage device has only one drive, the drive selection display does not
appear.
8
Press /to select the album you want to import and press ENTER.
e selected album is checked .
You can remove a check mark by pressing ENTER again.
//ENTER
9
Press to select [Import] and press ENTER.
/ENTER
To cancel importing
Press ENTER.
Notes
You can import a maximum of 10,000 tracks at a time.
If two USB storage devices are connected to both jacks (front and rear) at the same time, the device connected to the
front jack takes priority.
To record from an external component
Refer to page 32 of the supplied Operating Instructions for details on connections and operations.
Using the Hard Disk Drive (continued)
