Sony PCG-K Series Guía

PCG-K Series CD/DVD Drive

Replacement Instructions

FOR TECHNICAL SUPPORT IN THE US CALL TOLL FREE 866-651-7669 FROM 9:00 AM TO 11:00 PM EST

P/N T99860099 Rev. B 1/2

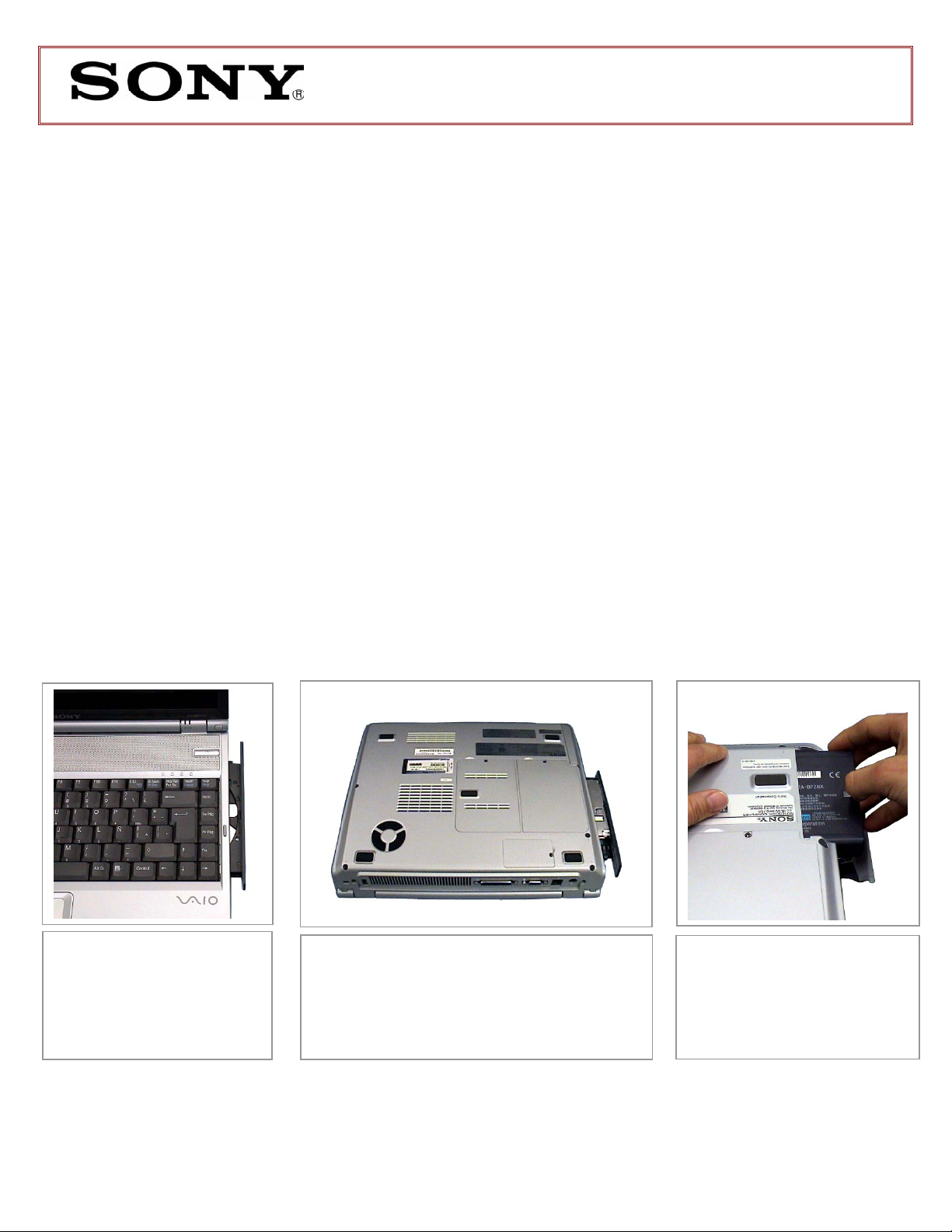

Step 1.Power on the PC,

eject the CD/DVD drive tray by

pressing the button on the drive

door. Next, properly turn off the

PC, leaving the tray ejected.

Step 2.Close the screen.

To prevent any kind of cosmetic damages and

scratches, place your PC upside down on top of a

soft surface with the ports facing you.

¾If after reading this information and instructions you are not comfortable doing the repair, please

call toll free 1-866-651-7669 for further assistance.

¾Follow the ESD (Electrostatic Discharge) damage prevention instructions:

oHold parts by the edges, away from exposed circuitry when possible.

oDo not walk around excessively as this promotes static build-up.

¾Sony will not be held responsible for any cosmetic scratches or damage due to placement of your

Notebook Computer on an inappropriate surface. Prior to initiating replacement of the CD/DVD

drive, set up an appropriate work environment; a towel spread across a clean table will help

prevent scratches.

¾Remove all jewelry before beginning the work, these could potentially scratch the surface of your

Notebook Computer or short out electronic components.

¾Electronic components shown in the pictures may differ slightly in appearance from the ones you

received.

IMPORTANT!

PLEASE READ BEFORE YOU START

Step 3. IMPORTANT!

Disconnect the power cord and

remove the battery. FAILURE TO DO

SO CAN RESULT IN DAMAGE TO THE

PC.

PCG-K Series CD/DVD Drive

Replacement Instructions

FOR TECHNICAL SUPPORT IN THE US CALL TOLL FREE 866-651-7669 FROM 9:00 AM TO 11:00 PM EST

P/N T99860099 Rev. B 2/2

Step 6.Rotate the PC. The CD/DVD drive should be facing

you. IMPORTANT! Ensure that all three (3) screws from step 5

have been removed. Slide open the CD/DVD drive by grasping

the tray at both sides as shown above and slowly pull the drive

away from the PC. NOTE: Some force may be required to

initiate the removal of the CD/DVD tray.

Step 7.Gently insert the new CD/DVD drive into the unit as

shown in the picture. Push both sides of the drive faceplate with

equal force toward the PC. When done properly, the drive

faceplate should be flat with the PC, and the screw holes should be

aligned with the screw openings.

Step 4.Using the enclosed magnetic screwdriver,

remove the marked screw and door as shown and set them

aside.

Step 8.Using the enclosed

magnetic screwdriver, reinstall

the three (3) previously

removed screws.

CAUTION! Be careful not to

drop screws into the inside of

the unit, and be careful to use

the correct screws, as shown

in the picture. Do not over

tighten the screws!

Step 9.Using the

enclosed magnetic

screwdriver, reinstall

the external door and

screw. Return the

defective CD/DVD

drive to Sony following

the included shipping

instructions.

Step 5.Using the enclosed magnetic screwdriver, remove

the three (3) screws as indicated in the picture. CAUTION! Be

careful not to drop screws into the unit

Faceplate should be flat

with edge of PC
