CD-ROM DRIVE

OWNER’S MANUAL

MODEL : CRD-8320B

To enjoy fully all the features and functions of your CD-ROM Drive,

Please read this Owner’s Manual carefully and completely.

CAUTION: The laser used in the CD-ROM drive can damage your eyes.

Do not attempt to open the cover.

To reduce the risk of electric shock, do not remove cover (or back).

No user-serviceable parts inside.

Refer servicing to qualified service personnel.

Use of controls or performance of procedures other than those specified herein may result in hazardous radiation

exposure.

This unit uses CD-ROM discs

marked with this symbol:

PRODUCT COMPLIES WITH DHHS

RULES 21 C.F.R. SUB-CHAPTER J,

IN EFFECT AT THE DATE OF MANUFACTURE.

CSA Notice

This class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment

Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur

du Canada.

WARNING: To reduce the risk of fire or electric shock,

do not expose this appliance to rain or moisture.

FCC COMPLIANCE STATEMENT

Note : This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an Authorized Service Center for help.

°§FCC WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void the

user's authority to operate the equipment.

°§This CD-ROM Drive is for use only with UL listed personal computers that have installation instructions

detailing user installation of card cage accessory.

E-2

FEATURES

ßö E-IDE interface

ßö 90ms Random access time

ßö Multimedia PC compatible

ßö Photo CD multisession support

ßö Small CPU bandwidth (MPC spec.)

ßö 32X-speed Max 4800KB/sec data transfer rate

ßö Intelligent 128KB data buffering system

ßö Horizontal/Vertical mounting support

ßö Tray Loading system without caddy

ßö Designed for internal mounting

ßö Emergency Eject Support

ßö Easy audio CD control button support

ßö Supports Windows 95 Plug and Play ATAPI protocol

SYSTEM REQUIREMENTS

An IBM PC or compatible with the following system components:

ßö IBM Compatible 486SX or above

(With PIO mode 4 recommended)

ßö A Minimum of 640K memory

ßö Floppy disk drive (3 1/2inch)

ßö MS-DOS version 3.1 or greater

ßö An open, front-facing, half-height drive bay.

ßö An existing IDE controller in your PC with an available cable connector or a new

IDE controller that you will install.

SUPPLIED ACCESSORIES

E-3

Item

Owner's Manual

Setup diskette

Audio Cable

Quantity

LOCATION AND FUNCTION OF CONTROLS

FRONT VIEW

®Á Headphone Jack

3.5mm jack for monitoring the audio signal from audio CDs.

Headphone Volume Control

Adjusts the headphone sound level.

®È Disc Drawer

Accepts a CD-ROM disc on its tray.

®Í Busy Indicator

The Busy Indicator lights during initialization and data-read operations.

®Î Emergency Eject Hole

Insert a paper clip here to eject the drawer manually or when there is no power.

®Ï Play/Skip Button

When an Audio CD is in the Disc Drawer, pressing this button will start playing

audio CDs from the first track. If an audio CD is playing, pressing this button will

skip to the next track.

®Ì Open/Close/Stop Button

This button is pressed to open or close the CD tray.

The button works only when power is applied to the drive.

If an audio CD is playing, pressing this button will stop it, and pressing it again

will open the tray.

E-4

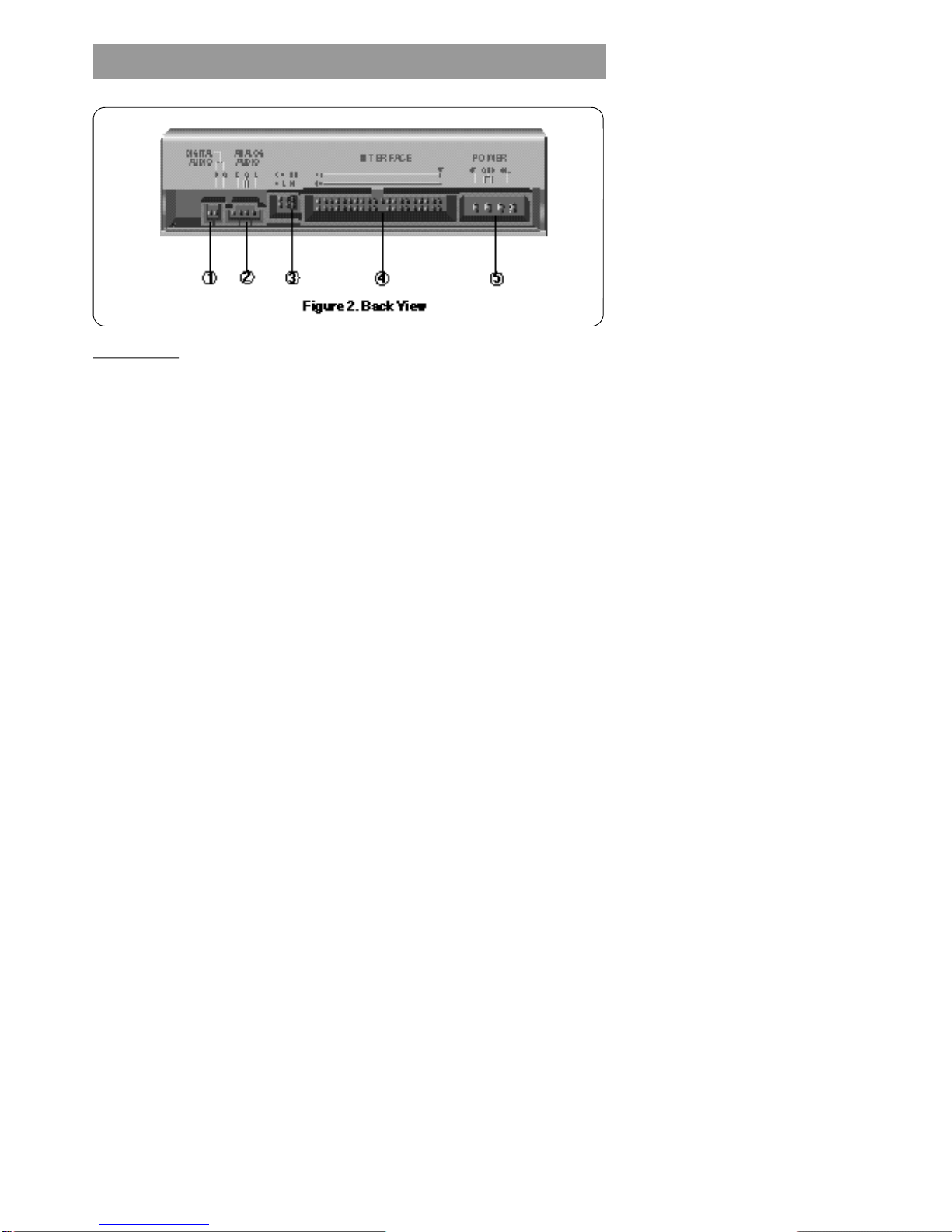

BACK VIEW

®Á Digital Audio Ouput Connector

This is a digital audio output connector or Video CD output connector.

You can connect this to the digital audio system or Video CD Board.

®Ë Analog Audio Output Connector

The Audio Output Connector connects to a sound card.

The supplied audio cable is a SoundBlaster®type cable. If you have a different

sound card, you will need to contact the sound card manufacturer to obtain the

proper cable for that card.

®È Master / Slave / CSEL Jumper

These three jumpers are used to set the CD-ROM Drive to either a Master, Slave,

or CSEL drive.

Refer to section HARDWARE INSTALLATION.

®Í Interface Connector

This 40-pin connector is used to transfer and control signals between the

CD-ROM Drive and your PC.

Connect the 40-pin IDE cable in your PC to this connector.

®Î Power-in Connector

Attach a power cable from the computer to this connector.

E-5

INSTALLATION, USAGE AND HANDLING PRECAUTIONS

E-6

ßö Installation

Avoid placing the drive in a location subject to :

- high humidity

- high temperature

- mechanical vibration

- direct sunlight

ßö Operation

-During operation, excessive vibration or a sudden jolt to the drive may cause a

malfunction.

-Avoid exposing the drive to sudden changes in temperature. This may cause

condensation to collect inside the drive.

ßö Transportation

- Always remove the disc before moving the drive.

HARDWARE INSTALLATION

This section describes how to install your CD-ROM drive into your computer.

Note: If you are not comfortable about opening your PC and attempting the CD-ROM

drive installation, many local computer shops can perform this service for a

reasonable cost.

This installation assumes you have a PC with an available connector on an IDE

interface cable. If your PC has an IDE hard drive, there is usually an available

connector in the middle of the same cable that attaches from the motherboard (or

controller card) IDE connector to the hard drive. If the last sentence does not describe

your system, you may need to purchase an IDE controller card to install this CD-ROM

drive. Inspecting and knowing your PC system will make your installation easier and

less time consuming.

A final note before installation: The cable connecting to your floppy disk drive is not an

IDE cable. Do not attempt to attach the CD-ROM drive to this cable.

If the CD-ROM drive is to be connected to the same cable as the hard drive, be sure

that the hard drive is set as master. Hard drives can be set as single, master, or slave.

Check your hard drive owner's manual or contact the hard drive manufacturer for

correct jumper settings.

SETTING MASTER / SLAVE JUMPER

*You will see three pairs of pins and a jumper (cap) at the back of the CD-ROM drive.

This jumper is used to set the CD-ROM Drive as a CSEL, MASTER, or SLAVE device in

your PC. Examples of how the jumper can be placed are shown in Figure 3 below.

*Move the jumper (clip on one pair of pins) from its default factory position (SLAVE), to

CSEL or MASTER as needed (see the following description for the setup that matches

your system), using the above diagram to place the jumper.

E-7

WARNING:

To protect the CD-ROM Drive, your computer, and peripheral devices from damage,

turn off their power before installing the drive.

WHEN USING A PRIMARY IDE CONTROLLER

Most PCs provide one IDE cable to support two devices (one for hard disk, the other for a

second hard disk or a CD-ROM drive). This IDE cable originates either on the motherboard

or on a controller card. This controller is termed the primary IDE controller, and the hard

disk attached that contains the operating system for boot-up is set up as the Primary

Master. Your CD-ROM drive should be set to the Slave mode.

E-8

Note:

Many older 1X and 2X CD-ROM drives used a 40 pin controller card that were not

IDE compatible. These were proprietary interface cards for use with a particular

model CD-ROM Drive. Many older Sony, Panasonic, and Mitsumi drives used 40 pin

proprietary interface cards. If you are upgrading from an older CD-ROM drive, your

new CD-ROM will not work on a proprietary interface card. You will need to buy a

secondary IDE controller card.

WHEN USING A SECONDARY CONTROLLER

*If your PC has an additional IDE controller on the motherboard or on a system slot, each

IDE device connected to the secondary IDE controller must also be set to the Master or

Slave mode. If you are connecting your CD-ROM drive to a secondary IDE card, and it is

the 1st device you are connecting to it, then set the CD-ROM jumper to the Master

position. If it is the 2nd device, set the CD-ROM jumper to the Slave position.

*Depending on the IDE card and whether the CD-ROM drive is a master or slave unit,

the diagram below represents the different ways in which the CD-ROM may be

configured in your PC. The table below the diagram shows the possible Jumper

placements that would correspond to each of the different configurations shown.

E-9

If you have the system with two IDE channels (in the case of an enhanced IDE PC),

do not install an IDE controller card in your system.

IDE Controller

Primary (1st IDE card)

Secondary (2nd IDE card)

PC Manual says use CSEL

CD-ROM Connection

Slave(Hard disk is Master)

Master(1st device on 2nd IDE Card)

Slave(2nd device on 2nd IDE Card)

Jumper Placement

SLAVE (default)

MASTER

SLAVE (default)

CSEL

MOUNTING THE CD-ROM DRIVE

Step 1. Turn off and unplug your

computer and all peripheral

devices attached to it.

Step 2. Remove the cover from your

computer.

Step 3. Remove the front panel from an

unused half-height slot.

Step 4. Slide the CD-ROM drive into the

half-height slot, and secure the

drive in place with screws and

brackets.

Note: If there is too much space between

the sides of the drive and the drive

bay, you may need to install spacer

brackets, available at your local

computer store.

Step 5. Push the power supply cable

connector firmly into the power in

connector.

E-10
