Sony CFS-717S Manual de usuario

CFS-717S

E Model

SERVICE MANUAL

RADIO CASSETTE-CORDER

Model Name Using Similar Mechanism CFS-W475

Tape Transport Mechanism Type MF-W475

MICROFILM

SPECIFICATIONS

Ver 1.1 1999. 11

— 2 —

TABLE OF CONTENTS

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK !OR DOTTED LINEWITH

MARK !ON THE SCHEMATIC DIAGRAMS AND INTHE PARTS

LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE

COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS

APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS

PUBLISHED BY SONY.

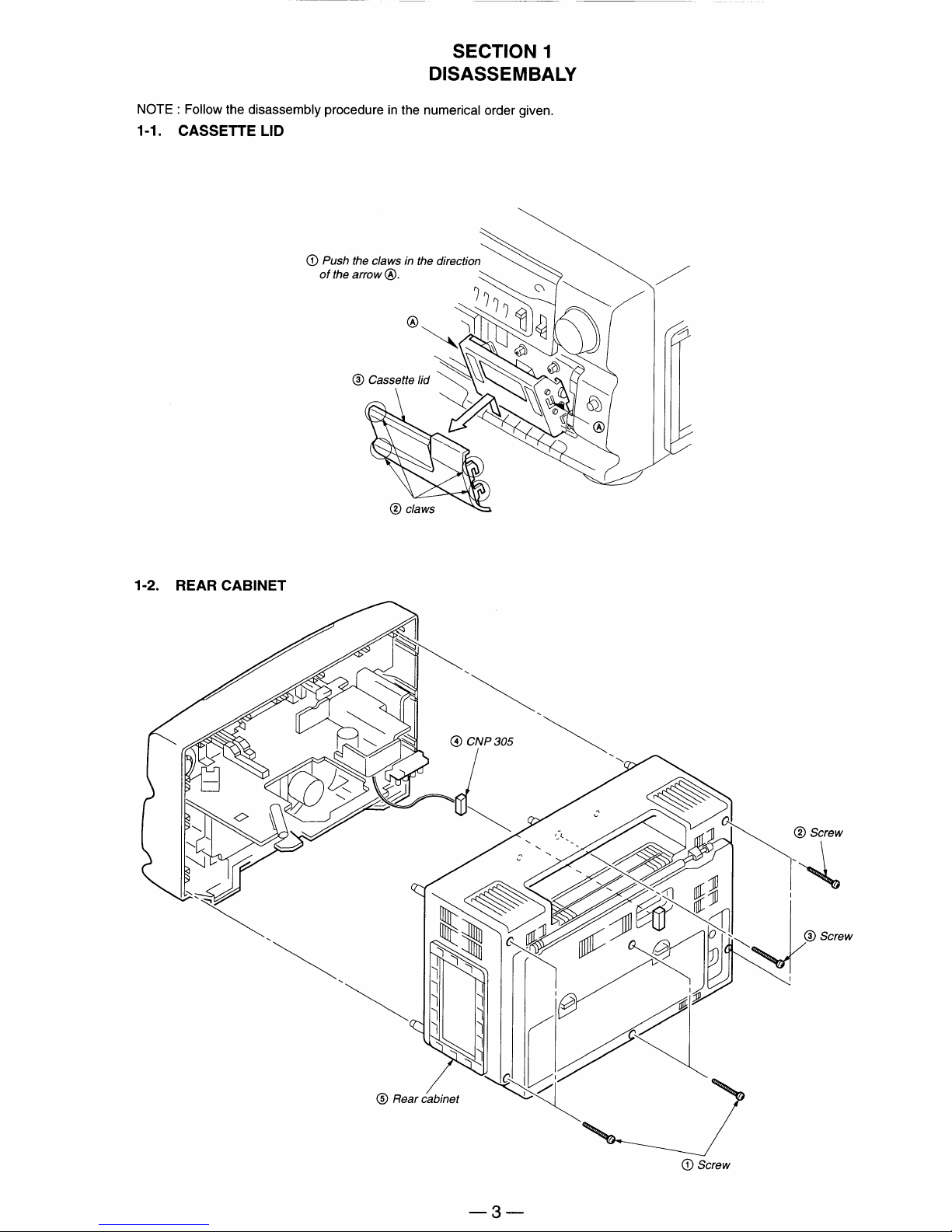

1. DISASSEMBLY

1-1. CASSETTE LID································································· 3

1-2. REAR CABINET ······························································· 3

1-3. MAIN BOARD ·································································· 4

1-4. POINTER SETTING ························································· 4

2. MECHANICAL ADJUSTMENTS............................ 5

3. ELECTRICAL ADJUSTMENTS

3-1. TAPE RECORDER SECTION ·········································· 5

3-2. RADIO SECTION ····························································· 6

4. DIAGRAMS

4-1. CIRCUIT BOARDS LOCAION ········································ 8

4-2. PRINTED WIRING BOARD ············································ 9

4-3. SCHEMATIC DIAGRAM — MAIN —·························· 13

4-4. SCHEMATIC DIAGRAM —TUNER — ························ 17

5. EXPLODED VIEWS

5-1. REAR CABINET SECTION ··········································· 20

5-2. FRONT CABINET SECTION ········································· 21

5-3. SPEAKER SECTION ······················································ 23

5-4. MECHANISM DECK SECTION-1 ································ 24

5-5. MECHANISM DECK SECTION-2 (DECK B) ·············· 25

5-6. MECHANISM DECK SECTION-3 (DECK B) ·············· 26

5-7. MECHANISM DECK SECTION-4 (DECK A) ·············· 27

5-8. MECHANISM DECK SECTION-5 (DECK A) ·············· 28

5-9. MECHANISM DECK SECTION-6 (DECK A) ·············· 29

5-10. MECHANISM DECK SECTION-7 (DECK A) ·············· 30

6. ELECTRICAL PARTS LIST ................................... 31

MODEL IDENTIFICATION

MODEL No. CFS-717S

RADIO CASSETTE-CODER

MODEL IDENTIFICATION

— Model Number Label —

E15, E23, EA, UAE, SP Model : Carved on cabinet (rear)

E15, E23, EA, UAE, SP model :

AC 110-120/220-240V ~ 50/60Hz 30W

• Abbreviations

E15 : AC 220-240V 110V-120V change over possible

Area model

E23 : AC 110-120V Area model

EA : Saudi Arabia model

UAE : United Arab Emirates model

SP : Singapore model

Ver 1.1 1999. 11

— 4 —

1-3. MAIN BOARD

1-4. POINTER SETTING

Screw

MAIN board

Screw

CNP 301

CNP 302

CNP 303

CNP 309

}

connector

CNP308

CNP304

{

Connectors

Screw

Connector

CNP306

Knob (VOLUME)

CNP 307

CNP 1

}

Connectors

Set the MAIN board.

Turn the gear to

direction of the arrow.

pointer

point

Ver 1.1 1999. 11

CFS-717S

— 9 — — 10 — — 11 — — 12 —

4-2. PRINTED WIRING BOARD

Ref. No. Location

D1 D-15

D2 D-15

D3 D-12

D301 B-12

D302 B-12

D303 B-12

D304 B-12

D305 B-12

D306 B-12

D307 B-12

D308 B-12

D309 C-12

D310 C-12

D311 C-12

D312 C-12

D313 C-12

D314 C-12

D315 C-12

D316 C-12

D317 C-12

D318 C-12

D319 C-12

D320 C-12

D321 E-13

D322 D-10

D323 E-10

D324 E-11

D325 F-11

D326 D-14

D333 E-11

D334 E-11

D335 C-9

D327 H-5

D328 H-5

D329 F-13

• Semiconductor

Location Ref. No. Location

D330 F-13

D331 G-13

D332 G-13

D901 F-20

D902 E-20

D903 F-20

D904 E-20

IC1 D-16

IC101 C-3

IC102 C-10

IC103 E-9

Q2 C-17

Q3 D-14

Q4 D-14

Q5 E-13

Q6 E-13

Q7 D-14

Q301 B-12

Q302 D-12

Q303 D-12

Q304 D-10

Q305 D-9

Q306 C-9

Q307 D-8

Q308 D-8

Q309 E-10

Q310 F-10

Q312 E-10

Q313 D-11

Note :

• : parts extracted from the component side.

• : indicates side indentified with part number.

• : Pattern on the side which is seen.

3456789101112131415161718192021

Ver 1.1 1999. 11

CFS-717S

4-3. SCHEMATIC DIAGRAM — MAIN —

— 13 — — 14 — — 15 — — 16 —

Ver 1.1 1999. 11

CFS-717S

— 17 — — 18 — — 19 — — 20 —

4-4. SCHEMATIC DIAGTAM —TUNER — • IC BLOCK DIAGRAM

SECTION 5

EXPLODEDVIEWS

NOTE:

• -XX, -X mean standardized parts, so they may

have some differences from the original one.

• Items marked “*” are not stocked since they

are seldom required for routine service. Some

delayshouldbeanticipated when ordering these

items.

• Hardware (# mark) list and accessories and

packing materials are given in the last of this

parts list.

• Themechanicalpartswith no reference number

in the exploded views are not supplied.

• Abbreviation

E15 : AC 220-240V110V-120V change

over possible Area model

E23 : AC 110-120V Area model

EA : Saudi Arabia model

UAE : United Arab Emirates model

SP : Singapore model

The components identified by mark !or

dotted line with mark !are critical for safety.

Replace only with part number specified.

5-1. REAR CABINET SECTION

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

1 3-008-673-01 LID (L), CST

2 3-008-674-01 LID (R), CST

*3 1-664-245-11 POWER BOARD, COMPLETE

*4 1-664-249-11 BATTERY BOARD

5 3-389-406-01 SPRING (-), BATTERY

6 3-389-405-01 SPRING (+), BATTERY

7 3-389-404-01 SPRING (+-), BATTERY

8 3-389-436-11 LID, BATTERY CASE

9 3-008-672-01 CABINET (REAR) (SP)

9 3-008-672-11 CABINET (REAR) (UAE)

9 3-008-672-21 CABINET (REAR) (EA, E15, E23)

10 3-009-234-01 TERMINAL BOARD, ANTENNA

11 3-008-704-01 WINDOW (CST/R)

12 3-008-703-01 WINDOW (CST/L)

13 7-685-647-11 SCREW (3X10), +BVTP

14 3-008-717-01 HANDLE (GRIP)

ANT1 1-501-900-11 ANTENNA, TELESCOPIC

!T901 1-431-082-11 TRANSFORMER, POWER

IC102 CXA1352AS

IC103LA4620

IC101 BA3426AS

IC1 CXA1538S

ANT 1

T901

{

#10

Ver 1.1 1999. 11

5-2. FRONT CABINET SECTION

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

— 21 — — 22 —

51 3-008-675-01 HOLDER, CST

52 3-008-714-01 SPRING (CST/R)

53 3-008-688-01 KNOB (VOL)

54 3-008-671-01 CABINET (FRONT)

*55 1-664-243-11 VOLUME BOARD

56 3-008-690-01 KNOB (FUNC)

57 3-908-999-01 FOOT

58 3-008-698-01 KNOB (DUB)

58 3-008-692-01 KNOB (MODE)

59 3-008-718-01 KNOB (DSS)

*60 A-3306-373-A MAIN BOARD, COMPLETE (EXCEPT EA)

*60 A-3306-408-A MAIN BOARD, COMPLETE (EA)

61 3-008-696-01 POINTER

62 3-008-695-01 GEAR (VARICON)

63 3-008-701-01 KNOB (DIR)

*64 A-3306-367-A PRE AMP BOARD, COMPLETE

*65 1-664-281-11 HEADPHONE BOARD

*66 1-664-248-11 LED BOARD

67 3-922-112-11 DAMPER

68 3-008-698-01 KNOB (DUB)

69 3-008-694-01 GEAR (IDL)

*70 1-664-246-11 TUNER BOARD

71 3-008-689-01 KNOB (FIN)

*72 3-389-396-11 ORNAMENT, FOOT

73 3-008-691-01 KNOB (TUN)

74 3-008-680-01 KNOB (ST/EJ)

75 3-008-677-01 KNOB (PLAY 1)

76 3-008-678-01 BUTTON (REW 1)

77 3-008-679-01 BUTTON (FF 1)

78 3-008-681-01 KNOB (PAUSE)

79 3-008-682-01 KNOB (REC)

80 3-008-683-01 KNOB (PLAY 2)

81 3-008-684-01 BUTTON (REW 2)

82 3-008-685-01 BUTTON (FF 2)

83 3-008-687-01 BUTTON (PAUSE 2)

84 3-008-686-01 BUTTON (ST/EJ 2)

85 3-008-699-01 DIAL, WINDOW (EXCEPT EA)

85 3-008-699-11 DIAL, WINDOW (EA)

86 3-008-713-01 LEVER (DIR)

87 3-008-693-01 GEAR (TUN)

88 3-008-697-01 KNOB (EQ)

89 4-951-620-01 SCREW (2.6X8), +BVTP

92 3-008-715-01 SPRING (DIR)

93 3-008-716-01 CHASSIS (DIR)

94 3-009-232-01 SLIDER (DIR)

95 3-009-233-01 SPRING (REC)

96 3-920-461-01 LEVER, OPERATION

97 3-920-462-01 LEVER, OPERATION

98 3-915-822-01 SHAFT, BUTTON LEVER

99 3-920-460-01 SHAFT, BUTTON LEVER

*100 3-920-464-01 FRAME, B

*101 3-920-459-01 FRAME, B

102 3-920-349-01 SCREW, CAMERA (S) TAPPING

103 3-920-343-01 SCREW, CAMERA (S) TAPPING

55 56

61 62

7257

not

supplied

93 92

63 8668

not supplied

Mechanism deck

(MF-717)

#9 #6

75767774

102 100

103101

Ver 1.1 1999. 11

— 23 — — 24 —

5-3. SPEAKER SECTION 5-4. MECHANISM DECK SECTION-1

MF-717

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

101 X-3373-527-1 SPEAKER BOX (FRONT)SUB ASSY(L)

101 X-3373-528-1 SPEAKER BOX (FRONT)SUB ASSY(R)

*102 3-008-700-01 STOPPER, CORD

103 3-008-707-01 CABINET (REAR) (L), SP

103 3-008-708-01 CABINET (REAR) (R), SP

104 3-908-999-01 FOOT

C125 1-123-546-11 CAP, ELECT (NON POLAR) 3.3uF

C225 1-123-546-11 CAP, ELECT (NON POLAR) 3.3uF

SP901 1-505-515-11 SPEAKER (10CM) (L WOOFER)

SP902 1-505-516-11 SPEAKER (5CM) (L TWEETER)

SP903 1-505-515-11 SPEAKER (10CM) (R WOOFER)

SP904 1-505-516-11 SPEAKER (5CM) (R TWEETER)

SP 901, SP903 #7 C125, C225

SP902,

SP904

101

not supplied

102

103

Ver 1.1 1999. 11
