Sony CDX-MP50 Manual de usuario
1
Ver 1.0 2003. 02
Model Name Using Similar Mechanism CDX-MP40
CD Drive Mechanism Type MG-393MC-121
Optical Pick-up Name KSS-721A
SERVICE MANUAL
E Model
CDX-MP50
CD player section
Signal-to-noise ratio 90 dB
Frequency response 10 – 20,000 Hz
Wow and flutter Below measurable limit
Tuner section
FM
Tuning range FM tuning interval:
50 kHz/200 kHz switchable
87.5 – 108.0 MHz
(at 50 kHz step)
87.5 – 107.9 MHz
(at 200 kHz step)
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Usable sensitivity 9 dBf
Selectivity 75 dB at 400 kHz
Signal-to-noise ratio 67 dB (stereo),
69 dB (mono)
Harmonic distortion at 1 kHz
0.5% (stereo),
0.3% (mono)
Separation 35 dB at 1 kHz
Frequency response 30 – 15,000 Hz
AM
Tuning range AM tuning interval:
9 kHz/10 kHz switchable
531 – 1,602 kHz
(at 9 kHz step)
530 – 1,710 kHz
(at 10 kHz step)
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Sensitivity 30 µV
SPECIFICATIONS
Power amplifier section
Outputs Speaker outputs
(sure seal connectors)
Speaker impedance 4 – 8 ohms
Maximum power output 52 W ×4 (at 4 ohms)
General
Outputs Audio outputs (front/rear)
Power antenna relay control terminal
Power amplifier control terminal
Inputs TelephoneATT control terminal
BUS control input terminal
BUS audio input terminal
Remote controller input terminal
Antenna input terminal
Tone controls Low: ±10 dB at 60 Hz (XPLOD)
Mid: ±10 dB at 1 kHz (XPLOD)
High: ±10 dB at 10 kHz (XPLOD)
• The tuner and CD sections have no adjustments.
Sony Corporation
e Vehicle Company
Published by Sony Engineering Corporation
9-877-091-01
2003B0400-1
© 2003. 02
– Continued on next page –
FM/AM COMPACT DISC PLAYER
2
CDX-MP50
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINE
WITH MARK 0ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
Power requirements 12 V DC car battery
(negative earth)
Dimensions Approx. 178 ×50 ×180 mm
(w/h/d)
Mounting dimensions Approx. 182 ×53 ×161 mm
(w/h/d)
Mass Approx. 1.2 kg
Supplied accessories Parts for installation and connections
Front panel case (1)
Card remote commander RM-X115
Note
This unit cannot be connected to a digital preamplifier or an equalizer
which is Sony BUS system compatible.
Design and specifications are subject to change without
notice.
NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic
breakdown because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic breakdown and also use
the procedure in the printed matter which is included in the repair
parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission, ob-
serve from more than 30 cm away from the objective lens.
Notes on Chip Component Replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
TEST DISCS
This set can playback CD-R and CD-ROM discs. The following
test discs should be used to check the capability:
CD-R test disc TCD-R082LMT (Part No. J-2502-063-1)
CD-RW test disc TCD-W082L (Part No. J-2502-063-2)
SERVICE NOTES

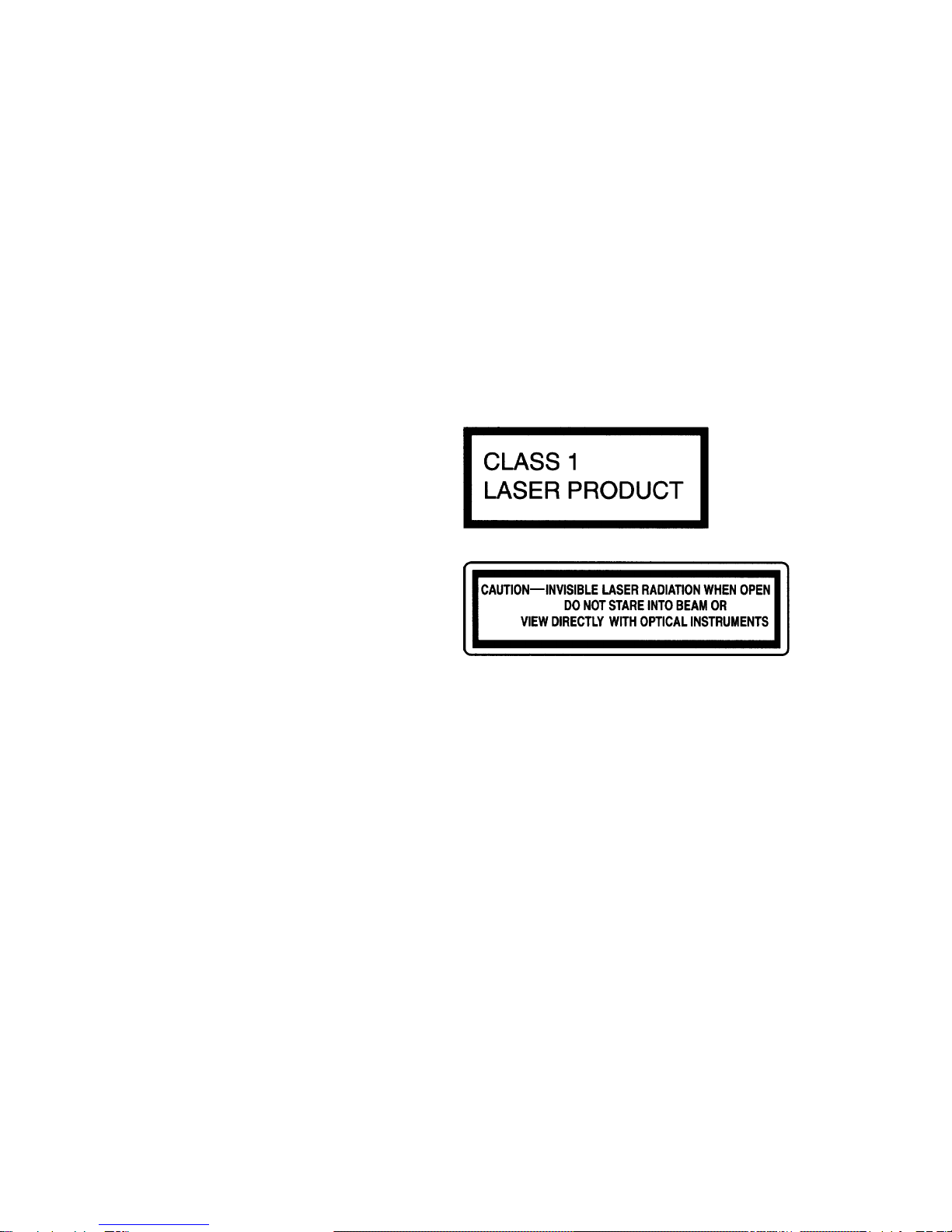

This label is located on the bottom of the chassis.
This label is located on the drive unit’s internal chassis.
3
CDX-MP50
Notes on CD-Rs (recordable CDs)/CD-RWs (rewritable
CDs)
This unit can play the following discs:
Type of discs Label on the disc
Audio CD
MP3 files
•Some CD-Rs/CD-RWs (depending on the equipment used for
its recording or the condition of the disc) may not play on this
unit.
•You cannot play a CD-R/CD-RW that is not finalized∗.
•You can play MP3 files recorded on CD-ROMs, CD-Rs, and
CD-RWs.
•A CD-R/CD-RW to which a session can be added can be played.
∗A process necessary for a recorded CD-R/CD-RW disc to be
played on the audio CD player.

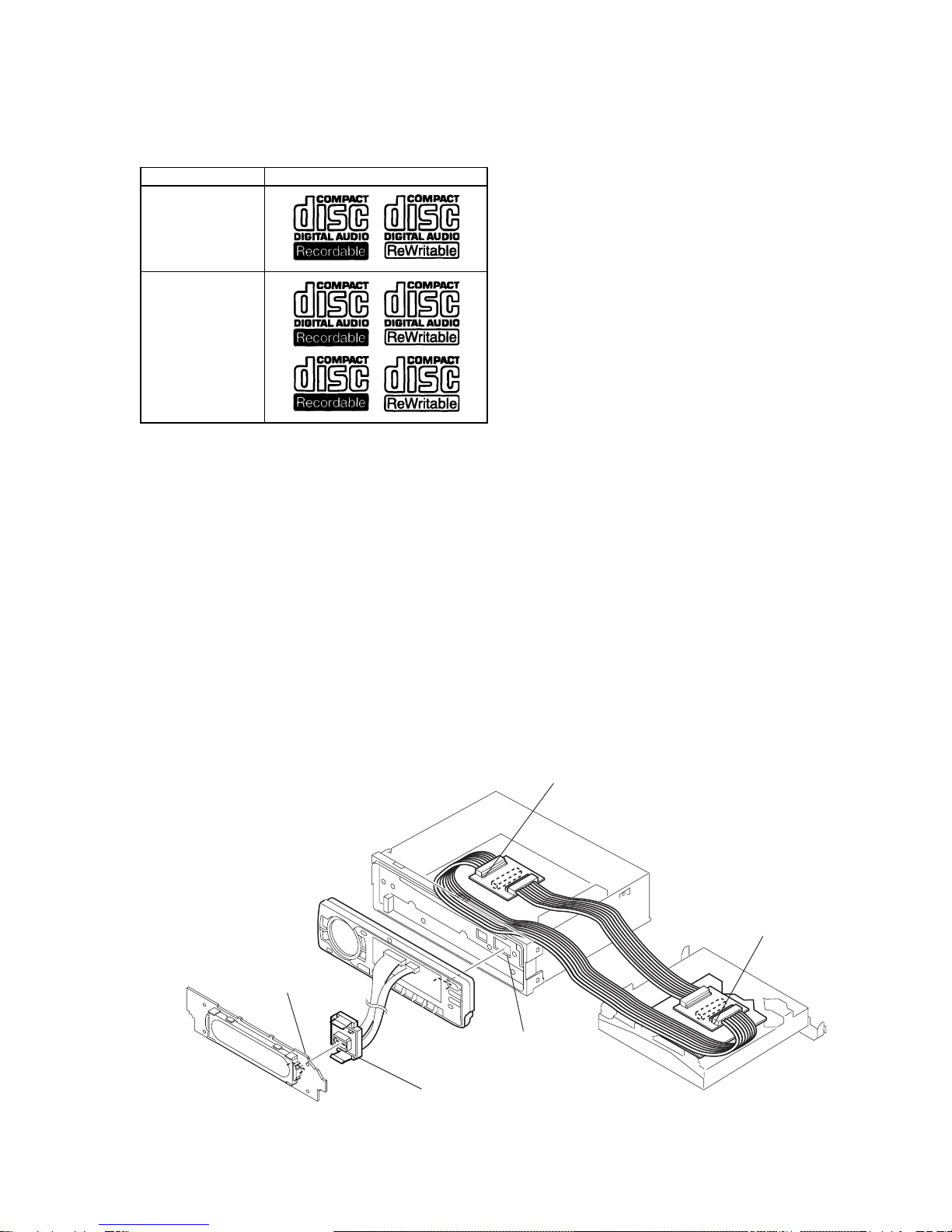

EXTENSION CABLE AND SERVICE POSITION
Whenrepairingorservicingthisset,connectthejig(extensioncable)
as shown below.
•Connect the MAIN board (CNP701) and the SERVO board (CN1)
with the extension cable (Part No. J-2502-062-1).
•Connect the RELAY board (CNP902) and the DISPLAY board
(CN901) with the extension cable (Part No. J-2502-071-1).
MAIN BOARD CNP701
J-2502-071-1
SERVO BOARD CN1
RELAY BOARD CNP902
DISPLAY BOARD CN901
4
CDX-MP50
TABLE OF CONTENTS
1. GENERAL
Location of Controls................................................................ 5
Connections ............................................................................. 5
2. DISASSEMBLY
2-1. Sub Panel Assy (CD)........................................................... 7
2-2. CD Mechanism Block ......................................................... 8
2-3. Main Board ......................................................................... 8
2-4. Heat Sink ............................................................................. 9
2-5. Chassis (T) Sub Assy .......................................................... 9
2-6. Lever Section..................................................................... 10
2-7. Servo Board ....................................................................... 10
2-8. Shaft Roller Assy, Load Sw Board.................................... 11
2-9. Floating Block Assy .......................................................... 12
2-10. Optical Pick-up Block .......................................................12
3. DIAGRAMS
3-1. IC Pin Descriptions ...........................................................13
3-2. Circuit Boards Location .................................................... 18
3-3. Block Diagram –CD Section–........................................... 19
3-4. Block Diagram –Main Section–........................................ 20
3-5. Block Diagram –Display Section–.................................... 21
3-6. Printed Wiring Boards –CD Mechanism Section–............ 22
3-7. Schematic Diagram –CD Mechanism Section (1/2)– ....... 24
3-8. Schematic Diagram –CD Mechanism Section (2/2)– ....... 25
3-9. Printed Wiring Boards –Main Section– ............................ 26
3-10. Schematic Diagram –Main Section (1/2)– ........................ 27
3-11. Schematic Diagram –Main Section (2/2)– ........................ 28
3-12. Printed Wiring Board –Relay Section– ............................. 29
3-13. Printed Wiring Board –Display Section– .......................... 30
3-14. Schematic Diagram –Display Section–............................. 31
3-15. IC Block Diagrams............................................................ 32
4. EXPLODED VIEWS
4-1. Chassis Section ................................................................. 34
4-2. Front Panel Section ........................................................... 35
4-3. CD Mechanism Section (1) ............................................... 36
4-4. CD Mechanism Section (2) ............................................... 37
4-5. CD Mechanism Section (3) ............................................... 38
5. ELECTRICAL PARTS LIST ........................................ 39
5
CDX-MP50

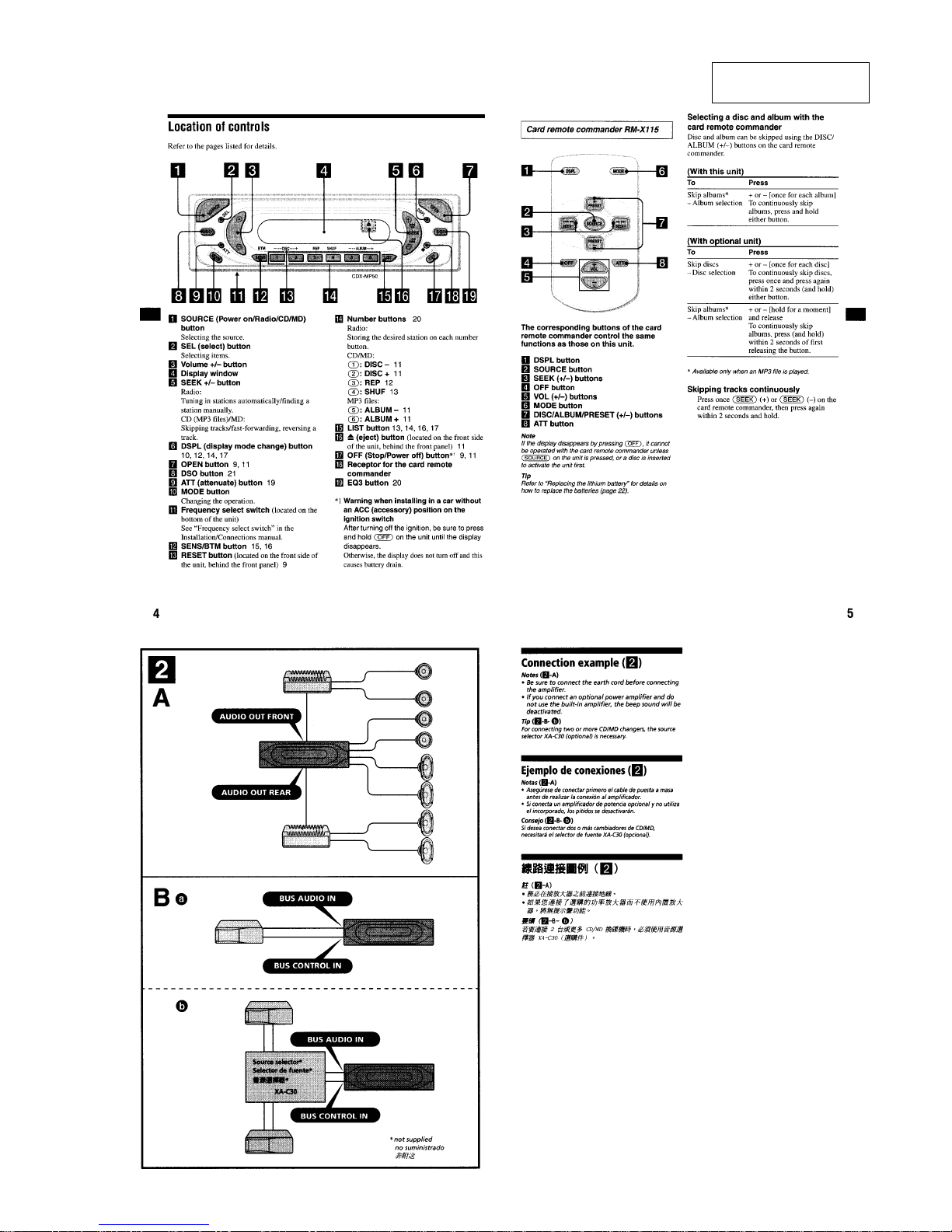

SECTION 1
GENERAL This section is extracted
from instruction manual.

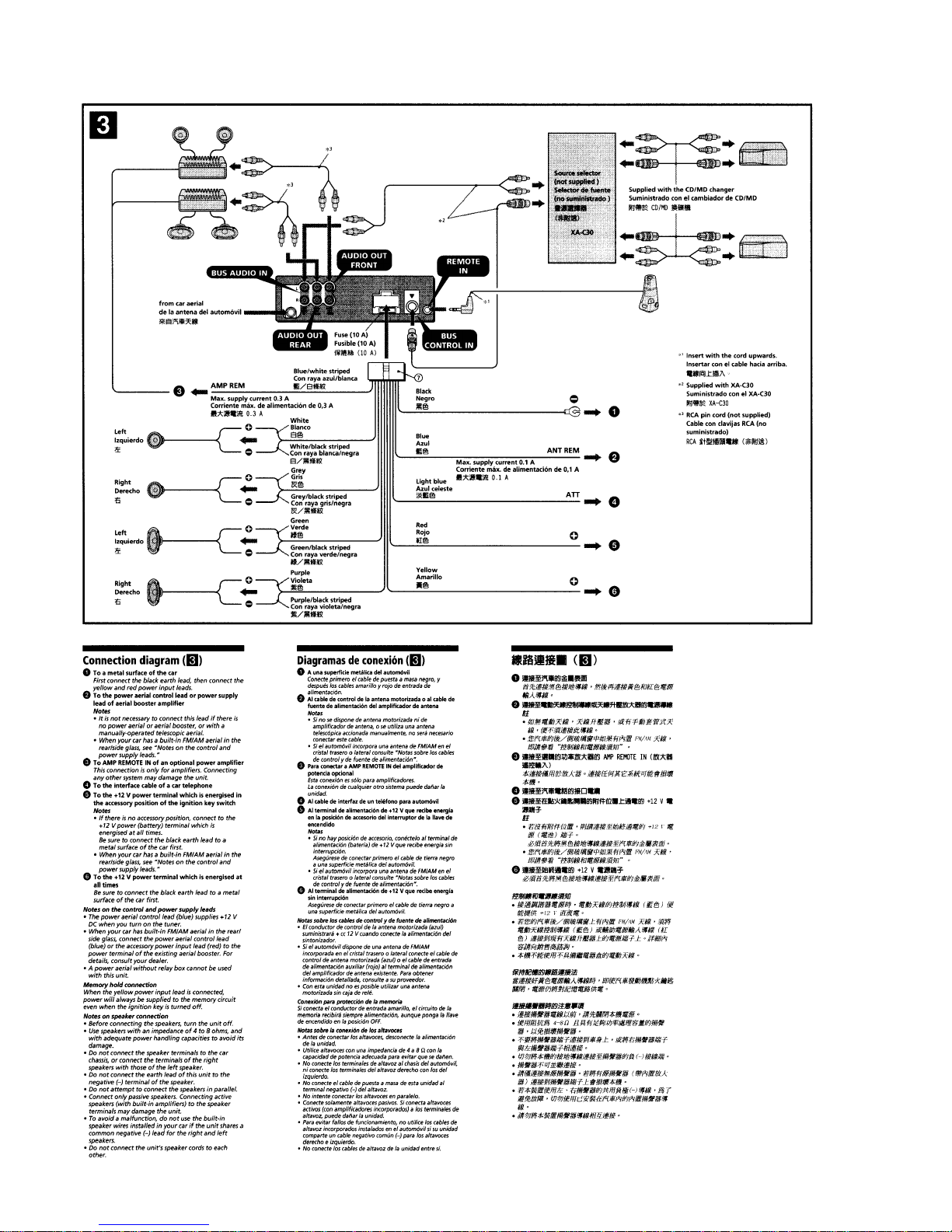

Connections
6
CDX-MP50
7
CDX-MP50

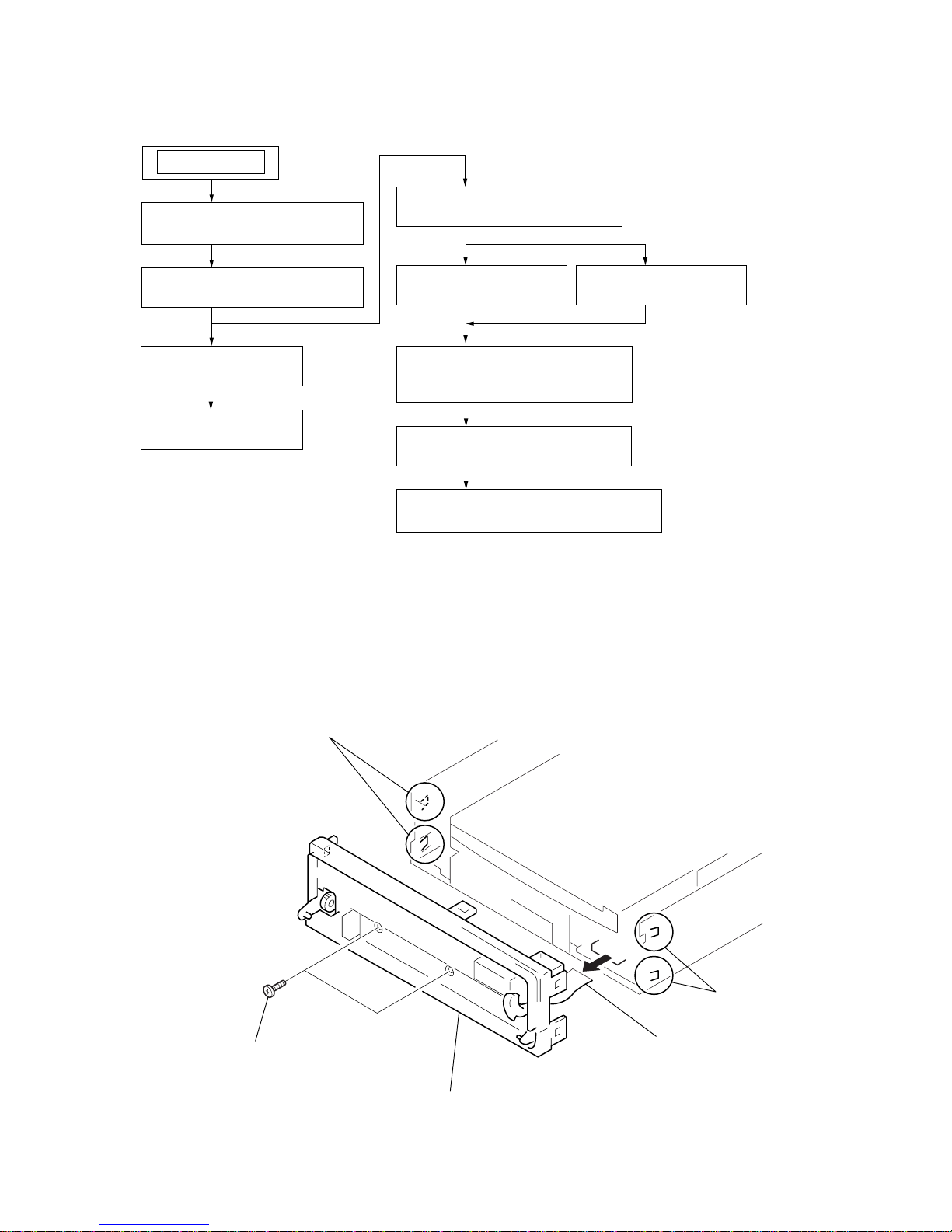

SECTION 2
DISASSEMBLY
Note : This set can be disassemble according to the following sequence.
Note : Follow the disassembly procedure in the numerical order given.
2-1. SUB PANEL ASSY (CD)
2-1. SUB PANEL ASSY (CD)
(Page 7)
2-2. CD MECHANISM BLOCK
(Page 8)
2-5. CHASSIS (T) SUB ASSY
(Page 9)
2-6. LEVER SECTION
(Page 10)
2-8. SHAFT ROLLER ASSY,
LOAD SW BOARD
(Page 11)
2-9. FLOATING BLOCK ASSY
(Page 12)
2-10. OPTICAL PICK-UP BLOCK
(Page 12)
SET
2-7. SERVO BOARD
(Page 10)
2-3. MAIN BOARD
(Page 8)
2-4. HEAT SINK
(Page 9)
4
CN802
5
sub panel assy (CD)
3
claws
2
claws
1
PTT 2.6x6
8
CDX-MP50

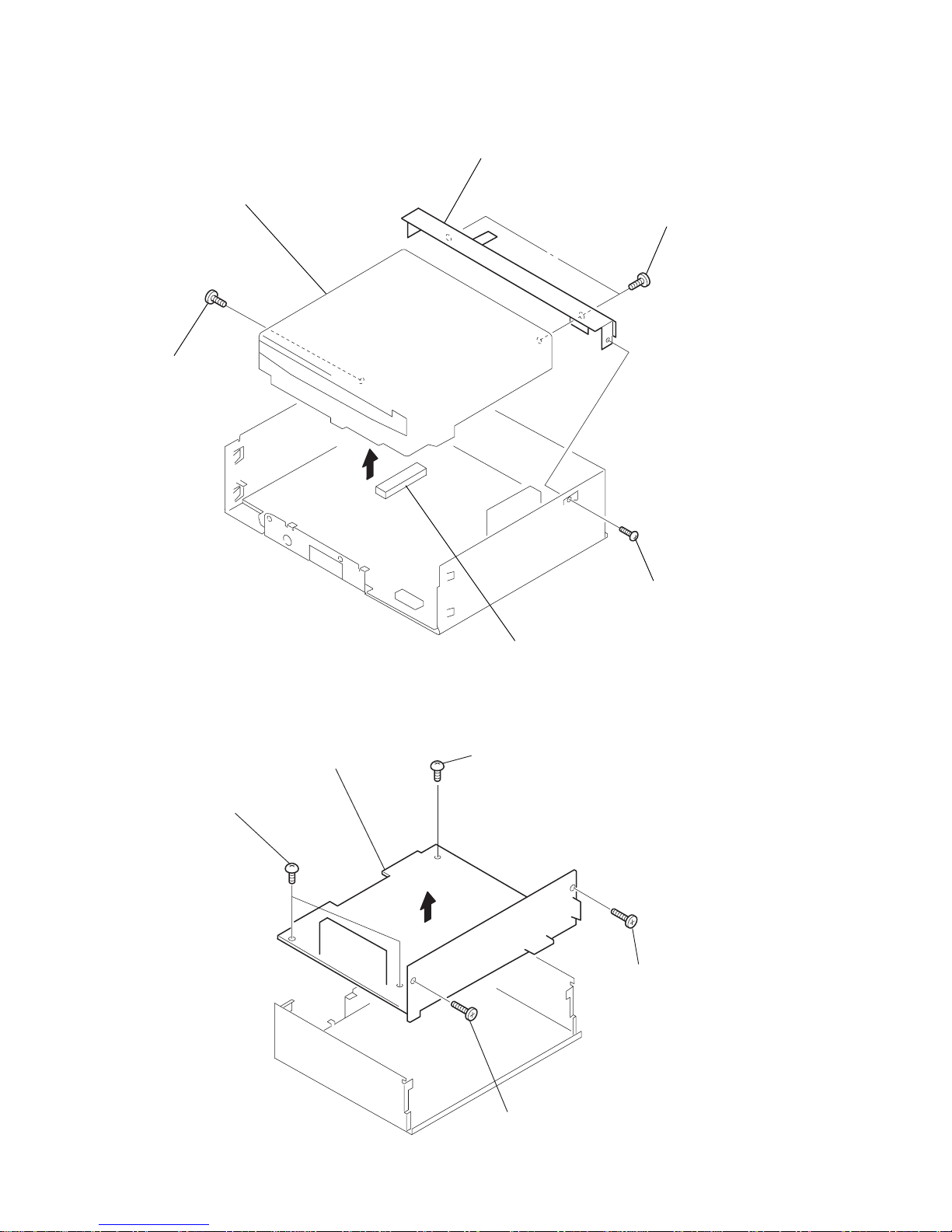

2-2. CD MECHANISM BLOCK
2-3. MAIN BOARD
1
PTT 2.6x6
6
PTT 2.6x
6
7
bracket (CD)
2
PTT 2.6x6
5
CD mechanism block
4
CNP701
3
1
PTT 2.6x8
2
PTT 2.6x
8
3
screw (+BTT)
4
screws (+BTT)
5
MAIN board
9
CDX-MP50

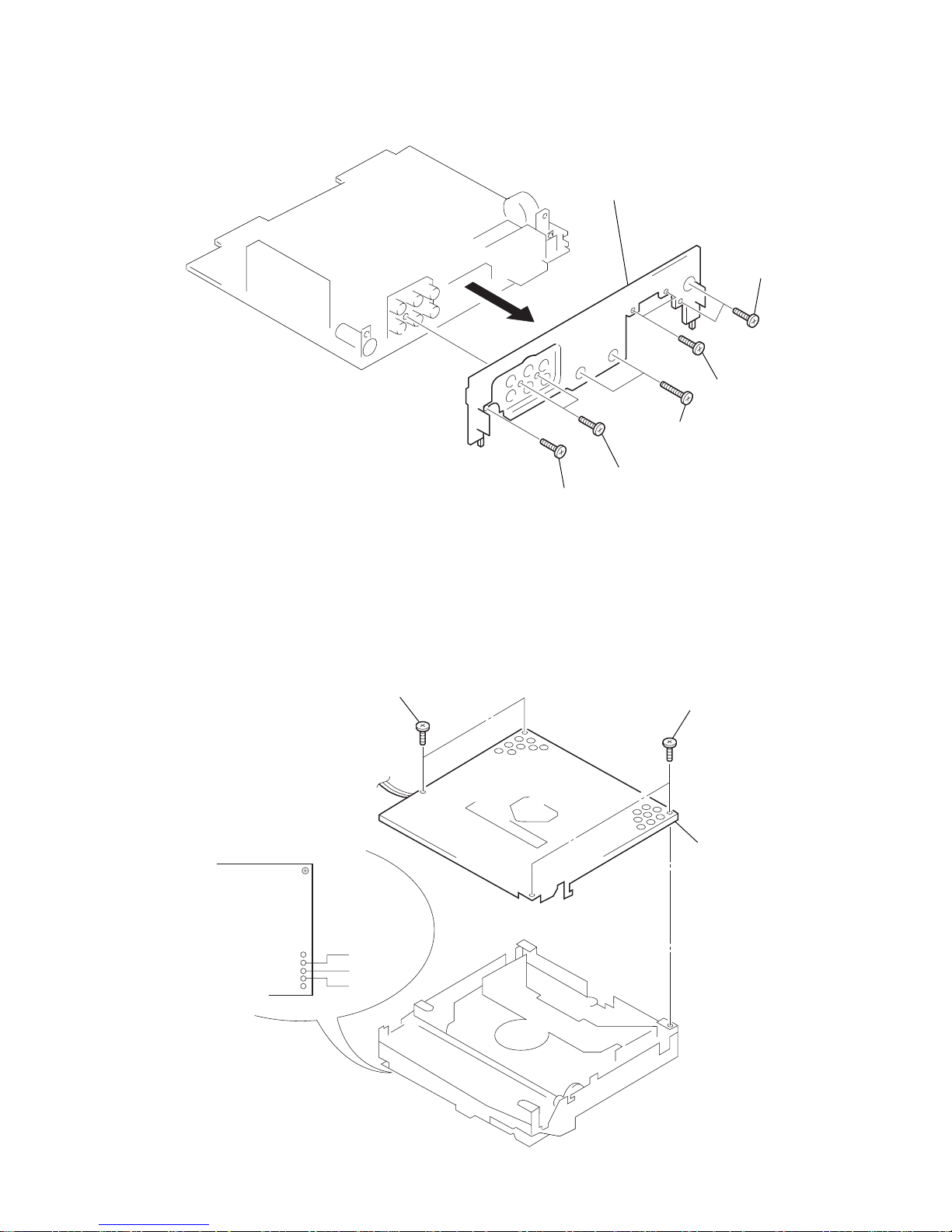

2-5. CHASSIS (T) SUB ASSY
2-4. HEAT SINK
1
PTT 2.6x8
2
PTT 2.6x8
5
PTT 2.6x
8
4
P 2.6x8
3
PTT 2.6x12
6
heat sink
1
Unsoldering three lead wires.
4
chassis (T) sub ass
y
black
SERVO board
(SIDE A)
red
white
2
P 2x3
3
P 2x3
10
CDX-MP50

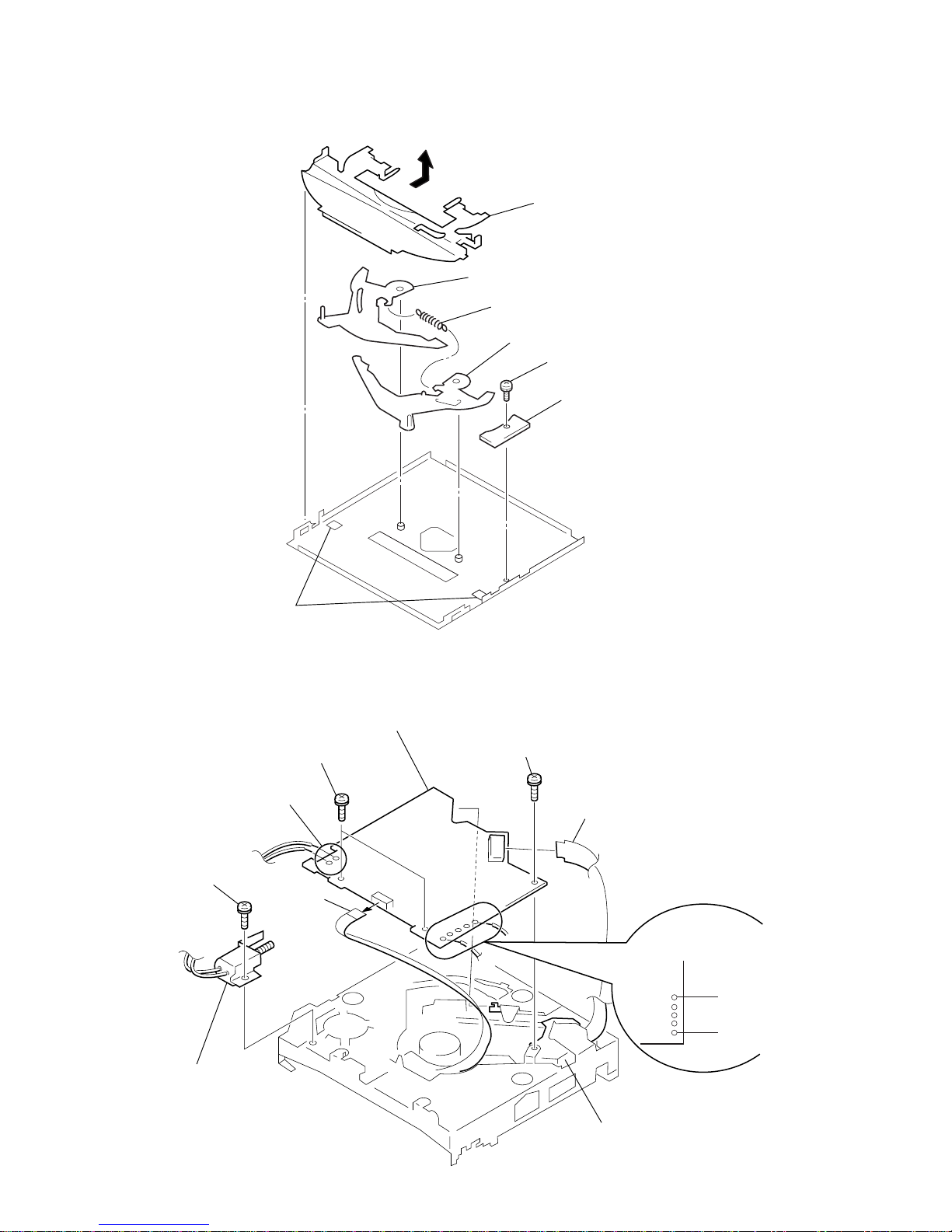

2-6. LEVER SECTION
2-7. SERVO BOARD
4
two claws
1
special screw
7
lever (L)
6
lever (R)
3
tension spring (LR)
2
DISC IN SW board
5
guide (disc)
1
CN3
3
Removal the solders.
7
special screws
8
special screw
2
CN2
optical pick-up block
9
SERVO board
5
P2x3
6
loading motor assy
4
Unsolder the
lead wires.
black
yellow
