Sony VCL-FS2K Manual de usuario

3-866-136-11 (1)

VCL-FS2K

Super Zoom

Tele-Conversion Lens Kit

Operating Instructions

Mode d’emploi

Manual de instrucciones

2-EN

WARNING

Owner’s Record

The model and serial numbers are located on the

front of the pedestal’s supporter. Record the serial

number in the space provided below.

Refer to these numbers whenever you call upon

your Sony dealer regarding this product.

Model No VCL-FS2K Serial No. _____________

3-EN

Table of contents

• Recording of pictures at 10 times magnification by attaching to Sony video camera

recorder.

• Eyepiece for viewing to allow you to see pictures at 20 times magnification.

• You can use the VCL-V10FS eyepiece lens kit to attach to Sony CCD-VX1, DCR-

VX1000 video camera recorders.

This mark indicates that this product is a genuine accessory for Sony

video products. When purchasing Sony video products, Sony

recommends that you purchase accessories with this “GENUINE

VIDEO ACCESSORIES” mark.

On the video camera recording

• Do not drop water on the equipment.

• Preparation such as installing and checking the equipment should be done in a place

with low humidity.

• We recommend you use battery packs with a large capacity.

• Do not leave the unit in a location where it is:

- extremely hot

- under direct sunlight

On maintenance

• Do not replace the eyepiece in locations where it is humid.

On cleaning the lens

To remove dust from the lens, use a blower brush or a soft cleaning brush. To remove

fingerprints or smudges, clean with mild detergent and a soft cloth. The optional Sony

KK-LC1 is also recommended.

Features and Precautions ........................... 3

Checking supplied accessories .................. 4

Preparing ...................................................... 5

1 Preparing the video

camera recorder .............................. 5

2 Attaching the pedestal

to the tripod (not supplied)........... 5

3 Attaching the video camera

recorder to the pedestal ................. 6

4 Checking if a telescope

plate is needed ................................ 7

5 Attaching the telescope

to the pedestal ................................. 8

6 Adjusting the optic axis ................. 9

Focusing ...................................................... 11

Focusing manually.............................. 11

Adjusting the brightness .......................... 12

Using the monitor (not supplied)............ 12

Attaching the monitor............................... 12

Using the carrying handle ........................ 13

Using the eyepiece for viewing ............... 14

Notes on after using .................................. 14

Using the carrying bag.............................. 15

Names of parts and controls .................... 16

Specifications.............................................. 17

Features and Precautions

4-EN

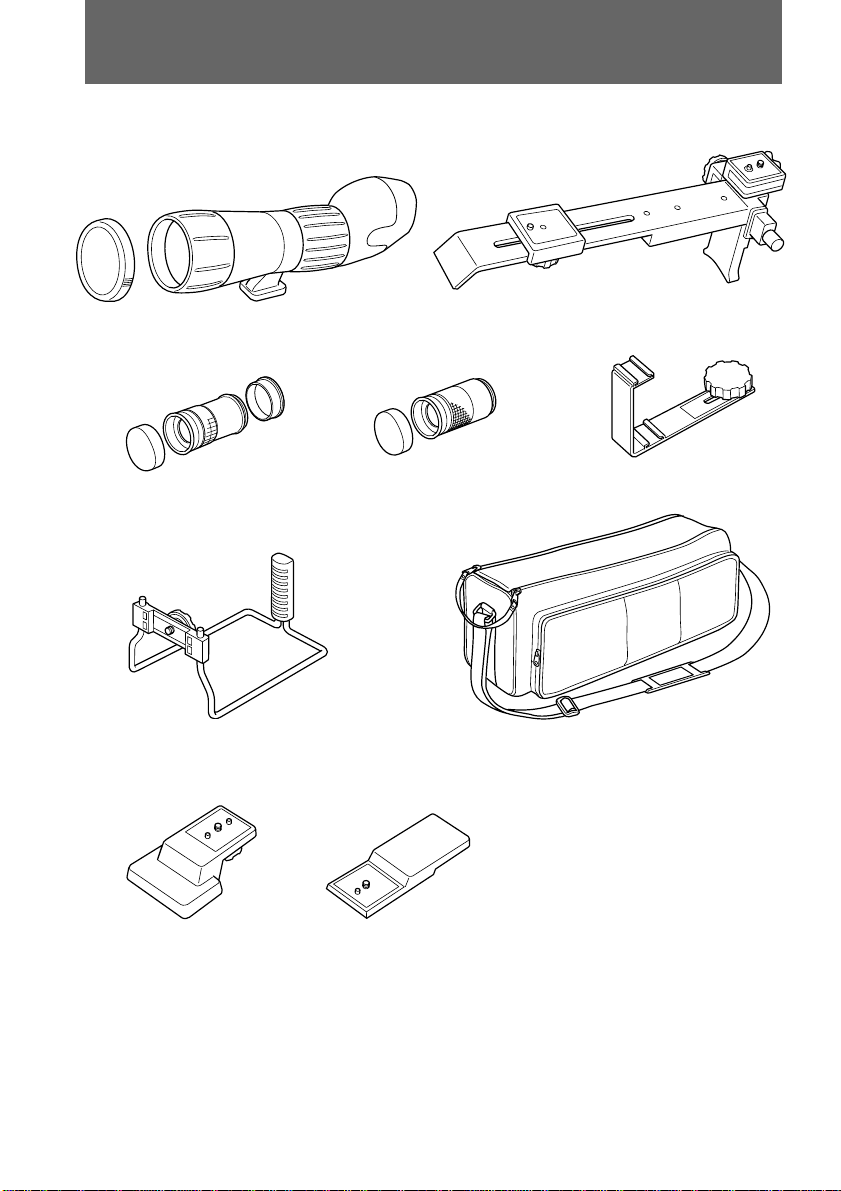

Check that the following accessories are supplied with your kit.

Checking supplied accessories

1Telescope (1), lens cap of the

telescope (1)

2Pedestal (1)

3Eyepiece for viewing (1), lens cap of

the eyepiece for viewing (2)

4Eyepiece for recording (1), lens cap

of the eyepiece for recording (1)

5Accessory shoe (1)

6Carrying handle (1)

7Carrying bag (1)

8Telescope plates (2)

1 2

345

Plate A Plate B

5-EN

Preparing

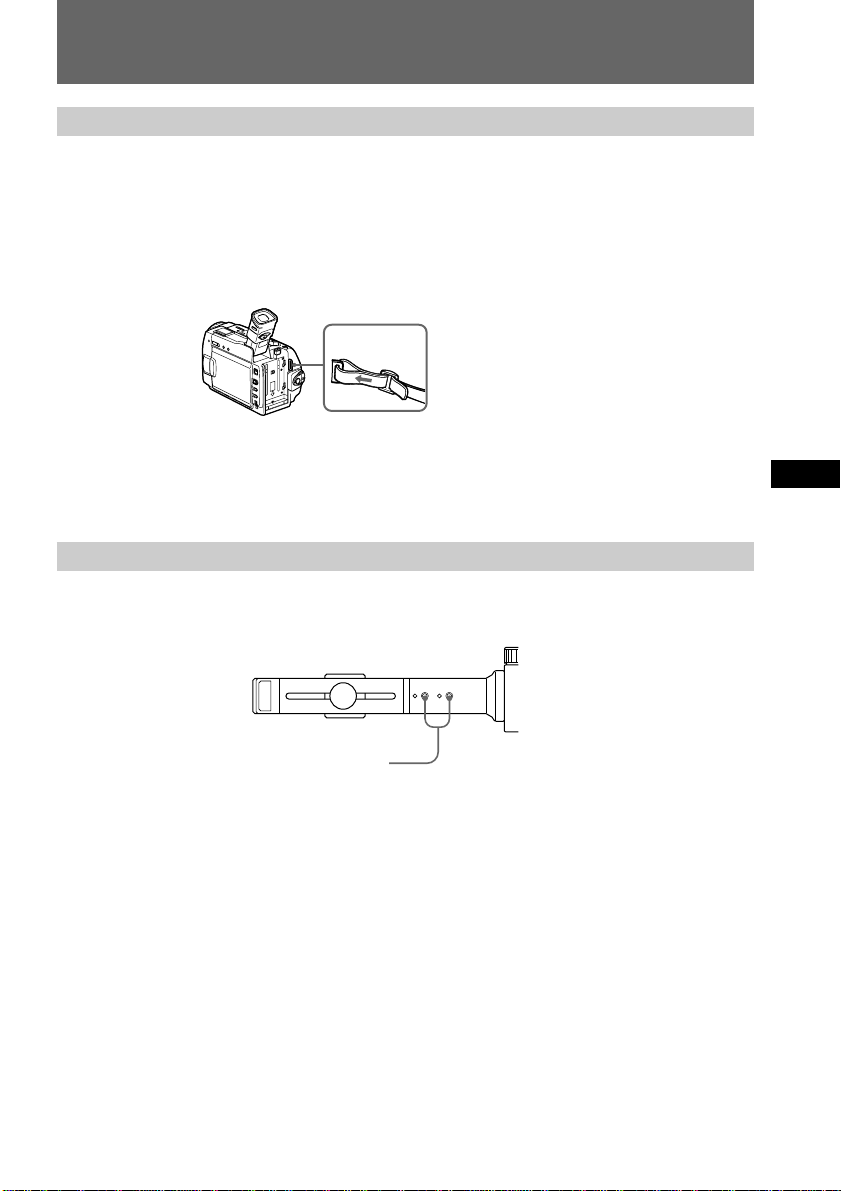

1 Preparing the video camera recorder

The DCR-TRV10 is the model used for illustration purposes.

For details, please refer to the operating instructions supplied with your video camera

recorder.

(1)Remove the lens cap, shoulder strap, conversion lens or filter from the video

camera recorder. Remove the lens hood if your video camera recorder has

one.

(2)Attach a charged battery pack.

(3)Insert a cassette tape.

2 Attaching the pedestal to the tripod (not supplied)

Attach the tripod (not supplied) to the tripod attachment holes of the pedestal.

About the tripod attachment

• The weight of the video camera recorder and the battery pack differs according to

what you use. Choose one of the holes that gives the better balance.

• Optional large-size Sony tripods are recommended.

• Spread the legs of the tripod and lock them when attaching.

Tripod attachment holes

6-EN

Preparing

3 Attaching the video camera recorder to the pedestal

(1)Remove the video camera recorder plate from the video camera recorder

mounting plate.

Turn the lever to the left (1) and remove the video camera recorder mounting

plate(2).

(2)Attach the video camera recorder plate to the video camera recorder.

Insert the projection on the video camera recorder plate into the tripod

attachment hole of the video camera recorder (1) and tighten the screw (2).

(3)Attach the video camera recorder to the video camera recorder mounting

plate.

Turn the lever to the left (1) and place the video camera recorder on the video

camera recorder mounting plate (2).

Turn the lever to the right to secure the video camera recorder (3).

Tripod

attachment

hole

Note

Use the supplied carrying handle when carrying the unit with the video camera

recorder attached.

7-EN

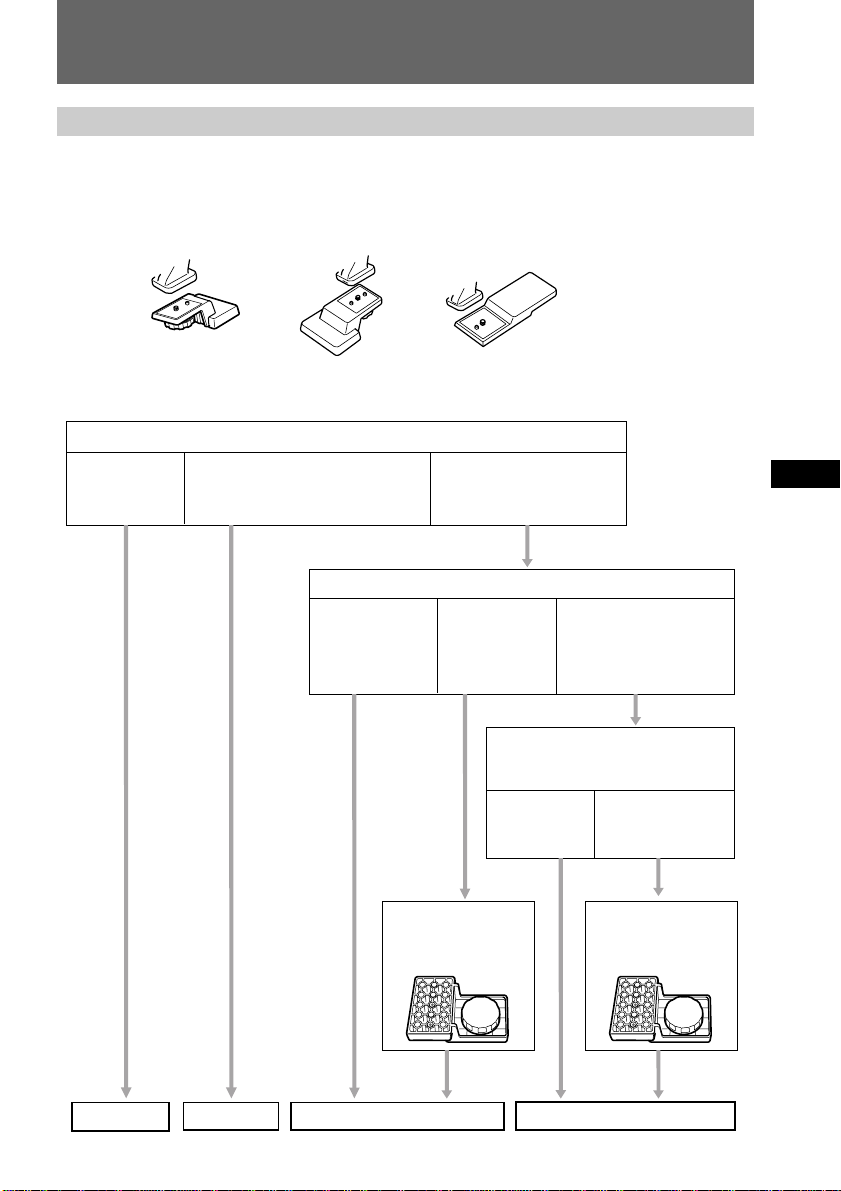

4 Checking if a telescope plate is needed

Some video camera recorders require a telescope plate.

See the table and illustrations below to check if you need a telescope plate.

No plate

Plate B

Plate A1Plate A2

Preparing

Attachment patterns

Attach the plate B and make adjustments.

AAdjustments

completed. BThere is space between the

telescope lens and the video

camera recorder’s lens.

CThe circle is skewed to the

top or bottom.

Remove the plate B, attach the plate A1and make adjustments.

AAdjustments

completed. CThere is space

between the

telescope lens and

the video camera

recorder’s lens.

BThe circle is

skewed to the

left or right.

Remove the plate A1, reattach it in

the plate A2angle and make

adjustments.

AAdjustments

completed. BThe circle is

skewed to the left

or right.

Adjust by choosing

the correct hole on

the bottom of the

plate A2.

Plate B No plate Plate A1Plate A2

Adjust by choosing

the correct hole on

the bottom of the

plate A1.

8-EN

Preparing

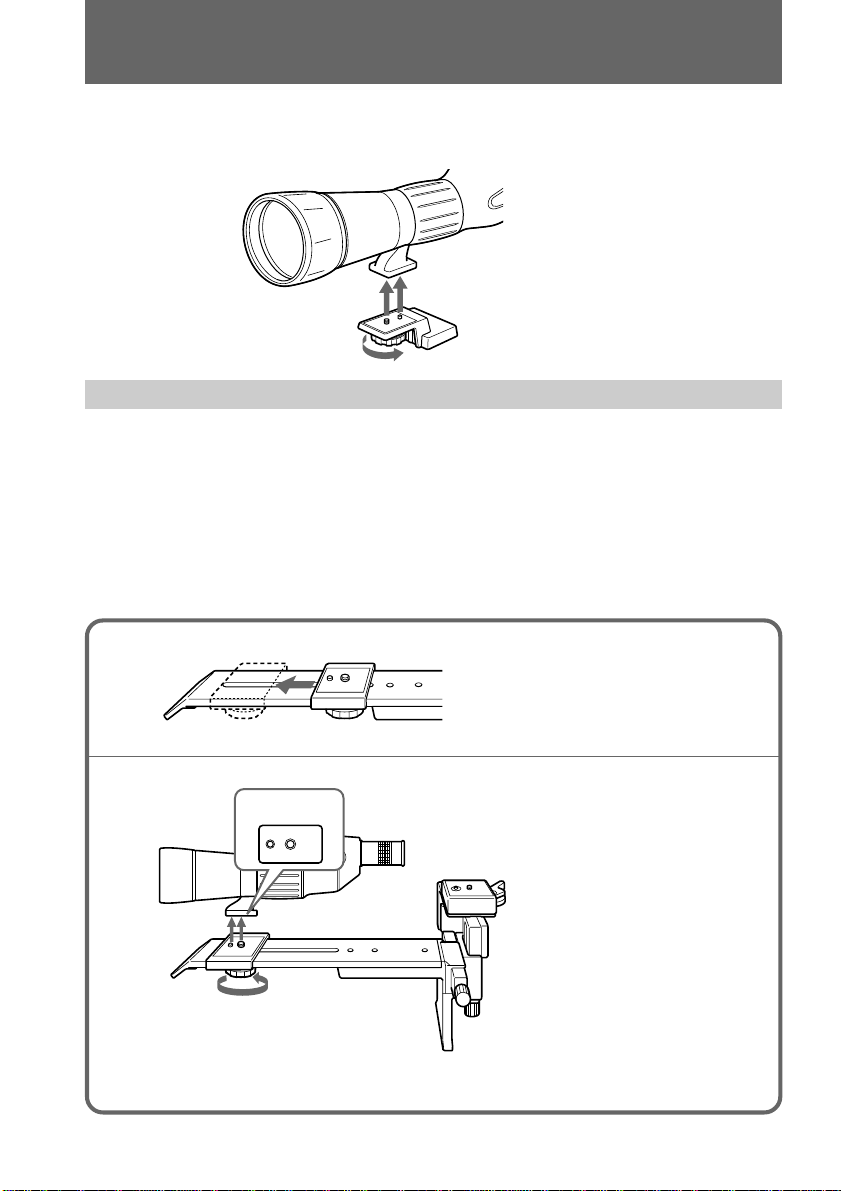

5 Attaching the telescope to the pedestal

Make sure that the eyepiece for recording is attached to the telescope.

When a telescope plate is attached, you can attach the telescope to the pedestal in the

same way.

(1) Move the telescope mounting plate to the tip of the pedestal.

(2) Attach the telescope to the telescope mounting plate.

Insert the projections on the telescope mounting plate into the pedestal

attachment holes (1) and tighten the telescope mounting screw loosely (2).

Attach the telescope to the telescope plate.

Insert the projections on the telescope plate into the pedestal attachment holes (1), and

tighten the telescope plate screw (2).

9-EN

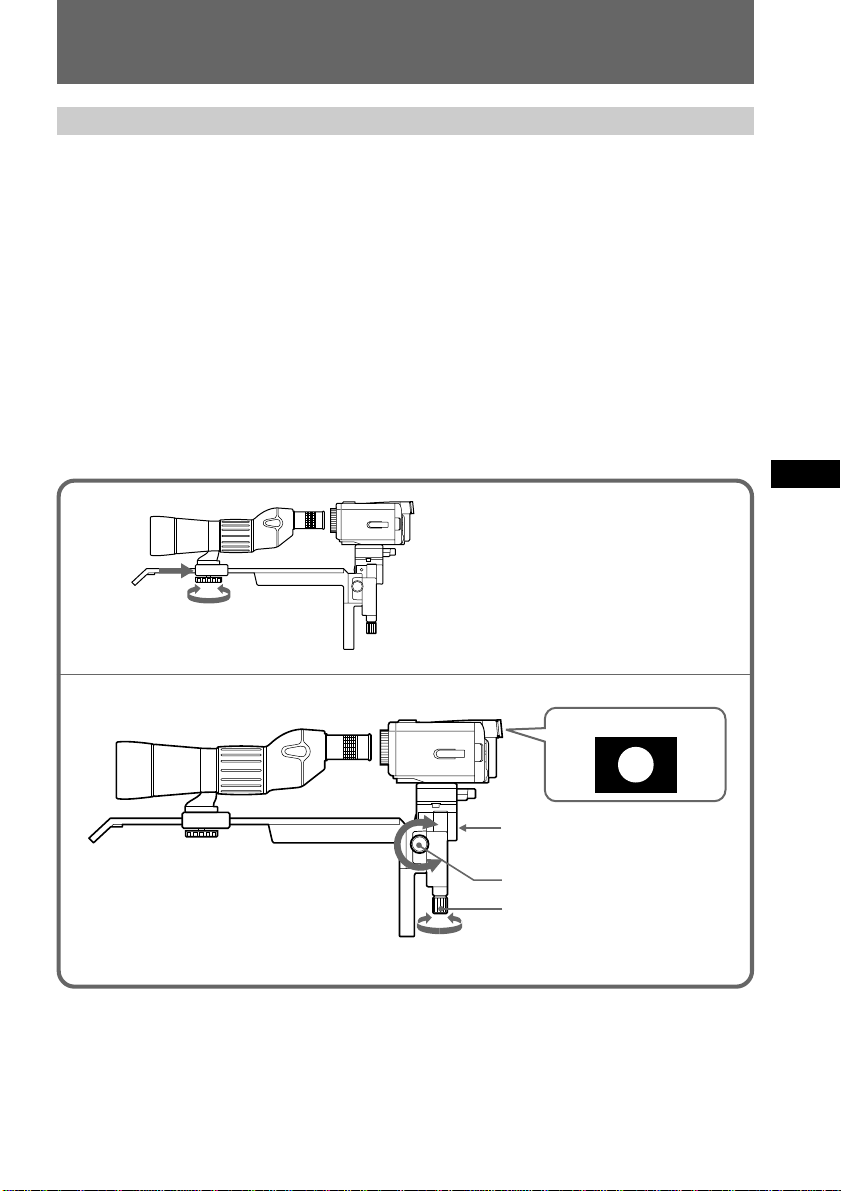

6 Adjusting the optic axis

Refer to the instruction manual of your video camera recorder.

(1) Move the telescope mounting plate close to the lens of the video camera

recorder (1) and tighten the telescope mounting screw securely (2).

(2) Set the video camera recorder in standby mode and set the zooming to the

maximum position of wide-angle side (W).

(3) Position the circle in the viewfinder in the center with the right and left width

control screw (a) and the up and down width control screw (b).

If the circle is skewed to the top or bottom, adjust with the angle control screw

of the video camera recorder plate (c. rear side).

(4) When the circle is in the center of the viewfinder, loosen the telescope

mounting screw (1). Move the telescope so that the eyecup of the eyepiece

just touches the video camera recorder (2) and fasten the telescope mounting

screwagain (3).

Preparing

inside the viewfinder

(c)

Angle control screw of video

camera recorder plate (rear)

(a) Right and left width control

screw

(b) Up and down width control

screw

10-EN

• The lens of some video camera recorders moves back and forth when the focus is

being adjusted. In this case, leave enough space between the eyecup of the

telescope and the lens of the video camera recorder. Even if light gets into the lens,

it does not affect recording.

Preparing

Using the built-in hood

Extend the built-in hood as shown in the illustration below.

Using the hood prevents damage to the lens and eliminates the diffused reflections in

case of backlighting.

Now you are ready to use the unit.
