Sonoff NSPanel-EU Manual de usuario

NS Panel

Smart Scene Wall Switch

User Manual • Uživatelský manuál •

Užívateľský manuál • Használati utasítás •

Benutzerhandbuch

English

3 –14

Čeština

15 –26

Slovenčina

27 –38

Magyar

39 –50

Deutsch

51 –62

Dear customer,

Thank you for purchasing our product. Please read the following instructions carefully

before first use and keep this user manual for future reference. Pay particular attention to

the safety instructions. If you have any questions or comments about the device, please

contact the customer line.

✉www.alza.co.uk/kontakt

✆+44 (0)203 514 4411

Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

Product Introduction

The device weight is less than 1 kg. The installation height of les than 2m is

recommended.

Pairing button/ Physical switch

NSPanel-EU

3.5“ TFT Touch Screen

Temperature Sensor

Reset Button

NSPanel-US

Pairing button/ Physical switch

3.5“ TFT Touch Screen

Temperature Sensor

Reset Button

Features

NSPanel is a dual-channel smart touch control panel integrating three interactive methods,

screen touching, voice control and App control. Users can control the device types

including smart switch and plugs (heating/cooling) under the eWeLink account. Users are

able to control multiple smart devices through adding widgets on their smart phones, such

as turn on/off, schedule on/off the connected devices and share them with families to

control.

Remote

Control

Single/Countdown

Timing

Voice

Control

3.5”TFT

Touch

Screen

Adding

Widgets

Smart

Scene

Thermostat

Inching

Mode

Interlock

Group

Control

LAN Control

Operating Instruction

1. Power off

Please install and maintain the device by a professional electrician. To avoid electric

shock hazard, do not operate any connection or contact the terminal connector while the

device is powered on !

2. Wiring instruction

Light fixture wiring instruction:

Make sure all wires are connected correctly.

3. Download the eWeLink App

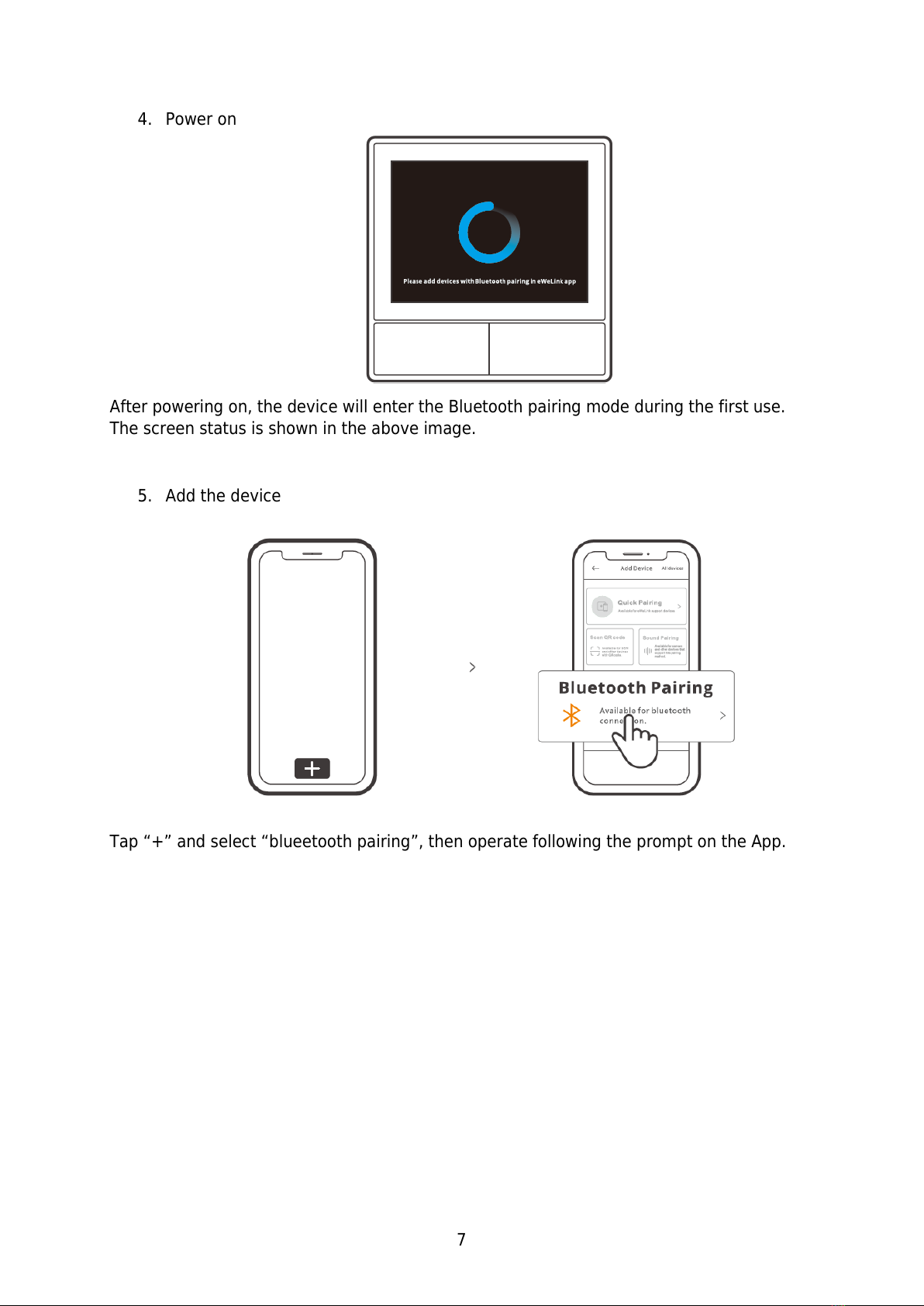

4. Power on

After powering on, the device will enter the Bluetooth pairing mode during the first use.

The screen status is shown in the above image.

5. Add the device

Tap “+”and select “blueetooth pairing”, then operate following the prompt on the App.

Operation Guide

Drop down

Settings of the screen brightness and sleep time

Swipe right

After adding temperature controller function in the App, you can set the added

temperature controller on the device.

Swipe left

After adding widgets in the App, you can control the added widgets on the device.

Bind Temperature Control Device

There is a built-in temperature sensor in the NSPanel to monitor the room temperature

and you can maintain the room temperature by controlling the cooler/heater, which is

connected with smart switches or smart plus and these devices are required to pair with

eWeLink App.

Access the NSPanel interface in the App and tap “Thermostat”to select the devices in the

Action device list. All the listed devices are supported to bind with the Thermostat

(including two NSPanel channels). You can only select one device or one channel of the

multi-channel device to execute and then choose heater or cooler as the Device type.

Active the Thermostat after selecting the Action device and Device type, then you can see

there are two modes to control the temperature which are Manual mode and Auto mode.

Manual mode:

Allow you to adjust the temperature manually whenever you want and then the

Thermostat will execute to maintain the manual setting temperature.

Auto mode:

Allow you to set 6 target temperature at most by tapping “Add”to se the temperature

respectively. Once set, all setting will execute automatically at certain time duration and

cannot be controlled manually unless switched to the Manual mode. The binding devices

will turn off when they are out of schedule.

Actual room temperature will be ±1°C. For example, the setting temperature is 26°C

but the actual temperature range is between 25°C and 27°C.

Add Widgets

NSPanel can be added 8 widgets in the screen for Quick Control. The form of widget can

be single device, group devices of the congeneric devices and Tap to Perform Scene. In

addition, you can control more features of the multi-gang and lighting devices in the

secondary interface.

Specifications

Model

NSPanel-EU, NSPanel-US

Input

100-240V~50/60Hz 4A Max

Output

100-240V~50/60Hz 2A/Gang 4A/Total

LED load

150W/110V/Gang, 300W/110V/Total

300W/220V/Gang, 600W/220V/Total

Wi-Fi

IEEE 802.11 b/g/n 2.4Ghz

Bluetooth Standard

4.2 BLE

Screen Size

3.5”(Capative Touch Panel)

Screen Resolution

480*320px

Operating systems

Android & iOS

Shell materials

PC V0 + CRS + Toughened Glass

Dimension

NSPanel-EU: 86x86x41.7mm

NSPanel-US: 120x74x41.7mm
