SonicWALL APL13-02C Manual de usuario

Page 1

SonicWALL SonicPoint - Model APL13-02C

FCC Part 15 Class A Notice

NOTE: This equipment was tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy. And if

not installed and used in accordance with the instruction manual, the device may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely

to cause harmful interference in which case the user is required to correct the interference at

his own expense.

Complies with EN 55022 Class A and CISPR22 Class A.

*Refer to the label on the bottom of the unit for device information including Class A or Class

B FCC information.

Caution: Modifying this equipment or using this equipment for purposes not shown in this

manual without the written consent of SonicWALL, Inc. could void the user’s authority to

operate this equipment.

BSMI Statement

VCCI Statement

Page 2

Canadian Radio Frequency Emissions Statement

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à toutes la norme NMB-003 du Canada.

CISPR 22 (En 55022) Class A

Warning: This is a class A product. In a domestic environment, this product may cause radio

interference in which case the user may be required to take adequate measures.

FCC RF Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with a minimum distance of 20

centimetres (7.9 inches) between the radiator (antenna) and your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter.

For more information regarding the above statement, please contact SonicWALL, Inc. at 1143

Borregas Avenue, Sunnyvale, CA 94089-1306 or 1-408-745-9600.

Cable Connections

All Ethernet and RS232 (Console) cables are designed for intra-building connection to other

equipment. Do not connect these ports directly to communication wiring or other wiring that

exits the building where the SonicWALL is located.

Power Supply Information

If the power supply is missing from your SonicWALL product package, please contact

SonicWALL Technical Support at 408-752-7819 for a replacement. This product should only be

used with a UL listed power supply marked “Class 2” or “LPS”, with an output rated 5 VDC,

minimum 1.66 A.

Declaration of Conformity

Application of council Directive Directive 89/336/EEC (EMC) and

72/23/EEC (LVD)

Directive 1999/5/EC (R&TTE) and standards

EN 301 489-1/-17 and EN 300 328-1/-2

Standards to which conformity is declared EN 55022 (1998) Class A

EN 55024 (1998)

EN 61000-3-2 (1995) + A1, A2, A14

EN 61000-3-3 (1994)

EN 60950 (1992) + A1, A2, A4, A11

National Deviations: AT, AU, BE, CH, CN, CZ,

DE, DK, FI, FR, GB, GR, HU, IE, IL, IN, IT, JP,

KR, NL, NO, PL, SE, SG, SI

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one of

the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by

the party responsible for compliance could void the user's authority to

operate this equipment.

Canada (IC):

To prevent radio interference to the licensed service, this device is intended to be

operated indoors and away from windows to provide maximum shielding. Equipment

(or its transmit antenna) that is installed outdoors is subject to licensing.

Canada (IC):

To prevent radio interference to the licensed service (i.e. co-channel Mobile Satellite

systems) this device is intended to be operated indoors and away from windows to

provide maximum shielding. Equipment (or its transmit antenna) that is installed

outdoors is subject to licensing.

Page 3

Wall Mounting the SonicWALL SonicPoint

Follow the instructions below to mount the SonicPoint on the wall.

1. Using the mounting plate as a template, mark the places to insert the mounting anchors.

2. Using a #2 Phillips screw driver, press the tip of the anchor into the marked places on the

hollow wall.

3. Turn the screwdriver clockwise until the anchor is flush with the wall. Repeat for the second

anchor.

4. Insert a #6 x 11/4” pan head Phillips self-tapping screw into each anchor leaving a gap for

the mounting plate.

5. Hang the mounting plate on the screws. Use the middle row of mounting holes.

Page 4

6. Slide the plate down to the narrowest part of the keyhole so that the mounting plate rests

on the screws.

7. Tighten the mounting screws to secure the mounting plate.

8. Snap the SonicPoint onto the mounting plate.

Page 5

Mounting the SonicWALL SonicPoint on the Ceiling

1. Locate a metal support to hang the SonicPoint.

2. Using the mounting plate as a template, mark the places to insert the mounting anchors.

3. Drill two holes for #6 x 1-1/4” screws in the marked location.

4. Install the #6 x 1-1/4” self-tapping screws leaving a slight gap for the mounting plate.

5. Hang the mounting plate on the screws.

6. Slide the plate down to the narrowest part of the keyhole so that the mounting plate rests

on the screws.

7. Tighten the mounting screws to secure the mounting plate.

Page 6

8. Snap the SonicPoint onto the mounting plate.

Other Considerations for Mounting the SonicWALL SonicPoint

• Mount in a location away from direct sunlight and sources of heat. A maximum ambient

temperature of 104º F (40º C) is recommended.

• Route cables away from power lines, fluorescent lighting fixtures, and sources of noise

such as radios, transmitters, and broadband amplifiers

• Ensure that no water or excessive moisture can enter the unit.

• Allow unrestricted airflow around the unit and through the vents on the side of the unit. A

minimum of 1 inch (25.44mm) clearance is recommended.

Page 7

SonicWALL, Inc.

1143 Borregas Drive

Sunnyvale, CA 94089

Tel: (408) 745-9600

Fax: (408) 745-9300

E-mail: [email protected]

Web: www.sonicwall.com

P/N 232-000512-00

Rev A. 04/04

Tabla de contenidos

Otros manuales de Punto de acceso inalámbrico de SonicWALL

SonicWALL

SonicWALL sonicpoint ACI Manual de usuario

SonicWALL

SonicWALL SonicWave 231c Manual de usuario

SonicWALL

SonicWALL SonicWave 400 Series Guía de referencia rápida

SonicWALL

SonicWALL SonicWave 200 Series Guía de referencia rápida

SonicWALL

SonicWALL SonicWave 432o Manual de usuario

SonicWALL

SonicWALL SonicPoint ACe Manual de usuario

SonicWALL

SonicWALL APL30-0B8 Manual del propietario

SonicWALL

SonicWALL SonicWave 432o Manual de usuario

SonicWALL

SonicWALL SOHO 250 Manual del propietario

SonicWALL

SonicWALL SonicWave 200 Series Guía de referencia rápida

SonicWALL

SonicWALL SonicWave 681 Manual de usuario

SonicWALL

SonicWALL SonicWave 224w Manual del propietario

SonicWALL

SonicWALL SonicPoint N2 Manual de usuario

SonicWALL

SonicWALL SonicWave 432o Manual de usuario

SonicWALL

SonicWALL TZ500 W Manual del propietario

SonicWALL

SonicWALL APL29-0B6 Manual del propietario

SonicWALL

SonicWALL SonicWave 200 Series Guía de referencia rápida

SonicWALL

SonicWALL SonicWave 432i Manual del propietario

SonicWALL

SonicWALL SonicWave 200 Series Guía de referencia rápida

SonicWALL

SonicWALL SonicWave 641 Manual de usuario

SonicWALL

SonicWALL E-Class SonicPoint-Ne Manual de usuario

SonicWALL

SonicWALL APL43-0C2 Manual del propietario

SonicWALL

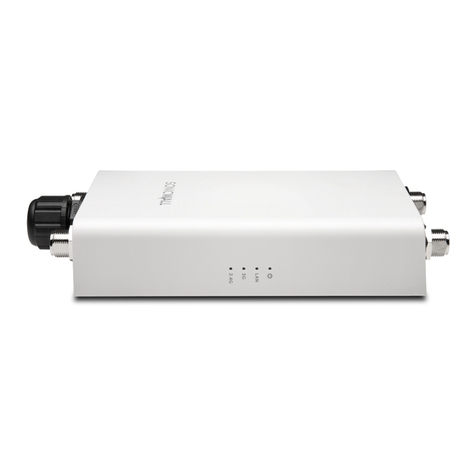

SonicWALL SonicWave 231o Manual del propietario
