Share one set of speakers between an amplified audio system and a local source.

• Allows automated switching from distributed audio system to a local source (TV, Computer etc).

The default, or A input is for the remote (main) music system that will play whenever the Local

source is off or muted

• Large, built-in 50 watt per channel stereo amplifier (@ 8 ohms)

Configuration friendly: featuring multiple choices of automatic switching and current sensing.

• Line level A/V pass-through (basic module)

• Main speaker pass-through occurs when ASAP2 SAT is off

• Trigger-mode via configurable dip-switch controls: Audio, Video, Current sensing and External

voltage (5 to 24 volts AC or DC)

• Auto-triggers can be bypassed for manual (front panel power switch) activation or controlling

with a switched outlet

• 12 VDC control output

• Two pair of speaker output terminals

SmartAmp Technology: Provides a module bay for future upgradability, greatly increasing

the flexibility of the ASAP2 SAT and making it compatible with new protocols. Slide-in

modules can be changed in seconds on the job site. Basic Module included.

• SmartModule bay allows for installation of one module into rear of unit for application-specific

usage of the ASAP2 SAT, as well as future upgrades

• Basic module (included) allows line level or speaker level local input with audio, video, external

voltage (5 to 24 volts AC or DC) or AC current sensing of local input

• LR1 module when available receives output from a Sonance LS1 Balanced Line Sender. This

combination allows long line level audio runs (up to 500 feet) and cancels out noise from the local

source to the ASAP2 SAT

• AL1 module (when available)

allows two local sources (default

and sensed) to be switched with

the main audio. This module has

its own RCA output, 12VDC

output (sensed), trigger sensitivity

and B > A switch back time

adjustment

• Additional Modules will be

introduced. Watch for them

at www.sonance.com

A Pathway to Installations

SONAMP® ASAP2 SAT

Automatic two-source audio switcher with built-in stereo

amplifier for second source.

ASAP2 APPLICATIONS

Ease of Design and Installation:

• Low profile design uses only 1 rack space

• Rack mount version available

• X-shaped cutout holes on the bottom allow the unit to be hung on any flat surface. This enables the

ASAP2 to be mounted and hidden behind the installation

• Front mounted local source volume adjustment (L & R), “return to main system” delay adjustment

and Audio/Video trigger sensitivity adjustment

• AC current sensing outlet on rear panel with front mounted AC trigger control adjustment

• Audio muting bypass switch. Set this switch to ON if using the AC trigger to minimize thumps or

pops from television audio outputs

Input Triggers:

• Current Sensing and External triggers (5 to 24Volts AC or DC) on main unit allows for automatic

switching from speaker level to the local line level source connected to the SmartModule

• Audio/Video Sensing connections allow for automatic switching from speaker level to local source from

a composite video signal (TV etc.) feed to the SmartModule

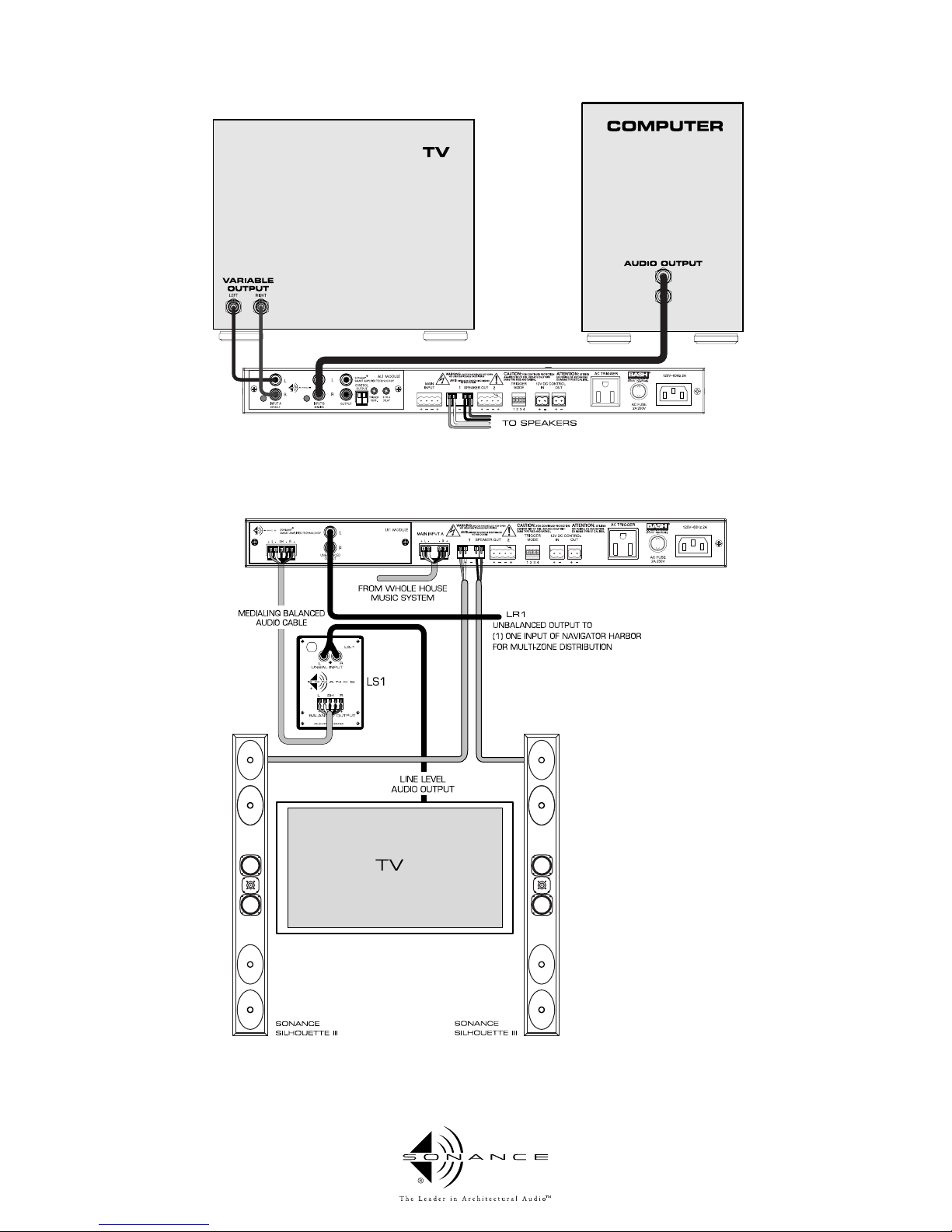

Applications:

• Basic Module (included) provides automatic switching between two sources (see diagram above)

LINE SPKR

• AL1 Module provides automatic switching between two line level sources

• LR1 Module allows for long line level runs up to 500 feet without added noise allowing the

ASAP2SAT to be installed in a remote location away from a line level source.

(Note: Requires the Sonance LS1 sending unit, SKU # 90-0491)

ASAP2 APPLICATIONS

212 Avenida Fabricante • San Clemente • CA • 92672-7531 • Tech Support (800) 582-0772 E-mail [email protected]

Specifications

Output Power, Stereo mode, RMS: 50 Watts per channel @ 8ohms

65 Watts per channel @ 4ohms

Total Harmonic Distortion: 0.2% 20Hz-20kHz @ 8ohms

1.0% 20Hz-20kHz @ 4ohms

B to A switchback delay: 3 to 90 seconds (variable)

Protection Circuits: AC fuse, thermal, short circuit

Signal to Noise Ratio: -100dB below rated output

(A-weighted)

Input Sensitivity: 300mv for 50 Watts @ 8ohms

Input Impedance: 47k ohms minimum

12VDC Outputs: 200ma maximum

Power Requirement: 120VAC, 50/60 Hz

Power Consumption: 360 Watts

Dimensions (W X H X D): 19 1/2” x 1 3/4” x 11 5/8”

(495mm x 45mm x 295mm)

RMF (1U): 19” x 1 3/4” x 11 5/8”

(483mm x 45mm x 295mm)

Consider these Sonance products when planning your system:

• Navigator®IR keypads and accessories for control

• Navigator Harbor for multi-source multi zone AV control

• AVC100, AVC100D and other Amplified Volume control Accessories

• MediaLinQ®and OptiLinQTM to connect and control system electronics

• Sonamps for distributed audio amplification

• LS1 Balanced Audio Sender to transmit line level audio long distances

when used with LR1 module
