SOMFY 5058465B Guía de instalación

Somfy.com

RS485 4 ILT Interface

Installation and Operating guide

Guida all’installazione e di funzionamento

Montage- und Gebrauchsanleitung

Notice d’installation et d’utilisation

Ref : 5058465B

ENITDEFR

SAFETY AND IMPORTANT INFORMATION

• This Somfy product must be installed by a professional motorisation and home automa-

tion installer, for whom these instructions are intended.

• Before installation, check that this product is compatible with the associated equipment

and accessories.

• These instructions describe how to install, commission and use this product.

• Moreover, the installer must comply with current standards and legislation in the country

in which the product is being installed, and inform his customers of the operating and

maintenance conditions for the product.

• Any use outside the sphere of application specied by Somfy is not approved. Such use,

or any failure to comply with the instructions given herein will invalidate the warranty, and

Somfy refuses to accept liability.

PRODUCT DESCRIPTION

The RS485 4ILT Interface is a motor controller for multi ratio motorized projection screens

designed to be integrated into the projection screen cases.

It can control up to 4 SOMFY ILT motors.

It can be interfaced with universal infra red remote controls, a RS485 data line or a video-

projector through a trigger.

ENVIRONMENT

Damaged electric products and batteries should not be disposed of with normal house-

hold waste.

Make sure to drop them in specially provided containers or at an authorized organization

that will ensure they are recycled.

INSTALLATION

WIRING

Motor wiring

1) 4xILT plugs (plug directly the ILT motor

to the RJ9 plug).

Controls wiring

1) Trigger (For videoprojector)

● + : 5 → 30V

●G : Ground

2) IR (Use a Somfy IR sensor)

3) RS485:

●+V: Not connected

●B: RS 485 B

●A: RS 485 A

●G: Ground

Power wiring

Connect the interface to a standard AC

power source

COMMISSIONING

Commissioning must be performed with a Somfy 8 channels IR remote control

prior to any use.

ILT motors will not react to any control as long as they are not set.

To set ILT motors, please refer to MOTOR SETTING.

ILT motors may have been already set prior to this installation by the means of a

dedicated setting tool by the manufacturer.

If more than one motor only is connected to the interface, you need to set each

motor separately before setting the differents formats.

By default, all motors connected to the interface will react together to any opera-

tion.

To select a motor, please refer to : MOTOR SELECTION

MOTOR SELECTION

Use the 1→8 or 5→8 button to select one

of the motors. The selected motor will

acknowledge by doing a small jog.

1) The 1→8 button to select the previous

motor.

2) The 5→8 button to select the next motor.

3) The 1→4 button to select all the motors

connected to the interface.

Once a motor is selected, you can control

it individually.

After 2 min without any operation, all mo-

tors will react again to any operation.

MOTOR SETTING

A) SETTING MODE

To enter in setting mode, press the prog

button of the remote control until the

screen jogs.

1 - 8 1 - 45- 8

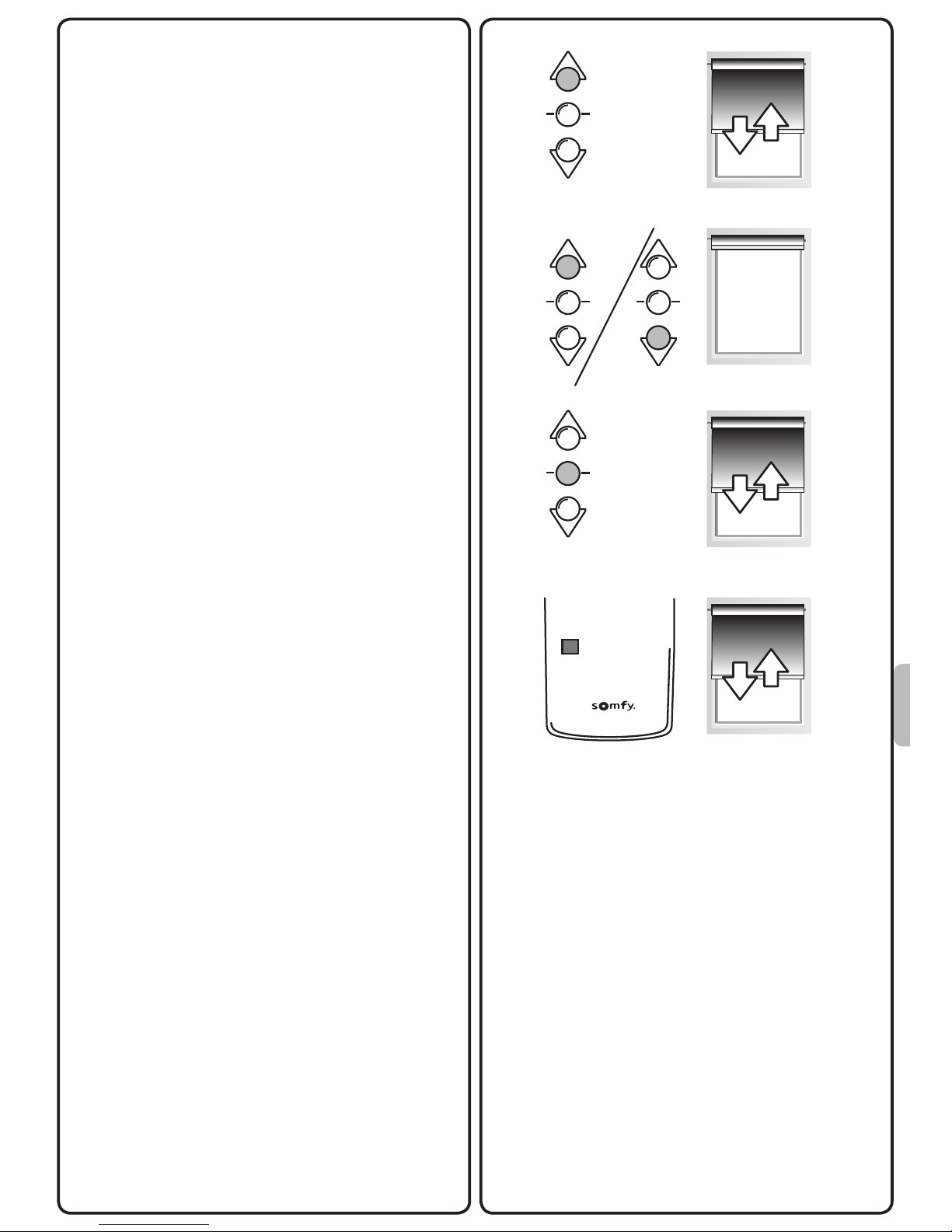

B) ADJUSTING THE END LIMITS

B1) UP end limit

Press the UP button until the motor jogs.

With the UP or DOWN buttons, move the

screen to the desired up limit.

If the direction of rotation is not correct,

press the STOP button until the screen

jogs.

Press the prog button to conrm the limit

until the motor jogs.

PROG.

B2) DOWN end limit

Press the DOWN button until the motor

jogs.

With the UP or DOWN buttons, move the

screen to the desired down limit.

If the direction of rotation is not correct,

press the STOP button until the screen

jogs.

Press the prog button to conrm the limit

until the motor jogs.

C) FORMAT SETTING

Buttons 1 to 8 will be used to set 1 to 8

formats.

By default, buttons 1 to 7 are not set,

button 8 stands for the user Home Position

(all the screens retracted).

It can be changed by setting a new format

or deleting this format.

To set a format, put one by one each

screen to the desired positon, then press

the selected button (eg : button1) until all

the screens jog.

During the adjusment of the screen, if you

press and hold the UP or DOWN button,

the screen moves step by step.

You can use this function for a better adjus-

tement of the screen.

1 - 8 1 - 45- 8

PROG.

USE

With an IR remote control

By default, all motors connected to the

interface will react together to any opera-

tion.To move individually a motor, please

refer to MOTOR SELECTION.

A) UP, DOWN and STOP

1) To move the screen, press briey the

UP or DOWN button.

2) To stop the screen, press the STOP

button.

B) READJUSTING THE END LIMIT(S)

You need to readjust both end limits.

Please refer to : ADJUSTING THE END

LIMITS

C) CALL A FORMAT.

To call a format, press on the desired

format button.

D) READJUSTING A FORMAT

Please refer to : FORMAT SETTING

E) DELETE A FORMAT.

Press the format button corresponding

to the format to delete.The screens go to

the memorized position.

Press the corresponding format button

until all the screens jog. The format is

deleted.

PROG.

1 - 8 1 - 45- 8

With an universal IR remote control

- Please refer to the universal IR remote control instructions to learn the codes from a

Somfy 8 channels remote control to the universal IR remote control.

- If there is no specic instructions, please contact your Somfy local retailer.

With a trigger input

- The trigger input allows to synchronize the motorized projection screen with a videopro-

jector (For videoprojector with DC12V output).

- When the videoprojector will be powered ON, the interface will put the projection screen

in Format 1 position.

- When the videoprojector will be powered OFF, the interface will put the projection screen

in Format 8 position.

With a RS485 data line

The appendix (cf page 34) describes the SOMFY RS485 protocol, which is used to

communicate with the RS485 4ILT Interface.

The RS485 protocol supports bi-directional communication between a host and the

interface.

The term «Host» refers to the device initiating communication with the interface, usually a

computer-based system.

TECHNICAL DATA

137 mm

80 mm 40 mm

Voltage

Operating temperature

Protection rating

Max number of motors

Control

90V → 255V

0°C / 60 °C

IP20

IR / RS485

Frequency 50Hz → 60Hz

Trigger Input 0V → 30V

AVVERTENZE E INFORMAZIONI IMPORTANTI

• Questo prodotto Somfy deve essere installato da un tecnico specializzato nella motoriz-

zazione e nell’automazione di apparecchiature residenziali. Questa guida è destinata solo

a tale installatore.

• Prima di procedere con l’installazione, vericare la compatibilità di questo prodotto con

le apparecchiature e gli accessori installati.

• Il presente manuale descrive l’installazione, la messa in funzione e la modalità di utilizzo

di questo prodotto.

• L’installatore è tenuto a rispettare le normative e la legislazione in vigore nel paese nel

quale viene effettuata l’installazione, e deve informare i suoi clienti sulle condizioni di

utilizzo e di manutenzione del prodotto.

• Ogni utilizzo diverso dall’ambito di applicazione denito da Somfy non è conforme e

comporta, così come il mancato rispetto delle istruzioni riportate nel presente manuale,

l’annullamento della responsabilità e della garanzia Somfy.

DESCRIZIONE DEL PRODOTTO

RS485 4ILT Interface è un’unità di controllo per schermi di proiezione motorizzati multifor-

mato progettata per essere integrata all’interno dei cassonetti.

L’interfaccia è in grado di controllare no a 4 motori ILT SOMFY.

Può essere interfacciata con telecomandi ad infrarossi universali, una linea dati RS485 o

un videoproiettore attraverso un ingresso trigger.

AMBIENTE

I prodotti elettrici danneggiati e le batterie esauste non devono essere smaltiti insieme alla

normale immondizia domestica.

Devono essere smaltiti all’interno di contenitori speciali appositi o portati presso un’orga-

nizzazione autorizzata che ne garantirà il riciclaggio.
