Solwise PTI-840V Manual de usuario

Solwise Ltd, www.solwise.co.uk 0

1. Panel Descriptions .................................................................................................................. 1

2. Connecting the 4 Ports VoIP ADSL Router ......................................................................... 3

3. Setting up the TCP/IP in Windows ....................................................................................... 5

Windows ME/98 .................................................................................................................. 5

Windows 2000 ...................................................................................................................... 6

Windows XP ......................................................................................................................... 7

4. Setting up the 4 Ports VoIP ADSL Router ........................................................................... 8

5. Making sure of Internet connection ..................................................................................... 24

Solwise Ltd, www.solwise.co.uk 1

1.1 Front Panel:

The 4 Ports VoIP ADSL Router’s LED indicators display information about the device’s status.

PWR Steady green light indicates 4 Ports VoIP ADSL Router is powered on.

READY Steady green light indicates a valid ADSL connection. This will light after the

ADSL negotiation process has been settled.

ADSL 4 Ports VoIP ADSL Router status indicator. When blinking indicates 4 Ports

VoIP ADSL Router is in operation.

RXD Blinking green light indicates an active ADSL session.

1 LINK/ACT Steady green light indicates a valid Ethernet connection. Blinking green light

indicates active Ethernet session.

2 LINK/ACT Steady green light indicates a valid Ethernet connection. Blinking green light

indicates active Ethernet session.

3 LINK/ACT Steady green light indicates a valid Ethernet connection. Blinking green light

indicates active Ethernet session.

4 LINK/ACT Steady green light indicates a valid Ethernet connection. Blinking green light

indicates active Ethernet session.

FXS Steady green light indicates a valid VoIP connection. (Off-Hook)

RESET Restore the 4 Ports VoIP ADSL Router to factory default setting.

RESET Button:

Reboot & Restore the 4 Ports VoIP ADSL Router to factory defaults.

Solwise Ltd, www.solwise.co.uk 2

1.2 Back Panel:

The back panel of the 4 Ports VoIP ADSL Router contains FXS, ADSL, Ethernet Switches, Power

Adaptor connection and Power ON/OFF Switch.

FXS Port for connecting to the Analog Telephone device set.

ADSL Port for connecting to the ADSL Service Provider.

Ports 1~4 Four 10/100Mbps Ethernet Ports for connecting to the network devices.

DC Jack 12V DC/1A Power adapter connector.

ON/OFF Power Switch to turn the 4 Ports VoIP ADSL Router ON/OFF.

ll the Ethernet port of the 4 Ports VoIP ADSL Router support

auto-crossover capability.

Solwise Ltd, www.solwise.co.uk 3

2.1 Connection Mechanism:

This section describes the hardware connection mechanism of your 4 Ports VoIP ADSL Router on

your Local Area Network (LAN) to the Internet, how to configure your 4 Ports VoIP ADSL Router

for Internet access and VoIP functionalities, or how to manually configure your Internet connection.

Before you can establish an Internet and VoIP connection through your 4 Ports VoIP ADSL Router,

make sure you have the following:

1. A computer with an installed Ethernet Adaptor and an Ethernet Cable.

2. ADSL service account and configuration information provided by your Internet Service

Provider (ISP). The following configuration parameters are require in order to connect your 4

Ports VoIP ADSL Router to the Internet:

a. VPI/VCI parameters

b. Multiplexing Method

c. Host and Domain Names

d. ISP Login Name and Password

e. ISP Domain Name Server (DNS) Address

f. Fixed or Static IP Address

3. A VoIP SIP account and configuration information provided by your Internet Service Provider

(ISP) or a self-registered VoIP account parameters.

Solwise Ltd, www.solwise.co.uk 4

2.2 Steps for Connection:

Following are the steps to properly connect your 4 Ports VoIP ADSL Router:

1. Turn off your computer.

2. Connect the ADSL port of your 4 Ports VoIP ADSL Router to the wall jack of the ADSL Line

with a RJ-11 cable.

3. Connect the Ethernet cable (RJ-45) from your 4 Ports VoIP ADSL Router to the Ethernet

Adaptor in your computer.

4. Connect the FXS port of your 4 Ports VoIP ADSL Router to the analog telephone set with a

RJ-11 cable.

5. Connect the Power adaptor to the 4 Ports VoIP ADSL Router and plug the other end into a

Power outlet.

6. Turn on your 4 Ports VoIP ADSL Router.

7. Turn on your computer.

8. Refer to the next chapter to setup or configure your system’s Network Adaptor.

The Power light will lit after turning on the 4 Ports VoIP ADSL Router. Auto

and self-diagnostic process will turn the LED indicators ON and OFF durin

the process.

Solwise Ltd, www.solwise.co.uk 5

Windows Me / 98

Step 1: Click Start→Settings→Control Panel.

Step 2:Double-click the Network icon.

Step 4: Go to IP Address icon and select

Obtain an IP address.

Step 3: Go to Configuration icon, select network

adapter installed and click Properties.

Step 5: Go to Gateway icon and erase all

previous setting.

Step 6: Go to DNS Configuration icon, select

Disable DNS and click OK.

Solwise Ltd, www.solwise.co.uk 6

Windows 2000

Step 1: Click Start→Settings→Control Panel. Step 4:Select Internet Protocol (TCP/IP) and

click Properties.

Step 2:Double-click the Network and Dial-up

Connections.

Step 5:Select Obtain an IP address

automatically and DNS server address

automatically. Then, click OK.

Step 3: Right Click the Local Area Connection and

select Properties.

Solwise Ltd, www.solwise.co.uk 7

Windows XP

Step 1: Click Start→Control Panel→Classic View. Step 4:Go to General icon, select Internet

Protocol (TCP/IP) and click Properties.

Step 2: Double-click the Network Connections.

Step 5:Go to General icon, select Obtain an IP

address automatically and DNS serve

address automatically.

Then, click OK.

Step 3: Right Click on the Local Area Connection

and select Properties.

Solwise Ltd, www.solwise.co.uk 8

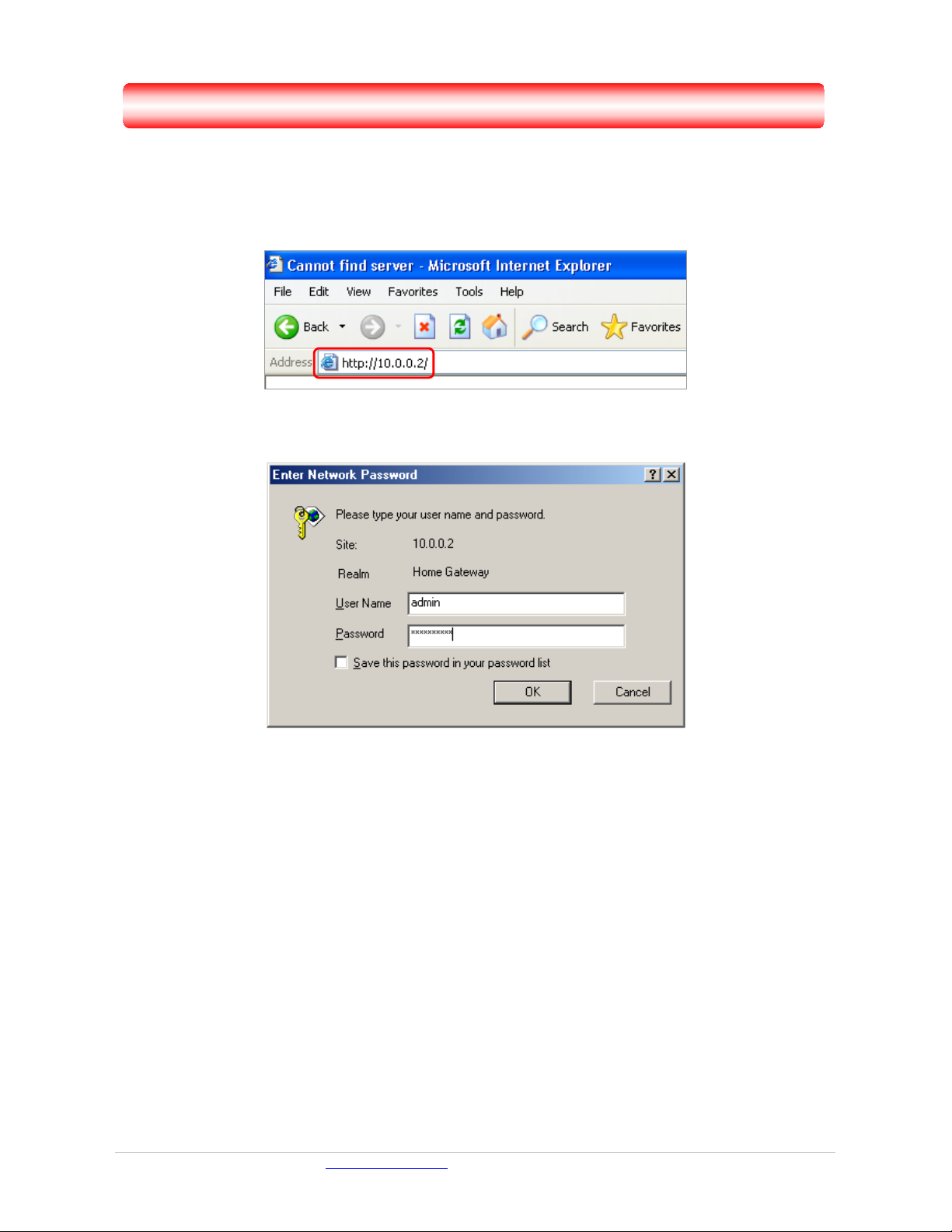

Launch your web browser, and enter the 4 Ports VoIP ADSL Router’s IP Address:

“10.0.0.2”

in the

address field then press the Enter key to login.

2. Enter the default User Name: “admin” and Password: “epicrouter”. Then press “OK” to login.

Solwise Ltd, www.solwise.co.uk 9

3. Click

“EZ SETUP - Automatic Setup” and proceed with the following steps to help you install

the 4 Ports VoIP ADSL Router quickly and easily.
