MS-0401E USER GUIDE
Introduction

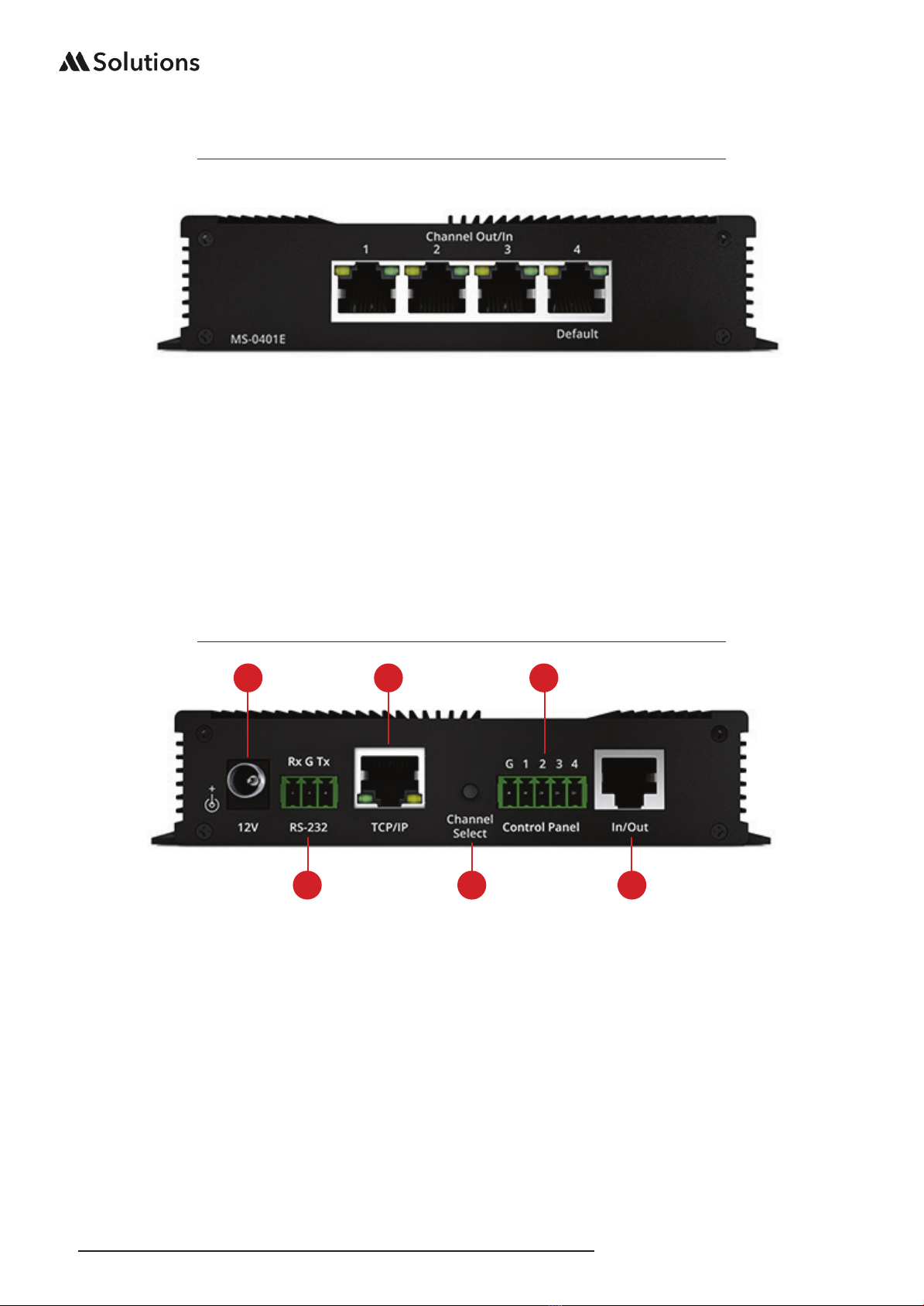

The MSolutions 4-way HDBaseT / IP Gateway is a small form-factor unit with 5 x HDBaseT / IP
ports, oering an eicient HDBaseT / IP switching platform.
The unit is designed to oer two diering types of HDBaseT / IP switching, allowing for up to 4 x
HDBaseT source devices (Transmitters) or IP Hosts to be linked through the MSolutions Gateway
to a single HDBaseT / IP output, or for a single HDBaseT / IP input to be independently switched to
the 4x HDBaseT / IP outputs.
The unit can be used with any manufacturers compatible HDBaseT transmitter and receiver
equipment to provide extra connectivity to larger distribution systems, or for separation of multiple
units via LAN, to provide a simple, yet cost-eective switching solution.
Key Features
• Inline switching of HDBaseT Transmitters or Receivers: 1 x input to 4 x selectable outputs, or
4 x independent inputs to 1 x output
• Supports multiple control interfaces, including built-in web UI, UART RS232, 4 buttons keypad,
and JSON interface.
• Supports multiple protocols, including TCP/IP, UDP, HTTP, and MQTT.
• Low power consumption.
• Easy configuration and management through a web-based user interface.
• Supports firmware upgrade using UART interface.
• Can be used for dynamic routing of LAN connections (outside of HDBaseT spec)
• Interoperability with all HDBaseT manufacturers equipment
• Distances of manufacturers HDBaseT equipment maintained with switch inline
• Support for all HDBaseT specifications up to HDBaseT Spec 3.0 including video, audio, audio
return, control and Ethernet (based on spec of individual TX or RX attached)
• Transparent to HDCP content being sent via HDBaseT - pass-through is based on the
specification of the HDBaseT transmitter and receiver modules attached
• Supports pass-through of all HDBaseT power formats: PoE, PoH, PoC up to 100W
• Internal galvanic separation of inputs / outputs to ensure disconnect when ports are not in use
