Soltaro AIO2-INS Series Manual de usuario

Operating Manual

AIO2-INS Series

Version: AIO2 Pro-INS-EN 3.0-202210



Contents
About This Manual ............................................................................ 1
1 Products Covered by This Manual........................................... 1
2 Target Group .......................................................................... 1
3 Symbols Used........................................................................ 1
4 Storage of the Manual............................................................ 1
Safety................................................................................................ 2
1 Intended Use ......................................................................... 2
2 Important Safety Instructions................................................. 2
3 Storage and Transportation..................................................... 3
Scope of Delivery.............................................................................. 4
Product Description........................................................................... 5
1 View of the Inverter................................................................ 5
2 Topology of the Inverter ......................................................... 7
3 System Diagram..................................................................... 8
4 Operating Mode Introduction ................................................. 9
Mounting .........................................................................................12
1 Requirements for Mounting ..................................................12
2 Mounting the Inverter (with AIO2-BTLV-5KWH battery) ........14
3 Mounting the Inverter (with AIO2-BTLV-10KWH battery).......18
Electrical Connection....................................................................... 21
1 Wiring Diagram for Australia & New Zealand ....................... 21
2 Wiring Diagram for Europe................................................... 22
3 Overview of the Connection Area ........................................ 23
4 PV Connection ..................................................................... 24



5 Grid Connection ................................................................... 26
6 EPS Connection ................................................................... 27
7 Battery Connection .............................................................. 29
8 Smart Meter Connection...................................................... 32
9 Qendercore Hub Connection................................................ 35
10 DRM Connection.................................................................. 35
Operating of the Inverter................................................................. 36
1 Graphical Display.................................................................. 36
2 Commissioning .................................................................... 37
3 Decommission ..................................................................... 38
4 Network Configuration......................................................... 39
Troubleshooting and Maintenance................................................... 42
1 Troubleshooting.................................................................... 42
2 Recommended Maintenance ............................................... 45
Technical Data ................................................................................. 46
1 Specification of inverter........................................................ 46
2 Specification of battery......................................................... 48
3 Certificates and Grid Regulations ......................................... 49
Contacts:......................................................................................... 50


1About This Manual

1.1 Products Covered by This Manual

AIO2 Series Low Voltage Solar Hybrid Inverter:

AIO2-INS-3000, AIO2-INS-3680, AIO2-INS-4600, AIO2-INS-5000.

1.2 Target Group

This document is intended for qualified electricians. Any electrical installation and maintenance

on this inverter must be performed by qualified electricians in compliance with standards, wiring

rules or requirements of local grid authorities or bodies.

1.3 Symbols Used

These important instructions must be followed during installation, operation and maintenance

of the inverter.

Indicates a hazard with a high level of risk that will result

in death or serious injury.

Indicates a hazard with a medium level of risk that can

result in death or serious injury.

Indicates a hazard with a low level of risk that can result

in minor or moderate injury.

Indicates a situation which, if not avoided, can results in

property damage.

1.4 Storage of the Manual

The manual should be stored with other documents belonging to the inverter and must be

available to people authorized to work on the installation.

Note: This manual will be updated if necessary. Please check www.soltaro.com for more

information.

2Safety

2.1 Intended Use

The AIO2 Series are single phase solar hybrid inverters suitable for both on-grid and off-grid

operation. With Lithium batteries, PV panels and a smart meter, the hybrid inverter is the central

device to make a solar storage system for increased self-consumption.

The AIO2-INS Series must only be connected with the lithium battery from SOLTARO.

To prevent personal injury and property damage and to ensure long-term operation of the

product, please read and follow all the instructions and cautions on the inverter and this user

manual during installation, operation or maintenance at all times.

2.2 Important Safety Instructions

Danger to life from electric shock.

•

Before performing any work on the inverter, disconnect all DC and AC power from

inverter and wait for at least 5 minutes.

•

Do not touch DC conductors or any non-isolated cable ends.

•

If an error occurs, contact your local distributor or qualified electricians.

•

Make sure the inverter is not touchable by children.

Risk of burns from hot surfaces.

•

The surface of the inverter might exceed 60℃, touching the surface may result in

burns.

•

Do not touch hot surfaces before it cools down.

•

Only authorized service personnel are allowed to install the inverter or perform

servicing and maintenance.

•

All power, both AC and DC, should be disconnected from inverter before

attempting any maintenance or cleaning or working on any circuits connected to

inverter.

•

The Inverter has a transformerless design on the PV side. Either positive or

negative terminals of PV panels should not be grounded.

•

The frames of PV panels should be grounded for safety reasons.

•

Do not open inverter cover or change any components without authorization,

otherwise the warranty commitment for the inverter will be invalid.

•

Appropriate methods must be adopted to protect inverter from electrostatic

discharge, any damage caused by ESD is not warranted by the manufacturer.

2.3 Storage and Transportation

•

Store the inverter in a dry environment where ambient temperature keeping always

between -20 °C and +60 °C.Take care of the inverter during the storage and transportation.

•

The package shall not be tilted or inverted during transportation, handling and storage.

•

When the inverter or other related components need to be disposed, make sure it is

carried out according to local waste handling regulations.

•

Please be sure to deliver waste inverters and packing materials to appropriate recycling

centers where possible.

3Scope of Delivery

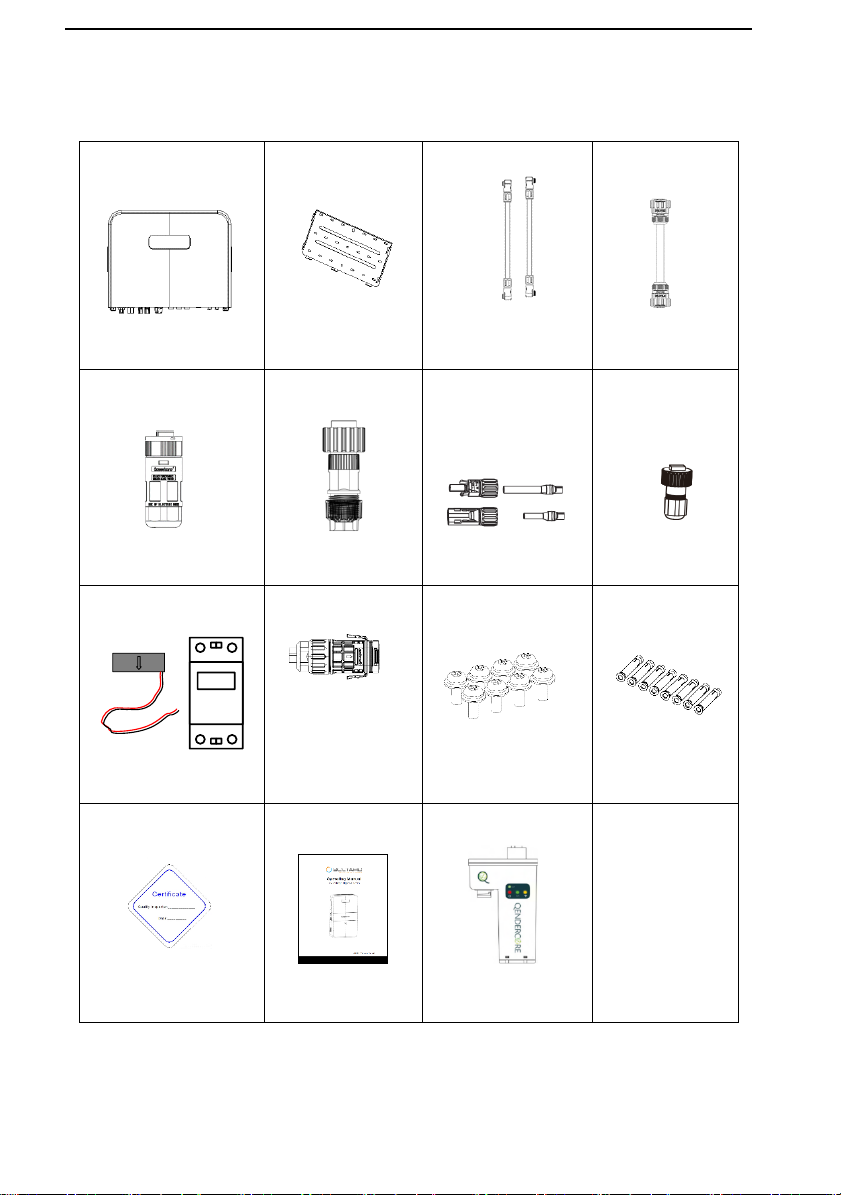

Inverter

Wall Mounting

Bracket

Battery power

cables

BMS Cable

EPS Connector

Grid Connector

PV Connectors

RJ45 Connector

for DRM port

1 2

3 4

5 6

7 8

CT and Smart Meter

16pin Multi port

connector

M5 Screws

Expansion

Screws

Certificate card

User Manual

Qendercore Hub

(Wi-Fi &LAN Stick)

4Product Description

Thank you for choosing the SOLTARO AIO2 ESS which is a single phase system. Inverters should

not be used in multiple phase combinations. Features of the inverter are ahead of the field and

should be understood prior to install.

4.1 View of the Inverter

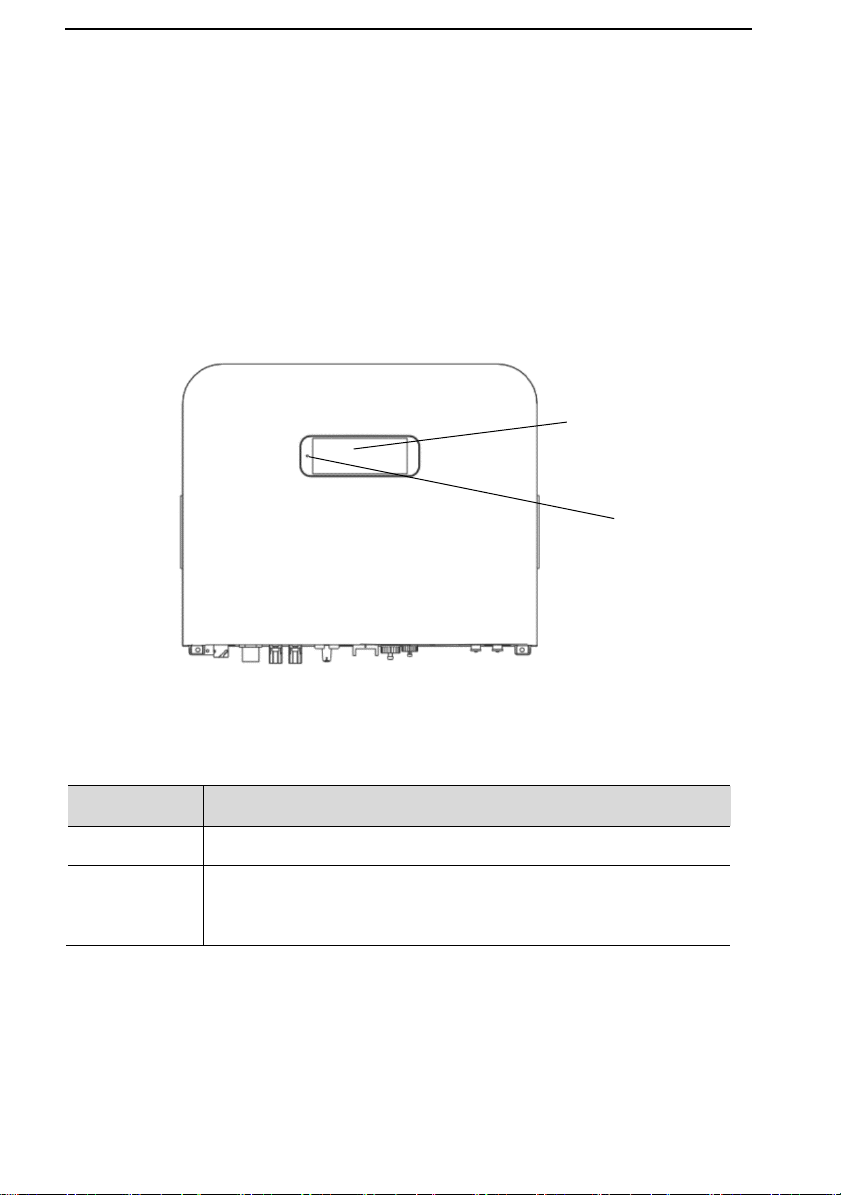

Figure 1. View of the AIO2 Series Hybrid Inverter

Position

Designation

Graphical Display

LED light.

When inverter is running normally, the light is green.

When an error occurs, the light turns red.

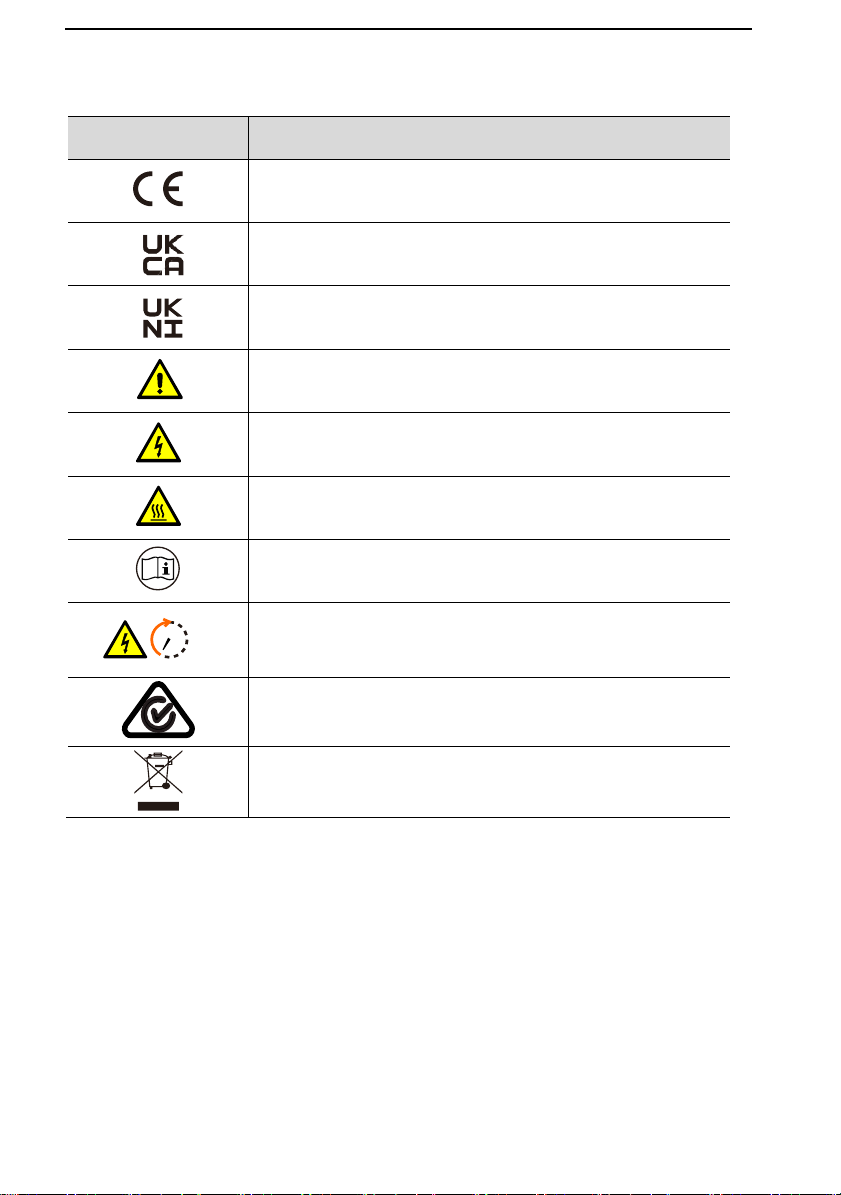

Icons on the Nameplate

Symbol

Explanation

CE Mark

UKCA Mark

UKNI Mark

Caution, Risk of Danger

Caution, Risk of Electric Shock

Caution, Hot Surface.

Refer to the Operating Manual

5min

Danger, Risk of Electric Shock due to Stored Energy. Cut off all

power and wait at least 5 minutes before any work is carried out

on the inverter.

RCM Mark for Australia and New Zealand.

WEEE Mark. This inverter should not be disposed as ordinary

waste.

4.2 Topology of the Inverter

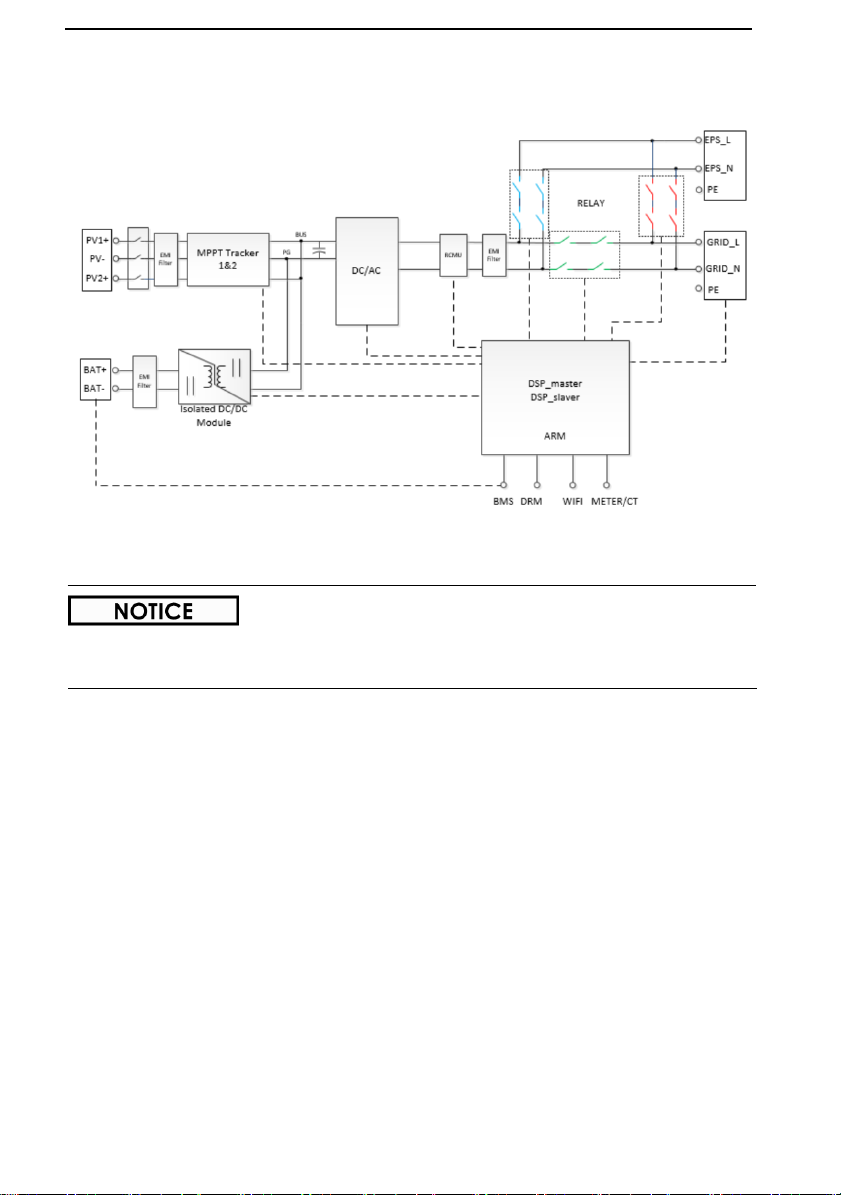

Figure 2. AIO2 Series Hybrid Inverter topology

•

After the PCE installation is completed, it is recommended that the N and PE wires are

joined at the distribution box;
