Solid State Logic SB 32.24 Manual de usuario

Network I/O Stagebox SB 32.24 User Guide Contents

Visit SSL at:

www.solidstatelogic.com

SSL®, Solid State Logic®, Total Recall®, Gravity® and Tempest®

are ® registered trademarks of Solid State Logic.

System T™, Live L300™, Live L500™, L500 Plus™, Blacklight™

are ™ trademarks of Solid State Logic.

Dante™ and Audinate™ are trademarks of Audinate Pty Ltd.

All other product names and trademarks are the property of their respective owners

and are hereby acknowledged.

No part of this publication may be reproduced in any form or by any means, whether mechanical or

electronic,without the written permission of

Solid State Logic, Oxford, OX5 1RU, England

As research and development is a continual process, Solid State Logic reserves the right to change

the features and specifications described herein without notice or obligation.

Solid State Logic cannot be held responsible for any loss or damage arising directly or indirectly from

any error or omission in this manual.

PLEASE READ ALL INSTRUCTIONS, PAY SPECIAL HEED TO SAFETY WARNINGS.

E&OE

June 2017

Document Revision History

FIRST VERSION

Revision 1.0

20th June 2017



Page 2 of 25

Network I/O Stagebox SB 32.24 User Guide Contents

TableofContents

Table of Contents 3
Introduction 5
Key Features: 5
SB 32.24 Front Panel 5
SB 32.24 Rear Panel 5
Mains Power Connections 6
Channel LEDs 6
Net A, Net B and H/W status LEDs 7
Hardware Connections: 8
Status & Reset (DHCP) 8
Dante Connection Examples 9
Gain-dependant source and gain-compensated splits available to master console 9
Gain-dependant source and gain-compensated splits available to both consoles (no
SFP’s fitted - external switch connected) 9
Gain-dependant source and gain-compensated splits available to both consoles
(SFP’s fitted). 10
Gain-dependant source available to master console, Gain-compensated split
available to secondary console. 10
Connecting a PC: 11
Network Connection 11
SSL Network I/O Controller PC application 11
IP Address 11
Linking/Unlinking Networks A and B 12
Software Control 13
The GUI 13
Network View 13
Inputs/Outputs 14
View Inputs 14
View Outputs 15
Ownership 16
Gain Compensation 17
Dante Controller 18
Dante Controller PC GUI 18
Appendix A – Physical specifications 19
Appendix B – Performance specifications 20
Mic/Line Inputs 20
Measurement Parameters 20
Line Outputs 21
Measurement Parameters 21
Digital Inputs 22

Page 3 of 25


Network I/O Stagebox SB 32.24 User Guide Contents

Appendix C – Safety Notices 23
General Safety 23
Installation Notes 23
Power Safety 24
For EU 24
Environmental Declaration 24
RoHS notice 25
For USA 25
Electromagnetic Compatibility 25
Environmental 25



Page 4 of 25


Network I/O Stagebox SB 32.24 User Guide Contents

Introduction

Overview

SB 32.24 is a 5U, 40-input and 24-output Dante stagebox featuring 32 SuperAnalogue™ mic/line

inputs, 4 AES/EBU inputs, 16 analogue line outputs and 4 AES/EBU outputs. All analogue and AES

audio connectors are XLR-3 type.

SB 32.24 can be controlled remotely from SSL Live and System T consoles as well as from SSL’s

Network I/O Controller app for PC.

SB 32.24 is suitable for all high-quality AoIP applications of any scale. Redundant power, redundant

ruggedized etherCON Dante connection plus two user-specifiable SFP ports which provide network

extension or support a second independent Dante network complete the professional hardware

requirement.

KeyFeatures:

●Interface between studio/stage/recording-area and IP audio networks using Dante

●SSL SuperAnalogueTM Studio Grade preamps

●Gain-compensated Dante Split available on the same or on a separate (B) network

●Device and parameter ownership assignment to avoid control conflicts

●Redundant PSUs and Dante ports

●Redundant network extension ports

●Clear front panel indication – signal present, phantom power, channel attention on analogue

inputs

●Front facing XLR connections

●Network B SFP ports can be configured with RJ45 or optical LC connectors

SB32.24FrontPanel

SB32.24RearPanel

Page 5 of 25

Network I/O Stagebox SB 32.24 User Guide Contents

MainsPowerConnections

Each Stagebox includes redundant PSUs with IEC connectors; either supply can individually power

the unit. Ideally these should be connected to separate power circuits to provide redundancy of

incoming AC power.

●PSU LEDs are informational and are green in normal operation.

●A flashing red PSU LED indicates the failure of PSU 1

●A static red PSU LED indicates a failure of PSU 2

ChannelLEDs

●Analogue signal LEDs (SIG) are green above -42 dBFS and red at -0.1 dBFS (clipping).

●48V / ATT indicates Phantom Power and/or Attention depending on red, green, or flashing

combinations as follows:

●Red – phantom power on

●Green flashing – channel Attention active

●Green & red flashing – phantom power on &

channel Attention active

Note: The three holes above each of the XLR sockets are part of the unit’s ventilation. Do

not block (e.g. with tape!)

Page 6 of 25

Network I/O Stagebox SB 32.24 User Guide Contents

NetA,NetBandH/WstatusLEDs

A series of LEDs towards the right hand side of the front panel indicate statuses as follows.

Label

LED Status

Off

Green

Red

(priority over

flashing red)

Flashing Red

AES IN 1/2

ACT

Analogue inputs

25/26 in use

AES inputs 1/2

in use

N/A

H/W

N/A

All hardware

(fans etc.) good

Hardware fault - check software

AES IN 3/4

ACT

Analogue inputs

27/28 in use

AES inputs 3/4

in use

N/A

NET A

N/A

Dante network

A good

Dante A Pri

Fault

Dante A Sec

Fault

AES IN 5/6

ACT

Analogue inputs

29/30 in use

AES inputs 5/6

in use

N/A

NET B

N/A

Dante network

B good

Dante B Pri

Fault

Dante B Sec

Fault

AES IN 7/8

ACT

Analogue inputs

31/32 in use

AES inputs 7/8

in use

N/A

PSU

Unit not

powered

PSU 1 & 2 good

PSU 1 Fault

PSU 2 Fault

Page 7 of 25

Network I/O Stagebox SB 32.24 User Guide Contents

HardwareConnections:

DANTEConnections

SB 32.24 has two redundant sets of network connections. The Network A ports feature etherCON

ruggedised RJ45 connectors, and the Network B ports are SFP cages, which can be fitted with either

RJ45, Single-mode or Multi-mode LC fibre connectors.

The SB 32.24 Network connections can be configured in two different modes:

In the first mode, the A and B networks are linked internally (A+B Network Link LEDs are ON). In

this mode, both Network A and Network B are identical and output both the gain-dependant and

gain-compensated audio. Dante devices can subscribe to either one.

In second mode, the A and B networks are discrete (A+B Network Link LEDs are OFF), and

isolated from each other. In this mode Network A transmits uncompensated audio (and receives

audio for the analogue and AES outputs and also control data) and Network B transmits the

compensated audio only. Note that they have to be synchronised to the same clock source.

Status&Reset(DHCP)

A+B Network Link LED indicates unit is configured to connect internal

A and B networks

Off: Networks not linked

Green: Network A and Network B Linked

Dante B SRC LED is reserved for future possibilities!

Reset DHCP independently resets the internal Networks to DHCP

supplied addresses. Insert a small ‘prodder’ into the relevant opening

and press and hold for approx. 3 seconds to reset to DHCP addressing. The LED on the chosen port

will briefly turn red to indicate this has happened.

FactoryReset

If BOTH Reset DHCP buttons are held for 6 seconds, this will trigger a Factory Reset of the

stagebox.

Page 8 of 25

Network I/O Stagebox SB 32.24 User Guide Contents

DanteConnectionExamples

Gain-dependantsourceandgain-compensatedsplitsavailabletomasterconsole

In this mode, both the

gain-dependant and the

gain-compensated splits are

available to the master console.

Stagebox outputs are available to

the master console.

Gain-dependantsourceandgain-compensatedsplitsavailabletobothconsoles(noSFP’sfitted-

externalswitchconnected)

In this mode both the

gain-dependant and the

gain-compensated splits are

available to both consoles

(no SFP’s fitted - external

switch connected). Input

ownership and stagebox

outputs are available to

either console

Page 9 of 25

Network I/O Stagebox SB 32.24 User Guide Contents

Gain-dependantsourceandgain-compensatedsplitsavailabletobothconsoles(SFP’sfitted).

In this mode both the

gain-dependant and the

gain-compensated splits are

available to both consoles

(SFP’s fitted). Input

ownership and stagebox

outputs are available to

either console.

Gain-dependantsourceavailabletomasterconsole,Gain-compensatedsplitavailableto

secondaryconsole.

In this mode only the

gain-dependant split is available

to the master console. Only the

gain-compensated split is

available to the secondary

console. Input ownership and

stagebox outputs are only

available to the master console.

Please note: Secondary

console must be

synchronised to the same

clock source as the master

console.

To configure the internal

network link see NETWORK

CONNECTION later.





Page 10 of 25

Otros manuales para SB 32.24

Tabla de contenidos

Otros manuales de Sistema de E/S de Solid State Logic

Solid State Logic

Solid State Logic MadiXtreme MADI I/O Manual de usuario

Solid State Logic

Solid State Logic SSL SDI Manual de usuario

Solid State Logic

Solid State Logic Alpha-LinK MX 4-16 Manual de usuario

Solid State Logic

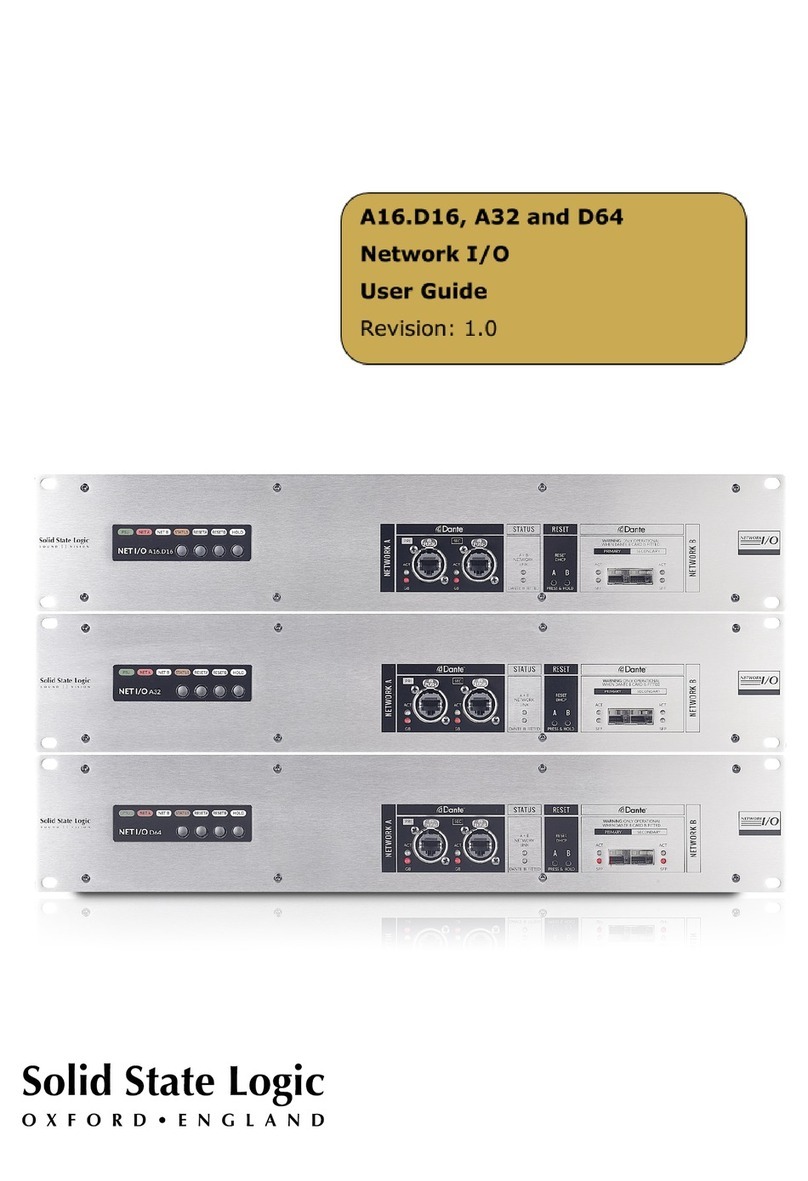

Solid State Logic A16.D16 Manual de usuario
