Soleus Air KFHIP-09-OD Hoja de especificaciones

Wall Mounted Mini Split

Heat Pump

Air Conditioner

OPERATING AND INSTALLATION MANUAL

Model: KFIHP-09-ID / KFHIP-09-OD

KFHHP-12-ID / KFHHP-12-OD

Thank you for selecting Soleus Air. To ensure proper

operation, please read this manual and keep it for

future reference.

Indoor Unit.

Outdoor Unit.

TABLE OF CONTENTS

STRUCTURE AND OPERATION...……………………..……………………………………….....1-8

Name of Each Part…………………………………………………………….………..………...……1

The Instructions before Use…………………………………………………………………………2-3

Specifications and Technical Data……………………………….……..……………….…………….4

Remote Control Operation………………………………………………….….…...............………5-6

How to Insert Batteries……………………………………………..………………….………...……7

Operation………………………………………………………………………………………...……8

INSTALLATION...……………………..……………………………………………………...........9-14

Installation Location………………………………………………….………………………………9

Electric Wiring………………………………………....………………………………...….……….10

Grounding Requirement…………………………………………………….…...……..………....….10

Installation Dimension Diagram……………………………………………………….…….………11

Installation…………………………………………………………………………….……….....12-13

Install the Indoor Unit…………………………………………………………………………….....14

Install the Outdoor Unit……………………………………………………………………...…..15-16

Test Operation and Check after Installation……………………………….………………………...17

CARE AND MAINTENANCE……………………………………………...………..…….……...…18

Care and Maintenance ………………………………………………………....………….…….18-19

Trouble Shooting………………………………….………………………………………..……20-21

ELECTRICAL SCHEMATIC DIAGRAM…………………………………...………..…………22-23

Electrical Schematic Diagram (Indoor Unit)…………………………...……………......………….22

Electrical Schematic Diagram (Outdoor Unit)………..……………………….……………………23

WARRANTY…………………………………………………………………………………………24

Thank you for selecting Soleus Air. To ensure proper operation, please read this

manual and keep it for future reference.

Danger Caution. This mark indicates a direction/procedure that

must be followed!

- 1 -

Structure and Operation

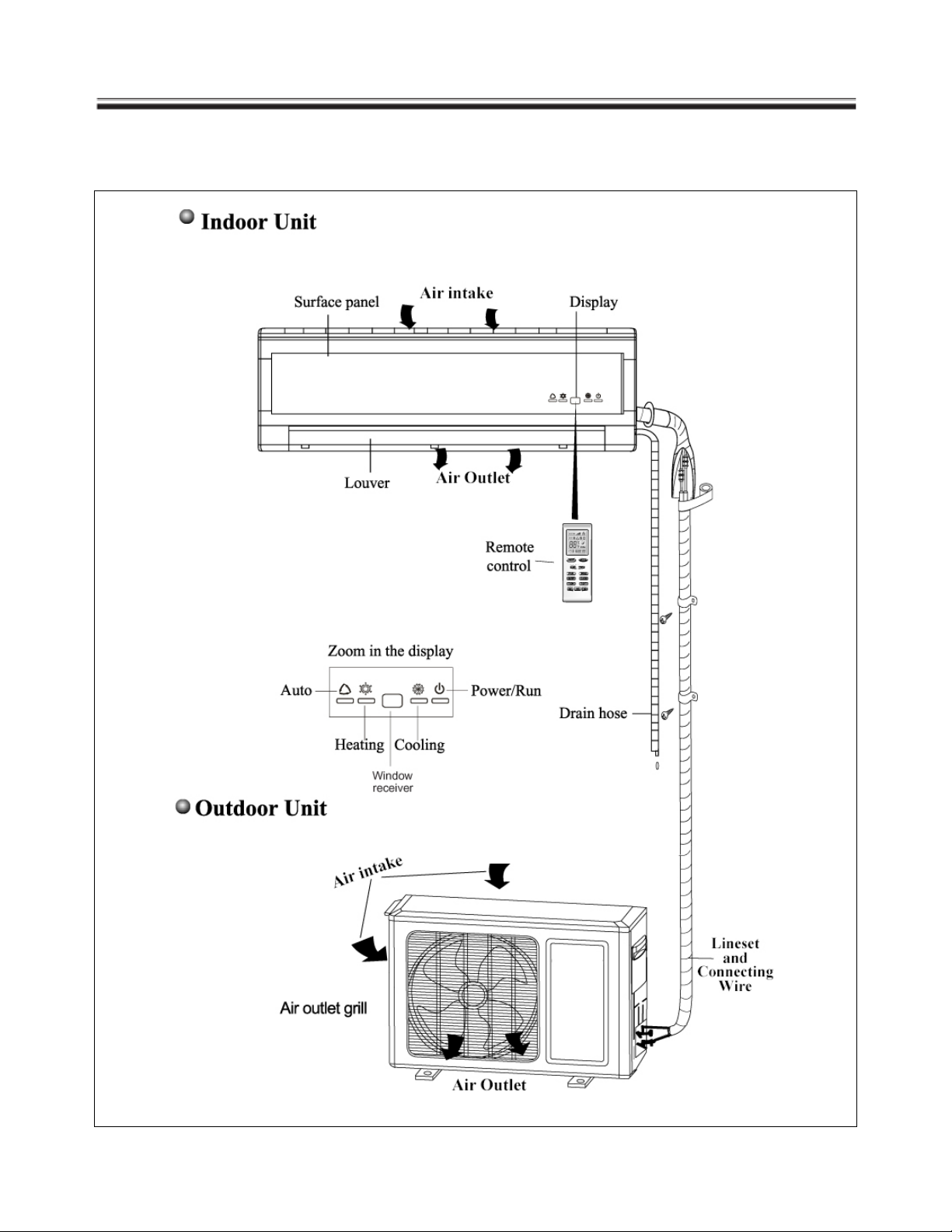

◆Name of Each Part

- 2 -

◆The Instructions before Use

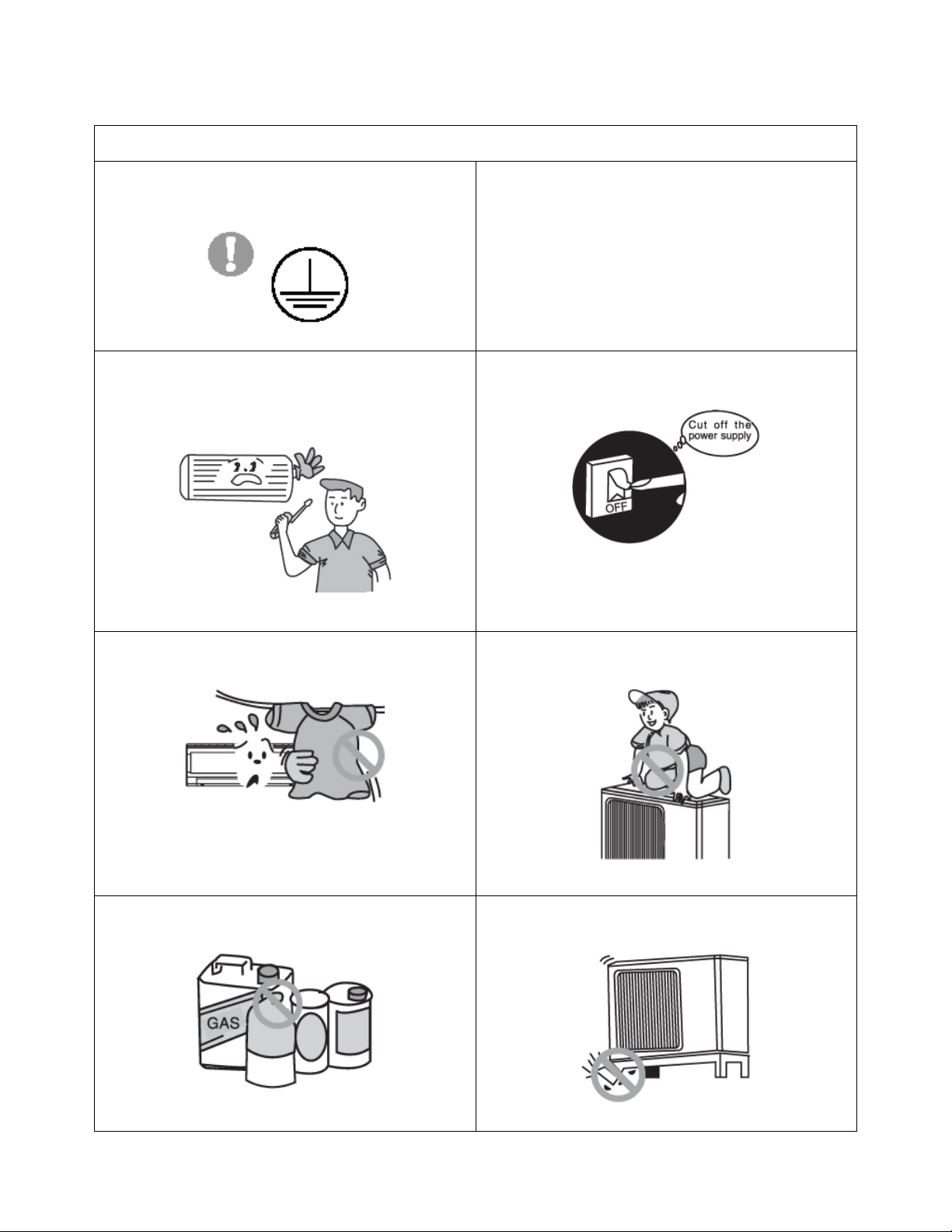

Warning

★Grounding: The unit must be properly

grounded.

★Disconnect the power when the unit is not being

used for extended periods of time.

★Don’t attempt to repair the air conditioner by

yourself. There are no user replaceable parts.

Please contact your authorized dealer.

★If your air conditioner malfunctions,

discontinue use and call your authorized dealer.

★Never block the air inlet or outlet of indoor and

outdoor unit.

★Don’t step on the top of the outdoor unit or

place something on it.

★Never store flammable liquids near your air

conditioner.

★The condensing unit should be securely

mounted to avoid damage.

- 3 -

◆The Instructions before Use

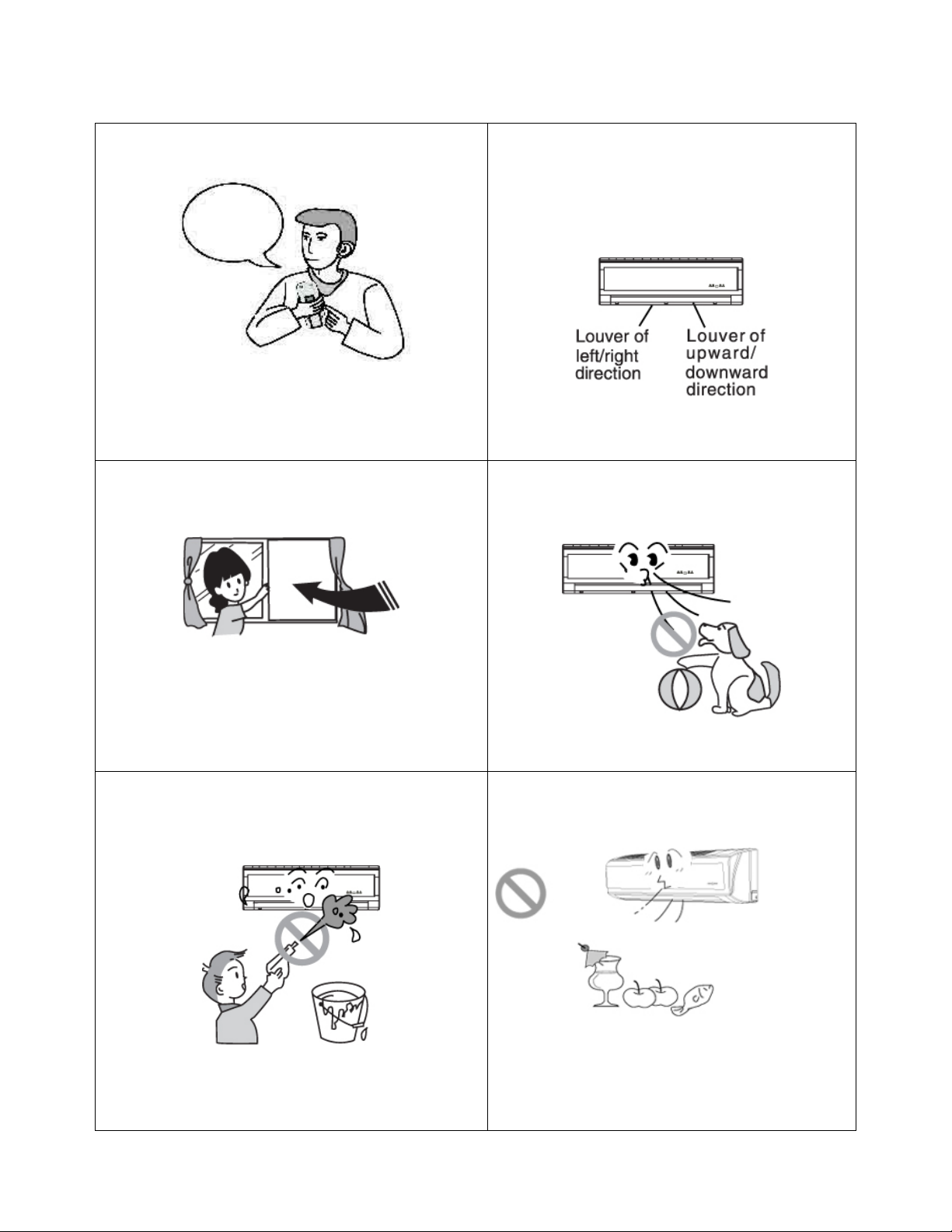

★Set the room temperature appropriately.

★Adjust the air flow and direction properly.

When the air conditioner is running, you can

press the SWING key on the remote control to

adjust the guide louver and change the

direction of air flow.

★Close all doors & windows for efficient

operation.

★To avoid harm to your pets or plants, never

direct the airflow at them.

★To avoid damage or electric shock, never spray

liquid onto the unit.

★This air conditioner cannot be used for

drying clothes or refrigerating foods.

The difference

between indoor

and outdoor

temperature

shall be 40 °F.

- 4 -

◆Specification and Technical Data

Model

KFIHP-09-ID

KFIHP-09-OD

KFHHP-12-ID

KFHHP-12-OD

Function Cool / Heat

Accessory Air Cleaner

Cooling capacity (Btu/h) 9000 12000

Heating capacity (Btu/h) 9500 13000

Power Supply (V) 115V~ 208~230

Frequency (Hz) 60

Cooling/Heating rated current(A) 12/13.6 9/10

Cooling/Heating rated power(W) 1250/1450 1700/1750

Cooling/Heating power input(W) 730/840 1100/1200

Recycling air Volume（

）550

Refrigerant and weight(lbs) R410A 2.6 lbs R410A 2.8 lbs

Water proof level IP24

Noise(Indoor/Outdoor)dB(A) 43/55

Climate type T1

Anti-electric shock protection I

Weight Indoor/Outdoor)(lbs) 24.3/99.2 24.3/99.2

Dimensions

(W x D x H) Indoor unit 30.31”×7.48”×9.84” 32.68”×8.86”×11.22”

Outdoor unit

33.39”×12.6”×21.26” 33.39”×12.6”×21.26”

Connection Pipe:

Length (ft) 19.68

Gas additional charge(oz/ft) 0.16

Liquid Pipe (mm) Φ6(1/4”)

Outer Diameter Gas Pipe (mm) Φ12(1/2”)

Height (ft) 16.4

Max Distance Length (ft) 49.21

1. All above are tested and certified to ETL specification.

2. All above could be changed without notice; the latest specifications are on the nameplate of your air conditioner.

3. When the unit is restarted after it stopping, it can automatically resume the last running mode, and the outdoor unit

starts later.

Working temperature range:

Indoor side DB/WB(°F) Outdoor side DB/WB(°F)

Maximum cooling 89.6 / 73.4 109.4 / 78.8

Minimum cooling 69.8 / 59 69.8 / -

Maximum heating 80.6 / - 75.2 / 64.4

Minimum heating 68 / - 23 / 21.2

- 5 -

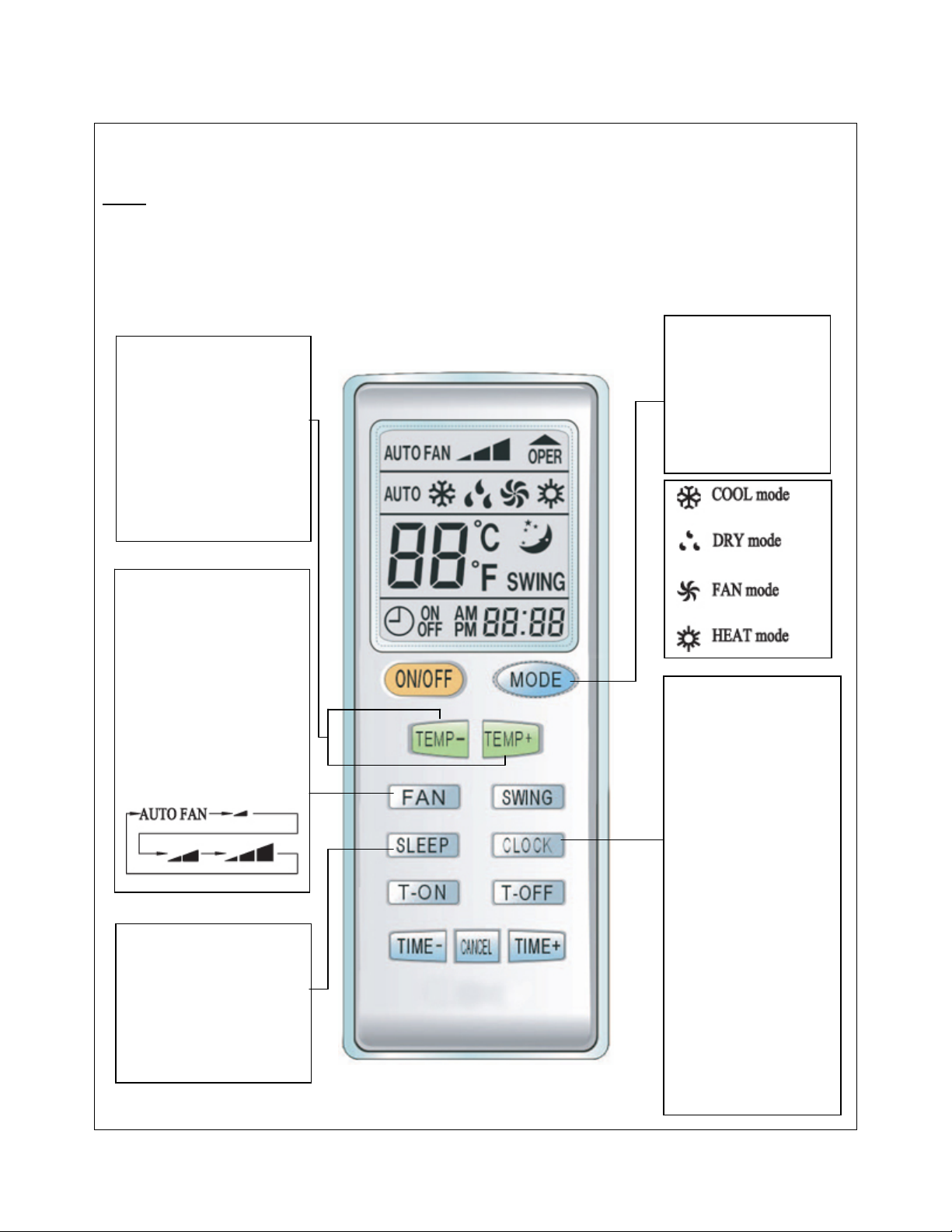

◆Remote Control Operation

Function-Remote control

Note:

•Don't drop the remote control.

•Don't place the remote control in a location exposed to direct sunlight.

•When the unit is restarted after stopped, it will automatically resume its last running mode, and the

outdoor unit will start there after.

TEMP+ TEMP- Button:

Under the COOL, DRY,

FAN or HEAT mode,

press these two buttons

could set the temperature,

the temp. setting range is

60.8°F -86°F, the temp.

can be memorized under

each mode.

FAN SPEED Button:

When the unit starts up,

under the AUTO, COOL,

FAN or HEAT mode, press

this button and select Auto

fan, Low fan, Middle fan,

High fan. At DRY mode,

the fan speed runs at Low

fan speed. The FAN

SPEED can be memorized

under various modes.

MODE Button:

When the unit is

turned on, press this

button. The AUTO,

COOL, DRY, FAN or

HEAT mode can then

be selected.

CLOCK Button:

When pressing this

button once, the icon of

CLOCK will flash, and

can be adjusted. At

CLOCK adjustment,

press the TIME+ once,

the ones placed on the

minute will be increased

1, and continuously press

1 sec above, the tens

place on the minute will

be increased 1 in every

half second. When

pressing the TIME-, the

ones placed on the

minute will be decreased

1, and continuously press

1 sec above, the tens

place will be decreased 1

in every half second.

After adjusting please

press the CLOCK button

again for confirming.

SLEEP Button:

Under COOL, DRY &

HEAT mode, press the

button once to start the

SLEEP function, when

pressed again, it will stop.

- 6 -

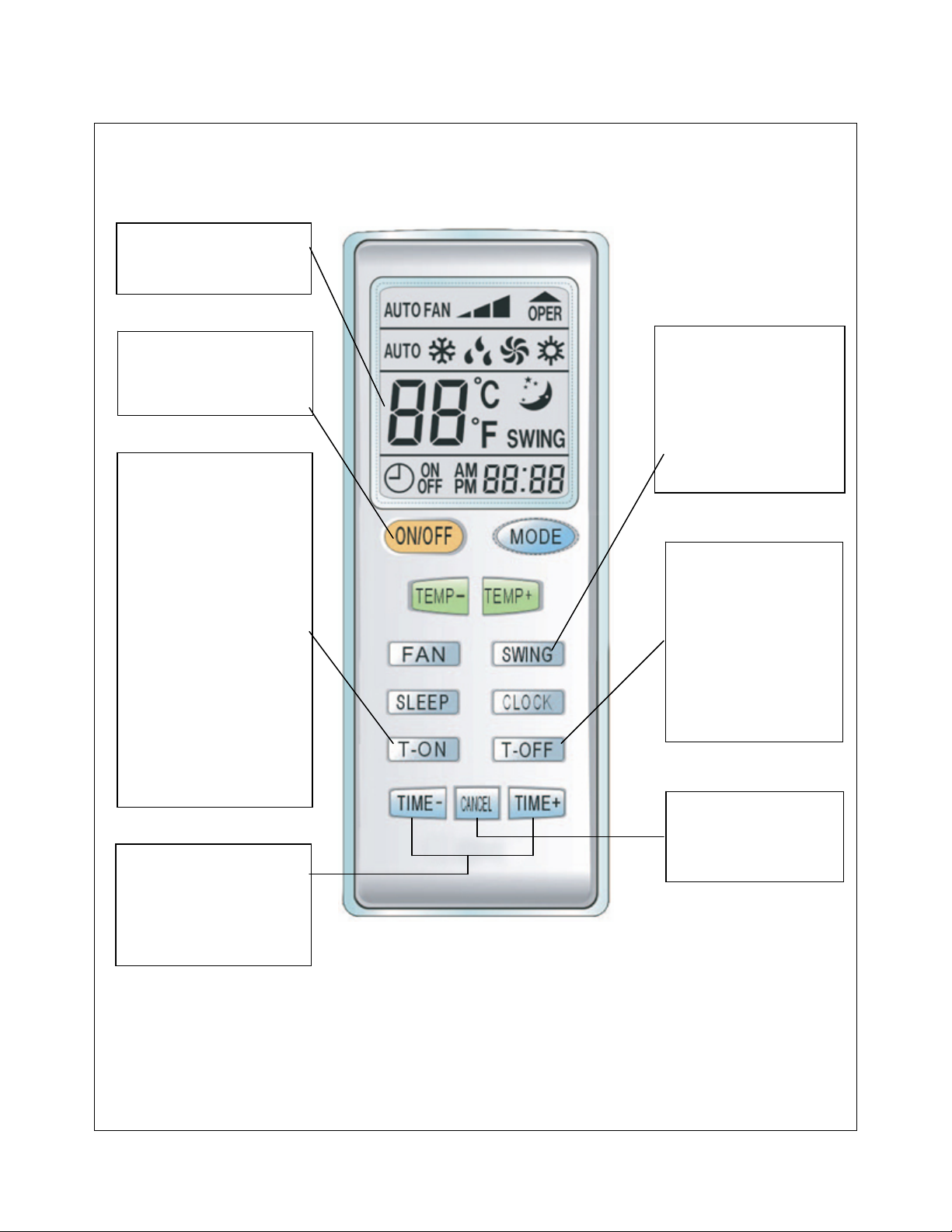

◆Remote Control Operation (Continued)

Liquid Crystal Display.

It shows all set contents.

ON/OFF Button

Press ON.

Press OFF.

T-ON Button.

When pressing this button

once, enter into T-ON

setting, the icon of T-ON

flash, every press of

TIME+, the time of T-ON

will be increased 1min.

When continuously press 1

sec above, the tens placed

on minute will be

increased 1, every press of

TIME- will be decreased 1

minute, when continuously

press 1 sec above, the tens

placed on minute will be

decrease 1 in every half

second, and it goes round

with 12 hours.

SWING Button:

Press once to have louvers

swing [oscillate]. Press

twice in one second the

panel light will turn on.

Press twice again and the

light will turn off.

T-OFF Button

Press this button once to

enter into T-OFF

setting, the icon of T-

OFF will flash, the T-

OFF button is available

in ON or OFF mode, the

setting method is the

same with T-ON.

CANCEL Button

Pressing this button will

cancel timer.

TIME+ TIME- Button

Function instruction please

refer to T-ON button, T-

OFF button, CLOCK

button.

- 7 -

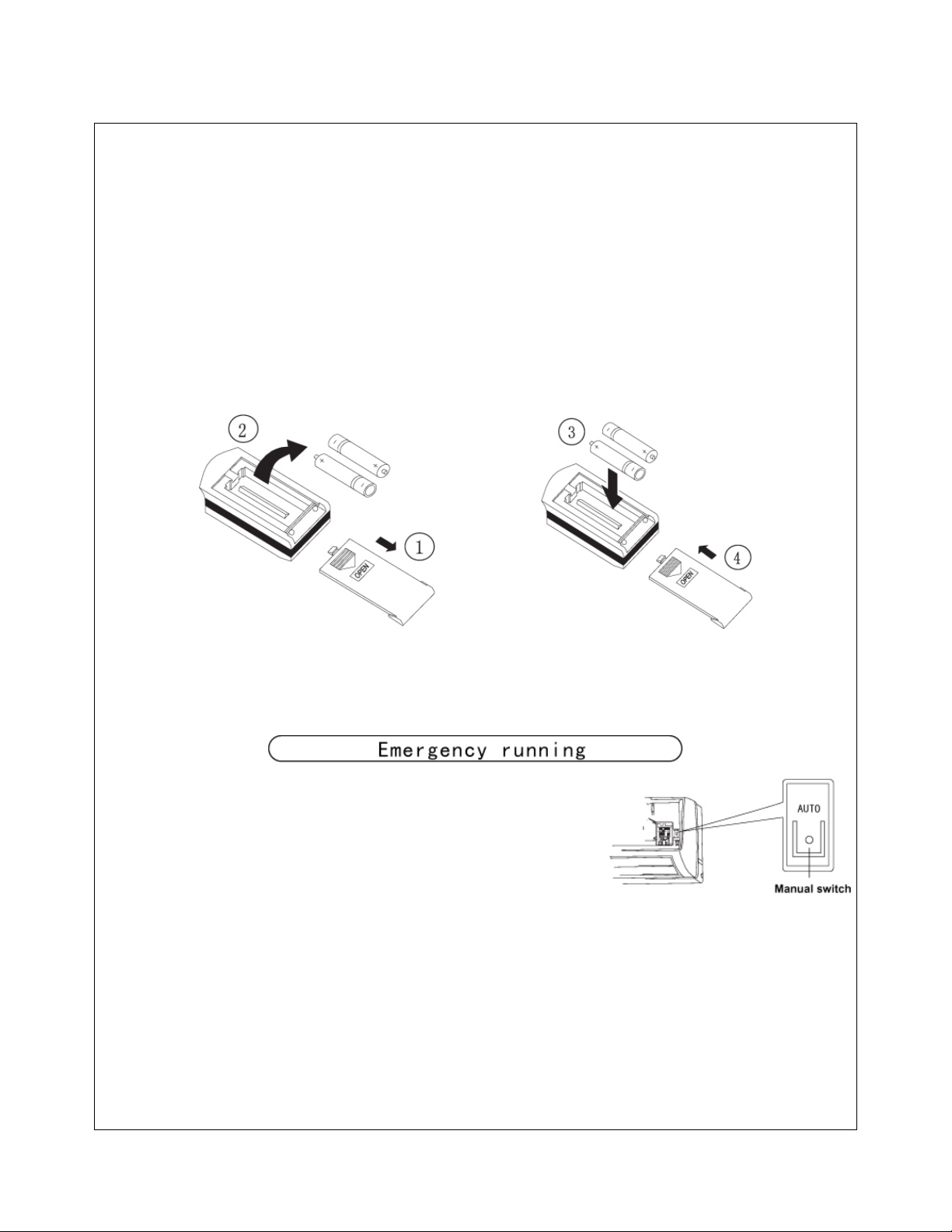

◆How to Insert Batteries

1. Remove the cover from the back of the remote control.

2. Insert the two batteries (Two AAA dry-cell batteries).

3. Re-attach the cover.

NOTE:

•Don’t mix different batteries.

•Remove batteries when not in use for a longtime.

•The batteries can be used for about one year.

•Keep remote at least 3.28 feet from TV’s and other electronic devices.

When the wireless remote control is lost or broken, please use the manual switch,

It will start in AUTO mode, the temperature setting and fan speed cannot

be changed. Please use a ball point pen or similar device to operate switch.

Turn on the unit: By pressing the Manual Switch the unit will start in AUTO automatically.

The microcomputer will adjust to the indoor temperature by selecting (COOL, HEAT, FAN), in order to

achieve a comfortable condition.

•Turn off the unit: When unit is running, press the manual switch STOP button, the unit will stop running.

- 8 -

◆Operation

The general procedure:

1. Power the unit and a buzzer will sound. Power/Run indication is red and the air conditioner is waiting

to run.

(Note: Once the air conditioner plugs to power supply or receives the signal of remote control, the

buzzer will send out the desirable sound.)

2. Press ON/OFF button, Power/Run indication is green and shows the running mode (Cooling, Heating,

and Auto), and then the air conditioner starts running.

3. Press MODE button to select desired running mode.

4. Press SWING button to automatically swing and stop when repress it.

5. Press FAN button to set desired fan speed.

6. Press TEMP. button to set desired temperature.

Procedure for SLEEP mode:

7. Press SLEEP button to set the sleep.

8. Press TIMER button to set the present ON TIME or OFF TIME.

Note:

In AUTO mode, the unit will automatically adjust its running modes according to the room temperature

changes.
