Socket CHS 7DiRx Manual de instalación

COMMAND BARCODES

BLUETOOTH® CORDLESS HAND SCANNER (CHS)

1D Imager models — 7Ci, 7Di, 7DiRx

This document pertains to the following CHS models:

•7Ci SKU# CX2870-1409 (P/N 8550-00062)

•7Di SKU# CX2877-1472 (P/N 8550-00065)

•7DiRx SKU# CX2879-1474 (P/N 8550-00066)

The part number (P/N) is labeled inside the battery compartment.

1 | General Command Barcodes

INSTRUCTIONS: Scan command barcode(s) to quickly configure the barcode scanner.

Many of the command barcodes only work with a scanner in a particular Bluetooth mode as indicated

by the header row of each table.

All Bluetooth Connection Modes OK

Scan only with CHS in SPP or iOS Mode

Scan only with CHS in HID Mode

Make sure the CHS is not connected to a host computer or device before scanning a command

barcode!

To use the CHS on multiple hosts, perform the unpair sequence. For instructions, see User’s Guide.

By default, the CHS is in HID mode as a Keyboard device.

You may want to cover adjacent barcodes before scanning a command barcode to prevent scanning the

wrong code.

For scanners in Bluetooth SPP or iOS mode, you can alternatively configure some settings by using the

Scanner Settings app.

Bluetooth Connection Modes

SPP Mode

Configures the CHS to Serial Port Profile (SPP) mode.

Required for BlackBerry, optional for Windows and Android.

HID Mode (default)

Configures the CHS to Human Interface Device (HID) mode. The CHS will be

discoverable as a Keyboard to other Bluetooth devices.

Required for Apple iOS, Mac OS, Nokia E71.

HID-Peripheral

Changes a CHS in HID-Keyboard mode to HID-Peripheral mode.

Optional for Windows and Android.

HID-Keyboard (default)

Changes a CHS in HID-Peripheral mode to HID-Keyboard mode.

Required for Mac OS and Nokia E71, optional for Apple iOS.

iOS Mode

Changes a CHS 7Ci to iOS mode.

Required for Apple iOS applications developed with SocketScan 10 SDK.

Bluetooth Connection Roles — For SPP or iOS Mode Only

Acceptor (default)

Configures the CHS to accept a Bluetooth connection puts the CHS in discoverable

mode.

Initiator

Configures the CHS to initiate a connection to a computer / device with the Bluetooth

Device Address specified in the barcode.

The barcode must be formatted in Code 128 and contain the data

#FNIaabbccddeeff#

such that aabbccddeeff is the BluetoothDevice Address of the computer/device you

want to connect to the CHS.

Required for Windows when using SPP mode.

You must create a custom barcode for each

computer / device that you want to connect to the

CHS.

Use barcode generating software or website (e.g.,

http://barcode.tec-it.com))

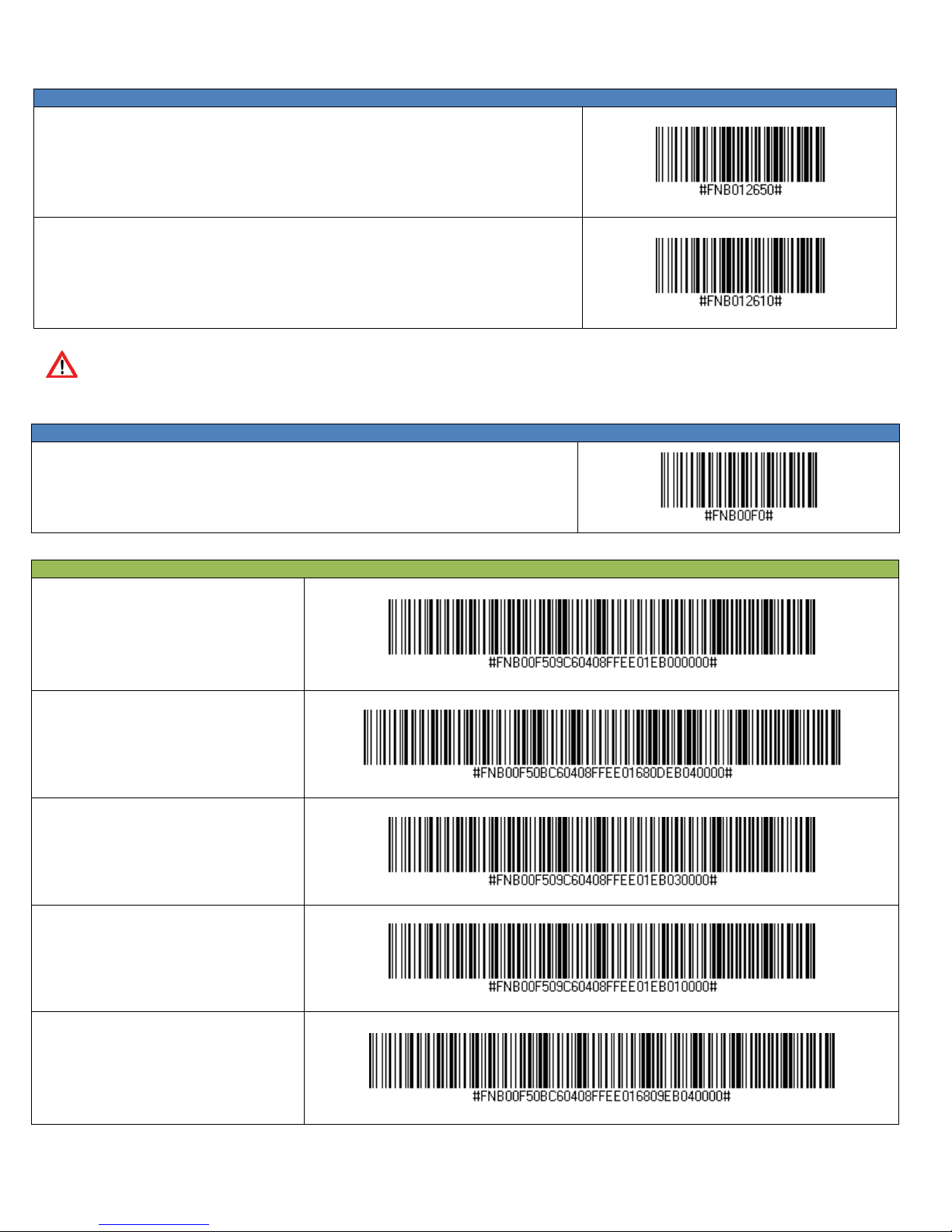

Automatic Reconnection Settings

ENABLE Automatic Reconnection from CHS (default)

Configures the CHS to automatically initiate a connection to the last paired computer / device

after the CHS is powered on.

DISABLE Automatic Reconnection from CHS

Configures the CHS to wait for a computer / device to initiate a Bluetooth connection after the

CHS Is powered on.

After scanning the Enable/Disable Automatic Reconnection from CHS command barcode above, power off and

power on the CHS to make sure it is configured properly!

Factory Defaults

Factory Reset

Configures the CHS to revert all settings to factory defaults. The CHS will power off after

scanning this barcode.

Data Suffix — For HID Mode

Data As Is

Configures the CHS to return only the

decoded data (i.e., no prefix or suffix).

Suffix – Carriage Return (default)

Configures the CHS to add a carriage return

after decoded data.

Suffix – Line Feed

Configures the CHS to add a line feed after

decoded data.

Suffix – Carriage Return & Line Feed

Configures the CHS to add a carriage return

and line feed after decoded data.

Suffix – Tab

Configures the CHS to add a tab after

decoded data

Data Suffix — For SPP or iOS Mode

Data As Is (Default)

Configures the CHS to return only the decoded data

(i.e., no prefix or suffix).

Suffix – Carriage Return

Configures the CHS to add a carriage return after

decoded data.

Suffix – Tab

Configures the CHS to add a tab after decoded data

Suffix – Carriage Return & Line Feed

Configures the CHS to add a carriage return and line

feed after decoded data.

The Data-Editing – Suffix – For SPP Mode command barcodes above only work with Revision B or later of the CHS 7Ci!

They work with all Revisions of the CHS 7Di and 7DiRx.

Power Button Double Press Key Combination — For HID Mode Only

Scan to Enable WITH BEEP

Description

Scan to Enable WITHOUT BEEP

CTRL + Z

CTRL + A

SHIFT + TAB

CTRL + S

Good Scan Indicators – For HID Mode

Scan to Enable

Description

Scan to Disable

Beep after Decoding

Data (default)

Good Scan Indicators — For SPP or iOS Mode

Scan to Enable

Description

Scan to Disable

Beep after decoding

data (default)

Beep after computer

/ device

acknowledges a

successful scan

VIN (Vehicle Identification Number) Prefix Removal — For HID Mode Only

Scan to Enable

Description

Scan to Disable

Return only the last

17 characters of a

Code 39 barcode.

Apple iOS Onscreen Keyboard — For HID Mode Only

Scan to Enable

Description

Scan to Disable

With Beep when onscreen keyboard appears

Double-press CHS

power button to

access onscreen

keyboard of Apple

device.

(default with beep)

No Beep when onscreen keyboard appears

HID Keyboard Language – For HID Mode Only

US – English (Default)

French

German

Spanish

The command barcodes above are for enabling Microsoft Windows Keyboard Layouts for different languages.

Data Mode — For SPP Mode Only

Packet Mode (default)

Configures the CHS to transmit decoded data in packet format.

Raw Mode

Configures the CHS to transmit decoded data in raw (unpacketed) format.

Do not scan thesebarcodesin iOS or HID mode.

2 | Scanner Engine Command Barcodes

INSTRUCTIONS: Scan command barcode(s) to quickly configure the barcode scanner.

Make sure the CHS is not connected to a host computer or device before scanning a command

barcode!

To use the CHS on multiple hosts, perform the unpair sequence. For instructions, see User’s Guide.

By default, the CHS is in HID mode as a Keyboard device.

You may want to cover adjacent barcodes before scanning a command barcode to prevent scanning the

wrong code.

For scanners in Bluetooth SPP or iOS mode, you can alternatively configure some settings by using the

Scanner Settings app.

Parameter Menus 4 - 13

UPC/EAN

Enable/Disable UPC-A

Parameter # 01h

To enable or disable UPC-A, scan the appropriate bar code below.

*Enable UPC-A

(01h)

Disable UPC-A

(00h)

Enable/Disable UPC-E

Parameter # 02h

To enable or disable UPC-E, scan the appropriate bar code below.

*Enable UPC-E

(01h)

Disable UPC-E

(00h)

CHS 7Ci, 7Di, 7DiRx Command Barcodes

4 - 14 SE655 Decoded Linear Imaging Engine

Enable/Disable UPC-E1

Parameter # 0Ch

To enable or disable UPC-E1, scan the appropriate bar code below.

Enable UPC-E1

(01h)

*Disable UPC-E1

(00h)

Enable/Disable EAN-8

Parameter # 04h

To enable or disable EAN-8, scan the appropriate bar code below.

*Enable EAN-8

(01h)

Disable EAN-8

(00h)

NOTE UPC-E1 is not a UCC (Uniform Code Council) approved symbology.

CHS 7Ci, 7Di, 7DiRx Command Barcodes
