Snooper S7000 Manual de usuario

1 • UK

Quick Start Guide

Kurzanleitung

Résumé du mode d’emploi

Verkorte Handleiding

Guía de inicio rápido

S7000

2 • UK

3 • UK

QUICK START GUIDE • UK

CONTENTS

Page 3 Start Up

Installing the SD Card

Page 4 Charging the Internal Battery

Page 5 Powering Syrius using the Built-in Battery

Page 6 Installing Syrius using the Windscreen

Suction Cup bracket

Page 7 Operating Instructions

Starting Up

Easy Set Up

Screen Settings

Page 9 Volume Control

Page 10 Quick Start Guide to Navigation

Page 12 Quick Menu

Using the Multi-route function

Page 15 TMC (Traﬃc Message Channel)

Page 18 System Requirements and Software Installation

Page 20 Downloading the AURATM Camera Database

Page 22 Accessories & Price List

Page 23 Vehicle Speciﬁc Professional Mounting Brackets

2 • UK

3 • UK

To utilise the AURA™ Camera database you will need to register your Syrius and

perform a download. Please refer to ‘System Requirements and Software Installation’

later in this Quick Start Guide for further information.

Start Up

1. Installing the SD Card

Before using Syrius, you will need to install the SD Card included with the device. The SD

Card comes complete with a digital map of UK & Ireland or Western Europe and is also

where the AURATM camera database is stored if you choose to subscribe and download it.

Start by moving the ‘Batt. ON/OFF’switch located on the back of the unit to the ‘ON’

position, then remove the SD card from its packaging and insert it into the SD Card slot

as indicated. Switch on the device by pressing and holding the standby power button

located on the left hand side of the unit for 2 seconds. Press the‘Navi’ icon from the menu

options. As soon as the ‘Navi’icon is pressed, Syrius will automatically synchronise with

the SD Card. Once the synchronisation is completed, the SD Card will not function with

any other device. Your Syrius is now ready to navigate and the camera database can be

downloaded if necessary.

Please note that if the unit does

not activate when you press and

hold the standby power button for

2 seconds it may require charging.

Refer to the section‘Charging the

internal battery’ later in this guide.

SD Card

4 • UK

5 • UK

2. Charging the internal battery

Although Syrius can be charged using the

cigarette lighter in your vehicle, a complete

charge is more easily achieved by using the

240V AC mains charger included. When new,

the battery in your Syrius is approximately

20% charged.

To charge the unit fully, move the‘Batt. ON/

OFF’switch to the‘ON’position and connect

the 240V AC mains charger as indicated in

the picture on the right. The battery light

on the Syrius will illuminate and will take

approximately 3 hours to charge. When the

internal battery is fully charged, the red LED

will switch OFF. Once fully charged the battery

will last approximately 3 hrs during normal

use.

Note: The new battery’s full performance is

only achieved after two or three complete

charges and discharges.

CAUTION

THERE IS A RISK OF EXPLOSION IF THE BATTERY IS REPLACED WITH AN

UNAPPROVED TYPE. USING THE WRONG TYPE OF BATTERY MAY DAMAGE

YOUR UNIT AND INVALIDATE YOUR WARRANTY. ONLY SNOOPER AUTHORISED

PERSONNEL SHOULD REPLACE THE BATTERY. PLEASE DISPOSE OF USED BATTERIES

ACCORDING TO LOCAL WASTE MANAGEMENT RULES AND REGULATIONS.

FURTHER INFORMATION CAN BE FOUND IN THE FULL USER MANUAL. ON

THE CD-ROM

Plug the charger into a

240V AC mains socket

Plug the

charger cable into

the socket on the

back of the Syrius

4 • UK

5 • UK

3. Powering Syrius using the built-in battery

Once Syrius is fully charged, it is ready for use. Move the ‘Batt. ON/OFF’ switch to the ‘ON’

position and press and hold the standby/power switch on the left hand side of the unit

for 2 seconds to switch on the device.

WARNING

PLEASE DO NOT USE OR LEAVE THE SYRIUS IN EITHER WET OR HUMID CONDITIONS,

OR IN EXTREME TEMPERATURES, AS THIS COULD PERMANENTLY DAMAGE THE UNIT

AND THE BATTERY. WHEN NOT IN USE DO NOT LEAVE THE UNIT ATTACHED TO THE

WINDSCREEN, ESPECIALLY WHEN THE WEATHER IS WARM, TO AVOID DAMAGE TO

THE UNIT AND ALSO REDUCE THE RISK OF THEFT

WARNING

THE DEVICE MAY RESTART IF EXPOSED TO STATIC ELECTRICITY, PLEASE AVOID

TOUCHING THE USB SOCKET ON THE SIDE OF THE UNIT.

ON/OFF

switch

6 • UK

7 • UK

4. Installing Syrius using the Windscreen Suction Cup bracket

You can mount your Syrius to the inside of your vehicles windscreen using the

windscreen bracket provided.

Clean the area where you wish to position



the bracket thoroughly with a good quality

glass cleaner. This allows a more secure seal

on the windscreen.

Place the suction cup and bracket on



the windscreen and push the locking

lever towards the windscreen to secure

the bracket.

Adjust the angle of the bracket so that



when the unit is attached to it you can

view the display and operate the controls

safely.

Position Syrius onto the bracket, by



inserting the bottom of the S7000 ﬁrst

and ﬁnally clipping the top of the bracket

into the slot on the back of the unit.

To remove Syrius simply unclip the unit,

by pushing the top of the bracket and taking

the unit from the holder.

Syrius can be powered directly either



from the internal battery if it is fully

charged or powered from the cigarette

lighter socket. To use the cigarette lighter

socket, plug the smaller plug on one

end of the power cable into the power

socket on the side of Syrius and plug

the larger plug into the cigarette

lighter socket of your vehicle.

Please Note: Only use the cigarette lighter power cable provided with Syrius. Syrius

operates on 9V and using any other cigarette lighter power cable will damage your

device and void the warranty.

Locking

lever

6 • UK

7 • UK

Operating Instructions

1. Starting Up

Once you have synchronised the SD Card it is time to perform the ﬁrst Start Up.

First make sure your vehicle is parked in as open a space as possible, clear of tall



trees and buildings so that the built in GPS antenna has a clear view of the sky above.

Next, switch the unit on by moving the‘Batt. ON/OFF’switch located on the back



of the unit to the‘ON’position, then press and hold the standby power switch on the

left hand side of the unit for 2 seconds.

Press the‘Navi’ icon on the menu screen. Whilst the Syrius software is loading, a start-



up display will be shown for just a few seconds and then an ‘Information Screen’will be

displayed. Press the‘I Agree’button and the screen will display a section of a map.

Syrius needs to acquire a minimum of four satellites in order to work. Once this has



been achieved Syrius will ascertain your position and this will be indicated by a green

arrow icon on the on-screen map and the GPS signal strength will be shown to the

bottom right hand corner of the display. Your Syrius is now ready to navigate.

As the GPS engine and antenna have never been used before, the ﬁrst ‘Cold’start

could take anywhere from 15 – 30 minutes to establish a satellite connection. Once

initialised, subsequent start ups will take less time and eventually should take only

a matter of minutes.

2. Easy Set Up

Screen settings - There are a number of map views or diﬀerent types of information that

can be displayed on the screen at any one time:-

3D 2D North

8 • UK

9 • UK

To modify the information shown access the Menu by simply touching Syrius in the

centre of the screen and then press the‘Conﬁgure’button.

Next press the icon where you will see the list of options

89 MILES

0:33LEFT 20:33PM

NW HOLLOWAY ROAD

Current time or vehicle speed

Direction and name of road

Estimated journey time or Estimated time of arrival

Distance to destination

GPS Signal strength Battery status

8 • UK

9 • UK

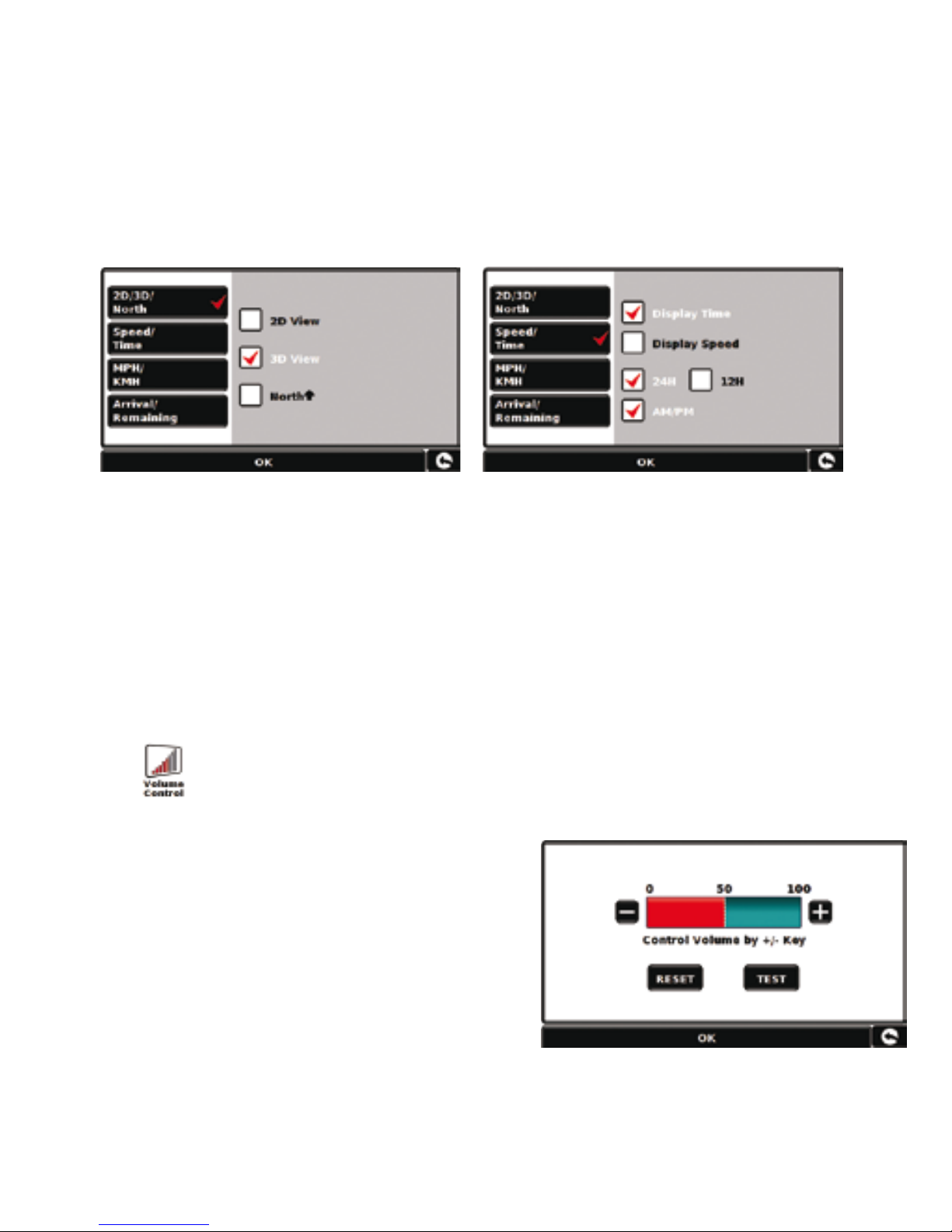

To change a setting press it with your ﬁnger and a list of the options available will be

shown next to a tick box. Simply press the tick box to indicate which option you would

like to choose.

Press‘OK’ at the bottom of the screen. Your chosen settings will now be saved and will

appear on the screen each time you use your Syrius. If you want to switch between

your Current Speed and the Atomic Clock or the Estimated Time of Arrival and the Time

to Destination during your journey simply touch the LCD screen where either piece of

information is displayed and the unit will display the alternative setting and vice versa.

However, each time you switch on the device the original setting will be displayed.

Volume Control - The volume can be adjusted within the‘Conﬁgure’Menu. To set this

function touch the centre of the screen to access the‘Menu’, then press the‘Conﬁgure’

button. The screen will then display a number of diﬀerent icons.

Press the icon. Press either the‘+’ button to increase the volume or the ‘–’button to

decrease the volume. Finally select the ‘OK’ button to conﬁrm the setting.

Note: The arrow icon in the bottom right hand

corner of the display will return you to the

‘Conﬁgure’menu if pressed but will not store

any changes you have made. You need to select

the‘OK’ button in order to save your changes.

10 • UK

11 • UK

ATTENTION!

Please don’t forget to register your Syrius online at www.snooperneo.co.uk

To register you will need the serial number which can be found on the bottom of

your Syrius.

3. Quick Start Guide to Navigation using a

post code

Take your Syrius outside so that the GPS receiver

can locate your position. This may take between

15 - 30 minutes the ﬁrst time. When satellite lock

is achieved, the screen will display your current

position on its map in a‘3D’navigation view. Your

position (and direction) is indicated by the icon.

Tip: To reduce the ‘cold start’ GPS time remain

stationary.

Bring up the main navigation menu by touching

the centre of the display. Select

Tip: The icon always means that there are

more options to see on the next screen

You will see a standard browser screen, used for

entering postcodes. Enter the full UK postcode

using the keyboard and press

Important: Use the key to separate

the two segments of the post code.
