Snom 370 Instrucciones de funcionamiento originales

Quick Installation

Kurzanleitung

Version 1.0 www.snom.com

snom 370

VoIP Business Phone

snom technology AG

Charlottenstr. 68-71

D-10117 Berlin, Germany

Note to the reader

This is a quick guide to the installation and operation of the

snom 370. The full manual will be available on our web page,

www.snom.com.

AG. No part of this document may be reproduced, republished or

retransmitted in any form or by any means whatsoever, whether

electronically or mechanically, including, but not limited to, by

way of photocopying, recording, information recording or through

retrieval systems, without the express written permission of snom

technology AG.

snom technology AG reserves the right to revise this document and

make changes at any time and without the obligation to notify any

person and/or entity of such revisions and/or changes.

Product specications contained in this document are subject to

change without notice.

snom technology AG • 3

Table of Contents

Note to the reader ............................................................2

Installation ........................................................5

Delivery Content ..............................................................5

Safety Information............................................................5

Power supply ...................................................................5

Setting up the Phone ........................................................6

Wall Mounting .................................................................6

Cleaning........................................................................ 10

Connecting the phone ......................................11

Keypad .............................................................13

Index ...............................................................17

English

4 •

English

snom technology AG • 5

Installation

Delivery Content

Please check whether the delivery contains the following parts:

• The base unit with display and keypad

• The handset

• The handset cable

• The power supply (optional)

Safety Information

Please read the following safety notices before installing or using

your snom phone. They are crucial for the safe and reliable operation

of the device.

Power supply

You have two options for providing the snom 370 with power:

• An external power supply (5 V)

• Power feeding over the network cable

(IEEE 802.3af compatible)

If you want to use an external power supply, use the one that is

included in the package. Other power supplies may cause damage

to the phone, affect its behavior or induce noise.

English

6 • Installation

[ SNOM 370 QUICK INSTALLATION V 1.0 ]

Setting up the Phone

Your snom 370 is delivered with the footstand attached to the

phone’s bottom shell (shaded gray in Fig. 1). Place the snom 370

on an even, horizontal surface that gives the rubber pads a secure

grip. Do not place it on carpets or other materials containing bers

that could block the air vents and cause overheating.

After connecting the phone (see chapter Connecting the Phone,

below), clip the cords into the appropriate slots on the footstand or,

in the case of the handset cord, on the bottom shell of the phone

(Fig. 2).

Fig. 1 Fig. 2

Wall Mounting

It is also possible to mount the snom 370 on the wall. In order to

do this, you detach the footstand from the bottom shell and attach

it in the appropriate position for wall mounting, as described in

steps 1 through 6, below.

CAUTION: Do not mount the additional keypad available for

the snom 370 on the wall. If you wish to use the additional

English

snom technology AG • 7

[ SNOM 370 QUICK INSTALLATION V 1.0 ]

keypad available for the snom 370, you must place phone and

keypad on an even, horizontal surface, as described above.

1Turn the phone upside down (Fig. 3). Please, ensure that

you do not damage the display and/or its hinge and that

you do not drop the receiver. You may want to hold the

phone in your lap or have a second person hold it.

Fig. 3 Fig. 4

2Lightly press the snap-ts of the footstand inwards

(Fig. 3) and, at the same time, tilt the footstand

backwards and lift it from its anchorage in the mounting

holes (Fig. 4).

3Rotate the footstand 180° around its vertical axis.

4Make sure that the handset cord has been clipped

correctly into the groove on the bottom shell of the

phone, as shown in Figs. 4 and 6. Failure to clip the

cord into the groove will result in damage to the cord

when the footstand is attached in the position for wall

mounting.

English

8 • Installation

[ SNOM 370 QUICK INSTALLATION V 1.0 ]

5Insert the outside, rear snap-ts into the mounting

holes on the bottom shell (Fig. 5, arrow no. 1). Tilt the

footstand forward and downward until the snap-ts snap

into place in the mounting holes. Please, make sure

that the four snap-ts have securely snapped into

the holes before mounting the phone on the wall.

Fig. 5 Fig. 6

6The slots on the footstand for the various cords can

also be used when the phone is mounted on a wall.

After connecting the phone (see chapter Setting up the

Phone, above), form the cords into loops and gently

press the long ends into the slots on the footstand. The

loops should not be too big, so that they will not hamper

the secure mounting of the phone on the wall, and not

too small, so that the cords will not be bent or broken

(Fig. 6).

The delivery includes a template to be used for marking the position

of the holes to be drilled in the wall.

(Use wall plugs, if necessary, and screws with half-round head

proles (diameters of screws dmax = 4.5 mm (0.1755”), diameters

of heads dmax = 8.5 mm (0.3315”).

English

snom technology AG • 9

[ SNOM 370 QUICK INSTALLATION V 1.0 ]

The screws must protrude approx. 0.5 cm (0.195”) from the wall

for easy wall mounting of the phone.

Adjusting the Handset Rest

The speaker of the handset has a small, rectangular indentation

that ts over the rounded end of the plastic tab inserted into a slot

on the top shell of the phone. When the phone is mounted on the

wall, the handset must be placed on this rounded end to ensure

that it will not fall off.

Slide the tab out of the slot, as shown in Fig. 7, rotate it 180°, and

slide it back into the slot, as shown in Fig. 8.

Fig. 7 Fig. 8

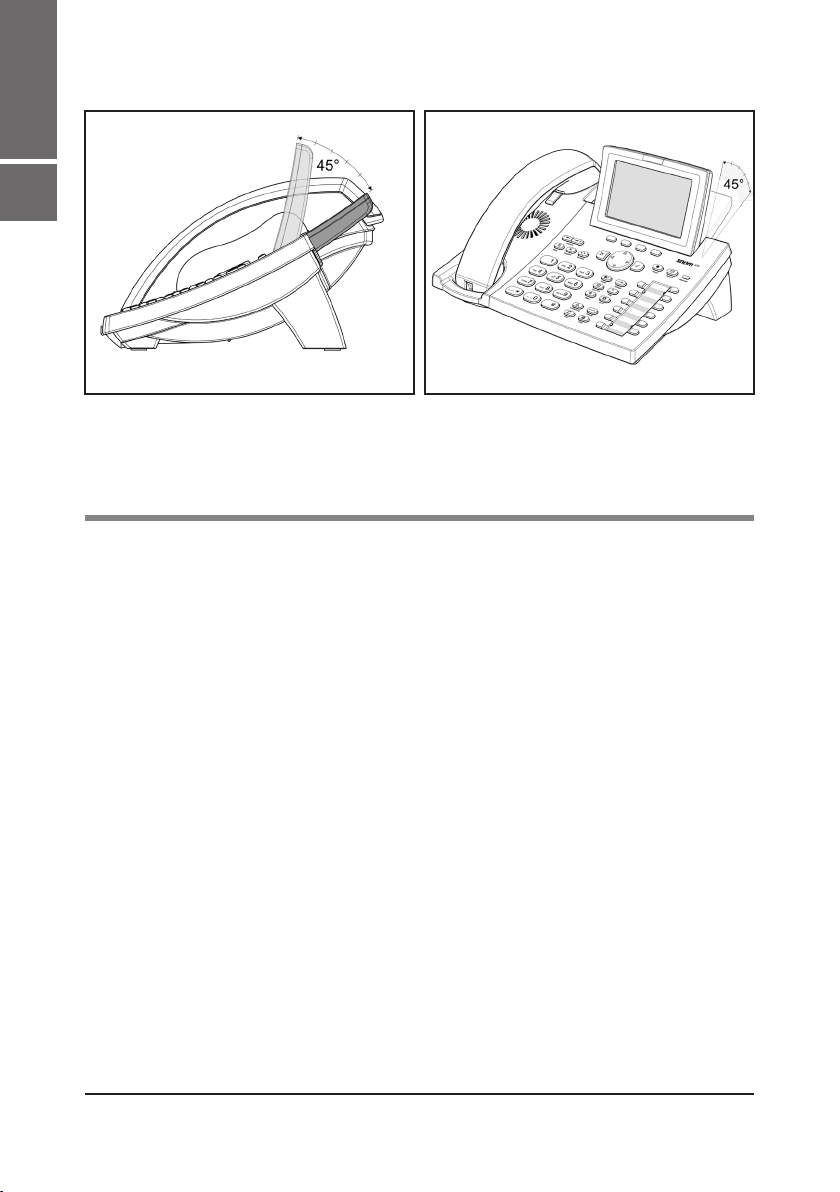

Adjusting the Position of the Display

The position of the snom 370’s display is adjustable up to an angle

of 45° (Figs. 9 and 10).

Hold down the phone with one hand and adjust the display with your

other hand. Do not use too much force and do not pull, wrench, or

twist the display as this might damage or break the hinges.

English

10 • Installation

[ SNOM 370 QUICK INSTALLATION V 1.0 ]

Fig. 9 Fig. 10

Cleaning

To clean the snom 370, use an anti-static cloth. Please avoid cleaning

liquids as they might damage the surface or internal electronics of

the phone.

English
