Parts Manual for

TWO-STAGE

INTERMEDIATE FRAME

SNOW THROWER

SERIES 3

MODELS

I4223

I5223

I55223

I6223

I7243

EI5223

EI55223

EI7243

IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE

AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD

IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH

CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.

SNAPPER INC.

(REV. 5, 7/03/00) MANUAL No. 06045

FAMILIARIZATION

MANUAL No. 06045 INTERMEDIATE SNOW THROWER

ENGINES

Page 18

HANDLES, CONTROLS

& PANELS

Pages 12 thru 15

BLOWER CLUTCH

CONTROLS

Pages 12 thru 15

DECALS

Pages 22 & 23

DISCHARGE

CHUTE

CONTROLS

es 10 & 11

TRACTION

CLUTCH

CONTROLS

Pages

12 thru 15

COLLECTOR HOUSING

Pages 4 & 5

FRAME

Pages 16 & 17

WHEELS & TIRES

Page 20

SHIFTER

Pages 16 & 17

DISCHARGE CHUTE

& DEFLECTOR

Page 3

HARDWARE BAGS

Page 21

ACCESSORIES

Page 21

SKID SHOES

Pages 4 & 5

AUGERS &

IMPELLER

Pages 6 thru 9

GEAR CASE

Pages 6 thru 9

DRIFT CUTTERS

Pages 4, 5 & 21

DISCHARGE CHUTE

ITEM PART NO. DESCRIPTION

1 5-3411 ASSEMBLY, Discharge Chute (Includes Item 2)

2 2-4773 DECAL, Danger

2A 2-8700 DECAL, Read Manual (Euro)

3 2-8184 DEFLECTOR, Discharge Chute

4A 1-6324 T-KNOB (Plastic)

4B 3-5744 T-KNOB (w/5/16-18 insert)

5 2-8253 PIN, Hinge

6 3-8205 RING, Chute (Models I7243, I55223, EI55223 & EI7243)

- 3-3284 RING, Chute (Models I4223, I6223, & I5223)

7 1-1938 RETAINER (Chute Ring to Housing) (3)

8 9-1075 SCREW, #10-24 x 5/8" Hex Washer Self-Tapping (6)

9 9-1077 BOLT, 5/16-18 x 5/8" Square Neck Carriage, Grade 5 (3)

10 9-1070 NUT, 5/16-18 Hex Flange Lock, Grade 5 (3)

11 9-1097 BOLT, 5/16-18 x 3/4" Square Neck Carriage, Grade 5

12 9-1076 WASHER, 5/16 Flat (2)

13 9-0196 NUT, 5/16-18 Hex, Grade B or 5

14 9-1021 SCREW, 5/16-24 x 3/4" Hex Head Cap, Grade 5

15 9-1074 NUT, 5/16-24 Hex Center Lock, Grade B

16 9-1552 WASHER, 7/32 Flat (6)

17 1-9692 WIRE, Safety (Euro)

18 2-3673 PUSH-ON Fastener, .5/32” Dia. (Euro) (2)

19 3-2559 RETAINER, Safety Wire (Euro)

INTERMEDIATE SNOW THROWER MANUAL No. 06045

17 8

COLLECTOR HOUSING

(3 Piece Bolted)

MANUAL No. 06045 INTERMEDIATE SNOW THROWER

3A, 3B

16 9

COLLECTOR HOUSING

(3 Piece Bolted)

ITEM PART NO. DESCRIPTION

1 3-4285 PLATE, Right Side (I4223, I5523, I55223 EI55223 & I6223 Models)

- 3-4288 PLATE, Right Side (I7243 & EI7243Models)

2 5-3412 ASSEMBLY, 22” Blower Housing

(I4223, I5223, I55223 & I6223 Models) (Includes Item 3B)

- 5-3622 ASSEMBLY, 24” Blower Housing (I7243 Models) (Includes Item 3A)

3A 2-8280 DECAL, Foot Danger

3B 1-6578 DECAL, Danger (Collector)

4 3-4284 PLATE, Left Side (I4223, I5223, I55223 EI55223 & I6223 Models)

- 2-8231 PLATE, Left Side (I7243 & EI7243 Models)

5 3-3298 BLADE, Scraper (I4223, I5223, I55223 EI55223 & I6223 Models)

- 3-6163 BLADE, Scraper (I7243 & EI7243 Models)

6 2-8188 BEARING, Auger Shaft (I4223, I5223, I55223 EI55223 & I6223 Models) (2)

- 1-8736 BEARING, Auger Shaft (I7243 & EI7243 Models) (2)

7 3-2455 HOUSING, Bearing (2)

8 1-4608 BEARING, Ball

9 3-7982 SHOE, Skid (2)

10 1-7865 SPACER, 3/4 x 1/4 x 1"

11 9-0999 SCREW, 1/4-20 x 5/8" Self-Tapping (Truss Head Torx) (14)

12 9-0666 BOLT, 1/4-20 x 5/8" Square Neck Carriage, Grade 5 (7)

13 9-1065 NUT, 1/4-20 Hex Flange Lock (13)

14 9-0799 BOLT, 5/16-18 x 5/8” Short Neck Carriage, Grade 5 (4)

15 3-2070 WASHER, 5/16 Flat (4)

16 9-1070 NUT, 5/16-18 Hex Flange Lock (4)

17 9-0699 BOLT, 1/4-20 x 3/4” Hex Flange Lock, Grade 5 (6)

18 9-0361 SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap (2)

19 1-6314 WASHER, 21/64” Flat (2)

20 3-8230 DRIFT-CUTTER (I7243 & EI7243 Models Only)

-- 3-8201 DRIFT-CUTTER (I55223 & EI55223 Models Only)

21 9-1059 SCREW, 1/4-20 x 1" Hex Head Cap, Grade 5 (4)

22 9-1099 NUT, 1/4-20 Hex Center Lock (4)

23 1-0817 FITTING, Lube (I7243 & EI7243 Models Only) (2)

24 4-2894 PLUG, Dome 3/16” Diameter (2)

25 3-4431 ADAPTER, Housing (22”)

-- 3-4432 ADAPTER, Housing (24”)

INTERMEDIATE SNOW THROWER MANUAL No. 06045

AUGERS, IMPELLER, GEAR CASE, SHAFT

(for units built prior to Model Year 2000)

MANUAL No. 06045 INTERMEDIATE SNOW THROWER

#6-1100 IMPELLER/SHAFT KIT

25 1279

AUGERS, IMPELLER, GEAR CASE, SHAFT

(for units built prior to Model Year 2000)

ITEM PART NO. DESCRIPTION

- 6-1100 KIT, Impeller/Shaft Weldment Replacement

1 5-1566 ASSEMBLY, Drive Plate (Includes Items 2 & 3)

2 1-0756 BEARING, Ball

3 1-4295 BEARING, Ball

4 1-7865 SPACER

5 1-0211 KEY, #9 (3/16 x 3/4") Woodruff (2)

6 9-0929 SCREW, 1/4-20 x 1/2" Truss Head Self-Tapping (Torx)

7 9-0913 SCREW, #10-24 x 1/2" Hex Washer Self-Tapping (Torx)

8 1-9779 COVER, Gear Case (Left Hand)

9 1-5136 SEAL (2)

10 1-5230 BUSHING

11 1-5137 "O" RING

12 1-9780 COVER, Gear Case (Right Hand)

13 9-0290 SCREW, 1/4-20 x 3/4" Hex Washer Self-Tapping (4)

14 9-1075 SCREW, #10-24 x 5/8" Hex Washer Self-Tap, Grade 5 (3)

15 9-1084 SCREW, 1/4-20 x 3/8” Hex Washer Self-Tapping

16 2-9554 SHAFT, Auger

17 1-3852 WASHER, Thrust (2)

18 2-7652 GEAR, Worm

19 4-9969 AUGER, (Left Hand)

20 1-3864 FITTING, Lube (2)

21 4-9968 AUGER, (Right Hand)

22 1-5257 BOLT, 1/4-20 x 1-1/2" Shear (2)

23 7-6978 NUT, 1/4-20 Hex Nyloc (2)

24 1-3867 SHEAVE (Includes Setscrews)

25 9-0201 SCREW, 5/16-18 x 5/16 Hex Socket Set (2)

INTERMEDIATE SNOW THROWER MANUAL No. 06045

AUGERS, IMPELLER, GEAR CASE, SHAFT

(for units built in Model Year 2000 and later)

MANUAL No. 06045 INTERMEDIATE SNOW THROWER

829

97 12

AUGERS, IMPELLER, GEAR CASE, SHAFT

(for units built in Model Year 2000 and later)

ITEM PART NO. DESCRIPTION

1 7-2423 WELDMENT, Impeller (Fan)

2 5-1566 ASSEMBLY, Drive Plate (Includes Items 3A & 3B)

3A 1-0756 BEARING, Ball

3B 1-4295 BEARING, Ball

4 1-7865 SPACER, .76 I.D. x 1” O.D. x .25” Thick

5 1-0211 KEY, #9 (3/16 x 3/4") Woodruff (2)

6 9-0929 SCREW, 1/4-20 x 1/2" Truss Head Self-Tapping (Torx)

7 9-0913 SCREW, #10-24 x 1/2" Hex Washer Self-Tapping (Torx)

8 1-9779 COVER, Gear Case (Left Hand)

9 1-5136 SEAL (2)

10 1-5230 BUSHING

11 1-5137 "O" RING

12 1-9780 COVER, Gear Case (Right Hand)

13 9-0290 SCREW, 1/4-20 x 3/4" Hex Washer Self-Tapping (4)

14 9-1075 SCREW, #10-24 x 5/8" Hex Washer Self-Tap, Grade 5 (3)

15 1-4247 FITTING, Lube 1/4-28 Thread Forming

16 2-9554 SHAFT, Auger

17 1-3852 WASHER, Thrust (2)

18 2-7652 GEAR, Worm

19 4-9969 AUGER, (Left Hand)

20 1-3864 FITTING, Lube (for 3/16” dia. hole)(2)

21 4-9968 AUGER, (Right Hand)

22 1-5257 BOLT, 1/4-20 x 1-1/2" Shear (2)

23 9-0372 NUT, 1/4-20 Hex Center Lock (2)

24 1-3867 SHEAVE (Includes Setscrews)

25 9-0201 SCREW, 5/16-18 x 5/16 Hex Socket Set (2)

26 2-1961 COLLAR

27 1-0776 RING, 1/2” Heavy Duty External Retaining

28 1-9783 SHAFT, Pinned Impeller (Worm)

29 9-0842 ROLL-PIN, 1/4 x 1-1/4” (3)

30 3-2479 WASHER, Thrust

31 1-5363 BEARING

INTERMEDIATE SNOW THROWER MANUAL No. 06045

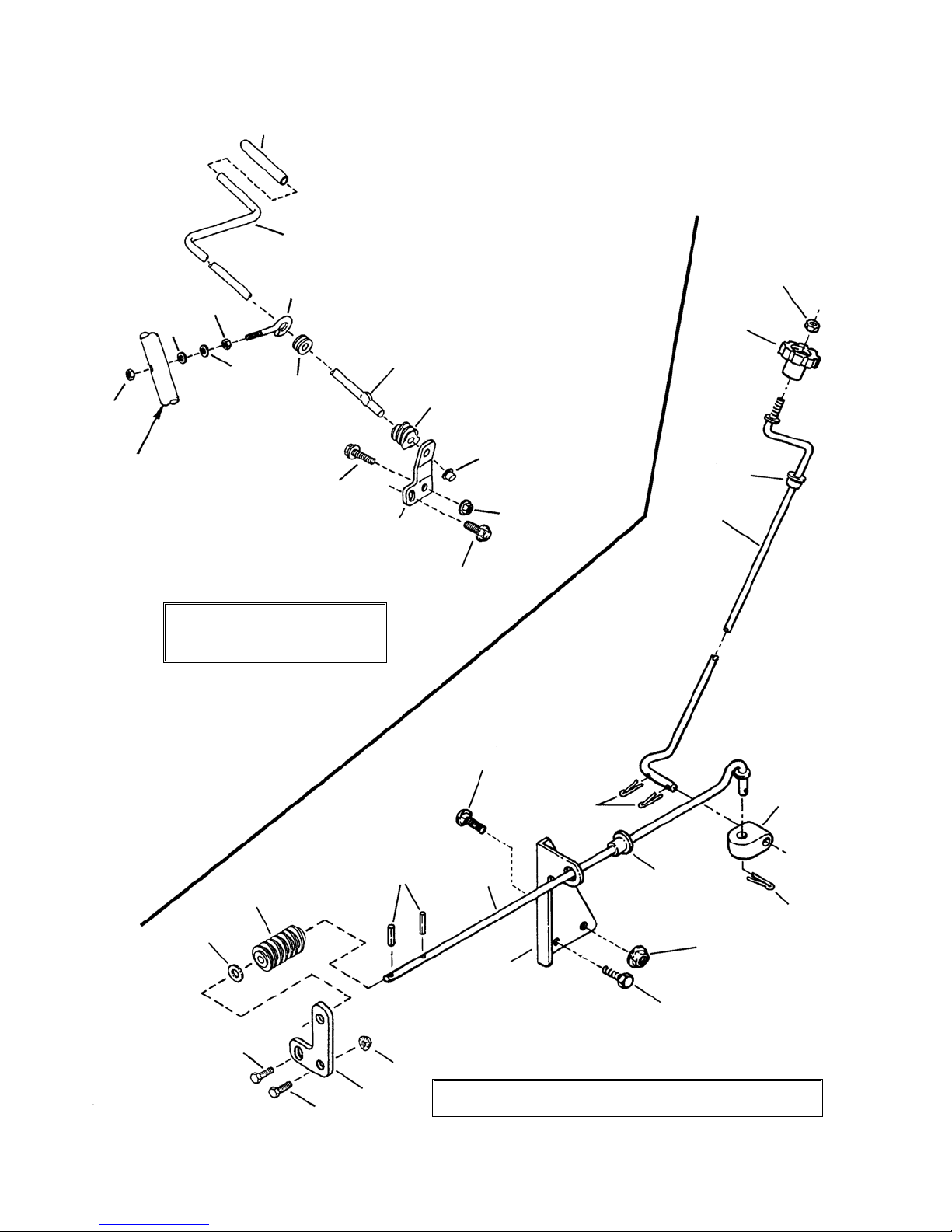

CHUTE CRANK CONTROL

MANUAL No. 06045 INTERMEDIATE SNOW THROWER

LEFT SIDE

HANDLE BAR

1510

MODELS I4223, I5223

& I6223

MODELS I55223, EI55223, I7243 & EI7243
