Snapper EI Manual de usuario

Parts Manual fo

Revision 2,

TWO-STAGE INTERMEDIATE FRAM

SERIES 5 & 6

2006

McDonough, GA, 30253 U.S.A.

TP 400-5038-2-IS-N

10/3/2006 Manual No. 7006070

SNAPPER PRODUCTS, INC.

SNOW THROWER

MODEL

EI5225

EI75225

EI7524

EI75246

EI8245

EI85245

I5225

I75225

I75246

I8245

I85245

Table Of Content

TP 400-5038-2-IS-N

Manual No. 7006070TWO-STAGE INTERMEDIATE FRAME

SERIES 5 & 6 3

PAGE GROUP

4UPPER HANDLES, DASH, CONTROLS

8CHUTE CRANK CONTROL

10 COLLECTOR HOUSING (3 Piece Bolted)

12 DISCHARGE CHUTE

14 AUGERS, IMPELLER, GEAR CASE, SHAFT

16 TRACTION DRIVE GROUP

20 ENGINE, PULLEYS, IDLER (5 HP Tecumseh)

24 ENGINE, PULLEYS, IDLER (7-1/2, 8, 8-1/2 HP Briggs)

30 WHEELS

32 DECALS

34 ELECTRIC START COMPONENTS

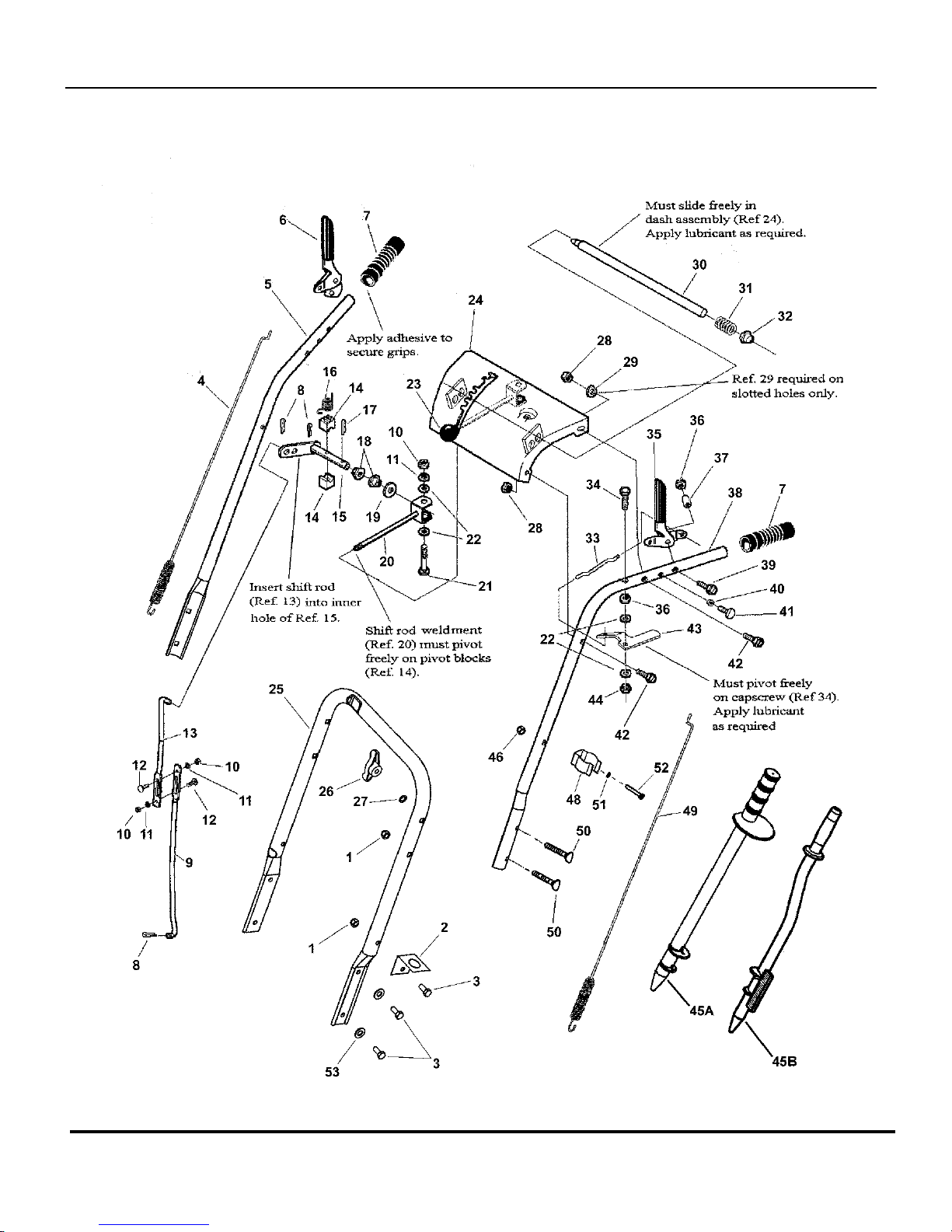

UPPER HANDLES, DASH, CONTROLS

TP 400-5038-2-IS-N

Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME

SERIES 5 & 6

UPPER HANDLES, DASH, CONTROLS

Footnotes:

TP 400-5038-2-IS-N

Manual No. 7006070TWO-STAGE INTERMEDIATE FRAME

SERIES 5 & 6 5

Part No Descri

tionItem Qt

Note

1 1919438 2 NUT, 5/16-18 Hex Nyloc or 7091298

2 1726727 1 BRACKET, Snow Stick- Lower

3 1921332 4 SCREW, 5/16-18 x 3/4” Hex Head Cap or 7091318

4 7027426 1 CLUTCH CABLE, Auger Drive- RH part number is stamped on cable

5 1726574 1 HANDLE, Upper, Right Hand

6 1722638 1 GRIP, Clutch, RH

7 1726317 2 GRIP, Foam, Black

8 1722460 3 HAIR PIN

9 1666255 1 ROD, Shift, Lower

10 1916622 2 NUT, 1/4-20 2B Hex

11 1916964 3 LOCKWASHER, 1/4” Spring

12 1931317 2 BOLT, 1/4-20 x 2” Short Square Neck Carriage, GR 5

13 1720238 1 ROD, Upper, Shift

14 1668524 2 BLOCK, Pivot

15 1720240 1 WELDMENT, Shift Rod Pivot

16 1715123 1 SPRING, Compression

17 1918452 1 COTTER PIN, .125 x 1.00

18 1668185 2 BUSHING, .500 ID x .750 OD x .25

19 1924361 1 WASHER, 1/2” Flat (.531 ID x 1.250 OD x .08 Thick)

20 1668523 1 WELDMENT, Shift Rod

21 1960705 1 SCREW, 1/4-20 x 2-1/4” Hex Flange Lock

22 1921319 2 WASHER, .250 (.27 ID x .62 OD)

23 1726734 1 KNOB, Tapered - 3/8-16 Internal Thread- Red

24 1726983 1 WELDMENT, Dash

25 1726572 1 HANDLE, Lower

26 7035744 2 WING KNOB, 5/16-18

27 7090391 2 WASHER, 5/16” Internal Tooth Lock

28 1960686 4 NUT, 5/16-18 Hex Flange Nyloc

29 1919326 2 WASHER, .312 (.34 ID x .75 OD) or 7014098

30 1722633 1 ASSEMBLY, Rod w/Pin includes items 32, 47, 54, 55 &

56.

31 1722690 1 SPRING, Compression

32 1960519 1 PUSH NUT

33 1722630 1 ROD, Hold Down

34 1960662 1 SCREW, 1/4-20 x 2” Hex Head Cap, GR 5

35 1722667 1 GRIP, Clutch, LH

36 1923358 2 NUT, 1/4-20 Hex Centerlock

37 1715655 2 SPACER, Handle

UPPER HANDLES, DASH, CONTROLS

TP 400-5038-2-IS-N

Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME

SERIES 5 & 6

UPPER HANDLES, DASH, CONTROLS

Footnotes:

TP 400-5038-2-IS-N

Manual No. 7006070TWO-STAGE INTERMEDIATE FRAME

SERIES 5 & 6 7

Part No Descri

tionItem Qt

Note

38 1726573 1 HANDLE, Upper, Left Hand

39 1922837 2 SCREW, 1/4-20 x 1-1/2” Hex Head Cap

40 1715654 2 SPACER, .268 ID x .394 x .165

41 1960671 2 SCREW, 1/4-20 x 3/4” Pan Head Torx Self-Tap

42 1921221 5 SCREW, 5/16-18 x 1-1/2” Hex Head Cap, GR 5

43 1722631 1 LEVER, Pivot

44 1920397 2 NUT, 1/4-20 Hex Nyloc

45A 7075909 1 SNOW STICK

45B 1733209 1 SNOW STICK w/Brush replaces 7075909

46 7091267 1 NUT, #10-24 Hex Center Lock

47 1722632 1 ROD, Hand Control not shown; part of item 30

48 7071895 1 HOLDER, Snostik- Upper

49 7027425 1 CLUTCH CABLE, Ground Drive- LH parts number is stamped on

cable

50 7091189 4 BOLT, 5/16-18 x 2” Curved Head Square Neck GR 2

51 7090011 1 WASHER, #10 Internal Tooth Lock

52 7091266 1 SCREW, #10-24 x 2” Hex Washer Head Machine, GR 5

53 1917356 4 LOCKWASHER, Spring .312 or 7091315

54 1722635 1 BUSHING, .250 ID x .375 OD x .750 not shown; part of item 30

55 1722634 1 PIN, Clevis not shown; part of item 30

56 1722613 1 SPRING, Compression not shown; part of item 30

CHUTE CRANK CONTROL

TP 400-5038-2-IS-N

Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME

SERIES 5 & 6

CHUTE CRANK CONTROL

Footnotes:

TP 400-5038-2-IS-N

Manual No. 7006070TWO-STAGE INTERMEDIATE FRAME

SERIES 5 & 6 9

Part No Descri

tionItem Qt

Note

1 1960093 1 PUSH NUT, Pal. .375 Dia. Stud Cap

2 1714084 1 KNOB, Spinner

3 1667588 3 BUSHING, .376 x .437 x .20

4 7028152 1 ROD, Chute, Upper

5 1960074 1 CLIP, .093 Dia. Hair Pin

6 1720577 1 SPLICE, Chute Handle

7 1926228 1 SPRING PIN, .156 x 1.000

8 1726939 1 ROD, Chute Lower

9 1918452 1 COTTER PIN, .125 x 1.00

10 1718793 1 BRACKET, Universal Gear

11 1921319 3 WASHER, .250 (.27 ID x .62 OD)

12 1960518 2 RETAINER, 1/4” Bolt

13 1960252 2 BOLT, 1/4-20 x 5/8” Short Square Neck Carriage

14 1718593 2 GEAR, Universal

15 1960103 1 WASHER, 3/8” Flat- Black

16 1916168 1 SPRING PIN, .125 x .750

17 7028159 1 WORM SHAFT

18 1960294 2 NUT, 1/4-20 Hex Flange Lock

19 7014001 1 ROLL PIN, 1/8 x 3/4”

20 7021828 1 WORM

21 7011724 1 WASHER, .44 x .78 x .025 Curved

22 7028162 1 BRACKET, Worm

23 7091070 1 NUT, 5/16-18 Hex Flange Lock

24 7091138 1 SCREW, 5/16-18 x 5/8” Hex Head Cap, GR 5

25 7090539 1 SCREW, 1/4-20 x 1/2” Hex Washer Self-Tap

COLLECTOR HOUSING (3 Piece Bolted)

TP 400-5038-2-IS-N

Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME

SERIES 5 & 6
