Parts Manual for

TWO STAGE

LARGE FRAME

SNOW THROWER

SERIES 5

MODELS

8245

8265

E8265

9265

E9265

10305

11305

10305E

E10305

E10305E

E11305

IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE

AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD

IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH

CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.

SNAPPER INC.

(Rev. 5, 7/03/00) MANUAL No. 06037

MODEL 10305E

SHOWN

FAMILIARIZATION

MODEL 10305E SHOWN

MANUAL No. 06037 LARGE FRAME SNOWTHROWER

HARDWARE

BAG KITS

PAGE 25 ACCESSORIES

PAGE 25 - 27

BLOWER CLUTCH

Pages 16 - 19

LIGHTS

Pages 18 - 19

DISCHARGE CHUTE

Pages 4 & 5

DIRECTIONAL CONTROL

Pages 16 - 19

BLOWER HOUSING

Pages 6 & 7

AUGERS

Page 3

SCRAPERS

Pages 6 & 7 GEAR BOX, SHAFTS

Pages 10 & 11 SKID SHOES

Pages 6 & 7

IMPELLER

Page 3

TRACTION DRIVE

Pages 14 & 15

WHEELS

Page 21

FRAME

Pages 12 & 13

ENGINE

Page 20

CONTROL PANEL

Pages 16 - 19

HANDLE BARS

Pages 16 - 19

CHUTE CONTROL

Page 16 - 19

DECALS

Pages 22 - 24

TRACTION CLUTCH

Pages 16 - 19

AUGERS, IMPELLER

ITEM PART NO. DESCRIPTION

1 4-9928 AUGER, Right Side (8245 Models)

- 4-9935 AUGER, Right Side (8265, 9265 & E9265 Models)

- 4-9922 AUGER, Right Side (10305E, E10305E, N10305E, 11305 &

E11305 Models)

2 1-3864 FITTING, Grease (2)

3 9-1550 BOLT, 5/16-18 x 1-7/8" Shear (2)

4 9-1298 NUT, 5/16-18 Hex Nyloc (2)

5 4-9927 AUGER, Left Side (8245 Models)

- 4-9936 AUGER, Left Side (8265, 9265 & E9265 Models)

- 4-9921 AUGER, Left Side (10305E, E10305E, N10305E, 11305

E11305 Models)

6 4-9677 FAN, Impeller

7 1-3862 PIN, 1/4 x 1-1/2" Roll (2)

8 5-1350 ASSEMBLY, Bearing (Includes Item 11)

9 9-0699 BOLT, 1/4-20 x 3/4" Hex Flange Lock, Grade 5 (6)

10 9-1065 NUT, 1/4-20 Hex Flange Lock (6)

11 1-0817 FITTING, Grease (2)

12 2-8221 SPACER (Used on Model 8245 Models Only) (2)

LARGE FRAME SNOWTHROWER MANUAL No. 06037

RIGHT SIDE

LEFT SIDE

GEARBOX, SHAFTS

(See Pages 8 – 9)

DISCHARGE CHUTE

MANUAL No. 06037 LARGE FRAME SNOWTHROWER

COLLECTOR HOUSING

#10-32 HEX JAM NUTS and

#10 LARGE OUTSIDE DIAMETER

FLAT WASHERS

(PART OF CONTROL CABLE)

DISCHARGE CHUTE

ITEM PART NO. DESCRIPTION

1 2-8208 CHUTE, Discharge

-- 2-8217 CHUTE, Remote Control Discharge (8245 Model Only)

2 2-4773 DECAL, Hand Danger

3 2-8235 DEFLECTOR, Remote Control Discharge

-- 2-8184 DEFLECTOR (8245 Model Only)

4 2-8253 PIN, Hinge

5A 1-6324 T-KNOB (Plastic)

5B 3-5744 T-KNOB (w/5/16-18 insert)

6 9-1076 WASHER, 5/16 Flat (2)

7 9-1072 BOLT, 5/16-18 x 1” Square Neck Carriage, Grade 5

8 9-1021 SCREW, 5/16-24 x 3/4" Hex Head Cap, Grade 5 (3)

9 9-1074 NUT, 5/16-24 Hex Center Lock, Grade B

10 3-9765 RING, Chute (59 Tooth, 229 Degrees)

-- 4-7855 RING, Chute (Euro) (48 Tooth, 187 Degrees)

11 1-1938 RETAINER (Chute Ring to Housing) (2)

12 9-1077 BOLT, 5/16-18 x 5/8" Square Neck Carriage, Grade 5 (3)

13 9-1070 NUT, 5/16-18 Hex Flange Lock, Grade 5 (3)

14 9-1075 SCREW, #10-24 x 5/8" Hex Washer Self-Tap, Grade 5 (8)

15 9-1069 NUT, 5/16-18 Hex, Grade B or 5

16 3-2813 MOUNT, Cable

17 9-1064 BOLT, 1/4-20 x 1/2" Short Neck Carriage, Grade 5 (2)

18 9-1023 WASHER, 1/4” Internal Tooth Lock (2)

19 9-1100 NUT, 1/4-20 Hex (3)

20 4-5172 CABLE, Control

21 9-1099 NUT, 1/4-20 Hex Center Lock, Grade B or 5

22 9-1098 WASHER, 1/4 Flat (2)

23 2-3798 BOLT, 1/4-20 x 1-1/2" Eye

24 1-9692 WIRE, Safety

25 2-3673 PUSH-ON Fastener, 5/32” Dia. (2)

26 3-2559 RETAINER, Safety Wire (2)

LARGE FRAME SNOWTHROWER MANUAL No. 06037

COLLECTOR HOUSING

MANUAL No. 06037 LARGE FRAME SNOWTHROWER

22 14

13 10

8 9 12

5 25 23

5 22

1 25

19 5

COLLECTOR HOUSING

ITEM PART NO. DESCRIPTION

1 5-2134 ASSEMBLY, 24" Blower (8245 Models) (Includes 1-6578 Decal)

-- 5-2135 ASSEMBLY, 26" Blower (8265 & 9265 Models) (Incl. 1-6578 Decal)

-- 5-3421 ASSEMBLY, 30" Blower (10305E & 11305E Models) (Includes 2-6629 Decal)

2 3-3035 GUIDE, Cable (8265, 9265, E9265, 10305E, E10305E, N10305E),

11305 & E11305)

3 9-1021 SCREW, 5/16-24 x 3/4” Hex Head Cap, Grade 5

4 9-1074 NUT, 5/16-24 Hex Center Lock, Grade B

5 9-1070 NUT, 5/16-18 Hex Flange Lock, Grade 5 (9)

6 2-8280 DECAL, Danger Rotating Auger

-- 2-8711 DECAL, Foot Danger (Euro)

7 2-8281 DECAL, Heavy Duty Snow

8 3-4303 BRACKET, Worm Shaft Support

9 1-2117 BUSHING

10 1-4001 PIN, 1/8 x 3/4" Roll

11 2-8222 CONNECTOR

12 4-2809 SHAFT, Worm (3/8-16 threaded)

13 1-1724 WASHER, 13/32 Spring (2)

14 2-8348 WORM

15 9-0539 SCREW, 1/4-20 x 1/2” Hex Washer Self-Tap

16 9-0858 SCREW, 5/16-18 x 1/2" Hex Washer Self-Tap (2)

17 3-8009 BAR, Stiffener (10305E, 11305 & E11305 Models Only)

18 9-1082 PIN, 3/32 x 3/4" Cotter

19 3-7982 SHOE, Skid (2)

20 9-0324 SCREW, 3/8-16 x 1" Hex Washer Self-Tap (2)

21 1-6360 WASHER, 3/8” Flat

22 9-0001 BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5 (11)

23 9-0731 BOLT, 5/16-18 x 1/2" Short Neck Carriage, Grade 5 (5)

24 3-6122 BLADE, Scraper (8245 Models)

-- 3-9770 BLADE, Scraper (8265 & 9265 Models)

-- 3-6006 BLADE, Scraper (10305E, 11305 & E11305 Models)

25 9-1076 WASHER, 5/16 Flat

26 2-8177 BRACKET, Worm

27 4-2894 PLUG, Dome 5/16” (2)

-- 4-2895 PLUG, 5/16” Dome (2)

28 9-1514 WASHER, 3/8” Flat

29 9-1585 NUT, 3/8-16 Hex Center Lock, Grade 5 or B

30 3-7971 DRIFT CUTTER (2)

31 9-0187 WASHER, 5/16 Split Lock (4)

32 9-0196 NUT, 5/16-18 Hex (4)

LARGE FRAME SNOWTHROWER MANUAL No. 06037

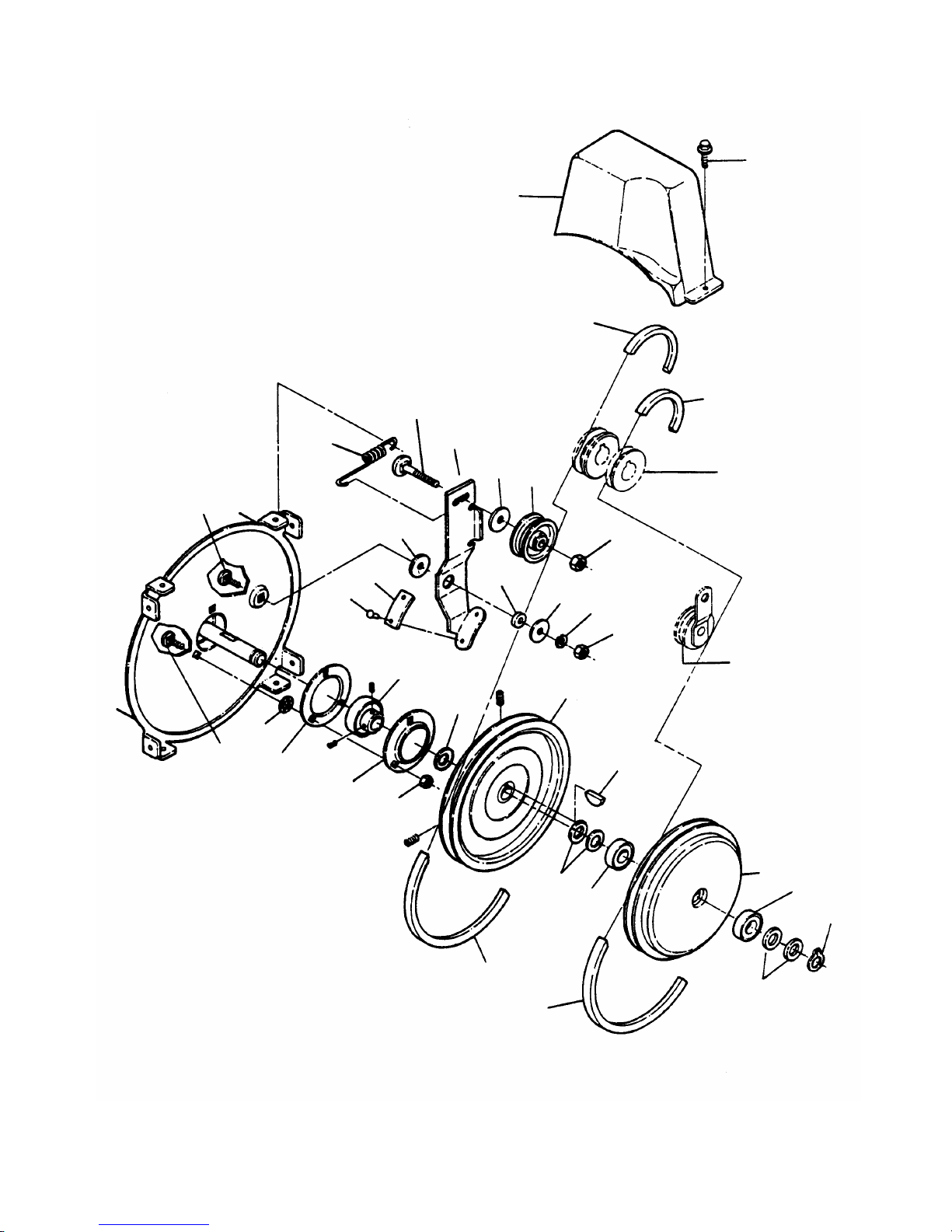

BELTS, IDLER, DRIVE PLATE, SHEAVE

MANUAL No. 06037 LARGE FRAME SNOW THROWER

2 3

6 7

13 13

22 22

ENGINE PULLEY

(See Page 20)

IDLER

(See Page 20)

BELTS, IDLER, DRIVE PLATE, SHEAVE

ITEM PART NO. DESCRIPTION

1 5-3580 ASSEMBLY, Idler Arm (Includes Items 2 & 3)

2 9-1559 RIVET (2)

3 1-3859 PAD, Brake

4 1-3919 SPRING

5 9-0791 BOLT, 3/8-16 x 1-1/2" Square Neck Carriage, Grade 2

6 9-0122 WASHER, 3/8 Flat

7 1-3850 PULLEY, Idler

8 9-0499 NUT, 3/8-16 Hex Top Lock

9 9-1069 NUT, 5/16-18 Hex, Grade B or 5

10 1-6314 WASHER, 5/16 x 1-1/4" Flat

11 1-3849 SPACER

12 9-1072 BOLT, 5/16-18 x 1" Square Neck Carriage, Grade 5

13 1-3931 HOUSING, Bearing

14 1-3924 BEARING (Includes Two #10-32 Socket Set Screws)

15 9-0001 BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5

16 9-1070 NUT, 5/16-18 Hex Flange Lock, Grade 5 (3)

17 1-3867 SHEAVE, Blower (Includes Two 5/16 Set Screws)

18 1-3937 BELT, Blower (All Models with Briggs Engines)

-- 1-3939 BELT, Blower (All Models with Tecumseh Engines)

19 1-0776 RING, 1/2 External Snap (Heavy Duty)

20 1-3861 KEY, #11 Woodruff

21 5-1358 PLATE, Drive (Includes Item 22)

22 1-4295 BEARING, Ball (2)

23 1-3936 BELT, Traction (All Models with Briggs Engines)

-- 2-9101 BELT, Traction (All Models with Tecumseh Engines)

24 1-4296 WASHER, 1/2 Shim (4) (Used with Item 21) (4)

25 9-0187 WASHER, 5/16 Split Lock

26 1-7734 COVER, Belt Guard

27 9-1122 SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap

28 3-4302 WASHER, 3/4 x 1-1/8" Flat

29 1-1791 RETAINER, 5/16 Bolt

LARGE FRAME SNOWTHROWER MANUAL No. 06037

GEARBOX, SHAFTS

MANUAL No. 06037 LARGE FRAME SNOW THROWER

NOTE: USE 4 OZ. OF #2-9577

BENALENE 900 GREASE

FOR LUBRICATION.
