Snapper GT23540 Manual de usuario

Parts Manual fo

Revision IR,

GARDEN TRACTOR ELECTRIC CLUTCH

SERIES 0

2005

McDonough, GA, 30253 U.S.A.

TP 400-5063-IR-TC-N

5/26/2005 Manual No. 06456

SNAPPER PRODUCTS, INC.

HYDRO DRIVE RMO

MODEL

GT23540

(

2690258

)

Table Of Content

TP 400-5063-IR-TC-N

Manual No. 06456GARDEN TRACTOR ELECTRIC CLUTCH

SERIES 0 3

PAGE GROUP

4WHEELS & TIRES GROUP

6HOOD, GRILL & DASH GROUP

8STEERING GROUP - Power Steering with Tilt

10 FRAME GROUP

14 CONTROLS GROUP

18 CRUISE GROUP

20 TRANSMISSION GROUP

24 TRANSMISSION SERVICE PARTS - Tuff Torq K-71E

32 SEAT, DECK, TANK GROUP

34 ENGINE GROUP-23HP KOHLER

36 LIFT & POWER STEERING GROUP - HYDRAULIC

40 54" DECK - BELT & IDLER ARM GROUP

42 54" DECK - HEIGHT ADJ & ROLLER BAR GROUP

46 54" DECK - HOUSING & ARBOR GROUP

50 DECALS GROUP

52 ELECTRICAL GROUP - GT-RMO

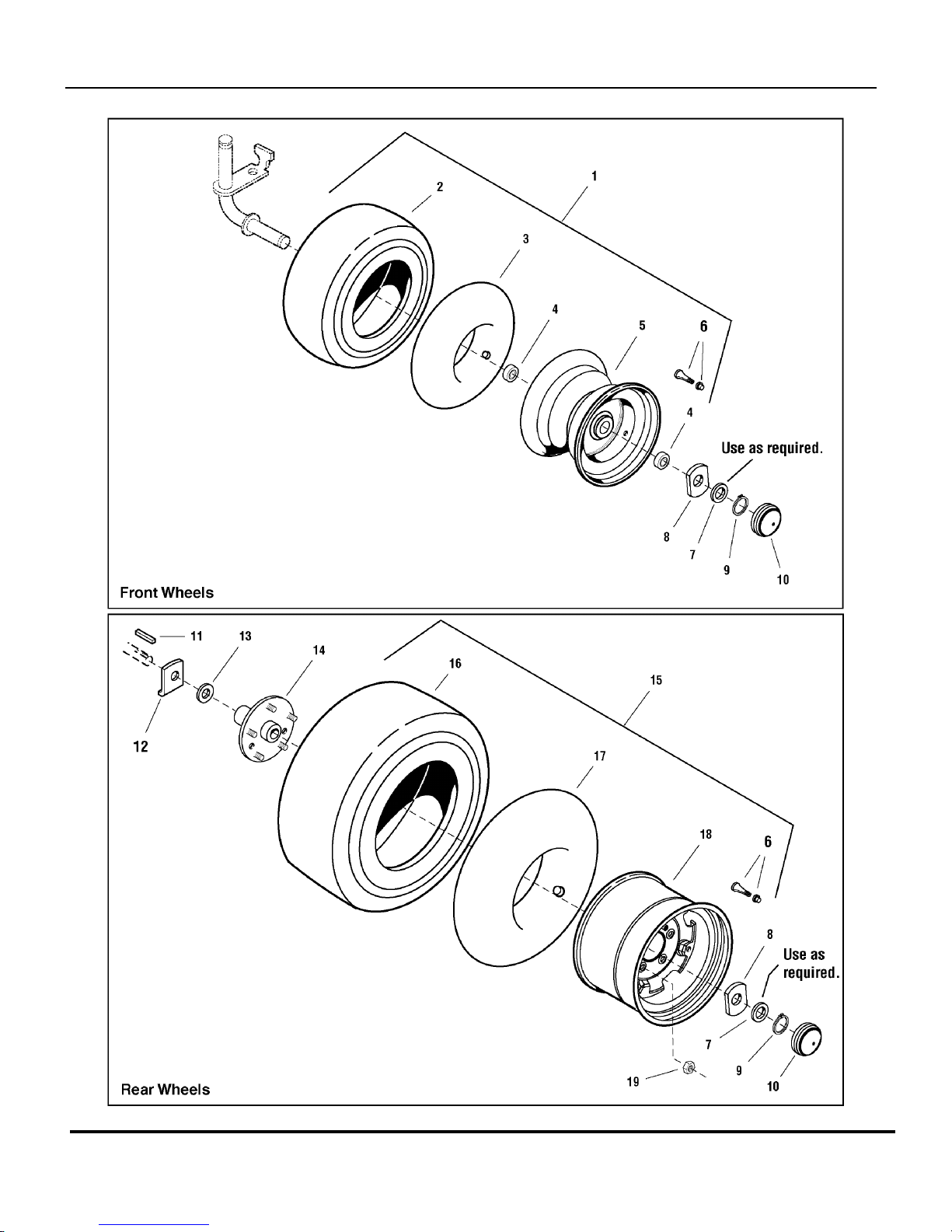

WHEELS & TIRES GROUP

TP 400-5063-IR-TC-N

Manual No. 06456 GARDEN TRACTOR ELECTRIC CLUTCH

SERIES 0

WHEELS & TIRES GROUP

Footnotes:

TP 400-5063-IR-TC-N

Manual No. 06456GARDEN TRACTOR ELECTRIC CLUTCH

SERIES 0 5

Part No Descri

tionItem Qt

Note

1 1722305 2 WHEEL & TIRE ASSEMBLY, Front (Includes Ref. 2, 3, 4, 5 & 6)

2 1722833 1 TIRE, 16 x 6-1/2, 8 Super Turf, Front

3 164247 1 TUBE, Tire 16 x 6 1/2 - 8, Front

4 1717056 2 BEARING, Ball

5 1722834 1 WHEEL, 5-3/8 x 7-15/16, Front

6 172353 2 VALVE STEM & CAP ASSEMBLY, Air

7 1919394 4 WASHER, 1

8 1722726 8 WASHER, Special, 1 x 2-1/2

9 932577 6 RING, Shaft

10 1722676 4 CAP, Hub Grey

11 105337 2 KEY, HI PRO, 1/4 x 2

12 1719172 2 WASHER, Axle Seal “L”, 2-1/2 x 2-17/32

13 960200 4 WASHER, 1

14 1721400 2 PLATE & HUB ASSEMBLY, Rear Wheel

15 1726489 2 WHEEL & TIRE ASSEMBLY, Rear 24” (Includes Ref. 6, 16, 17 &

16 1727146 1 TIRE, 24 x 12 - 12 Super Turf, Rear

17 157638 1 TUBE, Tire 24 x 12 - 12, Rear

18 1726490 1 WHEEL, 8-1/2 x 12, Rear

19 177725 10 NUT, Hex, 7/16-20, For Wheel Bolt

HOOD, GRILL & DASH GROUP

TP 400-5063-IR-TC-N

Manual No. 06456 GARDEN TRACTOR ELECTRIC CLUTCH

SERIES 0

HOOD, GRILL & DASH GROUP

Footnotes:

TP 400-5063-IR-TC-N

Manual No. 06456GARDEN TRACTOR ELECTRIC CLUTCH

SERIES 0 7

Part No Descri

tionItem Qt

Note

1 1721804 1 PANEL, RH Side

1 41721804 1 PANEL, RH Side, Red

2 1721801 1 HOOD, no Louvers

2 41721801 1 HOOD, no Louvers, Red

3 1722110 1 HOOD, with Louvers

3 41722110 1 HOOD, with Louvers, Red

4 1960295 12 CAPSCREW, Hex Head Flange Lock,1/4-20 x 5/8

5 1960392 1 SCREW, Phillips Head, #10-24 x 1/2

6 1687054 1 DASHBOARD, RMO, Black

6 1687055 1 DASHBOARD, RMO with Hydra Lift Slot, Black

7 1933896 1 NUT, Hex Nylock,#10-24

8 1723123 1 ROD, Dash Support

9 1930641 12 NUT, Hex Flange Lock, 1/4-20

10 1721803 1 PANEL, LH Side

10 41721803 1 PANEL, LH Side, Red

11 1721808 1 HINGE, LH

12 1722391 1 DUCT, Air Inlet

13 1721802 1 GRILLE

13 41721802 1 GRILLE, Red

14 1721810 1 HEADLIGHT ASSEMBLY, (Includes Ref. Nos. 15 & 16)

15 1677371 4 BULB, Headligh

16 1723451 4 SOCKET, Headlight

17 1721809 1 HINGE, RH

STEERING GROUP - Power Steering with Tilt

TP 400-5063-IR-TC-N

Manual No. 06456 GARDEN TRACTOR ELECTRIC CLUTCH

SERIES 0

STEERING GROUP - Power Steering with Tilt

Footnotes:

TP 400-5063-IR-TC-N

Manual No. 06456GARDEN TRACTOR ELECTRIC CLUTCH

SERIES 0 9

Part No Descri

tionItem Qt

Note

1 1724368 1 BOOT, Tilt Steering Unit

2 1722318 1 STEERING WHEEL, Straight Shaft

3 1960540 1 ROLL PIN

4 1723898 2 SPACER

5 1725024 1 CAP, Steering Wheel, Plain

6 1721736 1 MOUNTING PLATE

7 1724161 1 TILT STEERING UNIT Applies to Serial Number Units

1999 & Below.

8 1726026 1 TILT STEERING UNIT Applies to Serial Number Units

2000 & Above.

8 928372 4 NUT, Hex KEPS, 1/4-20

9 1722923 1 ADAPTER, 2-13/16 Long

10 1721677 2 COUPLER, 2-3/8 Long

11 1919438 2 NUT, Hex Lock, ESNA Light, 5/16-18

12 1922127 2 CAPSCREW, Hex Head 5/16-18 x 1-3/4

13 1960518 4 NUT, Push

14 1931320 4 CARRIAGE BOLT, 1/4-20 x 1-1/4

15 176440 1 BUSHING, Nylon

16 1960114 5 WASHER, 3/4

17 1722385 1 GEAR &, Shaft ASSEMBLY, Steering

18 1960032 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4

19 1930645 1 NUT, Hex Flange Two-Way Lock, 3/8-16

20 1664847 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4

21 1721628 1 SHAFT & PINION ASSEMBLY, Steering Power wtih Tilt

22 1611710 1 RING, Clipring Extension

23 1722459 1 BEARING, 3/4 x 1-11/16

24 1722461 1 SPACER, 3/8” Long

25 1931211 2 NUT, Hex Flange Whiz Lock, 3/8-16, Small

26 1931348 2 CARRIAGE BOLT, 3/8-16 x 3/4

27 1718832 1 GENERATOR, Torque, Power Steering Unit

28 1917356 3 LOCKWASHER, Spring, 5/16

29 1921332 3 CAPSCREW, Hex Head, 5/16-18 x 3/4

FRAME GROUP

TP 400-5063-IR-TC-N

Manual No. 06456 GARDEN TRACTOR ELECTRIC CLUTCH

SERIES 0
