Snapper Easy Line ESPV21S Manual de usuario

Parts Manual fo

Revision 1,

21" STEEL DECK EASY LINE EUROPEA

McDonough, GA, 30253 U.S.A.

TP 400-5150-1-WB-N

1/16/2007 Manual No. 7006208

SWIVEL WHEEL WALK MOWE

Briggs & Startton Yard Power Products Group

Briggs & Startton Corporation

MODEL

ESPV21

ESPV211

Table Of Content

TP 400-5150-1-WB-N

Manual No. 700620821" STEEL DECK EASY LINE EUROPEAN

PAGE GROUP

4HANDLES & CONTROLS

6GUARDS AND COVERS

8FRONT WHEELS

10 REAR WHEELS

12 REAR DECK BRACKETS & IDLER ARM

14 TRANSMISSION

16 ENGINE AND BLADE

18 BAGGING COMPONENTS

20 DECALS

HANDLES & CONTROLS

TP 400-5150-1-WB-N

Manual No. 7006208 21" STEEL DECK EASY LINE EUROPEAN

HANDLES & CONTROLS

Footnotes:

TP 400-5150-1-WB-N

Manual No. 700620821" STEEL DECK EASY LINE EUROPEAN

Part No Descri

tionItem Qt

Note

1 7078247 1 HANDLE, Upper finish: flat black textured

2 7300130 1 PLATE, Control Panel finish: flat black textured

3 7100225 4 SCREW, #8-16 Recessed Pan Head (Torxplus)

4 7028488 1 GUIDE, Rope with 1/4-20 threads

5 7076978 1 NUT, 1/4-20 Hex Nyloc

6 7090391 4 WASHER, 5/16 Internal Tooth Lock

7 7035744 4 KNOB, 5/16-18 Wing (Black)

7 M720727 4 KNOB, 5/16-18 Wing (Black) Briggs part

8A 7100069 1 ASSY, Control Head Variable Speed (Incl. 8, 9, 10, 11, 12, 15 &

16)

8 1 CASE HALF, Bottom, Black not available individually

9 1 SPRING STEEL not available individually

10 1 CLUTCH LEVER, Silver not available individually

11 1 ASSEMBLY, Speed Lever/Friction Material not available individually;

includes 7100412, Friction Strip

12 1 CASE HALF, Top, Variable Speed- Black not available individually

13 7078248 1 BAIL, Brake finish: flat black textured

14 7100074 1 * CABLE, Zone Control

15 7100263 1 * CABLE, Clutch

16 7100264 1 * CABLE, Speed

17 7078246 1 HANDLE, Lower finish: flat black textured

18 7024649 2 WIRE TIE, 11 Inch Black Nylon

19 7091189 2 BOLT, 5/16-18 x 2” Curved Head Square Neck GR 2

20 7300103 2 BRACKET, Lower Handle finish: flat black textured

21 7091612 2 BOLT, 5/16-18 x 1-1/2” Round Head Square Neck, GR 5

22 7090799 7 BOLT, 5/16-18 x 5/8” Round Head Short Square Neck Carriage

23 7091601 4 NUT, 5/16-18 Hex Flange Lock

24 7072023 1 * CONTROL, Swivel Wheel Latch 56.5 (LH Outside)

25 7090505 1 SCREW, 1/4-20 x 2” Hex Head Cap, GR 5

26 7090372 3 NUT, 1/4-20 Hex Center Lock

27 7091135 2 PUSHNUT, 3/8”

28 7100632 2 FOAM GRIP, 7”

NOTE: * Snapper part numbers are stamped on cables.

GUARDS AND COVERS

TP 400-5150-1-WB-N

Manual No. 7006208 21" STEEL DECK EASY LINE EUROPEAN

GUARDS AND COVERS

Footnotes:

TP 400-5150-1-WB-N

Manual No. 700620821" STEEL DECK EASY LINE EUROPEAN

Part No Descri

tionItem Qt

Note

1 7400014 1 WELDMENT, 21” Deck Swivel Wheel

2 7100001 1 REAR COVER, Belt/Transmission

3 7900032 6 SCREW, 7mm x 1 x .550 AB Point replaces 7100059 rivet

4 7046780 2 PLUG, Hole (Polyethylene)

5 7078225 1 ROD, Trail Shield 1/4-20 thread- both ends

6 7078272 1 SHIELD, Trail

7 7091584 2 NUT, 1/4-20 Hex Flange Lock

8 7090001 2 BOLT, 5/16-18 x 3/4” Short Square Neck Carriage, GR 5

9 7011791 1 BOLT RETAINER, 5/16- Black

10 7029149 1 COVER, 21 Deck Recycling

11 7091169 1 BOLT, 5/16-18 x 1-1/8” Short Square Neck Carriage, GR 5

12 7024340 1 SPACER, .316 x .375 x .300/.310

13 7090951 1 NUT, 5/16-18 Large Flange Hex Center Lock

14 7091070 2 NUT, 5/16-18 Hex Flange Lock

15 7042965 1 CHUTE, 21 Side Discharge

16 7900028 1 NUT, 5/16-18 Speed Shakeproof# FN-614020-1-50)

FRONT WHEELS

TP 400-5150-1-WB-N

Manual No. 7006208 21" STEEL DECK EASY LINE EUROPEAN

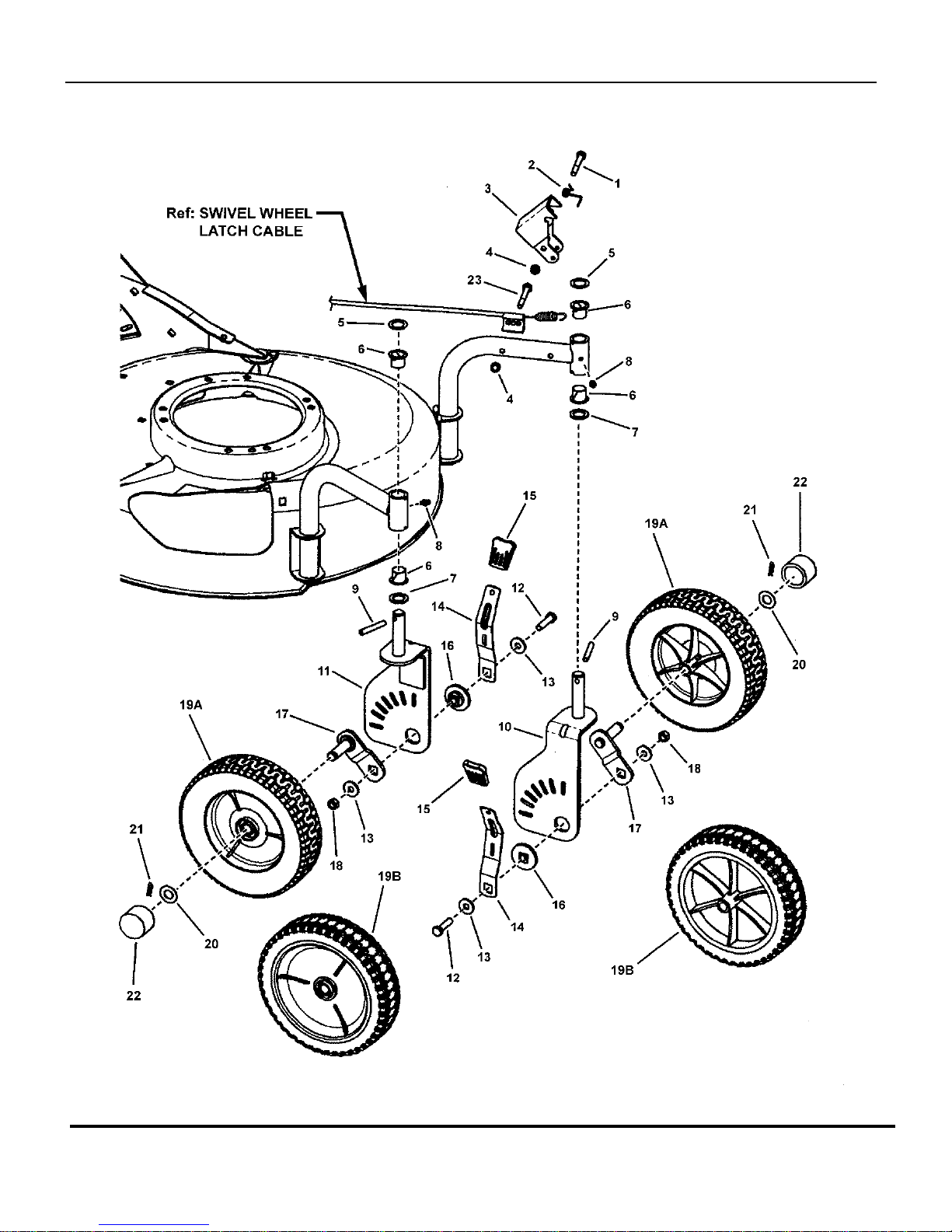

FRONT WHEELS

Footnotes:

TP 400-5150-1-WB-N

Manual No. 700620821" STEEL DECK EASY LINE EUROPEAN

Part No Descri

tionItem Qt

Note

1 7091256 1 SCREW, 1/4-20 x 2-1/4” Hex Head Cap, GR 5

2 7046668 1 SPRING, Torsion

3 7300171 1 BRACKET Swivel Wheel Lock, Red

4 7090372 2 NUT, 1/4-20 Hex Center Lock

5 7092021 2 WASHER, .64 x .99 x .025 Flat

6 7046628 4 BUSHING, 5/8” Nyliner

7 7092022 2 WASHER, .64 x .99 x .075 Flat

8 7013864 2 LUBE FITTING, 3/16”

9 7014106 2 ROLL PIN, 1/4 x 1-3/4”

10 7400068 1 WELDMENT, Swivel Wheel Brkt. LH (Red)

11 7400070 1 WELDMENT, Swivel Wheel Brkt. RH (Red)

12 7091527 2 SCREW, 5/16-18 X 1-1/4” Hex Head Cap, GR 5

13 7900022 4 WASHER, .875 x .327 x .090 Flat

14 7100251 2 LEVER, Height Adjust, Swivel Wheel

15 7100633 2 GRIP, Height Latch replaces 7027702 (voided)

16 7100249 2 SPACER, Swivel Wheel Pivot

17 7500101 2 ASSEMBLY, Axle Arm/Stud

18 7091575 2 NUT, 5/16-18 Hex Center Lock

19A 7100250 2 WHEEL, Front 8 x 2”, LS Tread, 1-3/8” Hub Length

19B 7101127 2 WHEEL, Front 8 x 2”, Dbl Bar II Tread, 1-3/8” Hub

20 7100585 2 WASHER, Shim, .875 x .531 x .060

21 7091193 2 COTTER, Hairpin

22 7100088 2 HUB CAP, 1-3/8” Diameter black

23 7090505 1 SCREW, 1/4-20 x 2” Hex Head Cap, GR 5

REAR WHEELS

TP 400-5150-1-WB-N

Manual No. 7006208 21" STEEL DECK EASY LINE EUROPEAN
