Parts Manual fo

21" STEEL DECK WALK BEHIND

SERIES 20

COMMERCIAL MOWERS

Revision: B 1/19/2012

Briggs & Stratton Yard Power Products Group

Manual No. 7104803

535 Macon Road

McDonough, GA, 30253 U.S.A.

800-935-2967

Descri

tionModel No.

780077

CP218520

780084

CP218520

780076

CRP218520

780084

CRP218520

Not for

Reproduction

Not for

Reproduction

Table Of Content

TP 400-5485-B-WB-N

21" STEEL DECK WALK BEHIND

SERIES 20 3

Manual No. 7104803

PAGE GROUP

4Handles & Controls Group

8Engine, Deck & Blade Group

10 Wheel & Height-of-Cut Assembly Group

12 Drive System, Self-Propelled

16 Transmission - Differential Group

18 Grass Bag & Accessories Group

20 Side Chute, Adapter

22 Decals Group

Not for

Reproduction

Manual No. 7104803 21" STEEL DECK WALK BEHIND

SERIES 20

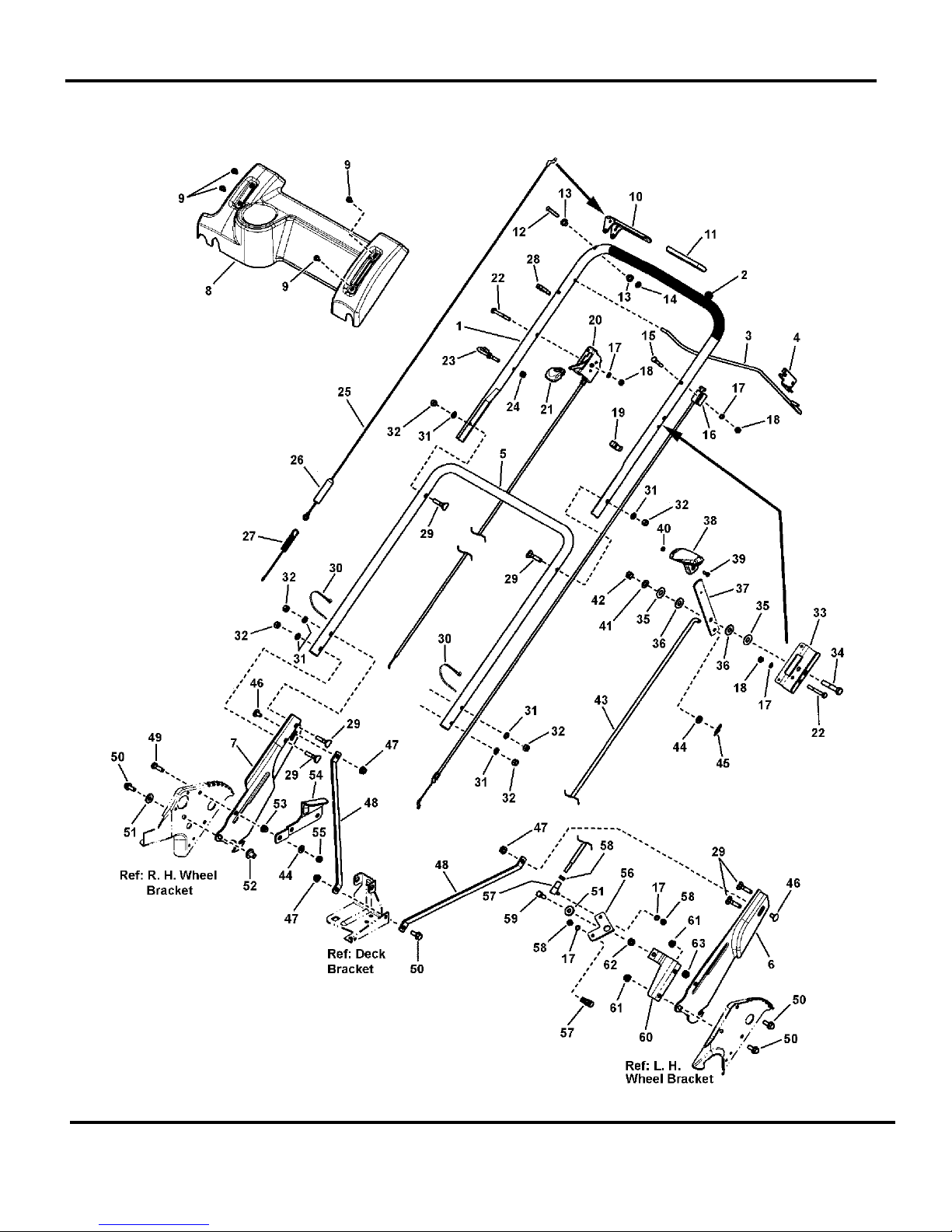

Handles & Controls Group

Not for

Reproduction

Footnotes:

Manual No. 710480321" STEEL DECK WALK BEHIND

SERIES 20 5

Handles & Controls Group

Part No Descri

tionItem Qty

1 7074411A 1 HANDLE, Upper

2 7023810 1 FOAM GRIP, 18.75” long

3 7074418A 1 BAIL, OPC Control

4 7034872 1 CLIP, Zone Control

5 7074156A 1 HANDLE, Middle

6 7033985A 1 HANDLE, Lower, Adjustable, LH

7 7033986A 1 HANDLE, Lower, Adjustable, RH

8 7074140 1 CONTROL PANEL, No Electric Switch

9 7900067 4 SCREW, 1/4-20 x .550” Pan Head Self-Tap (Torx)

10 7074473A 1 HANDLE, Clutch

11 7028407 1 GRIP, International Symbol

12 7023792 1 PIN, 1/4 x 1-1/2”

13 7014343 2 BUSHING, .27 x .35 x .4 Flange

14 7091020 1 PUSH-NUT, 1/4”

15 7079577 2 SCREW, 1/4-20 x 1-1/2” Hex Head Cap GR 5

16 7102593 1 CABLE, Zone Control, W14

17 7090053 5 WASHER, 1/4” Internal Tooth Lock, YZ

18 7091576 3 NUT, 1/4-20 Hex, GR 5

19 7023813 1 CLIP, Wiring Harness

20 7102594 1 THROTTLE CONTROL, (63.12” Long)

21 7075308 1 KNOB, Throttle

22 7090505 2 SCREW, 1/4-20 x 2” Hex Head Cap, GR 5

23 7028488 1 GUIDE, Rope (1/4-20 thread)

24 7076978 1 NUT, 1/4-28 Hex GR 5 or B

25 7034604 1 CONTROL, Clutch, 21”

26 7012121 1 COVER, Vinyl

27 7012122 1 SPRING, Clutch

28 7026219 1 CLAMP, 7/8” Double Cable

29 7091190 6 BOLT, 5/16-18 X1-1/2” Curved Head Square Neck, GR 2 BZ

30 7012080 1 CABLE-TIE, 7”

31 7090391 6 WASHER, 5/16” Internal Tooth Lock

32 7091511 6 NUT, 5/16-18 Hex, GR 5 or B, BZ (Was 7091069)

33 7074003 1 BRACKET, Shift

34 7091305 1 SCREW, 3/8-16 x 2” Hex Head Cap, GR 5

35 7031961 2 WASHER, 7/16” Flat

36 7028465 2 WASHER, Nylon

37 7074113 1 LEVER, Shift

38 7075182 1 KNOB, Shift

39 7091167 1 SCREW, #8-32 x 1/2” Cross Recess Filister Head Machine

40 7091018 1 NUT, #8-32 Hex

41 7028568 1 WASHER, Belleville

42 7091585 2 NUT, 3/8-16 Hex Center Lock

43 7074133 1 ROD, Speed Control

44 7090188 2 WASHER, .34 x .69 x .08 Flat, YZ

Not for

Reproduction

Manual No. 7104803 21" STEEL DECK WALK BEHIND

SERIES 20

Handles & Controls Group

Not for

Reproduction

Footnotes:

Manual No. 710480321" STEEL DECK WALK BEHIND

SERIES 20 7

Handles & Controls Group

Part No Descri

tionItem Qty

45 7034162 1 COTTER PIN, 5/16” Self Lock

46 7090799 2 BOLT, 5/16-18 x 5/8” Round Head Short Square Neck, GR 5 BZ (Was7091026)

47 7091601 3 NUT, 5/16-18 Hex Flange Lock, GR 5, YZ

48 7046707A 2 BRACE, Handle

49 7090238 1 SCREW, 5/16-24 x 1” Hex Head Cap, GR 5, BZ

50 7090595 4 BOLT, 5/16-18 x 3/4” Hex Flange Lock

51 7091130 2 WASHER, .327 x .875 x .09 Flat, BZ

52 7090895 1 T-NUT, 5/16-18

53 7012114 1 BUSHING, Differential

54 7034179A 1 LINK, Differential, Commercial (also part of Drive System Group)

55 7091606 1 NUT, 5/16-24 Hex Center Lock, GR B, BZ (Was 7091074)

56 7073913 1 BELL CRANK, Black Zinc

57 7015753 2 BALL JOINT

58 7090095 3 NUT, 1/4-28 Hex GR 5 or B, YZ

59 7091904 1 SCREW, 5/16-18 x 7/8” Hex Head Cap, GR 5 YZ

60 7073822A 1 BRACKET, Bell Crank

61 7090585 4 NUT, 5/16-18 Hex Flange Lock, GR 5

62 7013849 1 SPACER, .623 OD x .328 ID x .151 L

63 7091575 1 NUT, 5/16-18 Hex Center Lock

Not for

Reproduction

Manual No. 7104803 21" STEEL DECK WALK BEHIND

SERIES 20

Engine, Deck & Blade Group

Not for

Reproduction

Footnotes:

Manual No. 710480321" STEEL DECK WALK BEHIND

SERIES 20 9

Engine, Deck & Blade Group

Part No Descri

tionItem Qty

1 7400026D 1 WELDMENT, Deck, 21” Non-Adjust. Air (used on 7800764 & 7800847 models)

1 7500549D 1 WELDMENT, Deck, 21”, Self-Propelled, HV (used on 7800772 & 7800848 models)

2 7091508 3 BOLT, 5/16-18 x 3/4” Short Neck Carriage GR 5 (was 7090001)

3 7091601 2 NUT, 5/16-18 Hex Flange Lock, GR 5, YZ (was 7091070)

4 7046780 2 PLUG, Hole, Polyethylene

5 7090324 3 SCREW, 3/8-16 x 1” Self-Tapping

6 7074568 1 COVER, Belt

7 7091214 1 KEY, Woodruff #HP-506 Hi-Pro

8 7015780 1 PULLEY, Engine (25mm I. D. x 2-1/8” O.D.)

9 7092086 1 SCREW, 5/16-18 x 1/2” Hex Socket Head

10 7015626 1 HUB, Blade Drive, 25MM I.D. (.9” crank to blade, 1.75” square) (used on 7800772 & 7800848

models)

11 7026691 1 BLADE, 21” Standard Lift (used on 7800772 & 7800848 models)

12 7012063 1 WASHER, Cone

13 7090167 1 SCREW, 3/8-24 x 2” Hex Head Cap, GR 5

14 7101414 1 HUB, Blade Drive, 2 Position, 25MM I.D. (1.08” crank to blade, 1.75” x 2.25”) (used on 7800764

& 7800847 models)

15 7026407 1 BLADE, 21” Ninja (used on 7800764 & 7800847 models)

16 7029149 1 COVER, 21” Deck

17 7090189 2 WASHER, 5/16” Internal/External Lock

18 7101022 2 KNOB, Fluted, 5/16-18 x 1/2”

19 7011791 3 RETAINER, 5/16” Bolt

20 7024340 1 SPACER, .316 I.D. x .375 O.D. x .310 thick

21 7090951 1 NUT, 5/16-18 Hex Large Flange Center Lock

22 7091169 1 BOLT, 5/16-18 x 1-1/8 Round Head Short Square Neck, GR 5 ZP

23 121Q72-0119-F1 1 * ENGINE, B&S 850 Series, W14

23 124Q02-0119-F1 1 * ENGINE, B&S 850 Pro Series, W14

NOTE: * Purchase engine parts from engine manufacturer dealer.

Not for

Reproduction

Manual No. 7104803 21" STEEL DECK WALK BEHIND

SERIES 20

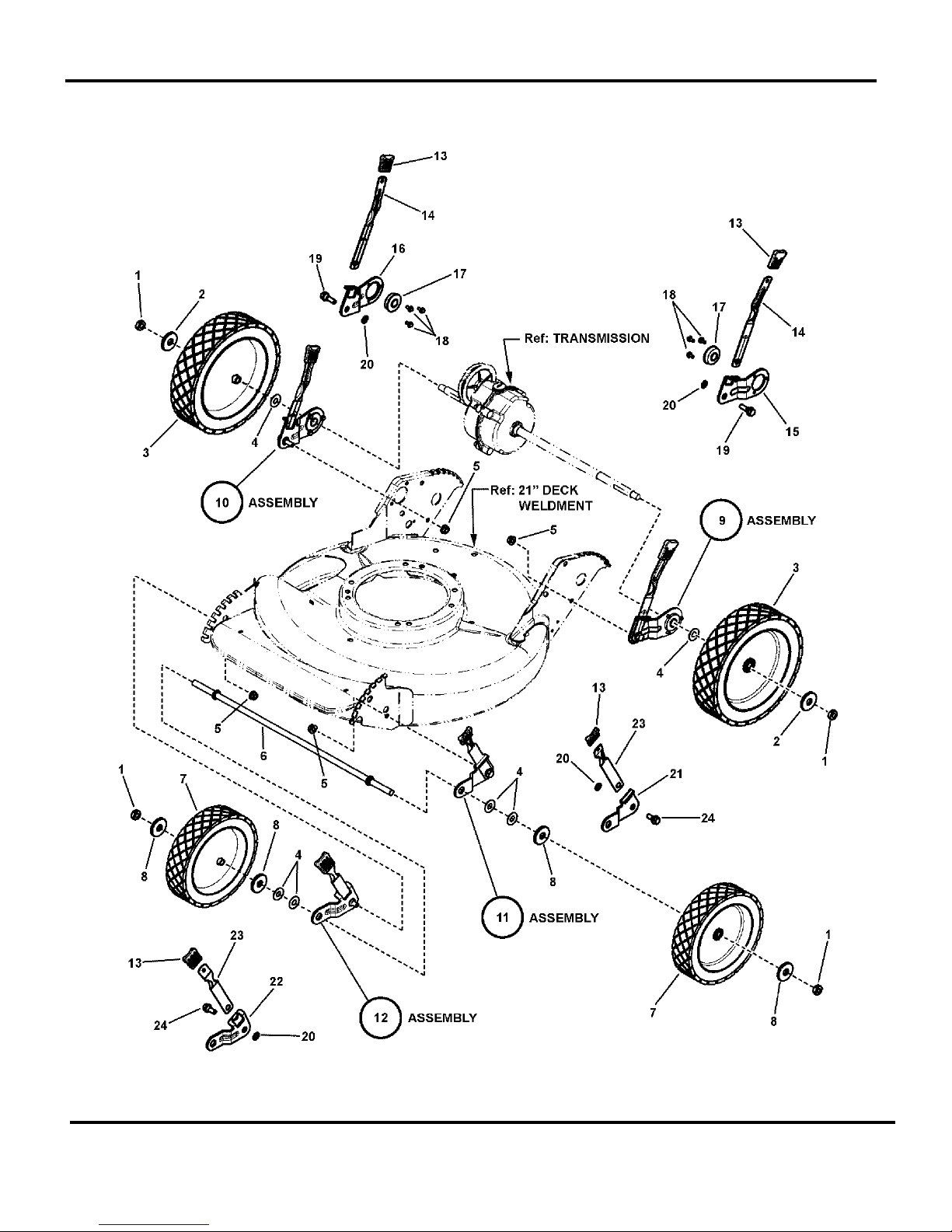

Wheel & Height-of-Cut Assembly Group
