Snapper 355ZB2654 DLR Manual de usuario

Parts Manual fo

Revision A,

26HP HYDRO DRIVE MID-MOUNT ZT

DLR 355

TP 400-5404-A-HZ-N7/3/2008

Briggs & Stratton Yard Power Products Group

535 Macon Road

McDonough, GA, 30253 U.S.A.

800-935-2967 Manual No. 5101613

MODEL

355ZB2654 DLR (5900768)

Table Of Content

TP 400-5404-A-HZ-N

26HP HYDRO DRIVE MID-MOUNT ZTR

DLR 355Z 3

Manual No. 5101613

PAGE GROUP

4Wheel & Tire Group

6Main Frame & Front Suspension

8Seat Mount & Floor Group

10 Fuel Tank & Mount Group

12 Engine & PTO Group

14 Motion Control Group

18 Parking Brake Group

20 Pump Drive Group

22 Hydraulic Group

24 Transmission Service Parts

26 Rear Bumper Group

28 Decals - Brand & Model

30 Decals - Saftey & Operation

32 Deck Lift Group

36 54" Mower Deck - Pulleys, Belt & Idler Arm

38 54" Mower Deck - Housing, Cover & Spindles

42 54" Mower Deck - Rollers & Casters

44 Instrument & Control Panel

46 Electrical Group

48 Wiring Schematics - 26HP Briggs & Stratton

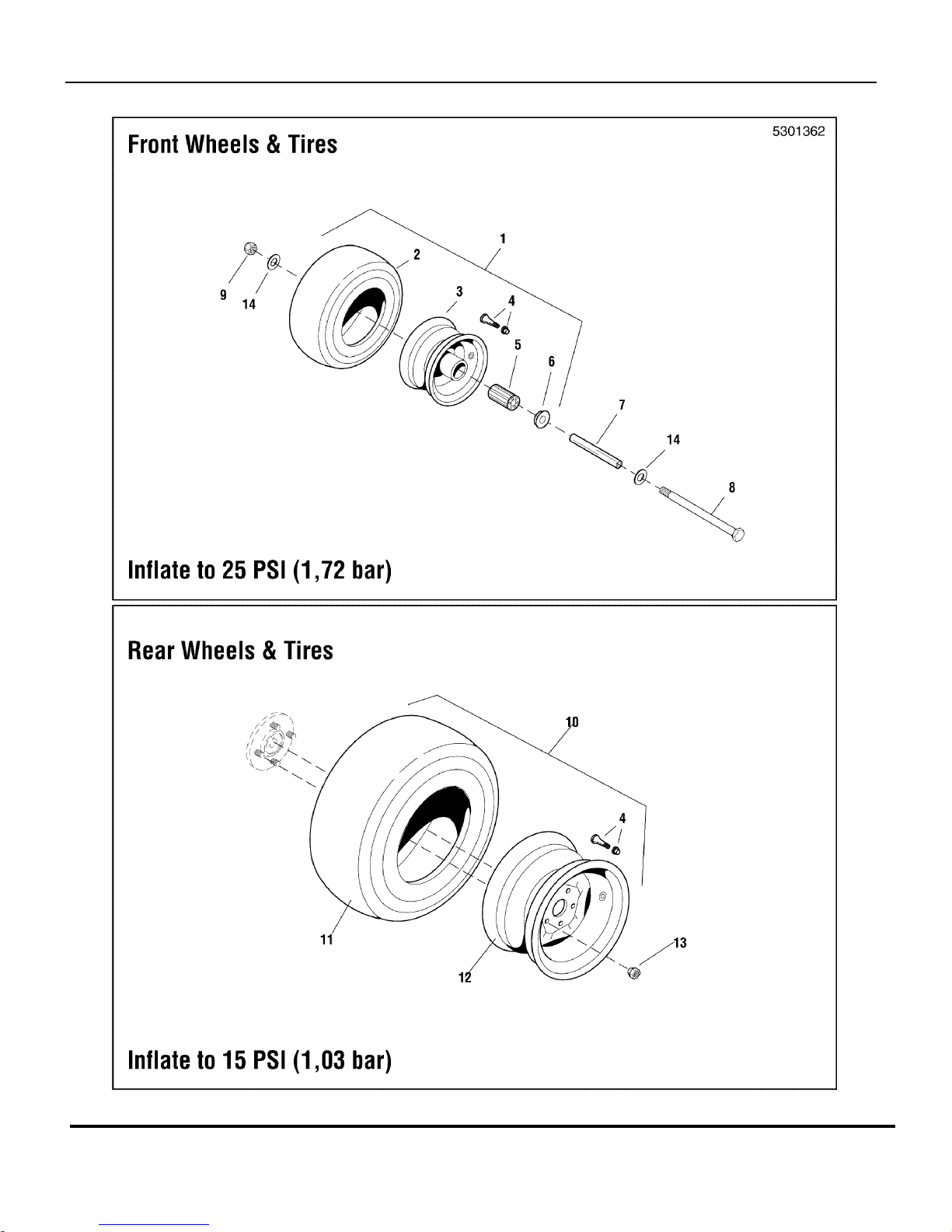

Wheel & Tire Group

TP 400-5404-A-HZ-N 26HP HYDRO DRIVE MID-MOUNT ZTR

DLR 355Z

Manual No. 5101613

Wheel & Tire Group

Footnotes:

TP 400-5404-A-HZ-N

Manual No. 510161326HP HYDRO DRIVE MID-MOUNT ZTR

DLR 355Z 5

Part No Descri

tionItem Qt

Note

1 5101418 2 WHEEL, CASTER, 11 X 4.0-5 SILVER BEAD LO (INCLUDES REF NO. 2 - 6)

2 5022433X1 2 TIRE, Front, 11 X 4.0 - 5 (SV)

3 - 2 WHEEL ASSEMBLY, Complete (SV) (INCLUDES REF NO. 4 & 5)

4 2172353 4 VALVE STEM & CAP ASSEMBLY (SV)

5 5022579 4 BEARING, Roller (2 PER TIRE)

6 5021043 4 BEARING, Retainer (2 PER TIRE)

7 5045996 2 CASTER AXLE DDSH

8 5025017X52 2 BOLT, 1/2-13 X 6-1/2 GD8 YZ

9 5025056 2 NUT, 1/2-13 HEX NYLON LOCK

10 5023095 2 WHEEL+TIRE ASMY REAR 20/8.00-10 (INCLUDES REF NO. 4, 11 &

12)

11 5023095X1 2 TIRE, Rear 20 X 8.0 X 10 (SV)

12 5023095X2 2 WHEEL ASSEMBLY, For 20 X 8.0 X 10 Tire (SV)

13 5020601 8 NUT, 1/2-20, FOR WHEEL BOLT SILVER

14 5025158 4 WASHER, 1/2 SAE

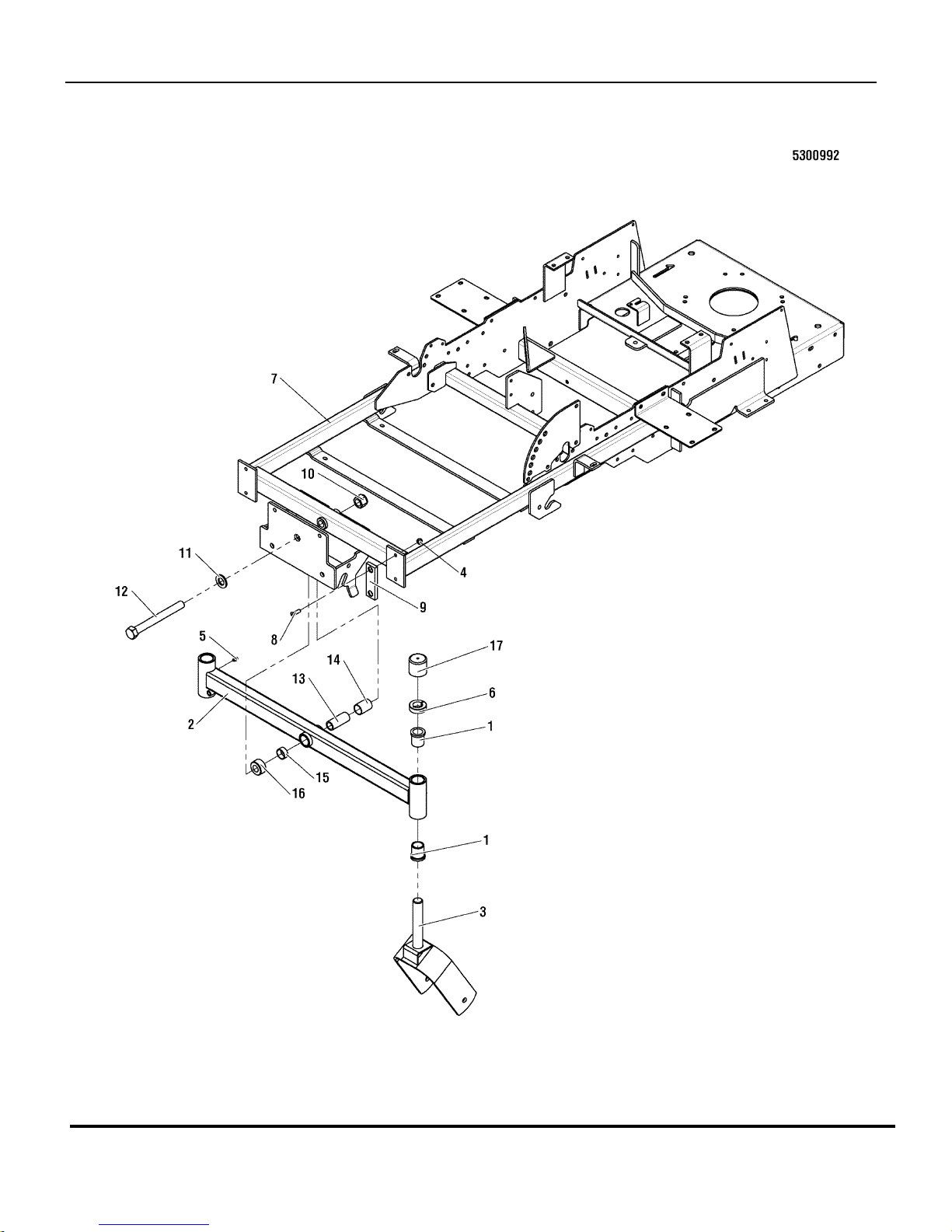

Main Frame & Front Suspension

TP 400-5404-A-HZ-N 26HP HYDRO DRIVE MID-MOUNT ZTR

DLR 355Z

Manual No. 5101613

Main Frame & Front Suspension

Footnotes:

TP 400-5404-A-HZ-N

Manual No. 510161326HP HYDRO DRIVE MID-MOUNT ZTR

DLR 355Z 7

Part No Descri

tionItem Qt

Note

1 5021541 4 BUSHING, FLANGE

2 5400405D 1 WELD, PIVOTING FRONT END

3 5048775D 2 WELD, CASTER YOKE

4 5025057 4 NUT, 5/16-18 HEX NYLON LOCK

5 5020095 2 GREASE FITTING, 1/4-28 STRAIGHT

6 5020602 2 COLLAR, 1" SPLIT

7 5402896D 1 WELD, MAINFRAME, SNAPPER ZT - RED

8 5025303 4 SCREW, 5/16-18 X 1 FLAT HD SC

9 5100930 2 PAD, FRICTION, .375 X 1.25 X 4.00

10 5025284 1 NUT, 3/4-16 HEX NYLON LOCK

11 5025160 1 WASHER, 3/4 SAE

12 5025265X56 1 BOLT, 3/4-16 X 7" YZ GD5

13 5047489 1 SPACER, .75 X 1.00 X 2.38

14 5022852 1 PIVOT BEARING, 1.00" X 1.125" OD X 1.50"

15 5100358 1 PIVOT BEARING, 1.00 X 1.125 OD X .50

16 5400756 1 SPACER, .76X 1.50 X .79

17 5023214 2 CAP, VINYL 1.687 X 1-1/2

Seat Mount & Floor Group

TP 400-5404-A-HZ-N 26HP HYDRO DRIVE MID-MOUNT ZTR

DLR 355Z

Manual No. 5101613

Seat Mount & Floor Group

Footnotes:

TP 400-5404-A-HZ-N

Manual No. 510161326HP HYDRO DRIVE MID-MOUNT ZTR

DLR 355Z 9

Part No Descri

tionItem Qt

Note

1 5402937D 1 PLATE, SEAT SUPPORT, CONS Z - RED

2 5025011X8 8 BOLT, 5/16-18 X 1 GD5 YZ

3 5025292 6 WASHER, 5/16 GD.9 FLAT

4 5025392 7 NUT, 5/16-18 HEX NYLOCK FLANGE

5 7078299 2 SPRING, SEAT SUPPORT

6 5025156 2 WASHER, 3/8 SAE

7 5100999 1 SAFETY WALK, FLOOR PLATE, 17.13 X 11.50

8 5101007 1 SAFETY WALK, FLOOR REST, 17.13 X 6.00

9 5061599 1 SEAT, XB-180, NO LOGO, BLACK

10 5025057 4 NUT, 5/16-18 HEX NYLON LOCK

11 5025394 4 NUT, 3/8-16 HEX NYLOCK FLANGE

12 5402946D 1 WELD, SEAT PLATE - RED

13 5403893D 1 PLATE, FLOOR, SNAPPER ZTR - RED

14 5403044D 1 PLATE, FLOOR, FRONT, CONS Z - RED

15 35097 6 MNT, VBRTN, 30 DURO

16 197546 4 MNT, VBRTN, RBBR

17 5025481 6 BOLT, 3/8-16 X 5/8, SERRATED UNDER HEAD

18 5025013X28 2 BOLT, 3/8-16 X 3-1/2 GD5 YZ

19 5044617 2 WASHER, .34 X 1.25 X 10 GA

20 5025128 4 NUT, 3/8-16 HEX SERRATED FLANGE

21 5021500 1 CLAMP, VINYL INSULATED

22 5025010X6 1 BOLT, 1/4-20 X 3/4 GD5 YZ

23 5025154 1 WASHER, 1/4 SAE

24 5025391 1 NUT, 1/4-20 HEX NYLOCK FLANGE

25 1686907 1 ARM REST, SET OF TWO (SV)

26 5100636 1 SPRING, SEAT ADJUSTMENT (SV)

27 5061599X1 1 KIT, SEAT RAILS. COMPLETE (SV)

28 5403372D 1 PLATE, SUPPORT, FRONT FLOOR - RED

29 5025480 6 WASHER, 3/8" ID, INTERNAL TOOTH

30 5025011X6 1 BOLT, 5/16-18 X 3/4 GD5

31 5025155 1 WASHER, 5/16 SAE

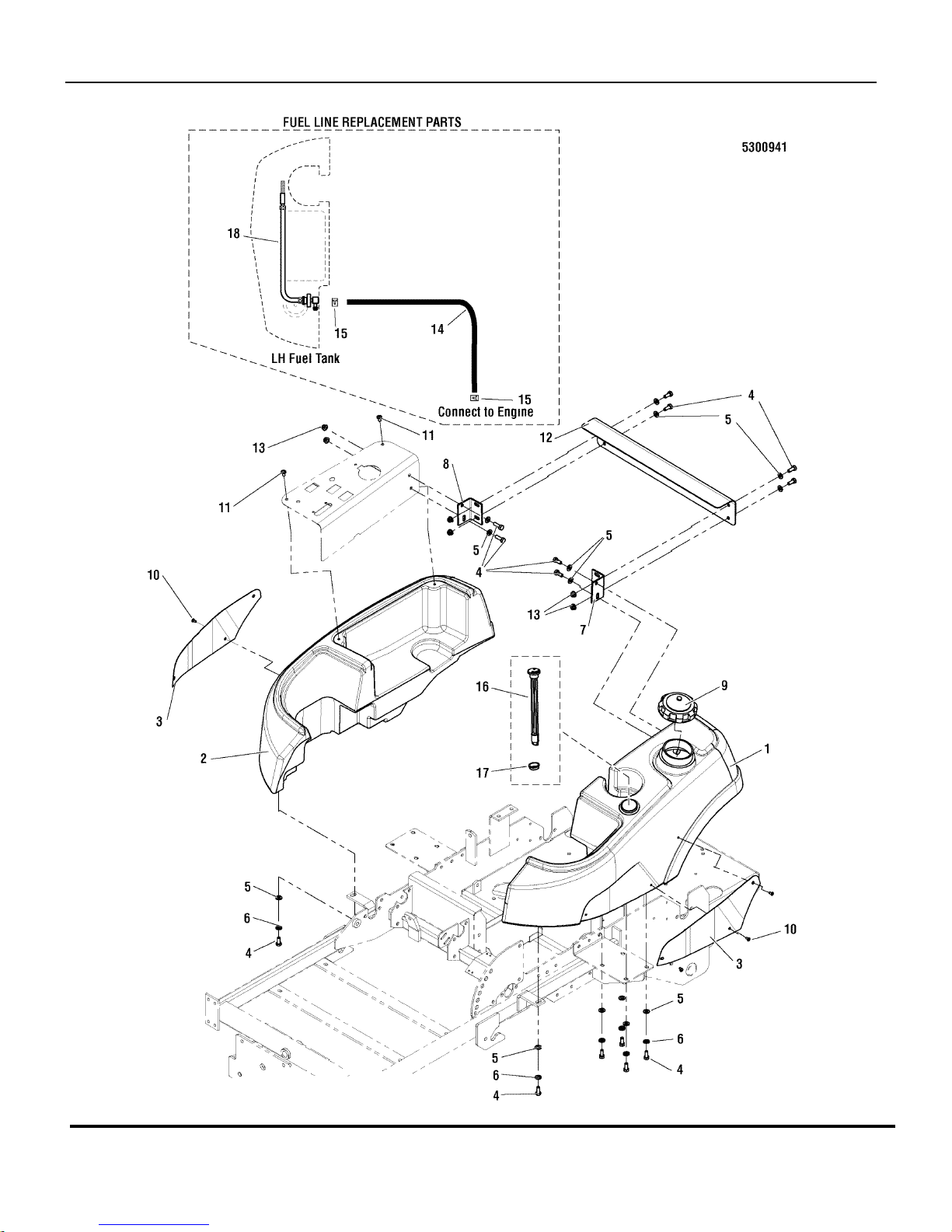

Fuel Tank & Mount Group

TP 400-5404-A-HZ-N 26HP HYDRO DRIVE MID-MOUNT ZTR

DLR 355Z

Manual No. 5101613
