SMITH SYSTEM Access Corner Station Manual de usuario

Access Corner Station

Assembly Instructions

www.smithsystem.com

For assistance in assembling product, missing or damaged

parts, or to place an order please contact customer service at 1-800-328-1061.

You may also place your order online at

Form #179851

9/2006

page 1 of 5

URGENT:

Please make sure you have received all hardware and components before assembling product.

If you have damaged or

missing components please

contact customer service.

1-800-328-1061

You will need a Phillips head screw driver.

If you have damaged or missing components or hardware please contact customer service at 1 (800) 328-1061.

1. Check that all components are accounted for and undamaged before assembling.

2. Please assemble product in a clean and dry area.

3. For larger units you may need another person to help assemble the product.

4. Clean the product with a mild cleaner and a damp cloth.

Special Notes

Tools

Notes:

Hardware and Components

Wrench (2)

3/8"-16 Dog Nut Screw

(located in each PSD-Leg, 2-per leg)

#10 Wood Screws

1/4"-20UNC Connector Bolt (4) Key

(4)

Adjustable

PSD-Legs (2)

Table Top (1)

Wire Manager (2)

With Door

Corner Leg (1)

Form # 179851

9/2006

page 2 of 5

1-800-328-1061

Step 1 First attach the corner leg, using (2) Connector Bolts (located in your hardware pack),

to the wire manager. (See Drawing 1A). Next attach the PSD leg on the opposite side using

(2) Connecor Bolts. (See Drawing 1B). Keep bolts finger tight until the table is completely

assembled.

Drawing 1

Drawing 1A

Drawing 1B

Access Station Directions

Step 2 Now place the wire manager which is connected to both legs on a smooth, clean surface with

the bottom facing up. Next adjust the PSD leg to desired height. (See Drawing 2A). After

that, adjust the corner leg to the desired height. (See Drawing 2).

If you have damaged or

missing components please

contact customer service.

Drawing 2

Drawing 2A

Drawing 2B

Form # 179851

9/2006

page 3 of 5

www.smithsystem.com

Drawing 3

Drawing 3A

Drawing 3B

Assembly Instructions (cont.)

If you have damaged or missing components please contact customer service.

800-328-1061

Step 3 Attach the other PSD leg using (2) Connector Bolts to the wire manager. (See drawing 3B). Then adjust

the PSD leg to desired height. (See Drawing 3A).

Step 4 Flip over the assembled frame over which was made in step 2. (Reference to drawing 4 for help).

Then flip over the other wire manager which was assembled in step 3 and align the holes from the

wire manager to the corner leg. Next screw the wire manager to the corner leg using (2) Connector

Bolts. (See Drawing 4A).

Drawing 4

Drawing 4A

Form # 179851

9/2006

page 4 of 5

Step 6 Now go back and tighten all the screws referenced in all 5 steps. Your desk is ready for use.

Step 5 Next gently slide the table top with the top facing up on the assembly frame from step four. Then

align the predrilled holes underneath the table top with the wire manager and the PSD leg. Verify

alignment before you start screwing in the top. Next attach the PSD legs using (4) Truss Head

Screws to the table top through the predrilled holes. Do not place screws in the back two holes

of leg. (See Drawing 5B). Then screw the wire manager into the table top using Truss Head

Screws. (See Drawing 5A).

Drawing 5

Drawing 5A

Drawing 5B

Assembly Instructions (cont.)

*Mirror image*

Form # 179851 9/2006

page 5 of 5

Tabla de contenidos

Otros manuales de Mobiliario de interior de SMITH SYSTEM

SMITH SYSTEM

SMITH SYSTEM PLANNER BREAKAWAY PENINSULA 26000 Manual de usuario

SMITH SYSTEM

SMITH SYSTEM 03002 Manual de usuario

SMITH SYSTEM

SMITH SYSTEM Acrobat 26550 Manual de usuario

SMITH SYSTEM

SMITH SYSTEM 24000 Manual de usuario

SMITH SYSTEM

SMITH SYSTEM 26500 Manual de usuario

SMITH SYSTEM

SMITH SYSTEM 58020 Manual de usuario

SMITH SYSTEM

SMITH SYSTEM 04157 Manual de usuario

SMITH SYSTEM

SMITH SYSTEM UXL Manual de usuario

SMITH SYSTEM

SMITH SYSTEM Planner Studio Bench Manual de usuario

SMITH SYSTEM

SMITH SYSTEM Cabinet Lectern Pole Kit Manual de usuario

SMITH SYSTEM

SMITH SYSTEM Horseshoe Activity Table 01933 Manual de usuario

SMITH SYSTEM

SMITH SYSTEM 01620 Manual de usuario

SMITH SYSTEM

SMITH SYSTEM Acrobat Bullet Manual de usuario

SMITH SYSTEM

SMITH SYSTEM 58000 Manual de usuario

SMITH SYSTEM

SMITH SYSTEM 26672 Manual de usuario

SMITH SYSTEM

SMITH SYSTEM 27344 Manual de usuario

SMITH SYSTEM

SMITH SYSTEM 01350 Manual de usuario

SMITH SYSTEM

SMITH SYSTEM Axrobat Trapezoid Desk Manual de usuario

SMITH SYSTEM

SMITH SYSTEM 56000E Manual de usuario

SMITH SYSTEM

SMITH SYSTEM 58001 Manual de usuario

SMITH SYSTEM

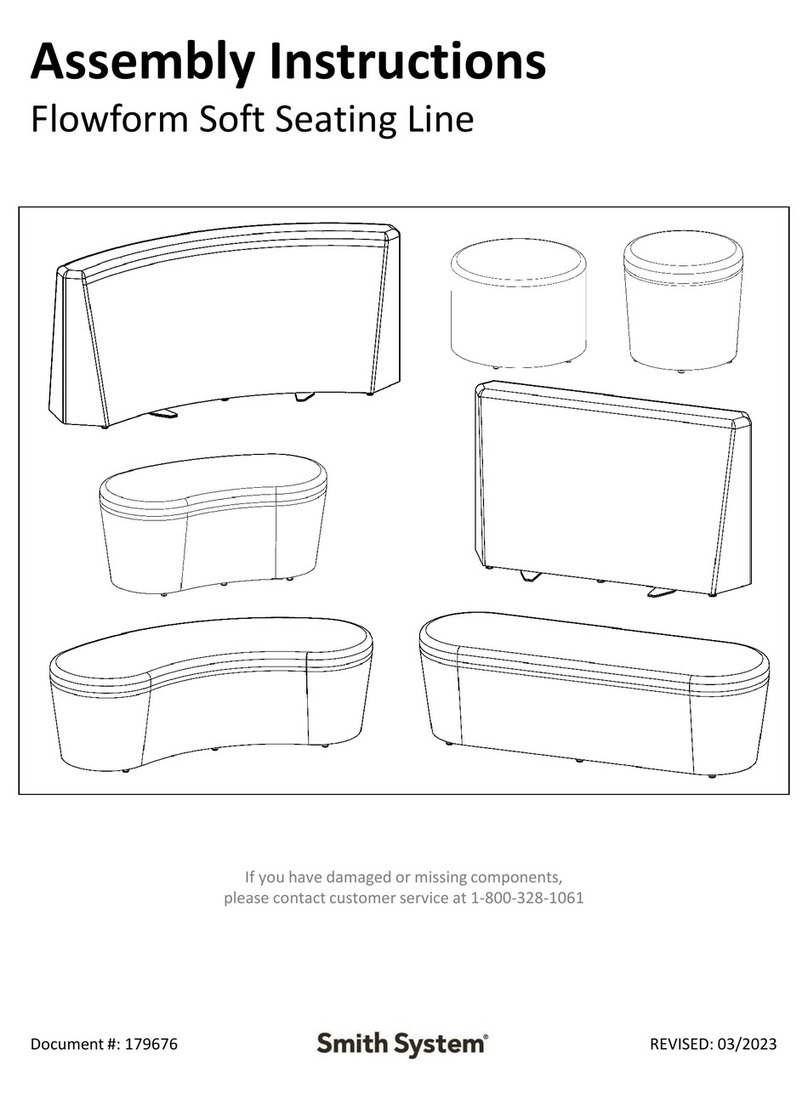

SMITH SYSTEM 55001 Manual de usuario
