Smeg PGF95-1 Manual de usuario

Summary

1INSTRUCTIONS FOR SAFE AND PROPER USE______________ 20

2POSITIONING OF THE HOB______________________________ 22

3ADJUSTMENT TO DIFFERENT TYPES OF GAS______________ 29

4FINAL OPERATIONS____________________________________ 31

5USING THE HOB_______________________________________ 32

6CLEANING AND MAINTENANCE __________________________ 34

THESE INSTRUCTIONS ARE VALID ONLY FOR END USER COUNTRIES WHOSE

IDENTIFICATION SYMBOLS APPEAR ON THE COVER OF THIS MANUAL.

INSTRUCTIONS FOR THE INSTALLER: these are for the qualified

technician who must carry out a suitable check of the gas system,

install the appliance, set it functioning and carry out an inspection test.

INSTRUCTIONS FOR THE USER : these contain user advice,

description of the commands and the correct procedures for cleaning

and maintenance of the appliance.

Introduction

1 INSTRUCTIONS FOR SAFE AND PROPER USE

THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND

THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE

PLACE FOR THE WHOLE WORKING LIFE OF THE HOB. WE ADVISE

READING THIS MANUAL AND ALL THE INSTRUCTIONS THEREIN BEFORE

USING THE HOB. ALSO KEEP THE SERIES OF NOZZLES SUPPLIED.

INSTALLATION MUST BE CARRIED OUT BY QUALIFIED PERSONNEL IN

ACCORDANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS

INTENDED FOR FOR DOMESTIC USES AND CONFORMS TO EEC

DIRECTIVES CURRENTLY IN FORCE. THE APPLIANCE IS DESIGNED TO

CARRY OUT THE FOLLOWING FUNCTIONS: COOKING AND HEATING

FOOD; ALL OTHER USES ARE TO BE CONSIDERED IMPROPER.

THE MANUFACTURER DECLINES ALL LIABILITY FOR IMPROPER USE .

DO NOT LEAVE THE PACKAGING MATERIALS UNATTENDED IN THE HOME

ENVIRONMENT. SEPARATE THE DIFFERENT WASTE MATERIALS FROM

THE PACKAGING AND DELIVER THEM TO THE NEAREST COLLECTION

CENTRE FOR RECYCLABLE WASTE.

REGULATIONS REQUIRE THAT THE APPLIANCE IS EARTHED IN

ACCORDANCE WITH ELECTRICAL SAFETY REGULATIONS.

THE PLUG TO BE CONNECTED TO THE POWER SUPPLY CABLE AND THE

SOCKET MUST BE OF THE SAME TYPE AND MUST CONFORM TO

CURRENT REGULATIONS.

THE POWER SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS

BEEN BUILT IN.

NEVER UNPLUG THE APPLIANCE BY PULLING THE POWER SUPPLY

CABLE.

IMMEDIATELY AFTER INSTALLATION, CARRY OUT A BRIEF INSPECTION

TEST OF THE APPLIANCE, FOLLOWING THE INSTRUCTIONS BELOW.

SHOULD THE APPLIANCE NOT FUNCTION, DISCONNECT IT FROM THE

POWER SUPPLY AND CONTACT YOUR NEAREST TECHNICAL ASSISTANCE

CENTRE.

NEVER ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.

ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE POSITION

(OFF) WHEN YOU FINISH USING THE HOB.

Introduction

THE APPLIANCE DATA PLATE, WITH TECHNICAL DATA, REGISTRATION

NUMBER AND BRAND NAME, IS POSITIONED AT A VISIBLE POINT UNDER

THE SAFETY COVER.

THE DATA PLATE ON THE PROTECTIVE COVER MUST NEVER BE

REMOVED.

DO NOT PUT PANS WITHOUT PERFECTLY PERFECTLY SMOOTH AND FLAT

BOTTOMS ON THE HOB PANSTAND GRIDS.

DO NOT USE COOKING RECEPTACLES THAT EXTEND BEYOND THE

OUTSIDE PERIMETER OF THE HOB.

THE APPLIANCE IS DESIGNED FOR USE BY ADULTS. DO NOT ALLOW

CHILDREN TO GO NEAR OR PLAY WITH IT.

WHEN DISPOSING OF THE APPLIANCE, TAKE IT TO A COLLECTION

CENTRE FOR RECYCLABLE WASTE.

The manufacturer declines all liability for injury to persons or animals

and for damage to property resulting from non-observance of the above

prescriptions or from tampering with any part of the appliance or for the

use of non-original spare parts.

Instructions for the installer

2 POSITIONING OFTHE HOB

The following operation requires building and/or carpentry work so must

be carried out by a competent tradesman.

Installation can be carried out on various materials such as masonry,

metal, solid wood or plastic laminated wood, as long as they are heat-

resistant (T 90°C).

2.1 Attachment to support structure, traditional built-i

model (fig. 1)

Create an opening with the

dimensions shown in the

figure in the work surface,

observing a minimum

distance of 50 mm from the

rear edge.

This appliance can be

installed next to walls that are

higher than the work surface,

as long as the distance "X" is

kept between the appliance

and the wall, as shown in the 1)

figure, to avoid damage from overheating. Make sure there is a minimum of

750 mm between the gas rings and any shelf that may be installed directly

above them.

Carefully position the gasket provided all around the outer edge of the hole

in the work surface as shown in figure 2, pressing it down lightly to ensure

it adheres properly. The front and rear sides of the gasket must skim the

hole. Having done this, place the hob on top of the gasket and using the

screws and fixing brackets “C” or “D” (depending on the depth of the

worktop – Fig.4) secure the hob to the support structure, ensuring it is

level. The brackets “C” secure the hob to a structure having a depth of 20

to 30 mm. The brackets “D” on the other hand, are for use with worktops

having a depth of 30 to 50 mm.

Carefully trim any excess from edge C (Fig.3) of the gasket. The distances

in figure 2 refer to the hole on the inner side of the gasket.

Instructions for the installer

2) 3)

Instructions for the installer

2.2 Attachment to support structure, flush-mounting model

Create an opening with the dimensions

shown in the figure in the work surface,

observing a minimum distance of 50 mm

from the rear edge.

The lower part of the protective cover

must be fully accessible when the

appliance is installed. This appliance can

be installed next to walls that are higher

than the work surface, as long as the

distance "X" is kept, as shown in the

figure, to avoid damage from overheating. 1)

Make sure there is a minimum of 750 mm (Fig. 1) between the gas rings and any shelf

that may be installed directly above them.

This type of appliance requires the

worktop, the dimensions of which are

shown shown in figure 2, to be milled to a

depth of 2.5 mm. Before positioning the

hob, position the adhesive sponge

material “E” supplied over the milled

surface (fig. 3). Having done this, place

the hob on the milled surface and using

the screws and fixing brackets “C” or “D”

(depending on the depth of the worktop)

secure the hob to the support structure, 2)

ensuring it is level. The brackets “C”

secure the hob to a structure having a

depth of 20 to 30 mm. The brackets “D”

on the other hand, are for use with

worktops having a depth of 30 to 50 mm.

Apply a layer of “waterproof primer” to the milled surface.

Instructions for the installer

Overall dimensions: location of gas and electrical connection points (all

measures in mm).

Caution: surface temperature underneath may exceed 125 degrees C.

To avoid a hazard, under-bench access must be restricted.

Refer to installation instruction

IMPORTANT: when installing the appliance above a cupboard, a dividing

shelf, as shown above, must be installed.

If installed above an under-bench oven, this is not required.

Installation of an oven without cooking fan underneath the hob is

forbidden.

Instructions for the installer

2.3 Electrical connection

Make sure that the voltage and capacity of the power supply cable conform

to the data shown on the plate located under the protective cover. Do not

remove this plate for any reason.

The power supply cable plug and the wall socket must be of the same type

and conform to the current electrical system regulations. Check that the

power line is adequately earthed.

On the power line, install an all-pole disconnect switch with minimum contact

gap of 3 mm located at an easily accessible position near the appliance.

Do not use reducers, adapters or shunts.

If the power cable is to be replaced, the wire

section on the new cable must not be less

than 0.75 mm2( 3 x 0.75 cable), bearing in

mind that the end tobe connected to the

appliance must have the earth wire (yellow-

green) at least 20 mm longer.

Use only H05V2V2-F cable or similar which has a maximum temperature of

90°C. Any replacement needed should be carried out by a specialised

technician who should make the mains connections according to the

following diagram.

L= brown

N= blue

= yellow-green

The manufacturer declines all liability for injury to persons or animals

and for damage to property resulting from non-observance of the above

prescriptions or from tampering with any part of the appliance.

Instructions for the installer

2.4 Ventilation requirements

The appliance may be installed only in rooms with permanent ventilation,

as required by UNI-CIG 7129 / 7131 standards. The room in which the

appliance is installed must have sufficient air flow to satisfy the

requirements of normal gas combustion and of necessary air exchange

in the room. The air intakes, protected by grills, must be appropriately

sized (UNI CIG 7129 / 7131) and placed so as not to be blocked in any

way.

The room must be suitably ventilated to avoid overheating or excess

humidity produced by cooking; after any prolonged use, a window should

be opened or the speed of any fans should be increased.

2.5 Discharge of combustion products

Discharge of combustion products must be guaranteed by means of

hoods connected to a natural draught flue with certain efficiency, or by

means of forced aspiration. An efficient aspiration system requires

careful planning by a qualified specialist, respecting the positions and

distances prescribed by standards. After installation, the installer must

issue a certificate of conformity.

Instructions for the installer

2.6 Gas connection

Connection to the gas mains may be made with a rigid copper pipe or

with a flexible pipe conforming to the provisions defined by UNI-CIG

7129.

After connection operations, check for leaks using a soapy solution.

The hob has been inspected for G20 natural gas (2H) at a pressure of 20

mbar. For use with other types of gas, see chapter “3. ADJUSTMENT TO

DIFFERENT TYPES OF GAS. The hose connection at the rear of the

appliance has a ½” internal thread (ISO 228-1).

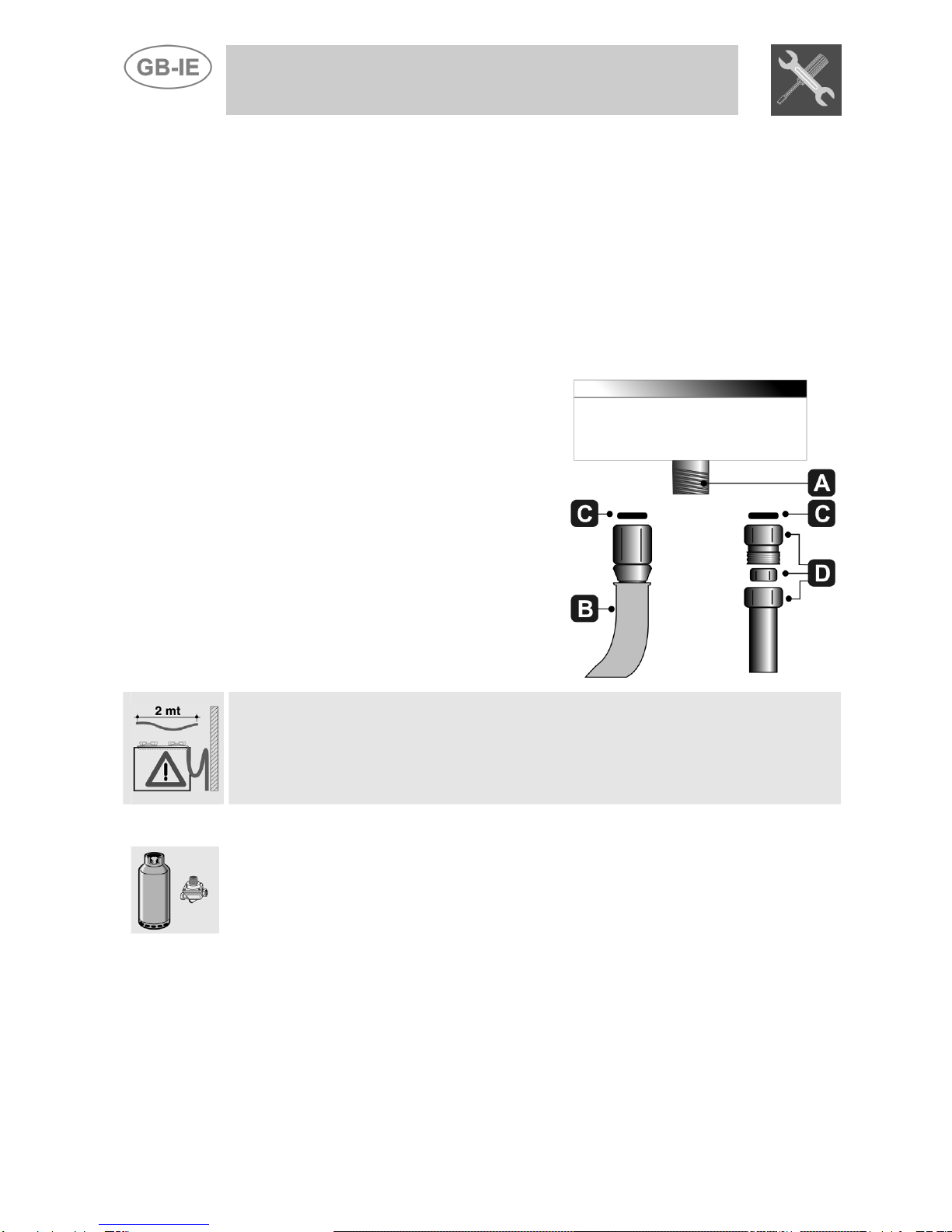

Connection with rigid copper pipe:

the connection to the gas mains must

not provoke stress of any kind on the

appliance.

Connection may be made by using

biconicaladapter Dwith insertion of

gasket Csupplied.

Connection with flexible steel pipe:

use only flexible stainless steel pipes

conforming to UNI-CIG 9891

regulations, inserting gasket C

supplied between the fitting Aand the

flexible pipe B.

The flexible pipe must be installed so that pipe length does not exceed 2

meters of maximum extension. Make sure that the pipes do not touch

any moving parts or become crushed.

2.7 Connection to LPG

Use a pressure regulator and make the connection to the tank according

to the provisions of UNI-CIG 7432 and UNI-CIG 7131. Make sure that

feed pressure conforms to the levels shown in the table in paragraph “3.2

Burner and nozzle characteristics table

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Quemador de Smeg

Smeg

Smeg PTV64ES Manual de usuario

Smeg

Smeg PVA750A Manual de usuario

Smeg

Smeg Universale SAI3643B Manual de usuario

Smeg

Smeg P260XGH Manual de usuario

Smeg

Smeg P64ES Manual de usuario

Smeg

Smeg Electric Built-in Hob Unit SE2755PS Manual de operación

Smeg

Smeg SE70S-6 Manual de usuario

Smeg

Smeg Hob Manual de usuario

Smeg

Smeg SI2951D Manual de usuario

Smeg

Smeg SE2842IDX Manual de usuario

Smeg

Smeg SE2542 Manual de usuario

Smeg

Smeg SIM562D Manual de usuario

Smeg

Smeg SE2732ID Manual de usuario

Smeg

Smeg SRV572XGC Manual de usuario

Smeg

Smeg SE2931ID Manual de usuario

Smeg

Smeg GD100XG Manual de usuario

Smeg

Smeg PGF962 Manual de usuario

Smeg

Smeg SI4641CB Guía de inicio rápido

Smeg

Smeg PM3912WLDDE Manual de usuario

Smeg

Smeg T18G8X2UG Manual de usuario

Smeg

Smeg Hob Manual de instrucciones

Smeg

Smeg SIM592B Guía de solución de problemas

Smeg

Smeg AP2640TC1 Manual de usuario

Smeg

Smeg CIR597X Manual de usuario

Manuales populares de Quemador de otras marcas

Siemens

Siemens EX875KYV1E Hoja de especificaciones

AEG

AEG CERAMIC HOB 6010 K Manual de usuario

VALERA

VALERA CT 70A Manual de usuario

Zanussi

Zanussi ZGF 6420 Manual de usuario

Gaggenau

Gaggenau CI 273 Manual de usuario

G3 Ferrari

G3 Ferrari Energy Manual de usuario

Pkm

Pkm IN4B Manual de usuario

Award

Award H903BG Manual de usuario

Zanussi

Zanussi VCH 5005 RZ Manual de usuario

Miele

Miele KM 523 Manual de usuario

Hotpoint

Hotpoint IS67V8CCXT/E Manual de usuario

AEG

AEG HK854870XB Manual de usuario

Cookology

Cookology SEP600BK Manual de usuario

Bauknecht

Bauknecht Hob Manual de usuario

Zanussi

Zanussi ZGM 782 Manual de usuario

dipo INDUCTION

dipo INDUCTION DIBK218S Manual de usuario

Miele

Miele KM 5987 Manual de usuario

Miele

Miele KM 360 G Manual de usuario
