INSTRUCTION MANUAL

Contents

1. Description of the controls _______________________________2

2. Operating instructions__________________________________14

3. Cleaning and maintenance______________________________29

4. Troubleshooting ______________________________________33

Thank you for choosing one of our products.

You are advised to read this manual carefully; it contains all the

information you need use your dishwasher safely, correctly and in the

most satisfactory manner.

Following the cleaning instructions provided here will keep your

dishwasher's performance at peak levels in the long term.

USER INSTRUCTIONS: these consist of recommendations for using the

appliance, a description of its controls and of the correct cleaning and

maintenance procedures.

User instructions

1. Description of the controls

1.1 Upper panel

All the dishwasher controls are grouped on the upper panel. Switch-on,

programming, switch-off, etc. procedures are only possiblewhen thedoor is open.

The panel shown is only a guideline example: the form of the lights and

buttons may vary depending on the model.

1 ON/OFF BUTTON

Press this button to switch the dishwasher on/off.

2 SELECTED PROGRAM INDICATOR LIGHTS

Illumination of this light denotes the program selected and the

occurrence of a fault (troubleshooting).

PROGRAM SELECTION BUTTON

+ADJUSTING THEWATER SOFTENING SYSTEM

Used to select the washing program required and adjust the water

softening system.

WATER HARDNESS ADJUSTMENT ON INDICATOR LIGHT

The light flashes to indicate that the appliance is in “water hardness

adjustment” mode.

SALT WARNING LIGHT

If the symbol is present, illumination of this light denotes a

regenerating salt warning level.

5 RINSE AID WARNING LIGHT

Illumination of this light denotes a rinse aid warning level in the tank.

User instructions

6 PROGRAM DELAY BUTTON

Press this button to delay the start of the program.

7 INFORMATION DISPLAY (1 or 3 digits depending on model)

8 OPTIONS (on some models only)

9 CHILD SAFETY DEVICE (on some models only)

Information displayed

no Scheduled program

duration yes

no Remaining program

time yes

1 - 9 hours Delayed start 1 - 24 hours

Error message

Err

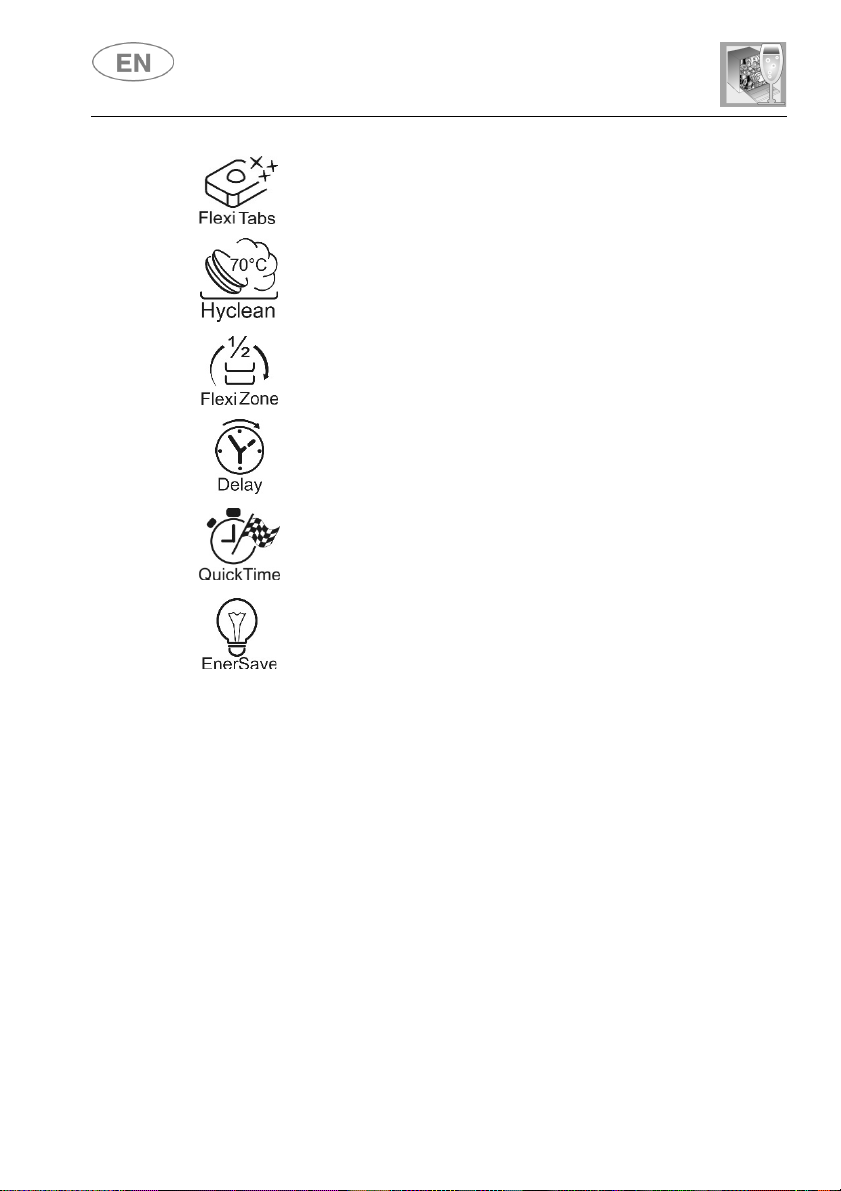

<<OPTIONS(8)>>

Depending on the model, this zone may contain one or more of the

following options, identified by the relative symbols and described in more

detail in the relevant sections of the manual.

It is not possible to select any options when the soak program is being

used. All options except "Flexi Tabs" are disabled at theend ofthe wash

cycle. To disable the “Flexi Tabs” option, press the relative button (the

light goes out).

User instructions

Flexi Tabs

Option recommended for the use of multi-function tablet

detergent.

HYCLEAN

Adds a final antibacterial rinse to theselected program.

Spread HALF LOAD WASH

Allows washing of just a few dishes placed in both baskets.

PROGRAM DELAY

Allows the program to beset to start with a delay of 9, 12 or 24

hours depending on the model.

QUICK TIME OPTION

Select this option together with any washing program (except

the soak program) to SHORTEN the cycle.

ENERSAVE

Indicated option for save energy.

User instructions

PROGRAMS TABLE

The manual contains the programs table for several models. To find the

table for your dishwasher, compare the program symbols at the top of the

table with those on your control panel.

SETTING THE WASHING PROGRAM AND SWITCHING ON

After identifying the most suitable program with the aid of the programs

table:

Press the ON/OFF button (1) and wait for the PROGRAM

INDICATOR LIGHT (2) to illuminate;

Keep pressing the PROGRAM SELECTION button (3) until the

indicator light corresponding to the desired program illuminates;

select the option required (if any and if the model provides options);

close the door; after about 2" the program will start LIGHT will

flashing (indicating that the program is being executed).

PROGRAM IN PROGRESS INDICATOR LIGHT

(on some models only)

When a program is running, a flashing light is projected onto the floor

under the right-hand corner of the door. At the end of the program, the

light goes out to reduce sleep mode electricity consumption.

User instructions

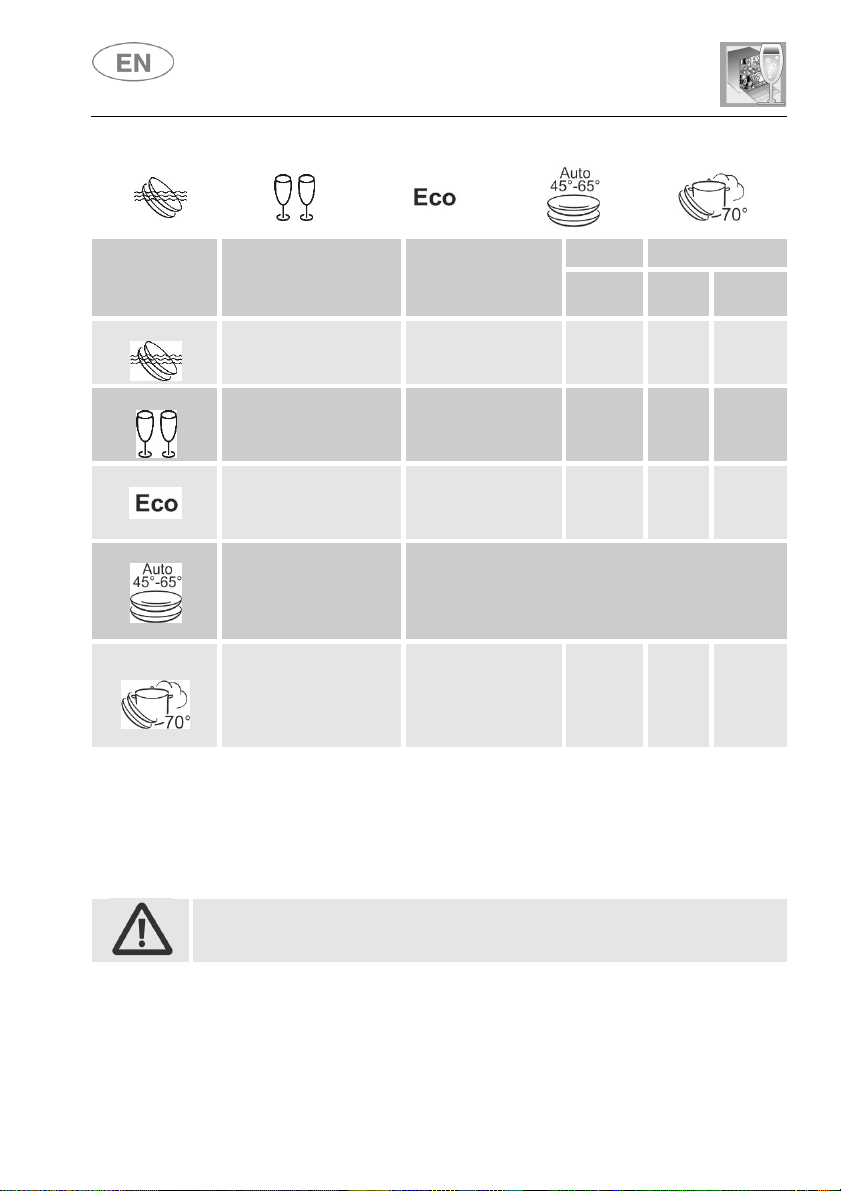

PROGRAMS TABLE

PROGRAMME

NUMBER

& SYMBOL

LOAD CROCKERY AND

CUTLERY PROGRAM

PROGRESS

DURATION

CONSUMPTION

MINUTES

(1)

WATER

LITRES POWER

KWh (1)

1SOAK

Pans and dishes awaiting

completion of the load Cold prewash 15 3,5 0,02

2 GLASS

Glass, china and mixed

dishes with light dirt.

Wash at 45°C

Cold rinse

Rinse at 70°C

Dry

9,5 1,10

3 ECO (*)

EN 50242

Dishes with normal dirt,

even with dried-on

residues

Wash at 45°C

Cold rinse

Rinse at 55°C

Dry

** **

AUTO 45-65

IEC/DIN***

Pans and dishes with

normal dirt, even with

dried-on residues.

When the "AUTO" program is selected, the dishwasher

recognises the type of dirt and automatically adjusts the

washing parameters as appropriate.

5 ULTRA

CLEAN

****

Very dirty pans and

dishes, even with dried-on

residues.

Hot prewash

Wash at 70°C

Cold rinse (2)

Rinse at 70°C

Dry

155

15,5 1,70

IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.

The

ULTRA CLEAN

program terminate with an extra anti-bacteria rinse that ensures

a further reduction in the bacteria level. If the temperature falls during this stage of the

program (e.g. because the door is opened or due to a power blackout), the program

lights flash to warn that the anti-bacteria effect is not guaranteed.

If the dishwasher door is open or not properly closed, the washing cycle

will not start.

User instructions

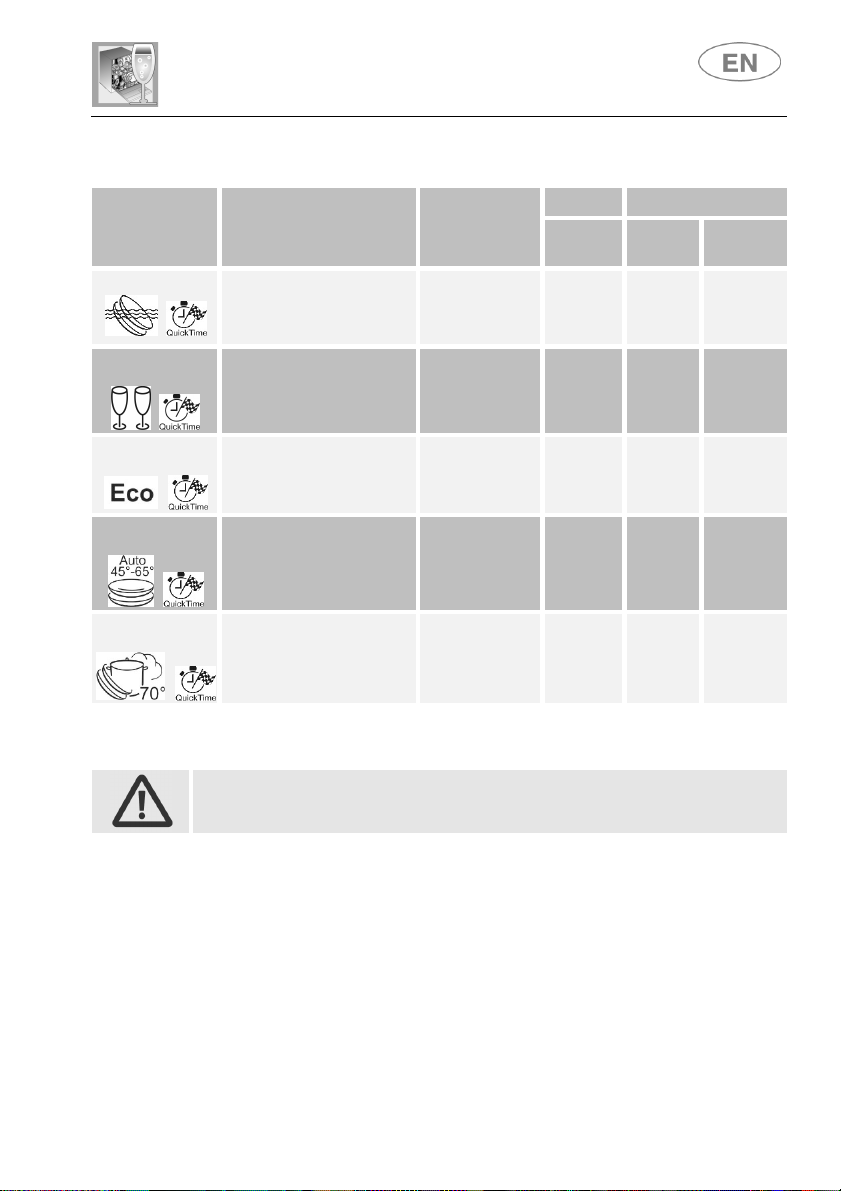

QUICK TIME PROGRAMS

(see relevant section for explanation of functioning modes)

PROGRAMME

NUMBER E

SYMBOL

LOAD CROCKERY AND

CUTLERY

PROGRAM

PROGRESS

DURATION

CONSUMPTION

MINUTI

(1)

WATER

LITRES

POWER

KWh (1)

6 RAPID 27’

Dishes with light dirt,

washed immediately after

use

Wash at 38°C

Rinse at 50°C

6,5 0,70

DELICATE

QUICK

Delicate dishes with normal

dirt.

Cold prewash

Wash at 50°C

Cold rinse

Rinse at 70°C

10,5 1,15

ECO

QUICK

Dishes with normal dirt,

washed immediately after

use.

Cold prewash

Wash at 60°C

Cold rinse

Rinse at 70°C

12,5 1,25

NORMAL

QUICK

Dishes with normal dirt,

washed immediately after

use.

Cold prewash

Wash at 70°C

Cold rinse

Rinse at 70°C

13 1,40

STRONG

and FAST

Mixed dishes with normal

dirt without dried-on

residues.

Wash at 65°C

Cold rinse

Rinse at 70°C

10 1,20

IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.

If the dishwasher door is open or not properly closed, the washing cycle

will not start.

User instructions

NOTES AND REFERENCES

Only

run the soak program with half loads.

Options cannot be used with the soak program.

The ENERSAVE option cannot be used with soak, ultra clean, or any programs

which do not include the final drying stage.

* Standard programme under

EN 50242

. The

ENERSAVE

option must

enabled.

** See information sheet provided

***

IEC/DIN

reference programme. The

ENERSAVE

option must

be enabled

**** Reference program for laboratories: Detergent:

20g

in the

dispenser

10g

the door or tablet. Configuration: see photo in “Using the baskets”.

(1) Programconsumption and duration figures havebeen measured in accordance

with the EN 50242 standard. Values may vary depending on intake water and

room temperatures and the type and quantity of dishes loaded.

(2) 1 or 2 cold rinses depending on the model.

REFERENCES for the ENERGY LABEL supplied with the dishwasher:

- Annualenergy consumptionis based on280 standard wash cycles withcold

water and consumption of low-energy operating modes. Actual consumption

depends on the way in which the appliance is used.

- Water consumption is based on 280 standard wash cycles. Actual

consumption depends on the way in which the appliance is used.

- Information refers to the EN 50242 STANDARD programme (identified in the

programmes table), which is the most effective in terms of combined energy

and water consumption. The programme is recommended for dishes with a

normal level of dirt.

- Drying efficiency class on a scale from “G” (minimum efficiency) to “A”

(maximum efficiency).
