USER INSTRUCTIONS: useful information is provided for the use of the

washing programs and all the dishwasher's functions.

User instructions



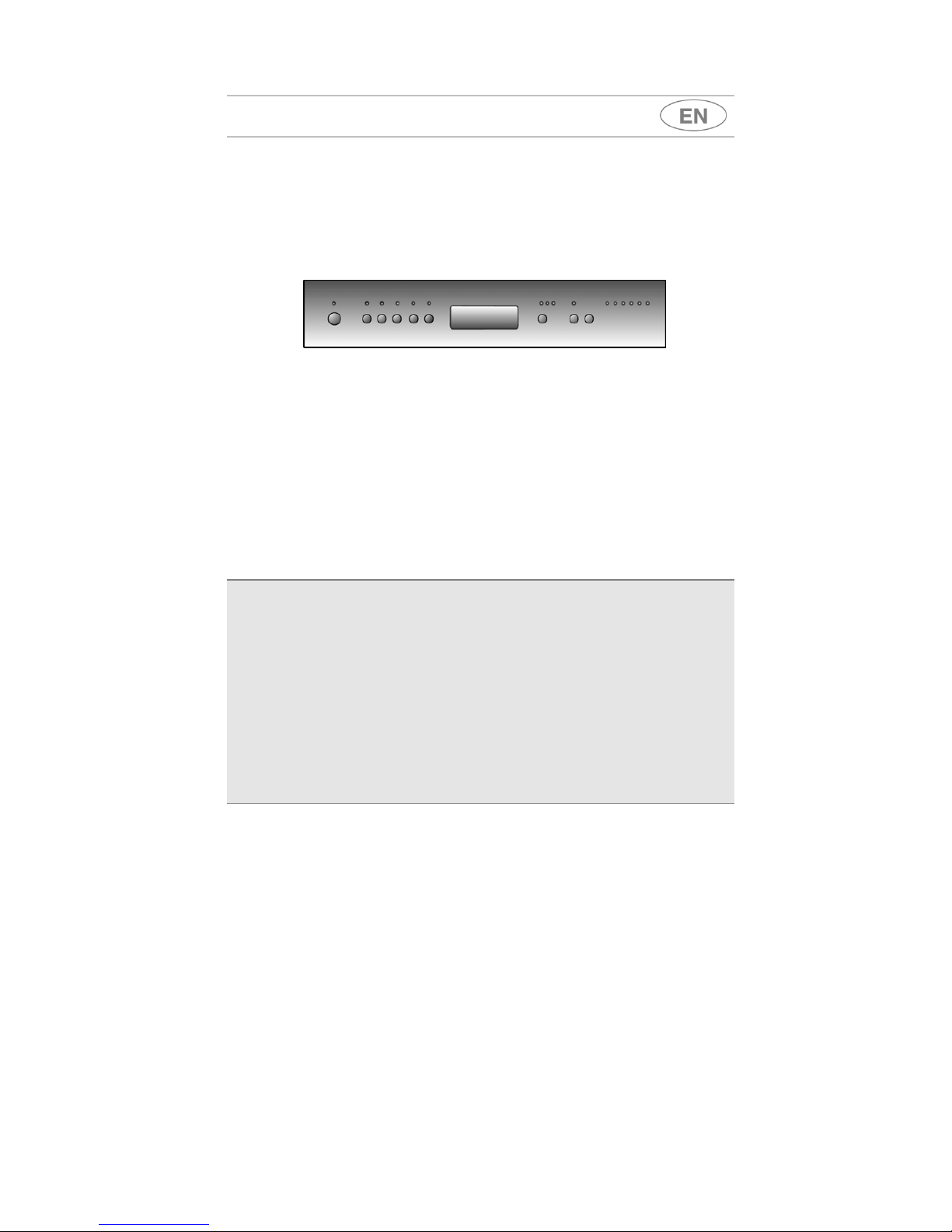

1. Description of the controls

1.1 Front panel

All the dishwasher control are grouped on the front panel.

1ON/OFF BUTTON

2SELECTION PROGRAMS BUTTONS (P1...P5)

3DELAY PROGRAM BUTTON (on some models only)

½ LOAD WASH BUTTON (on some models only)

4"3/1" OPTION BUTTON (on some models only)

5START/PAUSE BUTTON

6POWER ON LIGHT

7PROGRAMS LIGHTS

8DELAY PROGRAM LIGHTS (on some models only)

9½ LOAD WASH LIGHT (on some models only)

10 PHASES/PROGRAM LIGHTS

11 NO SALT LIGHT (on some models only)

12 NO RINSE AID LIGHT (on some models only)

13 RECESSED DOOR HANDLE

User instructions



For AAA 12 place-settings models only (see energy label)

DURATION CONSUMPTION

PROGRAM SELECTION TYPE AND GRADE DIRT PROGRESS

PROGRAM MINUTES

(2)

WATER

LITRES (1)

POWER

KWh (2)

SOAK

PANS AND DISHES

IN WAITING OF

COMPLETING

THE LOAD

Cold prewash 15 60,03

QUICK

DISHES NOT MUCH DIRTY

AND WITH "FRESH DIRT"

WITHOUT RESIDUAL DRY

Wash at 38°C

Cold rinse

Rinse at 58°C

45 13 0,80

ECO

PANS AND DISHES

NOT VERY DIRTY BUT

WITH DRY RESIDUALS

Wash at 55°C

Cold rinse

Rinse at 68°C

Dry

100 14 1,20

AUTO 40-50

WASH IMMEDIATELY

AFTER USE FOR DISHES

WITH NORMAL DIRT

Cold prewash

Wash at 40°C

Wash at 55°C

Cold rinse

Rinse at 68°C

Dry

(**) (**) (**)

STRONG PANS AND DISHES

VERY DIRTY

Wash at 70°C

Cold rinse

Rinse at 68°C

Dry

95 17 1,45

DELICATE +DISHES

NOT VERY DIRTY

Cold prewash

Wash at 45°C

Cold rinse

Rinse at 68°C

Dry

75 17 1,05

BIO

(*) +PANS AND DISHES DIRTY

AND WITH DRY RESIDUALS

Cold prewash

Wash at 55°C

Cold rinse

Rinse at 68°C

Dry

180 15 1,05

AUTO 60-70 +PANS AND DISHES DIRTY

AND WITH DRY RESIDUALS

Cold prewash

Wash at 50°C

Wash at 65°C

Cold rinse

Rinse at 68°C

Dry

(**) (**) (**)

SUPER +

PANS AND DISHES

VERY DIRTY AND WITH

DRY RESIDUALS

Prewash at 45°C

Wash at 70°C

Cold rinse

Rinse at 68°C

Dry

110 20 1,60

Only run the soak program with half loads.

The HALF LOAD - "3/1" option (4) is available for all programs except the soak program.

(*) Reference program as per EN 50242 standard.

(**) When the "AUTO 40-50" or "AUTO 60-70" program is selected, the dishwasher recognises the type

of dirt and automatically adjusts the washing parameters as appropriate.

(1) Average power consumption with the softener set on level 2.

(2) The cycle duration and power consumption may vary according to the water and room

temperatures, and the type and amount of dishes.

User instructions



For AAB 12 place-settings models only (see energy label)

DURATION CONSUMPTION

PROGRAM SELECTION TYPE AND GRADE DIRT PROGRESS

PROGRAM MINUTES

(2)

WATER

LITRES (1)

POWER

KWh (2)

SOAK

PANS AND DISHES

IN WAITING OF

COMPLETING

THE LOAD

Cold prewash 15 60,03

QUICK

DISHES NOT MUCH DIRTY

AND WITH "FRESH DIRT"

WITHOUT RESIDUAL DRY

Wash at 38°C

Cold rinse

Rinse at 58°C

45 13 0,80

ECO

(*)

PANS AND DISHES

NOT VERY DIRTY BUT

WITH DRY RESIDUALS

Wash at 55°C

Cold rinse

Rinse at 68°C

Dry

140 14 1,05

AUTO 40-50

WASH IMMEDIATELY

AFTER USE FOR DISHES

WITH NORMAL DIRT

Cold prewash

Wash at 40°C

Wash at 55°C

Cold rinse

Rinse at 68°C

Dry

(**) (**) (**)

STRONG PANS AND DISHES

VERY DIRTY

Wash at 70°C

Cold rinse

Rinse at 68°C

Dry

95 17 1,45

DELICATE +DISHES

NOT VERY DIRTY

Cold prewash

Wash at 45°C

Cold rinse

Rinse at 68°C

Dry

75 16 1,05

BIO +PANS AND DISHES DIRTY

AND WITH DRY RESIDUALS

Cold prewash

Wash at 55°C

Cold rinse

Rinse at 68°C

Dry

98 17 1,25

AUTO 60-70 +PANS AND DISHES DIRTY

AND WITH DRY RESIDUALS

Cold prewash

Wash at 50°C

Wash at 65°C

Cold rinse

Rinse at 68°C

Dry

(**) (**) (**)

SUPER +

PANS AND DISHES

VERY DIRTY AND WITH

DRY RESIDUALS

Prewash at 45°C

Wash at 70°C

Cold rinse

Rinse at 68°C

Dry

110 20 1,60

Only run the soak program with half loads.

The HALF LOAD - "3/1" option (4) is available for all programs except the soak program.

(*) Reference program as per EN 50242 standard.

(**) When the "AUTO 40-50" or "AUTO 60-70" program is selected, the dishwasher recognises the type

of dirt and automatically adjusts the washing parameters as appropriate.

(1) Average power consumption with the softener set on level 2.

(2) The cycle duration and power consumption may vary according to the water and room

temperatures, and the type and amount of dishes.

User instructions



For AAB 14 place-settings models only (see energy label)

DURATION CONSUMPTION

PROGRAM SELECTION TYPE AND GRADE DIRT PROGRESS

PROGRAM MINUTES

(2)

WATER

LITRES (1)

POWER

KWh (2)

SOAK

PANS AND DISHES

IN WAITING OF

COMPLETING

THE LOAD

Cold prewash 15 60,03

QUICK

DISHES NOT MUCH DIRTY

AND WITH "FRESH DIRT"

WITHOUT RESIDUAL DRY

Wash at 38°C

Cold rinse

Rinse at 58°C

45 13 0,85

ECO

(*)

PANS AND DISHES

NOT VERY DIRTY BUT

WITH DRY RESIDUALS

Wash at 55°C

Cold rinse

Rinse at 68°C

Dry

130 12 1,08

AUTO 40-50

WASH IMMEDIATELY

AFTER USE FOR DISHES

WITH NORMAL DIRT

Cold prewash

Wash at 40°C

Wash at 55°C

Cold rinse

Rinse at 68°C

Dry

(**) (**) (**)

STRONG PANS AND DISHES

VERY DIRTY

Wash at 70°C

Cold rinse

Rinse at 68°C

Dry

95 17 1,50

DELICATE +DISHES

NOT VERY DIRTY

Cold prewash

Wash at 45°C

Cold rinse

Rinse at 68°C

Dry

75 17 1,15

BIO +PANS AND DISHES DIRTY

AND WITH DRY RESIDUALS

Cold prewash

Wash at 55°C

Cold rinse

Rinse at 68°C

Dry

100 17 1,30

AUTO 60-70 +PANS AND DISHES DIRTY

AND WITH DRY RESIDUALS

Cold prewash

Wash at 50°C

Wash at 65°C

Cold rinse

Rinse at 68°C

Dry

(**) (**) (**)

SUPER +

PANS AND DISHES

VERY DIRTY AND WITH

DRY RESIDUALS

Prewash at 45°C

Wash at 70°C

Cold rinse

Rinse at 68°C

Dry

110 20 1,70

Only run the soak program with half loads.

The HALF LOAD - "3/1" option (4) is available for all programs except the soak program.

(*) Reference program as per EN 50242 standard.

(**) When the "AUTO 40-50" or "AUTO 60-70" program is selected, the dishwasher recognises the type

of dirt and automatically adjusts the washing parameters as appropriate.

(1) Average power consumption with the softener set on level 2.

(2) The cycle duration and power consumption may vary according to the water and room

temperatures, and the type and amount of dishes.

User instructions



TABLE FOR CERTIFICATION BODIES

Reference standard EN 50242

Reference program (*) Program BIO (P3+P1) - models AAA

(*) Program ECO (P3) - models AAB

Load Depending on the model 12-14 place-settings

Type of detergent B

Amount of detergent 12 place-settings: 30 g - 14 place-settings: 35 g

Rinse aid setting Depending on the model 3/4 or 4/6

1.2 Washing programs

The dishwasher is equipped with a control panel, described in chapter

"1. Description of the controls", from which it is possible to carry out all

the power switch-on, switch-off and programming operations.

Before starting a washing program make sure that:

•The water supply tap is open.

•The correct amount of detergent has been added to the

dispenser.

•The baskets have been correctly loaded.

•The spray arms are able to rotate freely and without

obstruction.

•The dishwasher door is securely closed.

LIGHTING

When the ON/OFF button (1) is pressed, the dishwasher switches on

and the light (6) comes on. About 2 seconds later, the

PHASES/PROGRAM lights (10) will come on.

User instructions



PROGRAMMING

In this model of dishwasher, all programming procedures can only be

carried out with the door closed. As long as the door is open, the

PROGRAMS lights (7) and PHASES/PROGRAM lights (10) will remain

off.

SELECTION PROGRAM

The program selection is possible

through the relative buttons (2).

When the button relating to the program required is pressed, the relative

light will come on to confirm the operation.

START PROGRAM

To start the dishwasher, press the START/PAUSE button (5) for a few

seconds, until the light of the first phase of the selected program starts to

flash (confirmation beep).

This phase, that updates itself during the cycle, is “indicative” since it is

influenced by the washing conditions such as dishwasher type and

quantity, entry temperature etc. For this reason it is normal to see the

updating during a program (increment and decrease of minutes)

specially in the passage from one phase to the other (for example, from

washing to rinse).

As the program runs, the PHASES/PROGRAM lights (10) will indicate

the current cycle status.

The light of the phase in progress will

flash, while the lights of the previous and

subsequent phases remain on.

N.B. during execution of programs which

do not include a prewash, the first

PHASES/PROGRAM light (10) will remain

off.

Prewash

Wash

Rinse

User instructions



END PROGRAM

When the program finishes, a buzzer sounds

briefly and all the PHASES/PROGRAM lights

(10) flash.

Press any of the SELECTION PROGRAMS buttons (2), stops the light

flashins, and the dishwasher is now ready to perform a new cycle;

opening and shutting the door or switching the appliance off and on has

the same effect.

INTERRUPTION OF A PROGRAM

In order to interrupt a running program it is necessary:

•press the

START/PAUSE button (5), the light of the current phase

goes out;

•keep the button pressed until the PHASES/PROGRAM lights (10)

come on (confirmation buzzer).

TO CHANGE A PROGRAM

To change the running program it is necessary:

•to interrupt the running program (see “INTERRUPTION OF A PROGRAM”);

•select the new program;

•to press again the START/PAUSE button (5) to make start the new

program.

User instructions



ANNULLING A PROGRAM

To annul the program in progress, it must first be interrupted (see

“INTERRUPTION OF A PROGRAM”).

Now press buttons P1+P2 simultaneously and

the first three program lights will come on.

In case that the door is opened during the operation, to the next door

closing it is going to be necessary to start the program as shown in

paragraph “START PROGRAM”. The program will resume from the point in

which it was interrupted.

In case that the tub temperature is higher than 50°C the program

will start about 30 seconds later.

The washing cycle will not take place if the dishwasher door is left open

or not properly closed.

HALF LOAD WASH FUNCTION (on some models only)

Pressing button ½ LOAD WASH (4) selects washing on the top basket

only.

After selecting the program, proceed as follows:

•press the button ½ LOAD WASH (4) once to select the top basket

(the relative light comes on);

•press the button ½ LOAD WASH (4) again to return to full load

wash status (the light goes out).

The ½ LOAD wash option can be selected in all programs except the

soak program.

N.B.: selecting the ½ LOAD option changes the duration of the program.

It is possible to place a cutlery basket inside the basket selected for the

HALF-LOAD program; the other basket must remain empty.

WARNING: do not load dishes and cutlery into the non-selected

basket, because the water spray will only reach the selected basket.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Lavavajillas de Smeg

Smeg

Smeg Universale DWA4510X Manual de usuario

Smeg

Smeg ST8246U Manual de usuario

Smeg

Smeg CWG411MDA Manual de usuario

Smeg

Smeg LVS262DSX Manual de usuario

Smeg

Smeg ST147 Manual de usuario

Smeg

Smeg ST537 Manual de usuario

Smeg

Smeg LSP1449B Manual de usuario

Smeg

Smeg DI262D Manual de usuario

Smeg

Smeg PL292DN Manual de usuario

Smeg

Smeg LSA6051B Manual de usuario

Smeg

Smeg DF13E2SV Manual de usuario

Smeg

Smeg DWA6214S Manual de usuario

Smeg

Smeg Dishwasher DWI409C Manual de usuario

Smeg

Smeg PLTW640X Manual de usuario

Smeg

Smeg lvs367sx Instrucciones de instalación y funcionamiento

Smeg

Smeg STFABWH3 Manual de usuario

Smeg

Smeg STL324BQLLW Manual de usuario

Smeg

Smeg CW510 Manual de usuario

Smeg

Smeg Universale Aesthetic STL332CH Manual de usuario

Smeg

Smeg Universale STL67237L Manual de usuario

Smeg

Smeg Dishwasher VG612462 Manual de usuario

Smeg

Smeg DW2000EB Manual de usuario

Smeg

Smeg IGE3980 Manual de usuario

Smeg

Smeg Dishwasher CA01-3 Manual de usuario

Manuales populares de Lavavajillas de otras marcas

Electrolux

Electrolux ESI5211LOX Manual de usuario

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Hotpoint

Hotpoint HDA1100ZWH Manual de servicio

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario
