INSTRUCTION MANUAL

Contents



1. Description of the controls________________________________14

2. Troubleshooting _______________________________________21

Thank you for choosing one of our products.

You are advised to read this manual carefully; it contains all the

information you need about the right conditions for the proper, safe use

of your dishwasher.

The individual sections are laid out to provide you with a step-by-step

guide to all your appliance's functions; the texts are easy to understand

and are complete with detailed illustrations.

This user-friendly manual will provide answers to all your questions

about use of the dishwasher.

For any other information about use and maintenance of the dishwasher,

read the enclosed manual carefully.

USER INSTRUCTIONS: useful information is provided for the use of the

washing programs and all the dishwasher's functions.

User instructions



1. Description of the controls

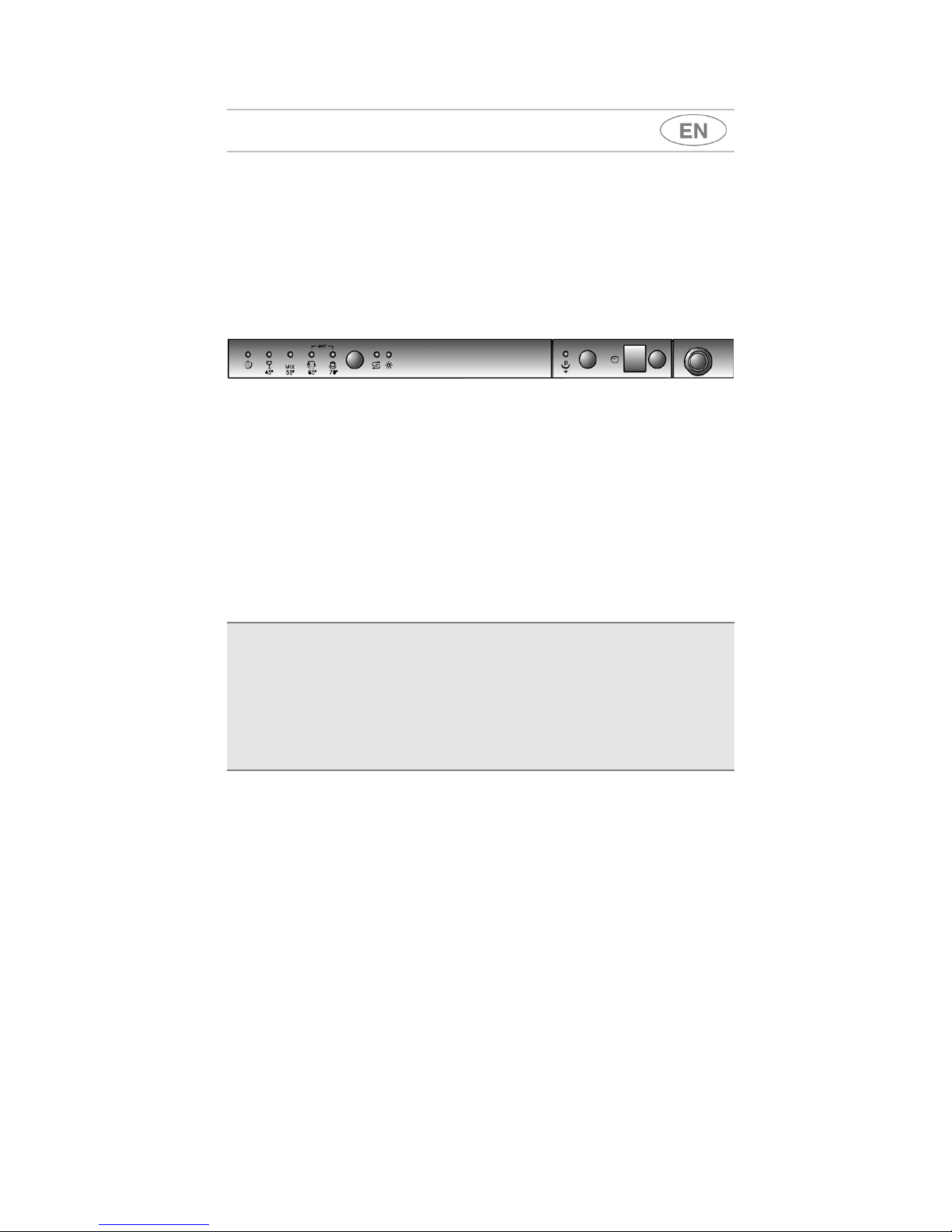

1.1 Upper panel

All the dishwasher controls are grouped on the upper panel. Switch-on,

programming, switch-off etc. procedures are only possible when the door

is open.

1ON/OFF BUTTON

Pressing this button energises the appliance.

SELECTED PROGRAM INDICATOR LIGHTS

Illumination of this light denotes the program selected and the occurrence of a fault

(troubleshooting).

3PROGRAM SELECTION BUTTON

By pressing this button in sequence it is possible to select the desired program.

4SALT WARNING LIGHT (certain models only)

Illumination of this light signals that salt container is empty.

5RINSE AID WARNING LIGHT (certain models only)

Illumination of this light signals that rinse aid dispenser is empty.

6EXTRA PROGRAM BUTTON

This button gives access to the one of the five extra programs (see table).

EXTRA PROGRAM LIGHT

Illuminates to indicate that one of the five extra programs (see table) is going to be

executed.

8PROGRAM DELAY BUTTON (on some models only)

Press this button to delay the start of the program by up to 9 hours.

9INFORMATION DISPLAY (on some models only)

User instructions



SETTING THE WASHING PROGRAM AND SWITCHING ON

To select the most suitable program for the dishes to be washed refer to

the table below, which indicates the most appropriate program according

to dish type and degree of soiling.

After using the table to identify the most appropriate washing program:

•press the

ON/OFF button (1) and wait for the PROGRAM

INDICATOR LIGHT (2) to illuminate;

•keep pressing the

PROGRAM SELECTION button (3) until the

indicator light corresponding to the desired program illuminates;

•close the door; after about 2" the program will start. While it is in

progress, the relative LIGHT will flash (indicating that the program is

being executed).

DURATION CONSUMPTION

PROGRAMME,

NUMBER & SYMBOL

LOAD CROCKERY

AND CUTLERY

PROGRAM

PROGRESS MINUTES

(2)

WATER

LITRES (1)

POWER

KWh (2)

1RINSE Pans and dishes for

rinsing and drying

Cold rinse

Rinse at 68°C

Dry

45' 90,8

2DELICATE Dishes

with normal dirt

Cold prewash

Wash at 45°C

Cold rinse

Rinse at 68°C

Dry

59' 12 0,90

3MIX

Normally soiled

dishes, including

dried-on residue

Cold prewash

Wash at 55°C

Cold rinse

Rinse at 68°C

Dry

85' 16 1,10

4NORMAL Dishes

with normal dirt

Cold prewash

Wash at 65°C

Cold rinse

Rinse at 68°C

Dry

80' 17 1,20

Only run the soak program with half loads.

(1) Average power consumption with the softener set on level 2.

(2) The cycle duration and power consumption may vary according to the water and room

temperatures, and the type and amount of dishes.

User instructions



DURATION CONSUMPTION

PROGRAMME,

NUMBER & SYMBOL

LOAD CROCKERY

AND CUTLERY

PROGRAM

PROGRESS MINUTES

(2)

WATER

LITRES (1)

POWER

KWh (2)

5SUPER

Very dirty

pans and dishes,

even with

dried-on dirt

Prewash at 45°C

Wash at 70°C

2 cold rinses

Rinse at 70°C

Dry

105’ 20 1,50

6SOAK

Pans and dishes

awaiting

a further wash Cold prewash 9' 50,03

7QUICK

Dishes

with light dirt Wash at 38°C

Cold rinse

Rinse at 58°C

45' 13 0,70

8ECO

(*) EN 50242

Wash immediately

after use for dishes

with normal dirt

Wash at 55°C

Cold rinse

Rinse at 68°C

Dry

175' 13 1,01

9DAILY

Wash immediately

after use for dishes

with normal dirt

Wash at 65°C

Cold rinse

Rinse at 68°C

Dry

85' 14 1,25

10 INTENSIVE

Normally soiled

pans and dishes,

including

dried-on residue

Wash at 70°C

2 cold rinses

Rinse at 70°C

Dry

85' 17 1,45

Only run the soak program with half loads.

To execute programs 6,7,8,9,10 users must first press the extra programs button (6).

(*) Reference program as per EN 50242 standard.

(1) Average power consumption with the softener set on level 2.

(2) The cycle duration and power consumption may vary according to the water and room

temperatures, and the type and amount of dishes.

The washing cycle will not take place if the dishwasher door is left open or

not properly closed.

User instructions



TABLE FOR CERTIFICATION BODIES

Reference standard EN 50242

Reference program ECO

Load 10 place-settings

Type of detergent B

Amount of detergent 25 g

Rinse aid setting Depending on the model 3/4 or 4/6

1.2 Washing programs

Before starting a washing program make sure that:

•The water supply tap is open.

•The correct amount of detergent has been added to the

dispenser.

•The baskets have been correctly loaded.

•The spray arms are able to rotate freely and without

obstruction.

•The dishwasher door is securely closed.

EXTRA PROGRAMS

Button (6) gives access to five extra programs in addition to the ones

which can be selected directly using the program selector button.

This button must be pressed (the light comes on) after selection of the

"main" program (1, 2, 3, 4 or 5).

This function is retained in the memory, so the button has to be

pressed again (the light goes out) if the user wishes to execute one of

the 5 main programs at the next cycle.

User instructions



DELAYING THE PROGRAM

The PROGRAM DELAY button (8) can be pressed to delay the start of

the program by up to 9 hours. This means that the dishwasher can be

operated at the time of day of your choice. Press the button several

times in succession and the display will show the delay with which the

appliance will start, beginning from 9 hours.

CANCELLING THE CURRENT PROGRAM

•To cancel the currently selected program, open the door and hold

down the PROGRAM SELECTION (3) button for a few seconds

until the indicator lights for programs 4and 5illuminate

simultaneously (the word "end" is displayed on the window).

•Close the door.

•After approximately 1 minute the dishwasher will advance to the end

of cycle.

CHANGING THE PROGRAM

To change the program in progress, simply open the door and select a

new program. When the door is closed the dishwasher will automatically

select the new program.

User instructions



END OF CYCLE

At the end of the program the beeper

sounds briefly and the lights of

programs 4and 5flash (the word "end" is

displayed on the window).

To switch off the dishwasher, open the door and press the ON/OFF

button (1).

TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT

•Always try to run the dishwasher fully loaded.

•Do not wash the dishes in running water.

•Use the washing program that is most appropriate for each type of

load.

•Do not carry out any preliminary rinsing.

•If available, connect the dishwasher to a hot water supply up to 60°C.

•When possible, disable the drying cycle and leave the door open at

the end of the washing cycle: the residual air and heat will dry the

dishes perfectly.

TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT

THE ENVIRONMENT

The phosphates contained in dishwasher detergents are harmful to the

environment. To avoid using excessive amounts of detergent and to save

on electricity, observe the following:

•separate the more delicate items from dishes that are more resistant

to aggressive detergents and high temperatures;

•do not pour the detergent directly on the dishes.

If the door has to be opened while washing is in progress, the program

will be interrupted. The relative light will keep flashing and a beeper will

signal that the cycle has not been completed. You must wait about 1

minute before closing the door to restart the program. When the door is

closed the program will continue from where it was interrupted. This

operation should only be carried out if strictly necessary, because it

might cause problems in execution of the program.

User instructions



ADJUSTING THE WATER SOFTENING SYSTEM

N.B.: for the setting below to be possible, a washing program other than

the soak program must be set.

Press the PROGRAM DELAY button (8) and keep it pressed until the

preset value appears followed by a full stop (normally 3.).

Release the button then press it again in succession to display the value

required, referring to the table.

The 6setting levels available will appear in this order:

3.,4.,5.,0.,1.,2..

When the value required appears on the display, release the button;

after 5 seconds the system automatically returns to setting of the

program delay, and the setting will be made with the chosen value.

N.B.: the display shows the water hardness setting and the program

delay. The dot (.) after the number indicates that the water hardness

setting is being displayed. If the dot (.) does not appear, the program

delay is being displayed.

WATER HARDNESS TABLE

WATER HARDNESS

German Degrees (°dH) French Degrees (°dF) SETTING

0 - 5 0 - 9 0.

6 - 11 10 - 19 1.

12 - 21 20 - 36 2.

22 - 33 37 - 59 3.

34 - 45 60 - 79 4.

46 - 53 80 - 107 5.

Contact your local water board for information on the hardness of your

water supply.

REMOVING THE DISHES

At the end of the washing program, wait at least 20 minutes before

removing the dishes, to allow them to cool down. To prevent any water

droplets on the upper basket from falling on the dishes in the lower

basket, it is advisable to unload the lower basket first, and then the

upper basket.

User instructions



2. Troubleshooting

The dishwasher is capable of signalling a number of faults through the

simultaneous illumination of several indicator lights, with the following

meanings:

FAULT DESCRIPTION

Acquastop failure

The anti-flooding system has been activated (for the

relevant models only). The system is tripped in case

of water leaks. Contact the after-sales service.

Water heating malfunction

The water is not heated or the heating parameters

are not correct. Repeat the washing program; if the

problem persists, contact the after-sales service.

Water temperature monitoring malfunction

Interrupt the program and switch off the dishwasher.

Switch the dishwasher back on, program it again and

start the washing cycle. If the problem persists,

contact the after-sales service.

Water intake malfunction

The appliance does not take in water or does not do

so correctly. Check that the water connections are

correct, the water intake tap is turned on and the filter

is not fouled. If the problem persists, contact the

after-sales service.

Water pump-out malfunction

The appliance does not pump out the water or does

not do so correctly. Check that the drain hose is not

kinked or crushed and that the siphon and filter are

not fouled. If the problem persists, contact the after-

sales service.

Light off Light on Light flashing

Tabla de contenidos

Otros manuales de Lavavajillas de Smeg

Manuales populares de Lavavajillas de otras marcas

Electrolux

Electrolux ESI5211LOX Manual de usuario

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Hotpoint

Hotpoint HDA1100ZWH Manual de servicio

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario
