1. Description of the controls

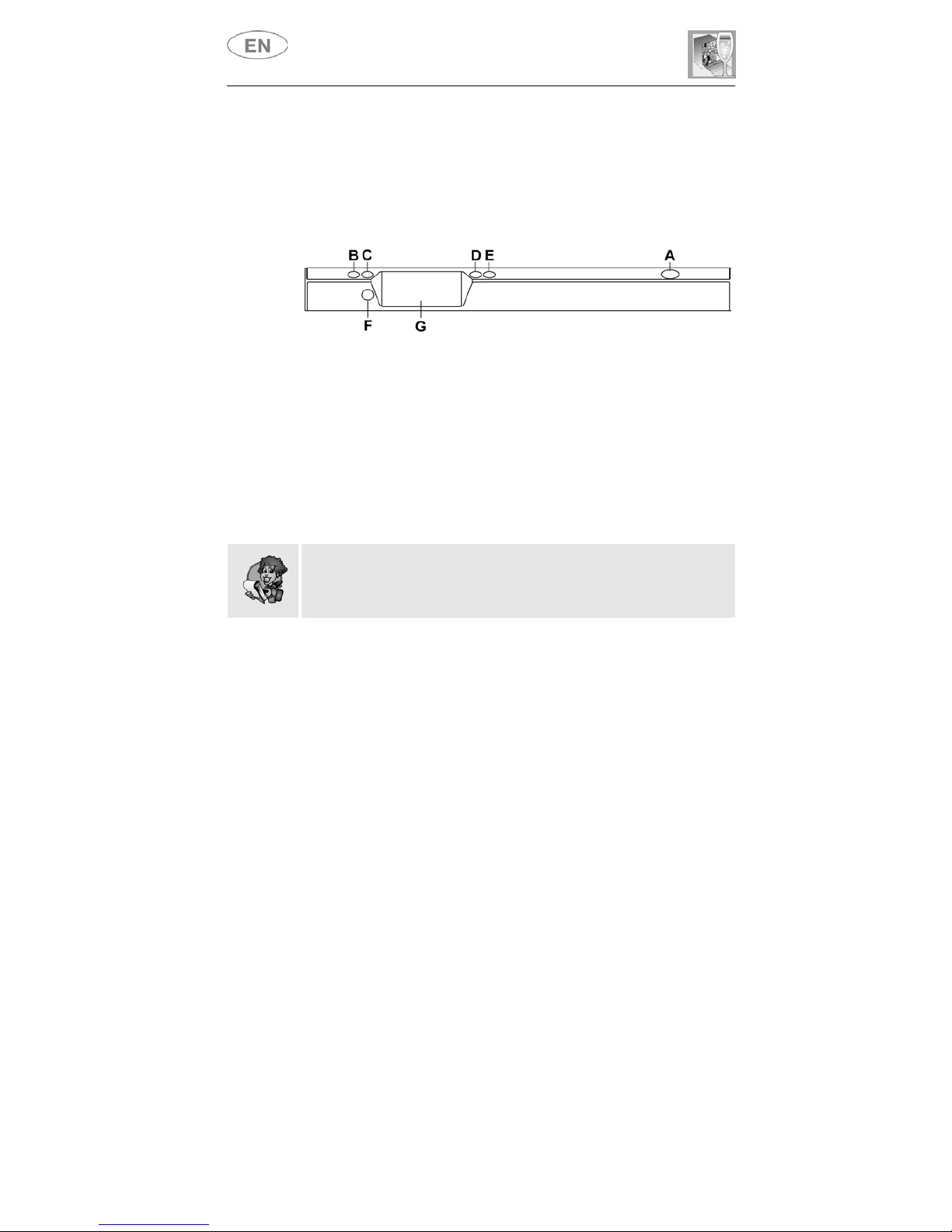

1.1 The control panel

AON/OFF BUTTON

BPROGRAM SELECTION KEY

CDELAYED START KEY (with door open)

DOPTION SELECTION KEY

EOPTION SETTING KEY

FSTART-PAUSE KEY (with door closed)

GINFORMATION DISPLAY

N.B.: the functions of keys (C) and (F) are the same.

1.2 The information display

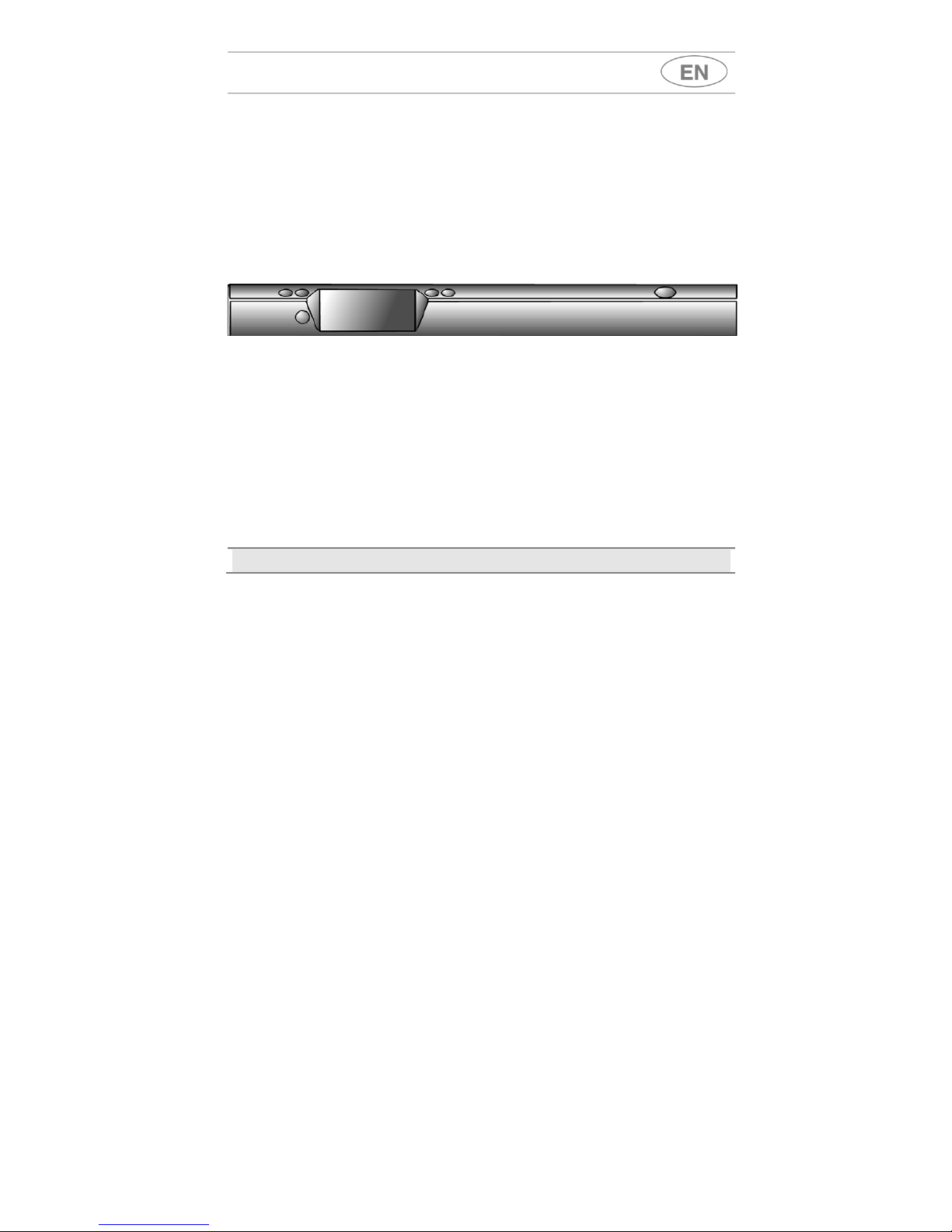

The dishwasher is fitted with a convenient sloping display (G) to assure

good visibility from both in front and above.

The display uses brief text messages to

provide all the information about the

programmed functions and any malfunctions.

1.3 Washing programs

The dishwasher has a control panel and an INFORMATION DISPLAY

(G) allowing the user to carry out all switch-on, switch-off and

programming procedures.

User instructions

Before starting a washing program make sure that:

xThe water supply tap is open.

xThe correct amount of detergent has been added to the

dispenser.

xThe baskets have been correctly loaded.

xThe spray arms are able to rotate freely and without

obstruction.

xThe dishwasher door is securely closed.

When the appliance is used for the first time, set the hardness of the

water and also set the buzzer as required (enabled/disabled). For the

relative instructions, see "CUSTOMISING YOUR APPLIANCE".

SWITCHING ON

With the door open press the ON/OFF key

(A). The dishwasher comes on and the

message shown below appears on the

DISPLAY (G).

PROGRAMMING

On this model of dishwasher, all programming operations are only

possible with the door open.

PROGRAM SELECTION

After the initial message, the system offers you the assisted

programming function (Wizard), in which you only have to select the

level of dirt and the washing strategy.

Shown on the display:

xPress (D) or (E) to select assisted programming (see "Assisted

programming").

xPress (B) to exit assisted programming and choose standard

programming (see "Standard programming").

User instructions

Assisted programming (Wizard)

xPress (D) or (E) in repetition to display

the type of dirt on the dishes, on the top

line of the DISPLAY (G).

xPress (B) or (C) to confirm the selection and continue programming.

Choose the type of wash following the procedures described above (Dor

Eto display the selections available, Bor Cto confirm).

At the end of assisted programming, the DISPLAY (G) shows "Wait

please..." and a few seconds later you will be offered the option

selection function (button B/Cto accept, D/Eto reject).

Refer to the "OPTIONS" section to view the possibilities available.

Standard programming

Select "No" (key B) to disable assisted programming and the system

will offer the last program performed.

To start this program, simply close the door (buzzer sounds, if

enabled).

To select another program, press (B) in repetition until the program

required is displayed; to start this program close the door (buzzer

sounds, if enabled).

See TABLE OF PROGRAMS on following pages.

At the end of the assisted or standard

programming procedure, the programmed

duration of the washing cycle, in minutes,

appears on the bottom line of the DISPLAY

(G).

xThe temperature which appears before the program's name

indicates its type (e.g. 45° delicate programs, 55° economy, 65°

intensive, etc.); the actual temperature is displayed, stage by stage,

while washing is in progress.

xPrograms' duration, temperature and consumption figures are

guideline, since they depend on various factors, such as type of

load, intake water temperature, room temperature, etc.

User instructions

STARTING THE PROGRAM

To start the program close the door.

Whenever the door is opened and closed with a program selected (in

progress, or before it starts) the buzzer sounds, if the "Enable buzzer"

function is on (see "CUSTOMISING YOUR APPLIANCE").

FOR CERTIFICATION BODIES

Reference standard EN 50242

Reference program BIO

Load 14 place-settings

Type of detergent B

Amount of detergent 35 g

Rinse aid setting setting 5

The washing cycle will not take place if the dishwasher door is left open

or not properly closed.

If the door is opened with the dishwasher in operation, a long buzzer

sounds and "In pause" appears on the bottom line of the DISPLAY

(G). Next time the door is closed the program will continue from where it

was interrupted.

If the temperature inside the tank exceeds 50°C, the program will

restart after about 30 seconds.

User instructions

DURATION CONSUMPTION

NUMBER &

PROGRAMME

LOAD CROCKERY

AND CUTLERY

PROGRAM

PROGRESS MINUTES WATER

LITRES (1)

POWER

KWh (2)

1SOAK Pans and dishes awaiting

completion of the load Cold prewash (**) 60,03

2RINSE Pans and dishes

for rinsing and drying

Cold rinse

Rinse at 68°C

Dry

(**) 90,90

3SHORT

Delicate dishes

with light dirt, washed

immediately after use

Wash at 38°C

Cold rinse

Rinse at 58°C

(**) 13 0,85

4DELICATE Delicate dishes

with normal dirt

Cold prewash

Wash at 45°C

Cold rinse

Rinse at 68°C

Dry

(**) 17 1,15

5ECO Dishes

with normal dirt

Wash at 55°C

Cold rinse

Rinse at 68°C

Dry

(**) 14 1,30

6BIO

(*) EN 50242

Very dirty dishes,

with dried-on residues

Cold prewash

Wash at 50°C

Cold rinse

Rinse at 62°C

Dry

(**) 15 1,08

7AUTO 40-50

Normally or very

dirty dishes washed

immediately after use

Cold prewash

Wash at 40°C

Wash at 55°C

Cold rinse

Rinse at 68°C

Dry

(***) (***) (***)

8AUTO 60-70 Very dirty

dishes

Cold prewash

Wash at 50°C

Wash at 65°C

Cold rinse

Rinse at 70°C

Dry

(***) (***) (***)

9STRONG Very dirty

pans and dishes

Wash at 70°C

2 cold rinses

Rinse at 70°C

Dry

(**) 17 1,50

10 SUPER

Very dirty

pans and dishes,

with dried-on residues

Prewash at 45°C

Wash at 70°C

2 cold rinses

Rinse at 70°C

Dry

(**) 20 1,70

Only run the soak program with half loads.

The options are available in all programs except the soak program.

(*) Reference program as per EN 50242 standard. (**) See display.

(***) When the "AUTO 40-50" or "AUTO 60-70" program is selected, the dishwasher recognises the type

of dirt and automatically adapts the washing parameters and washing stages as appropriate.

(1) Average power consumption with the softener set on level 2.

(2) The cycle duration, energy consumption and temperatures which appear on the display may vary

depending on water and room temperature and type and quantity of dishes.

User instructions

CONTENTS OF DISPLAY WHEN PROGRAM IS IN PROGRESS

The top line displays the temperature in the tank, alternating (every 4

seconds) with the program being performed and the current program

stage.

The bottom line will show the program duration "Duration XX min",

where XX is the time left before the end of the program, in minutes.

If DELAYED START (C) is set, until the program starts the second line

shows the message "Starting in YY hh/mm", where YY are the hours

(from 1-12/1-24 depending on model) or minutes (when less than 1 hour)

left before the program starts.

Any warning messages (e.g. "No salt") will appear on the DISPLAY (G)

during the washing stage, alternating with the time left to the end of the

program.

If the 3/1 PRODUCTS function (only available on some models) is set,

the no salt and no rinse aid warning messages do not appear.

INTERRUPTING A PROGRAM

To interrupt a program, press the START/PAUSE key (F) and keep it

pressed until "In pause" appears on the bottom line of the DISPLAY (G).

To restart the program, repeat this operation until "Duration XX min"

reappears on the bottom line of the display.

Opening the door only cuts out the program in progress, but this is not

recommended, since water splashes or gusts of steam might escape.

When the door is closed the program restarts automatically, even it

was interrupted by pressing the START/PAUSE key (F).

User instructions

CHANGING THE PROGRAM

To change a program while it is running, proceed as follows:

xpress key (F) to set the program in pause status;

xopen the door and select the new program using key (B);

xclose the door; the changes relating to the new program will

appear on the DISPLAY (G).

ANNULLING A PROGRAM

xTo annul a program while it is running, it must first be interrupted by

pressing key (F);

xthen open the door and press key (B) in repetition until you obtain

"Cancel program";

xclose the door. "Draining" will appear on the DISPLAY (G) and the

dishwasher will start to pump out the water. This will be completed

in about 1 minute and "Program end" will appear on the top line of

the display.

Before the door is closed, a long washing time will appear alongside

"Draining". This is not a malfunction but simply a stage in the time

update process; the time will be corrected to 1 minute when the door is

closed.

END OF PROGRAM

At the end of the program the buzzer sounds (if enabled), after which the

temperature and program name will alternate with "Program end" on the

top line of the DISPLAY (G); the bottom line continues to show

"Duration XX min".

User instructions

OPTIONS (available in all programs except the soak program)

Options must be chosen before closing the door to start the program,

or at the end of assisted programming, when the DISPLAY (G) offers the

option selection function (button B/Cto accept).

If DELAYED START (C) has been set, before the program starts the

user may open the door and set one of the other options, or modify the

DELAYED START.

To select the option press (D); to enable/disable it press (E).

Key (D) Key (E)

Function Enable Disable

EXTRA HYGIENE 1 0

START DELAY 1>12/1>24 0

HALF LOAD upper/lower OFF

DETERGENT 3/1 NORMAL

For an option to be confirmed it needs only to appear on the display.

Then close the door to start the program, or move on to select another

option.

Depending on the model the dishwasher may feature one, some or all

of the options listed below.

All the options are disabled at the end of the program.

DELAYED START (depending on model)

Shown on the DISPLAY (G): "Start delay h 0, 1, .....12/24".

The start of the washing program can be set with a delay from 1 to

12/24 hours. This function allows you to set the dishwasher to work at

your preferred time of day and avoid having several appliances (washing

machine, oven, etc.) in operation simultaneously.

The start delay can only be set in steps of 1 hour. Press key (C) in

repetition until you obtain the delay required, then close the door to start

or select another option.

When the door is closed the dishwasher performs a prewash, after

which the countdown to the starting time begins. The bottom line of the

DISPLAY (G) shows "Starting in X h" or "Starting in Y min" (when less

than 1 hour is left).

Tabla de contenidos

Otros manuales de Lavavajillas de Smeg

Smeg

Smeg LVF649B Manual de usuario

Smeg

Smeg SA4510X Manual de usuario

Smeg

Smeg DF612S Manual de usuario

Smeg

Smeg STX.1 Manual de usuario

Smeg

Smeg DWAFI4510-2 Manual de usuario

Smeg

Smeg DWA6315 Series Manual de usuario

Smeg

Smeg STA8639L Manual de usuario

Smeg

Smeg Dishwasher KEX705 Manual de servicio

Smeg

Smeg CWG410M Manual de usuario

Smeg

Smeg UD516DUK Manual de usuario

Smeg

Smeg KLSA500 Manual de usuario

Smeg

Smeg LVS145FX Manual de usuario

Smeg

Smeg DI112 Manual de usuario

Smeg

Smeg ST215-9 Manual de usuario

Smeg

Smeg SNZ442S Manual de usuario

Smeg

Smeg Dishwasher CA01-3 Manual de usuario

Smeg

Smeg CWG410D Manual de usuario

Smeg

Smeg CLBRIO Manual de usuario

Smeg

Smeg PL300KX Manual de usuario

Smeg

Smeg ST317AT Manual de usuario

Smeg

Smeg BLV1VE Manual de usuario

Smeg

Smeg STA645Q Manual de usuario

Smeg

Smeg LSA643XPQ Manual de usuario

Smeg

Smeg BL1S Manual de usuario

Manuales populares de Lavavajillas de otras marcas

Electrolux

Electrolux ESI5211LOX Manual de usuario

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Hotpoint

Hotpoint HDA1100ZWH Manual de servicio

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario
