Smeg A1C Manual de usuario

Contents

1. INSTRUCTIONS FOR SAFE AND PROPER USE _______________29

2. INSTALLATION OF THE APPLIANCE ________________________31

3. DESCRIPTION OF CONTROLS _____________________________33

4. USE OF THE COOKING HOB _______________________________38

5. USE OF THE OVEN_______________________________________40

6. AVAILABLE ACCESSORIES ________________________________41

7. COOKING HINTS_________________________________________42

8. CLEANING AND MAINTENANCE ____________________________48

9. EXTRAORDINARY MAINTENANCE __________________________51

INSTRUCTIONS FOR THE INSTALLER: these are intended for the

qualified technician who must install the appliance, set it functioning

and carry out an inspection test.

INSTRUCTIONS FOR THE USER: these contain user advice,

description of the commands and the correct procedures for cleaning

and maintenance of the appliance.

Introduction

1. INSTRUCTIONS FOR SAFE AND PROPER USE

THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND

THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE

PLACE FOR THE WHOLE WORKING LIFE OF THE COOKER. WE ADVISE

READING THIS MANUAL AND ALL THE INSTRUCTIONS THEREIN BEFORE

USING THE COOKER. INSTALLATION MUST BE CARRIED OUT BY

QUALIFIED PERSONNEL IN ACCORDANCE WITH THE REGULATIONS IN

FORCE. THIS APPLIANCE IS INTENDED FOR DOMESTIC USES AND

CONFORMS TO CURRENT REGULATIONS IN FORCE. THE APPLIANCE HAS

BEEN BUILT TO CARRY OUT THE FOLLOWING FUNCTIONS: COOKING AND

HEATING-UP OF FOOD. ALL OTHER USES ARE CONSIDERED IMPROPER.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER

USE.

DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT. SEPARATE

THE VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST

SPECIAL GARBAGE COLLECTION CENTRE.

IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE GROUNDED

ACCORDING TO THE METHODS REQUIRED BY SAFETY RULES.

THE PLUG TO BE CONNECTED TO THE POWER CABLE AND THE SOCKET

MUST BE THE SAME TYPE AND MUST CONFORM TO CURRENT

REGULATIONS.

THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS BEEN

BUILT IN.

NEVER UNPLUG BY PULLING ON THE CABLE.

IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION

TEST OF THE APPLIANCE, FOLLOWING THE INSTRUCTIONS BELOW.

SHOULD THE APPLIANCE NOT FUNCTION, DISCONNECT IT FROM THE

SUPPLY AND CALL THE NEAREST TECHNICAL ASSISTANCE CENTRE.

NEVER ATTEMPT TO REPAIR THE APPLIANCE.

ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE POSITION

0(OFF) WHEN YOU FINISH USING THE HOB.

Introduction

NEVER PUT INFLAMMABLE OBJECTS IN THE OVEN: THEY COULD BE

ACCIDENTALLY LIGHTED AND CAUSE FIRES.

THE I.D. PLATE WITH TECHNICAL DATA, REGISTRATION NUMBER AND

BRAND NAME IS POSITIONED VISIBLY IN THE STORAGE COMPARTMENT.

THE PLATE MUST NOT BE REMOVED.

DO NOT INSTALL THIS APPLIANCE ON A RAISED PLATFORM

DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO

TOUCH THE HEATING ELEMENTS INSIDE THE OVEN.

DO NOT PUT PANS WITHOUT PERFECTLY SMOOTH AND FLAT BOTTOMS

ON THE COOKING HOB GRIDS.

NEVER USE THE COOKING HOB AS A WORK SURFACE.

ATTENTION: IN CASE OF A CRACK BEING DETECTED IN THE GLAZED

CERAMIC HOB, IMMEDIATELY DISCONNECT FROM MAINS AND CONTACT

THE NEAREST SERVICING CENTRE.

THE APPLIANCE IS DESIGNED FOR USE BY ADULTS. DO NOT ALLOW

CHILDREN TO GO NEAR OR PLAY WITH IT.

REPLACED APPLIANCES MUST BE TAKEN TO A SPECIAL GARBAGE

COLLECTION CENTRE.

The manufacturer declines all responsibility for damage to persons

or things caused by non-observance of the above prescriptions or by

interference with any part of the appliance or by the use of non-original

spares.

Instructions for the installer

2. INSTALLATION OFTHE APPLIANCE

This unit is equipped with a type Y fire protection, and may be set

against walls that are higher than the hob.

2.1 Electrical connection

Make sure that the power line voltage matches the specifications

indicated on the rating plate located inside the storage compartment.

This rating plate must never be removed.

On the power line, install an omnipolar cut-off device with contact cut-off

distance greater than or equal to 3 mm, located in an easily accessible

position near the unit.

The appliance is fitted with a terminal board at the rear for electrical

connections (see following diagram). To access, remove the rear cover.

Instructions for the installer

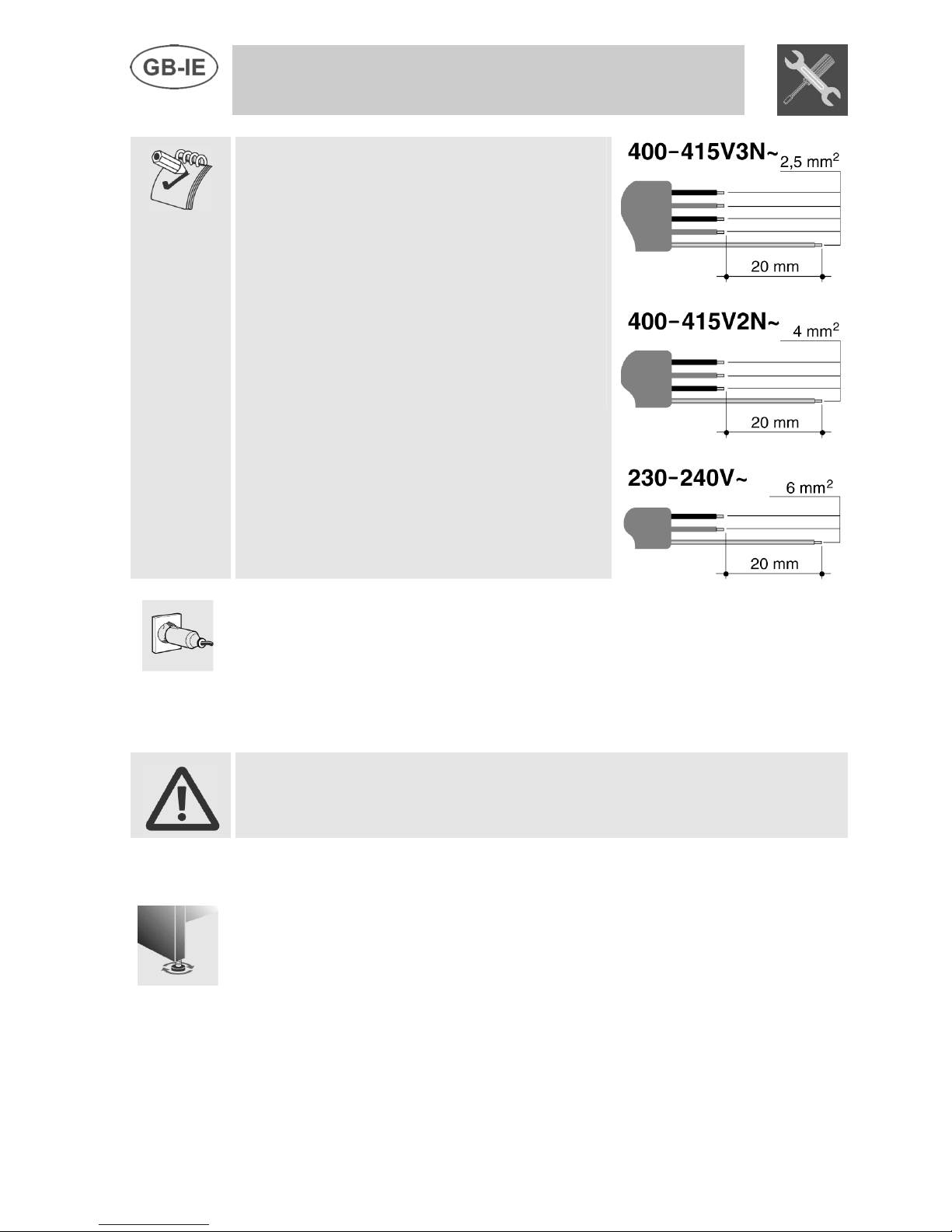

For operation on 400-415V3N

∼

∼∼

∼

:use an

H05RR-F-type five-core cable (5 x 2.5 mm2).

For operation on 400-415V2N

∼

∼∼

∼

:use an

H05RR-F-type four-core cable (4 x 4 mm2).

For operation on 230-240V

∼

∼∼

∼

:use an

H05RR-F-type three-core cable (3 x 6 mm2).

The cable end to be connected to the

appliance must be provided with an ground

wire (yellow-green) at least 20 mm longer.

Complete wiring up to power supply with an appropriately rated five-core

plug (see data plate) or, in case of operation from a 230V∼

∼∼

∼power supply,

with a three-core plug. Make sure that plug and wall socket are of the

same type and are in conformity with regulations in force. Make sure that

the appliance is properly earthed. Before powering, check that the power

line is properly earthed. Avoid using adapters or shunters.

The manufacturer declines all responsibility for damage to persons

or things caused by non-observance of the above prescriptions or by

interference with any part of the appliance.

2.2 Levelling

Adjust the four feet so as to set the appliance on a perfectly level plane.

For this purpose, loosen the lock nut and unscrew the foot. The range of

adjustment of the screw is 10 mm.

Instructions for the user

3. DESCRIPTION OF CONTROLS

3.1 Front control panel

All the cooker controls and commands are on the front panel.

Before using the oven check that the electronic programmer is showing

the symbol ; see paragraph “3.2.1 Clock adjustment”.

DESCRIPTION OF SYMBOLS

OVEN THERMOSTAT

CENTRAL

COOKING ZONE

OVEN FUNCTIONS

REAR RIGHT-HAND

COOKING ZONE

FRONT LEFT-HAND

COOKING ZONE

FRONT RIGHT-HAND

COOKING ZONE

REAR LEFT-HAND

COOKING ZONE

THERMOSTAT KNOB

Selection of cooking temperature is carried out by turning

the knob clockwise to the required temperature, between

50° and 250°C.

The tell-tale light comes on to indicate that the oven is

warming up. When it goes out it means that the required

temperature has been reached. Regular flashing means

that oven temperature is being constantly maintained at

the programmed level.

COOKING HOB SIGNAL LAMP (A)

Signal lamp Aon indicates that one or more of the cooking zones are

heating. When all knobs are set to 0, the lamp goes off.

Instructions for the user

FUNCTION SWITCH KNOB

Turn the knob to select from the following functions:

NO FUNCTION SET

OVEN LIGHT

GRILL ELEMENT +

VENTILATION

UPPER AND LOWER

HEATING ELEMENT

LOWER HEATING ELEMENT +

VENTILATED HEATING ELEMENT

GRILL ELEMENT

VENTILATED HEATING ELEMENT

+ VENTILATION

COOKING HOB CONTROL KNOB

Standard heating

The circle next to each knob indicates the cooking zone it

controls. To heat, turn the knob to the desired position

(1 to 9). Adjustment is continuous so that the appliance

also operates at any intermediate value. To turn off, return

the knob to 0.

Double heating

The circle next to each knob indicates the

cooking zone it controls. To heat the inner

cooking zone, turn the knob to the desired

position (1 to 9).

To heat both the inner and outer cooking zones, turn the knob to or

and then release. The knob will thus return to 9. To adjust heating

intensity, rotate the knob anticlockwise to the desired position. To return

to heating of the inner cooking zone only, set the knob back to 0 and then

turn to the desired position (1to 9). To switch off, return knob to 0.

Instructions for the user

3.2 Electronic Programmer

LIST OF FUNCTIONS

MINUTE-COUNTER KEY

COOKING TIME KEY

END-OF-COOKING KEY

DECREASE TIME KEY

INCREASE TIME KEY

3.2.1 Clock adjustment

When using the oven for the first time, or after a power failure, the display

flashes regularly and indicates . Press the keys and at

the same time the keys o : each single press changes the time by 1

minute either up or down.

Before setting the programmer activate the desired function and

temperature.

3.2.2 Semiautomatic cooking

Use this setting for automatic oven switch-off at the end of cooking time.

Instructions for the user

By pressing key , the display lights up, showing ; keep the key

pressed and at the same time, press keys o to set the cooking

time.

Release key to start the programmed cooking time count. The display

will now show the right time together with symbols Aand .

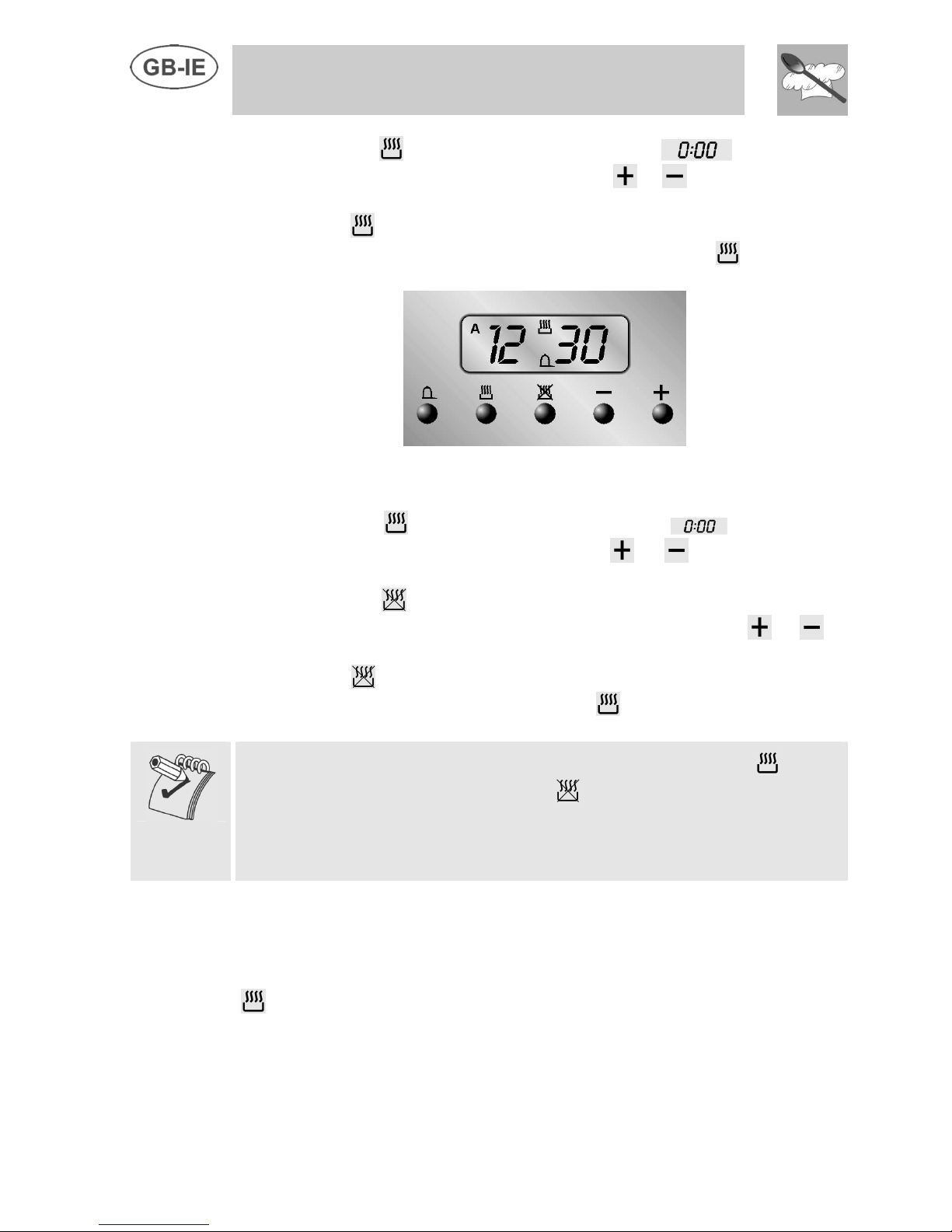

3.2.3 Automatic cooking

Use this setting to automatically start and stop the oven.

By pressing key , the display lights up showing ; keep the key

pressed and at the same time, press keys or to set the cooking

time.

By pressing key the sum of the right time + cooking time will appear;

keep the key pressed and at the same time, press keys o to

regulate the end of cooking time.

Release key to start the programmed count and the display will show

the right time together with symbols A and .

After set-up, to see the cooking time remaining, press the key ; to see

the end of cooking time press the key .

Set-up with incoherent values is logically prevented (e.g. the contrast

between a cooking time and a longer period will not be accepted by the

programmer).

3.2.4 End of cooking

When cooking is over, the oven will automatically switch off and, at the

same time, an intermittent alarm will sound. After switching off the alarm,

the display will once again show the right time together with the symbol

, indicating that the oven has returned to manual operation mode.

Instructions for the user

3.2.5 Adjusting alarm volume

The acoustic alarm has three different settings. These can be operated,

while the alarm is sounding, by pressing key .

3.2.6 Switching off the alarm

The alarm switches off automatically after seven minutes. They can be

manually de-activated by pressing the keys and together.

3.2.7 Minute Counter

The programmer can also be used as a simple minute counter. By

pressing key , the display shows ; keep the key pressed and

at the same time press keys o . On releasing the key ,

programmed counting will begin and the display will show the current

time and the symbol .

After set-up, to see the remaining time, press the key .

Use as a minute counter does not interrupt functioning of the oven at the

end of the programmed time.

3.2.8 Cancellation of set data

Once the programme has been set, keep the key of the function to be

cancelled pressed, while at the same time is reached by means

of variation keys o . Time cancellation will be considered as end-of-

cooking time by the programmer.

3.2.9 Changing the set data

The cooking data entered can be changed at any time by keeping the

function key pressed and at the same time adjusting the keys o .

Tabla de contenidos

Otros manuales de Estufa de Smeg

Smeg

Smeg TR62IBL Manual de usuario

Smeg

Smeg CBE66MF Guía de inicio rápido

Smeg

Smeg TRA90P9 Manual de usuario

Smeg

Smeg Symphony SY93IBL Manual de usuario

Smeg

Smeg C92IMX2 Manual de usuario

Smeg

Smeg CS120A-6 Manual de usuario

Smeg

Smeg B60GMXI9 Manual de usuario

Smeg

Smeg TR60IP Manual de usuario

Smeg

Smeg CX 68 CM8 Manual de usuario

Smeg

Smeg TR90 Manual de instrucciones

Smeg

Smeg Mista Aesthetic B61GMXI9 Manual de usuario

Smeg

Smeg Victoria TR4110IP Manual de usuario

Smeg

Smeg SA9065XS Guía de instalación

Smeg

Smeg BM93BL Manual de usuario

Smeg

Smeg TR93IX Manual de usuario

Smeg

Smeg Victoria TR90IGR Manual de usuario

Smeg

Smeg CX 60 Manual de usuario

Smeg

Smeg A31X-7 Manual de usuario

Smeg

Smeg OPERA A31X Manual de instrucciones y seguridad

Smeg

Smeg BU93P Manual de usuario

Smeg

Smeg AS5601 Manual de usuario

Smeg

Smeg B71GMX2 Manual de usuario

Smeg

Smeg FS9010CER-1 Manual de usuario

Smeg

Smeg CPF120IGMPX Manual de usuario

Manuales populares de Estufa de otras marcas

Modena

Modena FC 7645 SGM Manual del propietario

Electrolux

Electrolux Insight EKG6049 Manual de usuario

Stanley

Stanley Donard 60 Manual de usuario

Bartscher

Bartscher 201TC Manual de usuario

Parkinson Cowan

Parkinson Cowan 50 GR/BU Manual de usuario

Siemens

Siemens HK9P00020U Manual de usuario

Creda

Creda S150E Guía

Creda

Creda HB48309 Manual de usuario

Bosch

Bosch HCE743220F Manual de usuario

Tricity Bendix

Tricity Bendix SE545P Manual de usuario

NEFF

NEFF E1461A2/01 Manual de usuario

Zanussi

Zanussi ZCM 700 X Manual de usuario

RiverGrille

RiverGrille TF2002501-RG Manual de usuario

Vollrath

Vollrath 69504F Manual de usuario

Tricity Bendix

Tricity Bendix CSIE500 Manual de usuario

AEG

AEG Competence 5731 V Manual de usuario

Euromaid

Euromaid ES60 Manual de usuario

Hotpoint

Hotpoint HUI 62 TP Manual de usuario
