Instructions

1 Instructions

1.1 General safety instructions

Risk of personal injury

• During use the appliance and its

accessible parts become very hot.

• Never touch the heating elements

during use.

• Keep children under eight years

of age at a safe distance if they

are not constantly supervised.

• Children must never play with the

appliance.

• Never rest metallic objects such

as knives, forks, spoons and lids

on the appliance during use.

• Switch off the appliance

immediately after use.

• Never try to put out a fire or

flames with water: Turn off the

appliance and smother the flames

with a fire blanket or other

appropriate cover.

• The appliance must never be

cleaned by unsupervised children.

• Have qualified personnel carry

out installation and assistance

interventions according to the

standards in force.

• Do not modify this appliance.

• Do not insert pointed metal

objects (cutlery or utensils) into the

slots in the appliance.

• Do not try to repair the appliance

yourself or without the intervention

of a qualified technician.

• If the power supply cable is

damaged, contact technical

support immediately and they will

replace it.

Risk of damaging the appliance

• Do not use abrasive or corrosive

detergents (e.g. scouring

powders, stain removers and

metallic sponges) on glass parts.

• Use wooden or plastic utensils.

• Do not seat on the appliance.

• Do not use steam jets to clean the

appliance.

• Do not obstruct ventilation

openings and heat dispersal slots.

• Never leave the appliance

unattended during cooking

operations where fats or oils

could be released.

• Never leave objects on the

cooking surface.

• Do not use the appliance to heat

rooms for any reason.

Instructions

For this appliance

• Ensure that the appliance is switched off

before replacing the bulb.

• Do not rest any weight or sit on the open

door of the appliance.

• Take care that no objects are stuck in the

doors.

1.2 Manufacturer liability

The manufacturer declines all liability for

damage to persons or property caused by:

• Use of the appliance other than that

specified;

• Non-observance of the user manual

provisions;

• Tampering with any part of the

appliance;

• Use of non-original spare parts.

1.3 Appliance purpose

• This appliance is intended for cooking

food in the home environment. Every

other use is considered improper.

• This appliance may be used by children

aged at least 8 and by persons of

reduced physical, sensory or mental

capacity, or lacking in experience in the

use of electrical appliances, provided

that they are supervised or instructed by

adults who are responsible for their safety.

• The appliance is not designed to

operate with external timers or with

remote-control systems.

1.4 Disposal

This appliance must be disposed of

separately from other waste

(Directives 2002/95/EC, 2002/

96/EC, 2003/108/EC). The appliance

does not contain substances in quantities

sufficient to be considered hazardous to

health and the environment, in accordance

with current European directives.

To dispose of the appliance:

• Cut the power supply cable and remove

it along with the plug.

• Deliver the appliance to the appropriate

recycling centre for electrical and

electronic equipment waste, or return it to

the retailer when purchasing an

equivalent product, on a one for one basis.

Power voltage

Danger of electrocution

• Disconnect the mains supply.

• Unplug the appliance.

Instructions

Our appliances are packed in non-

polluting and recyclable materials.

• Deliver the packing materials to the

appropriate recycling centre.

1.5 Identification plate

The identification plate bears the technical

data, serial number and brand name of the

appliance. Do not remove the identification

plate for any reason.

1.6 This user manual

This user manual is an integral part of the

appliance and must therefore be kept in its

entirety and within the user’s reach for the

whole working life of the appliance.

Read this user manual carefully before using

the appliance.

1.7 How to read the user manual

This user manual uses the following reading

conventions:

1. Sequence of instructions for use.

• Standalone instruction.

Plastic packaging

Danger of suffocation

• Do not leave the packaging or any part

of it unattended.

• Do not let children play with the

packaging plastic bags.

Instructions

General information on this user

manual, on safety and final

disposal.

Description

Description of the appliance and its

accessories.

Use

Information on the use of the

appliance and its accessories,

cooking advice.

Cleaning and maintenance

Information for proper cleaning and

maintenance of the appliance.

Installation

Information for the qualified

technician: Installation, operation

and inspection.

Safety instructions

Information

Advice

Description

2 Description

2.1 General Description

1 Upstand

2 Cooking hob

3 Control panel

4 Oven light

5 Seal

6 Door

7 Fan

8 Storage compartment

Rack/tray support frame shelf

Description

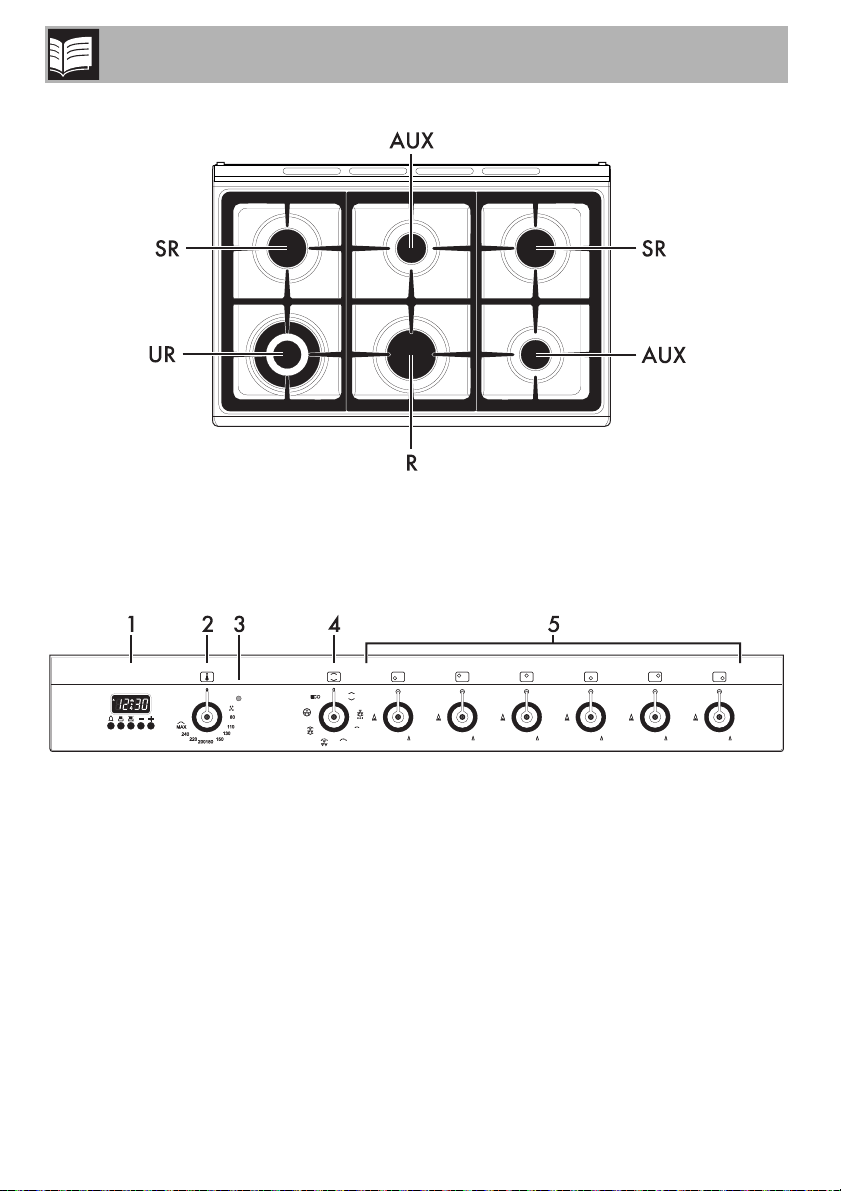

2.2 Cooking hob

AUX = Auxiliary

SR = Semi-rapid

R = Rapid

UR = Ultra rapid

2.3 Control panel

1 Programmer clock

For displaying the current time, setting

programmed cooking operations and the

timer.

2 Temperature knob

This knob allows you to select the cooking

temperature.

Turn the knob clockwise to the required

value, between the minimum and maximum

setting.

3 Indicator light

The indicator light comes on to indicate that

the oven is heating up. It turns off as soon as

it reaches the set temperature. It flashes

regularly to indicate that the temperature set

inside the oven is kept constant.

4 Function knob

The oven’s various functions are suitable for

different cooking modes. After selecting the

required function, set the cooking

temperature using the temperature knob.

Description

5 Hob burner knobs

Useful for lighting and adjusting the hob

burners.

Press and turn the knobs anti-clockwise to

the value to light the relative burners.

Turn the knobs to the zone between the

maximum and minimum setting to

adjust the flame.

Return the knobs to the position to turn

off the burners.

2.4 Other parts

Shelves

The appliance features shelves to position

trays and racks at different heights. The

insertion heights are indicated from the

bottom upwards (see 2.1 General

Description).

Cooling fan

The fan cools the oven and comes into

operation during cooking.

The fan causes a steady outflow of air that

exits from the rear of the appliance and

which may continue for a brief period of

time even after the appliance has been

turned off.

Interior lighting

The appliance interior lighting comes on:

• When the door is opened

• When any function is selected, apart

from the function.

Do not obstruct ventilation

openings and heat dispersal slots.

Description

2.5 Available accessories

Ring reducers

Useful when using small cookware.

WOK ring

Useful when using a wok.

Rack

Useful for supporting containers with food

during cooking.

Deep tray

Useful for collecting fat from foods placed

on the rack above.

Some models are not provided

with all accessories.

Use

3 Use

3.1 Instructions

High temperature inside the oven

during use

Danger of burns

• Keep the oven door closed during

cooking.

• Protect your hands wearing heat

resistant gloves when moving food

inside the oven.

• Do not touch the heating elements inside

the oven.

• Do not pour water directly onto very hot

trays.

• Do not allow children younger than 8

years old to come near the appliance

when in operation.

• If you need to move food or at the end

of cooking, open the door 5 cm for a

few seconds, let the steam come out,

then open it fully.

Improper use

Danger of burns

• Make sure that the flame-spreader

crowns are correctly positioned in their

housings with their respective burner

caps.

• Oils and fats could catch fire if

overheated. Be very careful.

Improper use

Risk of damage to surfaces

• Do not cover the bottom of the oven

cavity with aluminium or tin foil sheets.

• If you wish to use greaseproof paper,

place it so that it will not interfere with the

hot air circulation inside the oven.

• Do not place pans or trays directly on

the bottom of the oven cavity.

• Do not use the open door to rest pans or

trays on the internal glass pane.

• Do not pour water directly onto very hot

trays.

• Cooking vessels or griddle plates

should be placed inside the perimeter of

the hob.

• All pans must have smooth, flat bottoms.

• If any liquid does boil over or spill,

remove the excess from the hob.

High temperature inside the

storage compartment

Danger of burns

• Do not open the storage compartment

when the oven is on and still hot.

• The items inside the storage

compartment could be very hot after

using the oven.

Use

3.2 First use

1. Remove any protective film from the

outside or inside of the appliance,

including accessories.

2. Remove any labels (apart from the

technical data plate) from the

accessories and from the cooking

compartments.

3. Remove and wash all the appliance

accessories (see 4 Cleaning and

maintenance).

4. Heat the empty oven at the maximum

temperature to burn off any residues left

by the manufacturing process.

3.3 Using the accessories

Ring reducers

The ring reducers have to be placed on the

hob grids. Make sure they are properly

placed.

High temperature inside the oven

during use

Danger of fire or explosion

• Do not spray any spray products near

the oven.

• Do not use or leave flammable materials

near the oven or the storage

compartment.

• Do not use plastic kitchenware or

containers when cooking food.

• Do not put sealed tins or containers in

the oven.

• Do not leave the oven unattended

during cooking operations where fats or

oils could be released.

• Remove all trays and racks which are

not required during cooking.

Tabla de contenidos

Otros manuales de Estufa de Smeg

Smeg

Smeg Portofino Aesthetic CPF120IGMPWH Manual de usuario

Smeg

Smeg C6IMXI9 Manual de usuario

Smeg

Smeg CX51VE Manual de usuario

Smeg

Smeg FS67MFX Manual de usuario

Smeg

Smeg Victoria TR4110IGR Manual de usuario

Smeg

Smeg TR90 Manual de instrucciones

Smeg

Smeg SA9065XS Manual de usuario

Smeg

Smeg C9MAMBSSA2 Manual de usuario

Smeg

Smeg SY4110 Manual de usuario

Smeg

Smeg B60GMXI9 Manual de usuario

Smeg

Smeg B603MFV Manual de usuario

Smeg

Smeg C9GMXA Manual de usuario

Smeg

Smeg Mista Aesthetic B601GMXI9 Manual de usuario

Smeg

Smeg TR90P9 Manual de usuario

Smeg

Smeg TR4110P1 Manual de usuario

Smeg

Smeg Classica CX60ISVT9 Manual de usuario

Smeg

Smeg Portofino CPF9IPYW Manual de usuario

Smeg

Smeg CE9CMX Manual de usuario

Smeg

Smeg Victoria TR90IGR Manual de usuario

Smeg

Smeg A42C-2 Manual de usuario

Smeg

Smeg Classica CG90IANT9 Manual de usuario

Smeg

Smeg FS9010XS Manual de usuario

Smeg

Smeg Victoria TR90GR2 Manual de usuario

Smeg

Smeg Concert SUK92CMX9 Manual de usuario

Manuales populares de Estufa de otras marcas

Modena

Modena FC 7645 SGM Manual del propietario

Electrolux

Electrolux Insight EKG6049 Manual de usuario

Stanley

Stanley Donard 60 Manual de usuario

Bartscher

Bartscher 201TC Manual de usuario

Parkinson Cowan

Parkinson Cowan 50 GR/BU Manual de usuario

Siemens

Siemens HK9P00020U Manual de usuario

Creda

Creda S150E Guía

Creda

Creda HB48309 Manual de usuario

Bosch

Bosch HCE743220F Manual de usuario

Tricity Bendix

Tricity Bendix SE545P Manual de usuario

NEFF

NEFF E1461A2/01 Manual de usuario

Zanussi

Zanussi ZCM 700 X Manual de usuario

RiverGrille

RiverGrille TF2002501-RG Manual de usuario

Vollrath

Vollrath 69504F Manual de usuario

Tricity Bendix

Tricity Bendix CSIE500 Manual de usuario

AEG

AEG Competence 5731 V Manual de usuario

Euromaid

Euromaid ES60 Manual de usuario

Hotpoint

Hotpoint HUI 62 TP Manual de usuario
