Product Overview

SMCWBR11S-N

150Mbps Wireless N Mini Broadband Router

The SMCWBR11S-N is an all-in-one networking solution for connecting and sharing

a high speed Internet connection. This multi-functional broadband router combines

Internet access sharing, with a 150Mbps wireless access point, a NAT/ SPI firewall

for online security and a user-friendly web-based management interface in one

convenient device. With security being a key consideration, the SMCWBR11S-N

supports the latest WPA and WPA2 wireless encryption standards, which prevent

unauthorized access to wireless networks.

Key Features and Benefits

Advanced, Robust Security

The SMCWBR11S-N features a NAT Firewall with Stateful Packet

Inspection (SPI) to protect the internal network from hacker attacks.

Wireless security is comprehensive and includes WPA/WPA2 as well as a

WPS button for the ultimate convenience of one touch secure connectivity.

Easy to Set up

The SMCWBR11S-N includes the EZ Installation Wizard. Just insert the EZ

installation CD in your CD-ROM drive, follow the on-screen instructions and

start using your router within minutes.

Feature-rich

The SMCWBR11S-N comes with numerous features to meet your

requirements including Wireless Distribution System (WDS), Dual SSIDs,

Static Routing, Wi-Fi Multimedia (WMM) and more.

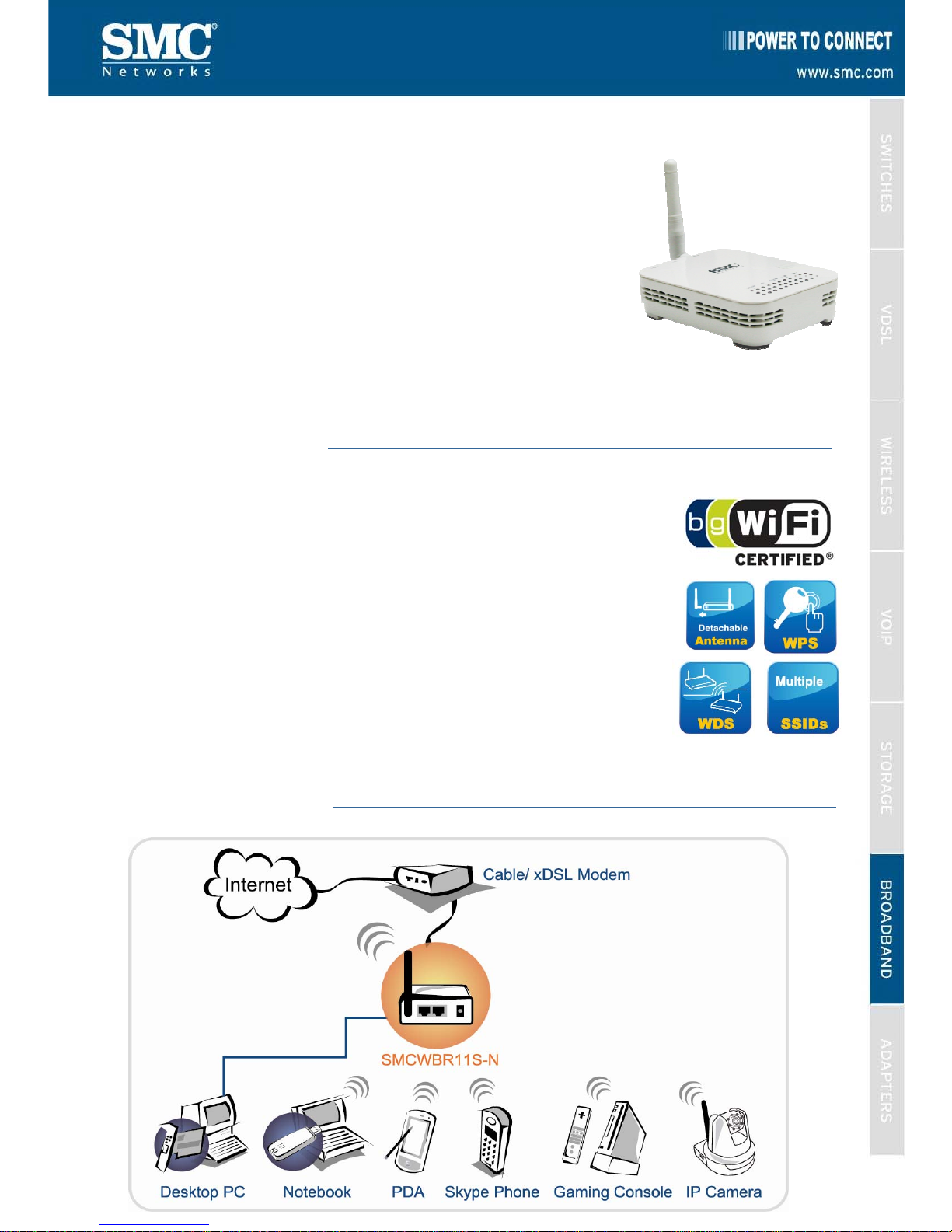

Application Diagram

POWER REQUIREMENTS

• Input Voltage: 100V AC to 240V AC, 50 / 60Hz

• Output Power: 12V DC, 1A

SYSTEM REQUIREMENTS

• Cable/DSL Internet service and Ethernet modem.

• 2.4GHz 802.11b/g/n wireless adapter installed on each PC.

• Alternatively an Ethernet adapter can be used.

• Internet Explorer 5.5 or above, Mozilla Firefox 1.0 or above.

• We recommend using this product with SMCWUSBS-N3

wireless USB adapter.

PACKAGE CONTENTS

• 1x SMCWBR11S-N

• 1x Power adapter: 12V, 1A

• 1x RJ45 cable

•1xQIG

• 1x CD with EZ Installation + Documentation

• 1x Warranty information card

WARRANTY

Please check

PHYSICAL

• 1x 10/100Mbps WAN port

• 1x 10/100Mbps LAN port

• 1x external detachable 2 dBi antenna (RP-SMA)

• 1x WPS button

• 1x Reset button

MANAGEMENT FEATURES

• EZ Installation Wizard

• Web-based management interface (HTTP)

• Remote management

• SNTP time synchronize

SECURITY FEATURES

• NAT Firewall with Stateful Packet Inspection (SPI)

• Access Control

• MAC filter

• URL Blocking

•DMZHost

• Disable SSID Broadcast

• MAC Address Filtering

• WEP 64-/128-Bit Encryption

• WPA/WPA2-PSK (Pre-Shared Key)

• WPA/WPA2 Enterprise mode (IEEE802.1x)

• Wi-Fi Protected Setup (WPS)

ROUTER FEATURES

• Shared, high speed 3G/cable/xDSL Internet connection

• 10/100Mbps LAN port with auto MDI-MDIX

• Built-in 150Mbps Wireless Access Point

• Static Routing

• NAT with ALGs

• Wi-Fi Multimendia (WMM)

•IGMPProxy

•DualSSIDs

• Firmware upgrade via web-UI

STANDARDS

• Wired: IEEE 802.3 (10Base-T)

IEEE 802.3u (100Base-TX)

• Wireless: IEEE 802.11b

IEEE 802.11g

based on IEEE 802.11n technology

TX Output Power

• 11g/n without antenna 14 dBm +/- 1 dBm

• 11b without antenna 17 dBm +/- 1 dBm

OPERATING FREQUENCY

• FCC: 2412~2462MHz (Ch1~Ch11)

• ETSI: 2412~2472MHz (Ch1~Ch13)

• Japan: 2412~2484MHz (Ch1~Ch14)

TEMPERATURE

• Operating: 0ºC to 40ºC (32ºF to 104ºF)

• Storage: -20ºC to 60ºC (-4ºF to 140ºF)

HUMIDITY

• Operating: 10% to 85% Non-Condensing

• Storage: 5% to 90% Non-Condensing

DIMENSIONS

• 93 x 70 x 26 mm

WEIGHT

•74g

www.smc.com for the warranty terms in your

country/region

Features

Contact

North America

20 Mason, Irvine,

CA 92618, U.S.A.

1-800-SMC-4YOU

24/7 Technical Support

Europe/Africa

Fructuos Gelabert 6-8

08970 Sant Joan Despi

Barcelona, Spain

SMC Networks Asia Pacific

1 Coleman Street

#07-09, The Adelphi

Singapore 179803

Tel : 65-63387667 Fax : 65-63387767

Taiwan

No. 1 Creation Rd, lll,

Science-based Industrial Park,

Hsinchu 30077, Taiwan, R.O.C.

Tel: +886 3 5770270 Fax: +886 3 5780764

Check www.smc.com for your local country contact information

SMC Networks. Other trademarks or registered trademarks are

the property of their respective owners. Information is subject to

V0.15
