SMC Networks Barricade SMC7004VBR Manual de usuario

Cable/DSL Broadband Router

Built-in 4-Port 10/100Mbps Switch

USER GUIDE

SMC7004VBR

7004VBR –Manual

Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However,

no responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights

of third parties which may result from its use. No license is granted by implication or otherwise under

any patent or patent rights of SMC. SMC reserves the right to change specifications at any time

without notice.

SMC Networks, Inc.

38 Tesla

Irvine, CA 92618

Trademarks:

SMC is a registered trademark; and Barricade is a trademark of SMC Networks, Inc. Other product

and company names are trademarks or registered trademarks of their respective holders.

7004VBR –Manual

TABLE OF CONTENTS

CHAPTER 1 | Introduction

Features and Benefits

Package Contents

Minimum Requirements

CHAPTER 2 | Getting to know the Barricade

LED Indicators

Resetting the Barricade

CHAPTER 3 | Getting Connected

Basic Installation Procedure

3-click Installation Wizard

CHAPTER 4 | Configuring your Computer

Configuring Windows 95/98/Me

Configuring Windows 2000

Configuring Windows XP

Configuring a Macintosh Computer

CHAPTER 5 | Configuring the Barricade

Browser Configuration

Disable Proxy Connection

Accessing the Barricade Management

Navigating the Web-based Administration

Making Configuration Changes

Setup Wizard

Advanced Setup

Chapter 7 | Setting up the Print Server

Install the SMC Printer Port Monitor

Configure the Print Server using the SMC Printer Port Monitor

Configure LPR port on Windows 2000/XP

Confirm printer Connection

APPENDIX A | Troubleshooting

APPENDIX B | Technical Specifications

APPENDIX C | Warranty

APPENDIX D | Compliances

APPENDIX E | Technical Support

7004VBR –Manual

CHAPTER 1 | Introduction

Congratulations on your purchase of a Barricade™ Cable/DSL Broadband Router (SMC7004VBR).

SMC is proud to provide you with a powerful yet simple communication device for connecting your

local area network (LAN) to the Internet.

1.0 | Features and Benefits

•EZ 3-Click Installation Wizard -A new and improved way to install your Barricade. In 3

simple clicks, you will be connected to the Internet.

•Internet connection to DSL or cable modem via a 10/100 Mbps WAN port

•Local network connection via 10/100 Mbps Ethernet switch ports

•DHCP for dynamic IP configuration, and DNS for domain name mapping

•Firewall with Stateful Packet Inspection, client privileges, hacker prevention, DoS, and NAT

•NAT also enables multi-user access with a single-user account, and virtual server

functionality (providing protected access to Internet services such as web, mail, FTP, and

Telnet)

•Virtual Private Network support using PPTP, L2TP, or IPSec pass-through

•User-definable application sensing tunnel supports applications requiring multiple connections

•Parental controls allows the user to block access to certain web sites

•Email alerts when the users network is being compromised

•Easy setup through a web browser on any operating system that supports TCP/IP

•Compatible with all popular Internet applications

1.1 | Package Contents

Before installing the Barricade™ Cable/DSL Broadband Router, verify that you have the items listed

under “Package Contents.” Also be sure that you have the necessary cabling. If any of the items are

missing or damaged, contact your local SMC distributor.

•Barricade Broadband Router

•Power adapter

•One CAT-5 Ethernet cable

•Four rubber feet

•CD with User Guide and EZ 3-Click Installation Wizard

•Quick Installation Guide

If possible, retain the carton and original packing materials in case there is a need to return the

product.

1.2 | Minimum Requirements

•Cable or DSL Modem with Ethernet connection and Internet access from your local telephone

company or Internet Service Provider (ISP) using a DSL modem or cable modem.

•A computer equipped with a 10 Mbps, 100 Mbps, or 10/100 Mbps Fast Ethernet card, or

USB-to-Ethernet converter.

•Network adapter with Ethernet (UTP CAT 5) cabling and TCP/IP protocol installed per PC

•Internet Explorer 4.0 (or Higher) or Netscape Navigator 4.7 (or Higher) for Web-based

configuration of the Barricade

7004VBR –Manual

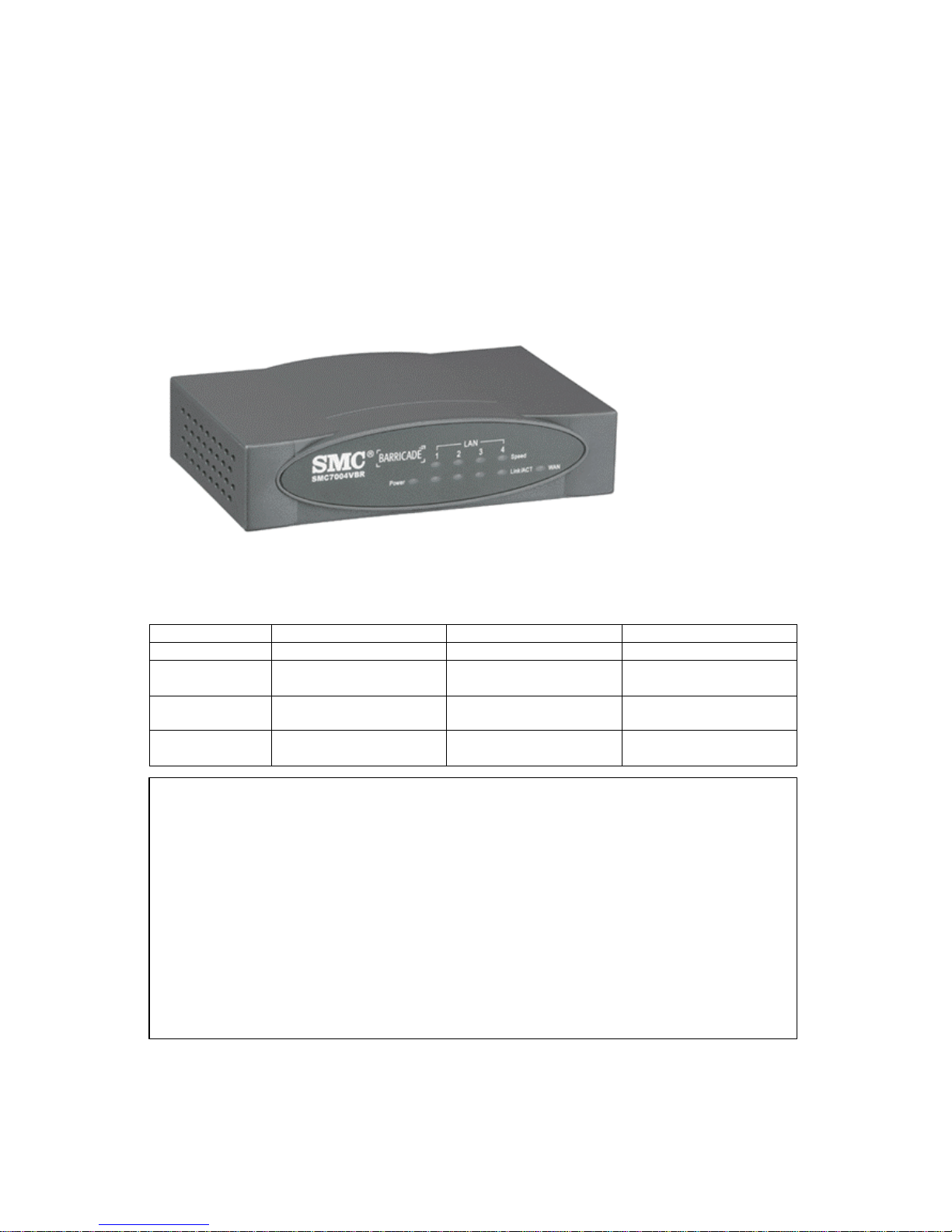

CHAPTER 2 | Getting to Know the Barricade

The SMC7004VBR Barricade Cable/DSL Broadband Router is the perfect solution for the home/office

environment. This full-featured router offers:

•4 -10/100 Mbps Auto-Sensing LAN ports with Auto-MDI MDIX feature

•1 -10/100 Mbps WAN port with Auto-MDI MDIX feature

•Comprehensive LEDs for network status and troubleshooting

•Reset Button

2.1 | LED Indicators

The Barricade includes LED indicators on the front panel that simplify installation and network

troubleshooting.

LED ON OFF FLASHING

POWER Receiving power Not receiving power N/A

WAN Good WAN connection

detected No WAN connection

detected Transmitting or receiving

traffic

LINK/ACT Good LAN connection

detected No LAN connection

detected Transmitting or receiving

traffic

10/100 Mbps LAN port operating at

100 Mbps LAN port operating at 10

Mbps N/A

Resetting the Barricade

The Reset button is located on the rear panel of the Barricade Broadband Router. Use a paper clip or

a pencil tip to push the Reset button.

Reset

If the Router is having problems connecting to the Internet, simply unplug the router for 3 seconds

then plug back in.

Restore Factory Defaults

If resetting the router does not resolve your issue, then you can follow these steps:

1. Leave power plugged into the router

2. Locate the reset button on the back panel, press and hold until WAN LED flashes off.

3. Release reset button.

7004VBR –Manual

CHAPTER 3 | Getting Connected

The SMC7004VBR Barricade Cable/DSL Broadband router is connected between the Cable/DSL

Broadband Modem and your computers. If you have more then one computer to connect, simply

plug the other computers into the LAN ports on the back of the router.

3.1 | Basic Installation Procedure

1. Connect the LAN

Run an Ethernet cable from one of the LAN ports on the back of the Barricade to your

computer’s network adapter.

2. Connect the WAN

Connect an Ethernet cable from your cable or DSL modem to the Barricade’s WAN port on

the back on the router.

3. Power on

Connect the power cable to the Barricade.

Once you have completed connecting all of the hardware, simply insert the Barricade CD-ROM and

the EZ 3-Click Installation Wizard will automatically connect you to the Internet.

For manual configuration of the PCs, see Chapter 4.

For advanced configuration of the Barricade Broadband Router, see Chapter 5.

MODEM

COMPUTER

7004VBR –Manual

CHAPTER 4 | Configuring your Computer

The information outlined in this chapter will guide you through the configuration for the following

Operating Systems:

•Windows 95/98

•Windows Me

•Windows 2000

•Windows XP

•Apple Macintosh

4.1 | Configuring Windows 95/98/Me

1. Access your Network settings by clicking [Start], choose [Settings], and then select [Control

Panel].

2. In the Control Panel, locate and double-click the [Network] icon.

3. Highlight the TCP/IP line that has been assigned to your network card on the [Configuration]

tab of the [Network] properties window.

4. Next, click the [Properties] button to view that adapter’s TCP/IP settings.

7004VBR –Manual

5. From the TCP/IP Properties dialog box, click the [Obtain an IP address automatically] option.

6. Next click on the [Gateway] tab and verify the Gateway field is blank. If there are IP

addresses listed in the Gateway section, highlight each one and click [Remove] until the

section is empty.

7. Click the [OK] button to close the TCP/IP Properties window.

8. On the Network Properties Window, click the [OK] button to save these new changes.

NOTE: Windows may ask you for the original Windows installation disk or additional files.

Check for the files at c:\windows\options\cabs, or insert your Windows CD-ROM into your

CD-ROM drive and check the correct file location, for example, D:\win98, D:\win9x. (assume

“D” is your CD-ROM drive).

9. Windows may prompt you to restart the PC. If so, click the [Yes] button. If Windows does

not prompt you to restart your computer, do so anyways to ensure your settings.

4.2 | Configuring Windows 2000

1. Access your Network settings by clicking [Start], choose [Settings], and then select [Control

Panel]

2. In the Control Panel, locate and double-click the [Network and Dial-up Connections] icon

3. Locate and double-click the [Local Area Connection] icon for the Ethernet adapter that is

connected to the Barricade. When the Status dialog box window opens, click the [Properties]

button.

4. On the [Local Area Connection] Properties box, verify the box next to Internet Protocol

(TCP/IP) is checked. Then highlight the Internet Protocol (TCP/IP), and click the Properties

button.

5. Select Obtain an IP address automatically to configure your computer for DHCP. Click the

[OK] button to save this change and close the Properties window.

6. Click the [OK] button again to save these new changes.

7. Reboot your PC.

7004VBR –Manual

4.3 | Configuring Windows XP

The following instructions assume you are running Windows XP with the default interface. If you are

using the Classic interface (where the icons and menus look like previous Windows versions), please

follow the instructions for Windows 2000 outlined above.

1. Access your Network settings by clicking [Start], choose [Control Panel], select [Network and

Internet Connections] and then click on the [Network Connections] icon.

2. Locate and double-click the Local Area Connection icon for the Ethernet adapter that is

connected to the Barricade Router. Next, click the [Properties] button.

3. On the [Local Area Connection] Properties box, verify the box next to Internet Protocol

(TCP/IP) is checked. Then highlight the Internet Protocol (TCP/IP), and click the Properties

button.

4. Select Obtain an IP address automatically to configure your computer for DHCP. Click the

[OK] button to save this change and close the Properties window.

5. Click the [OK] button again to save these new changes.

6. Reboot your PC.

4.4 | Configuring a Macintosh Computer

You may find that the instructions here do not exactly match your screen. This is because these

steps and screenshots were created using Mac OS 8.5. Mac OS 7.x and above are all very similar, but

may not be identical to Mac OS 8.5.

1. Pull down the Apple Menu. Click [Control Panel] and select TCP/IP.

2. In the TCP/IP dialog box, make sure that [Ethernet] is selected in the [Connect Via:] field.

If [Using DHCP Server] is already selected in the [Configure] field, your computer is already

configured for DHCP. Close the TCP/IP dialog box, and skip to Step 2 Disable HTTP Proxy

(bottom of this page).

3. All the information that you need to record is on the [TCP/IP] dialog box. Use the space

below to record the information.

4. Select [Using DHCP Server] in the [Configure] field and close the window.

5. Another box will appear asking whether you want to save your TCP/IP settings. Click [Save].

7004VBR –Manual

CHAPTER 5 | Configuring the Barricade

After you have configured TCP/IP on a client computer, use a web browser to configure the

Barricade™ Broadband Router. The Barricade can be configured by any Java-supported browser

including Internet Explorer 4.0 or above, or Netscape Navigator 4.7 or above. Using the web

management interface, you may configure the Barricade and view statistics to monitor network

activity.

Before you attempt to log into the Barricade’s Web-based Administration, please verify the following:

1. Your browser is configured properly. (see below)

2. Disable any firewall or security software that may be running.

3. Confirm that you have a good “link” LED where your computer is plugged into the Barricade.

If you don’t have a “link” light, try another cable until you get a good link.

5.1 | Browser Configuration

Confirm your browser is configured for a direct connection to the Internet using the Ethernet cable that

is installed in the computer. This is configured through the options/preference section of your browser.

5.2 | Disable Proxy Connection

You will also need to verify that the “HTTP Proxy” feature of your web browser is disabled. This is so

that your web browser will be able to view the Barricade configuration pages. The following steps are

for Internet Explorer and for Netscape. Determine which browser you use and follow the appropriate

steps.

Internet Explorer (5 or above)

1. Open Internet Explorer. Click [Tools], and then select [Internet Options].

2. In the [Internet Options] window, click the [Connections] tab.

3. Click the [LAN Settings] button.

4. Clear all the check boxes and click [OK] to save these LAN settings changes.

5. Click [OK] again to close the [Internet Options] window.

Netscape (4 or above)

1. Open Netscape. Click [Edit], and then select [Preferences].

2. In the [Preferences] window, under [Category], double-click [Advanced], then select the

[Proxies] option.

3. Check [Direct connection to the Internet].

4. Click the [OK] button to save the changes.

NOTE: Before you attempt to configure your router, if you have access to the Internet

please visit www.smc.com and download the latest firmware update.

Otros manuales para Barricade SMC7004VBR

Tabla de contenidos

Otros manuales de Enrutador inalámbrico de SMC Networks

SMC Networks

SMC Networks Barricade SMC7908VoWBRA Manual de usuario

SMC Networks

SMC Networks WBR14S-N FICHE Guía de instalación

SMC Networks

SMC Networks Barricade Plus Manual de usuario

SMC Networks

SMC Networks Barricade SMC7904BRA Manual de usuario

SMC Networks

SMC Networks Barricade SMC7904WBRA Manual de usuario

SMC Networks

SMC Networks WGBR14-N - annexe 1 Manual de usuario

SMC Networks

SMC Networks WBR14-GM Manual de usuario

SMC Networks

SMC Networks Barricade SMC7004VWBR Manual de usuario

SMC Networks

SMC Networks Barricade SMC2404WBR Manual de usuario

SMC Networks

SMC Networks Barricade SMC7004VBR Manual de usuario

SMC Networks

SMC Networks SMCWBR14-GM Barricade Manual de usuario

SMC Networks

SMC Networks EZ-Stream SMC2304WBR-AG Manual de usuario

SMC Networks

SMC Networks SMC Barricade N Draft 11n Wireless 4-port Broadband Router... Guía de instalación

SMC Networks

SMC Networks Barricade SMC7008ABR Manual de usuario

SMC Networks

SMC Networks Barricade SMCWBR14S-N3 Guía de instalación

SMC Networks

SMC Networks BR18VPN Manual de usuario

SMC Networks

SMC Networks Barricade SMCWGBR14-N Manual de usuario

SMC Networks

SMC Networks SMC7904WBRAS-N2 V2 - QUICK Manual de usuario

SMC Networks

SMC Networks 7004AWBR Manual de usuario

SMC Networks

SMC Networks 7904WBRB4 FICHE Instrucciones de funcionamiento y seguridad

SMC Networks

SMC Networks 7904WBRB4 FICHE Manual de usuario

SMC Networks

SMC Networks 7904WBRA2 Manual de usuario

SMC Networks

SMC Networks Barricade g SMC7804WBRA Manual de usuario

SMC Networks

SMC Networks Barricade SMC7908VoWBRA Manual de usuario

Manuales populares de Enrutador inalámbrico de otras marcas

Milesight

Milesight UG67 Manual de usuario

Airlogic

Airlogic AirSync Class 1 Manual del propietario

Samsung

Samsung WCH730B Manual de usuario

TELEFONICA

TELEFONICA USB Adapter Manual de usuario

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Manual de usuario

Askey

Askey RAC2V1K Manual de usuario

Alloy

Alloy WLF2454AP-S Manual de usuario

TP-Link

TP-Link TL-WR542G Manual de usuario

NETGEAR

NETGEAR WNR2000v4 Manual de usuario

Hama

Hama 53120 Manual de usuario

Intellinet

Intellinet 524582 Manual de usuario

Asus

Asus RT-N10P Manual de usuario

D-Link

D-Link DIR-506L Manual de usuario

Sapido

Sapido GR297n Manual de usuario

Asus

Asus DSL-N55U Manual de usuario

AMTC

AMTC WR7502 Manual de usuario

Compaq

Compaq CP-2W - iPAQ Connection Point Manual de usuario

Draytek

Draytek Vigor2120 Series Manual de usuario
