Overview

0101001100100100010010110010101010011010010

SMC105DT

Model Number::

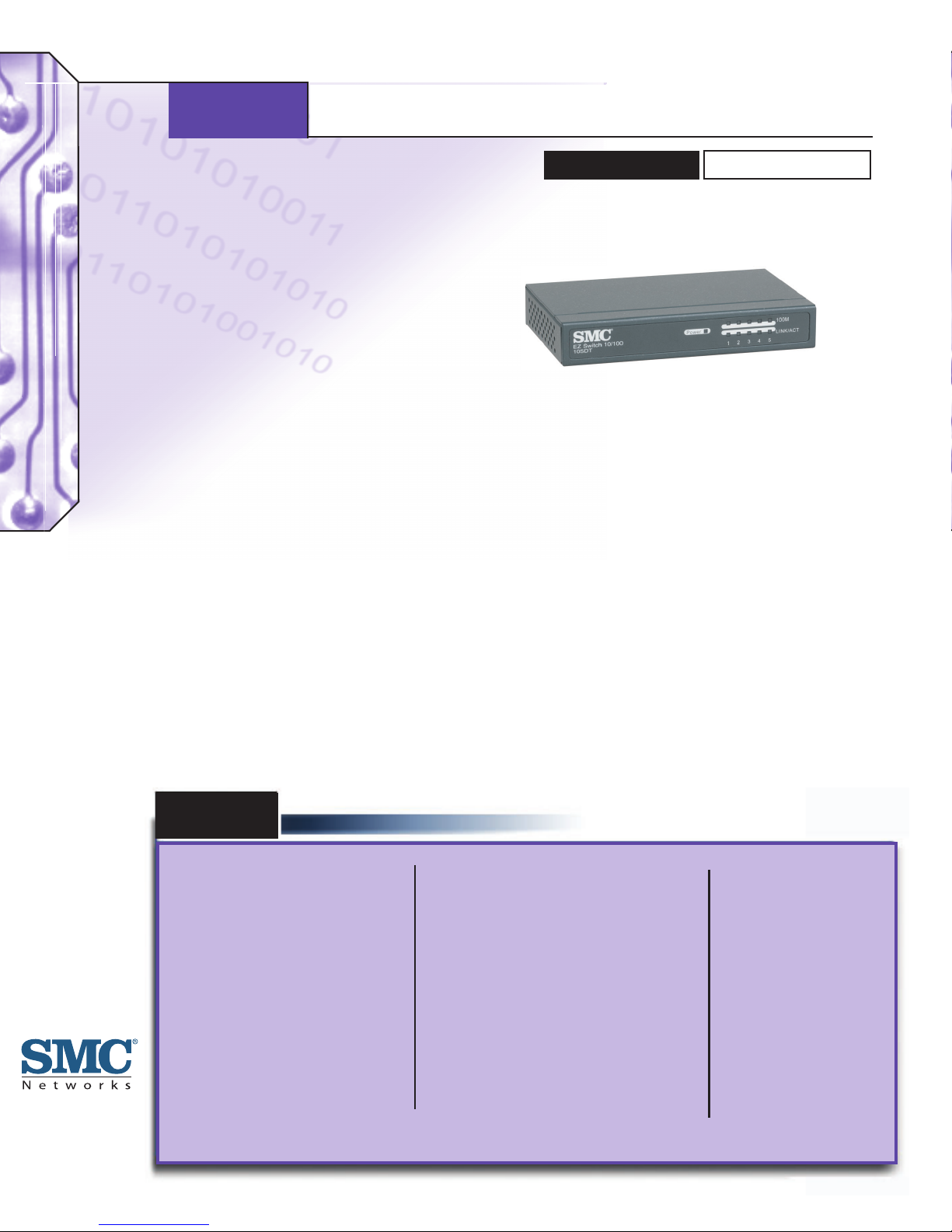

EZ SwitchTM 10/100

5-port Fast Ethernet Switch

Features

•Auto-negotiation of half or full duplex,

and auto-sensing of transmission

speed, on all ports

•Autoconfiguration for MDI/MDI-X

cable connections

•ANSI/IEEE 802.3u compliant

•Store-and-forward support

•“At-a-Glance LEDs”

•Small form factor

•External power supply

•Mountable on metal surfaces

Benefits

•Half and full-duplex flow control prevents packets

from being dropped under heavy loading

•Plug-n-Play ensures ease of implementation and

use. Allows connections to servers, workstations,

hubs or switches to be made with straight-through

cables or cross-over cable

•Standards-based technology ensures interoperability

between various IEEE-based products

•Store-and-forward architecture prevents

propagation of bad packets

•Intuitive status indicators allow for simple switch

and network diagnostics

•Canbeconveniently mounted on a metal surface

with included magnets or positioned on the

desktop

Compatibility

• IEEE 802.3

• IEEE802.3u

• IEEE802.3x

SMC’s EZ Switch™ 10/100 is a palm-sized 5-port

Fast Ethernet switch that delivers dedicated

10/100Mbps links to each attached LAN segment

– all with conventional cabling and adapters.

SMC’s EZ Switch™ 10/100 offers a simple, cost-

effective strategy for integrating Fast Ethernet

into your Ethernet network. Auto-negotiation is

used to select the optimal communication mode

for each connection. With store-and-forward

switching and flow control, maximum data

integrity is always maintained, even under heavy

loading. Easy installation,“At-a-Glance LEDs”, and

its ability to be mounted on any metal surface

make this plug-n-play switch an ideal choice for

smooth Fast Ethernet integration.

Managed &

Unmanaged

Switches

38 Tesla

Irvine, CA 92618

1-800-SMC-4YOU

www.smc.com

SPECIFICATIONS

Product Description

SMC105DT EZSwitch™ 5-port 10/100 Fast Ethernet Switch

0101001100100100010010110010101010011010010

Ports

•510/100 Mbps RJ-45 auto-MDI/MDI-X

LEDs

•Power–one

•Link/ACT–one per port

•100M – one per port

Switching method

•Store-and-forward

MAC Address Table

•4Kentriesper system

Memory Buffer

•1MB

Weight

•0.55lbs

Dimensions

•4.3inx2.8in x 0.75in

Temperature

•Operating: 0ºC to 45ºC (32ºF to 113ºF)

•Storage: -40ºC to 70ºC (-40ºF to 158ºF)

Humidity

•Non-Condensing: 10% to 90%

Power Requirements

•DC 9V, 800mA

Power Consumption

•4Watt

Maximum Current

•0.5A@110VAC

•0.22@240VAC

Standards

•IEEE802.3

•IEEE802.3u

•IEEE802.3x

Certification

•CEMark

Safety

•UL

EMI

•FCCClass B

Warranty

•LimitedLifetime

EZ SwitchTM 10/100

5-port Fast Ethernet Switch

SMC105DT

Managed &

Unmanaged

Switches
