SMC Networks HPAV-ETH Manual de usuario

EZ Connect N

Draft 11n Wireless USB2.0 Adapter

EZ Connect Powerline™

200Mbps HomePlug AV Adapter

SMCHPAV-ETH

Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable.

However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or

other rights of third parties which may result from its use. No license is granted by implication or

otherwise under any patent or patent rights of SMC. SMC reserves the right to change

specifications at any time without notice.

SMC Networks, Inc.

20 Mason

Irvine, CA 92618

Trademarks:

SMC is a registered trademark; and EZ Connect Powerline is a trademark of SMC Networks, Inc.

Other product and company names are trademarks or registered trademarks of their respective

holders.

Warranty and

Product Registration

To register SMC products and to review the detailed warranty statement, please refer to the Support

Section of the SMC Website at http://www.smc.com

SMC Networks, Inc.

20 Mason

Irvine, CA 92618

Compliances

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try

to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the distance between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

FCC Caution: To assure continued compliance, (example - use only shielded interface cables when

connecting to computer or peripheral devices) any changes or modifications not expressly approved by

the party responsible for compliance could void the user’s authority to operate this equipment.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with a minimum distance of 20cm between the

radiator and your body. This transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter..

EC Declaration of Conformity

SMC contact for these products in Europe is:

SMC Networks Spain, S.L.

Edificio Conata II,

Group CTSG

Fructuos Gelabert 6-8 2o2a

08970 Sant Joan Despi, Barcolona,Spain

This product indicates compliance with the Essential Requirements of the EMC Directive

(2004/108/EC) and the LVD Directive (2006/95/EC) of the European Union. This equipment

meets the following conformance standards.

EN 55022:2006 CISPR/I/XX/CDV Opt B

EN 61000-3-2 : 2006

EN 61000-3-3 : 1995+A1:2001+A2:2005

EN 55024: 1998+A1:2001+A2:2003

IEC 61000-4-2: 1995+A1:1998+A2:2000; IEC 61000-4-3:2006; IEC

61000-4-4: 2004;

IEC

61000-4-5: 2005;

IEC

61000-4-6:2007;

IEC

61000-4-8:1993+A1:2000;

IEC

61000-4-11: 2004

60950-1:

2006

Index

Preface…………………………………………………………………………............... 6

Important Safety Instructions………………………………………………………… 6

Chapter 1 Installation Notice………………………………….................................. 8

Chapter 2 Product Installation Guide……………………………………………….. 9

2.1 Installing the local powerline network……….……………………………………. 9

2.2 Sharing a xDSL or cable modem Internet connection………………………….. 9

2.3 Extending a wireless network with powerline to share an Internet connection. 10

Chapter 3 Utility…………………………………………………………………………. 11

3.1 System Requirements……………………………………………………………... 11

3.2 Installation…………………………………………………………………………… 11

3.3 Running the Utility………………………………………………………………….. 12

3.4 How to use…………………………………………………………………………... 13

3.4.1 Main Tab………………………………………………………………………… 13

3.4.2 Privacy Tab……………………………………………………………………... 16

3.4.3 Diagnostics Tab………………………………………………………………… 17

3.4.4 About Tab……………………………………………………………………….. 20

Appendix………………………………………………………………………………..... 21

A-1. Specification……………………………….……………………………………….. 21

A-2. Push buttons……………………….………………………………………………. 23

PREFACE

This document describes the installation of the SMCHPAV-ETH device.

Please read this document before installing the product.

This publication contains the following sections:

Important safety instructions

The first thing you need to know before you begin to install

Product installation guide

Specification

IMPORTANT SAFETY INSTRUCTIONS

This product is intended for connection to the AC power line. For installation instructions,

please refer to the Installation section. For removing the device, refer to the Unplug

section. The following precautions should be considered when using this product.

zPlease read all instructions before installing and operating this product.

zPlease keep all instructions for later reference.

zPlease follow all warnings and instructions marked on the product.

zUnplug the powerline adapter from the power outlet before cleaning the product.

Use a damp cloth for cleaning. DO NOT use liquid or aerosol cleaners.

zDO NOT operate this product near water.

zThis product should never be placed near or over a radiator, or heat register.

zThis product relies on the building’s electrical installation for short-circuit (over

current) protection.

zEnsure that a fuse or circuit breaker no larger than 120VAC/20A or 240VAC/16A

is used on the phase conductors (all current-carrying conductors).

zDO NOT allow anything to rest on the product interconnect cords. DO NOT install

this product where people may walk on the cords.

zBecause the SMCHPAV-ETH device sends data over the powerline, it is

recommended that you plug it directly into a power outlet. Do not plug the device

into a UPS or power strip with surge protection. The SMCHPAV-ETH device has its

own power filter for protection against surges.

zThe product can be operated at an ambient temperature of 40oC.

zFor pluggable equipment, the socket-outlet shall be installed near the equipment

and shall be easily accessible.

zOnly a qualified technician should service this product. Opening or removing

covers may result in exposure to dangerous voltage points or other risks.

zUnplug the powerline adapter from the power outlet and refer the product to

qualified service personnel for the following conditions:

¾When the interconnect cords are damaged or frayed.

¾If liquid has been spilled into the product.

¾If the product has been exposed to rain or water.

¾If the product does not operate normally when the operating instructions are

followed.

¾If the product shows a distinct change in performance.

Chapter 1. Installation notice

The first thing you need to know before you begin to install……

1. Before installing, make sure your PC meets these requirements for hardware

installation:

zMicrosoft Windows® 98SE, ME, 2000, XP, Vista, Mac OS or Linux OS

zPentium® III or better, clock rate faster than 2.0GHz recommended

zResource on your PC

At least one free Ethernet port for SMCHPAV-ETH device

2. Your PC must not be configured for another network. This means that:

zNo network clients except for Microsoft Network*, Client for Netware*

Networks, or Microsoft Family Logon* are installed

zNo network services except file and printer sharing for Microsoft Networks or

Personal Web Server* are installed

zNo network protocols except Microsoft’s TCP/IP, IPX/SPX, NetBEUI, or Net

BIOS support for IPX/SPX are installed

3. Network installation requires two steps:

1. Install the SMCHPAV-ETH device

2. For each PC to be added to the network, repeat the process

4. Check that you have the following parts for each PC on the network:

Quick installation guide for SMCHPAV-ETH device:

1. SMCHPAV-ETH device

2. Ethernet Cable (CAT 5)

5. Familiarize yourself with the Powerline device connections:

There is only one Ethernet port. This is used for the connection with PC, xDSL Router,

Cable Modem, or Wireless AP.

6. Limitation of the PLC device:

To meet the safety regulation, the longest distance between powerline devices is

limited to 100 meter and for in-house use only. More than 100 meter will cause the

signal reduction or data loss.

Chapter 2. Product Installation Guide

Important:

Do not plug the device into a power strip or surge protector because these devices may

consist of filter and impair signal. Also avoid plugging the device right next to noisy sources

such as cell phone charger, Halogen light, Energy saving bulb, noisy desktop computer,

vacuum cleaner, etc. Both cases result in poor transmission speed.

2.1 Installing the local powerline network

1. Use the supplied Category 5 Ethernet cable to connect the SMCHPAV-ETH to your

PC’s Ethernet port.

2. Plug the SMCHPAV-ETH device to an AC power outlet.

3. The Power LED indicator will light on after plugging.

4. You can repeat steps 1 and 2 for connecting the more powerline devices

5. The Link LED indicator starts blinking when the data communication proceeds on

the Powerline network.

6. The Ethernet LED indicator starts blinking when the data communication proceeds

on the Ethernet network.

2.2 Sharing a xDSL or cable modem Internet connection

1. Connect one SMCHPAV-ETH device to your broadband xDSL/ Cable Router

zPlug the SMCHPAV-ETH into an AC power outlet.

zPlug the provided Ethernet cable into the RJ45 connector of SMCHPAV-ETH

and plug the other end of the cable into an available Ethernet port of the

broadband router.

2. Connect the other SMCHPAV-ETH device(s) to the PC(s) to share the Internet

connection

zPlug the SMCHPAV-ETH device into an AC power outlet.

zPlug the provided Ethernet cable into the RJ45 connector of SMCHPAV-ETH

and plug the other end of the cable into an available Ethernet port of the PC.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Adaptador de SMC Networks

SMC Networks

SMC Networks WUSB-G2 FICHE Manual de usuario

SMC Networks

SMC Networks WiShare SMCWTVA100 Manual de usuario

SMC Networks

SMC Networks SMC EZ Connect SMCHT-ETH Manual de usuario

SMC Networks

SMC Networks FieldServer FS-8700-16 BACnet PTP Nota de publicación

SMC Networks

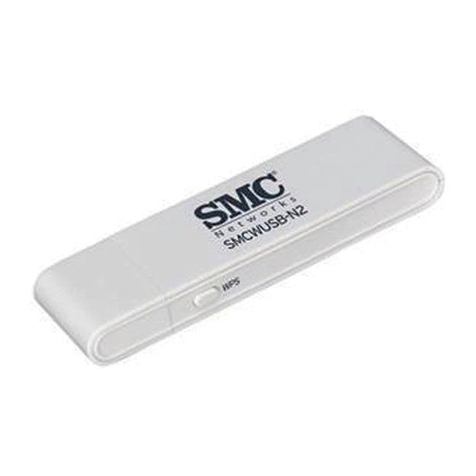

SMC Networks WUSB-N2 Manual de usuario

SMC Networks

SMC Networks HPAV-ETH2 - annexe 1 Manual de usuario

SMC Networks

SMC Networks SMC-BT10 EZ Connect Manual de usuario

SMC Networks

SMC Networks EZ Connect SMC2662W Manual de usuario

SMC Networks

SMC Networks SMCWUSB-G Manual de usuario

SMC Networks

SMC Networks SMC2335W EZ Connect Manual de usuario

SMC Networks

SMC Networks EZ Connect SMC2662W-AR Manual de usuario

SMC Networks

SMC Networks Tiger Card SMC10GPCIE-XFP Manual de usuario

SMC Networks

SMC Networks EZ Connect SMC2671W Manual de usuario

SMC Networks

SMC Networks EZ Connect N SMCWUSBS-N4 Manual de usuario

SMC Networks

SMC Networks HPAV-ESW - FICHE TECHNIQUE Instrucciones de funcionamiento y seguridad

SMC Networks

SMC Networks WiShare SMCWTVA100 Manual de usuario

SMC Networks

SMC Networks SMCWCB-N Manual de usuario

SMC Networks

SMC Networks PW-DN481D Manual de usuario

SMC Networks

SMC Networks SMCWPCI-GM Manual de usuario

SMC Networks

SMC Networks 2336W-AG Manual de usuario

SMC Networks

SMC Networks EZ Connect Powerline SMCHPAV-ETH Manual de usuario

SMC Networks

SMC Networks WiShare SMCWTVA100 Manual de usuario

SMC Networks

SMC Networks EZ Connect SMC2635W Manual de usuario

SMC Networks

SMC Networks SMCWUSB-N Manual de usuario

Manuales populares de Adaptador de otras marcas

PCB Piezotronics

PCB Piezotronics 090B274 Manual de usuario

Auvidea

Auvidea J20 Manual del producto

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manual de usuario

Akribis

Akribis ITF-21-BISS-MIT Manual de usuario

Tenda

Tenda W54U Manual de usuario

ROHO

ROHO AGILITY Manual de usuario

PROLiNK

PROLiNK WN2001 Manual de usuario

Hawking

Hawking HUF2 Manual de usuario

Airlink101

Airlink101 AWLC4030 Manual de usuario

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manual de usuario

Philips

Philips SWA4554S/10 Manual de usuario

JVC

JVC TS-C9D2B Manual de instrucciones

NETGEAR

NETGEAR A6100 Manual de usuario

D-Link

D-Link DWA-121 Manual de usuario

Philips

Philips SWA2037 Manual de usuario

Basalte

Basalte 0610-20 Manual de usuario

Yealink

Yealink EHS40 Manual de usuario

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manual de usuario
