SmartPool Pooleye PE20 Manual de usuario

Table of Contents PE-20

Important

AlarmPlacement

Pool Side Alarm Assembly

BatteryInstallation

LowBatteryIndicator

PoolSideAlarmMounting

TurnTheUnitON

TurnTheUnitOFF

ResetThe Unit

Sensitivity Adjust

AlarmUnit FunctionTest

TroubleShooting 1

○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○

○○ ○○○○○○○○○○○○○○○○○○

○○ ○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○

○○ ○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○

IMPORTANT-Please read first

Congratulationsonyourpurchaseofthemostadvancedandaffordable

technologyavailableforprotectingyourpool.

This product does not replace the need for

adult supervision of all persons in the pool

area. It is not a life saving device. It is an aid

to a multi level program of pool safety

including adult supervision, knowledge of

CPR and swimming instruction for all

persons using the pool. It is an intended for

use on residential pools only and the

manufacturer assumes n responsibility for

injuries or consequential property damage

while this product is in use on a swmming

pool. Proper installation and maintenance

are the sole responsibility of the pool owner.

Warranty

To the original purchaser of this product, SmartPool Inc. warrants the

product to be free from defective materials and workmanship within

six months of the date of purchase or receipt. See your warranty

certificatefordetails

Warranty questions are handled directly with SmartPool. DO NOT

RETURNTOYOUR DEALER.

Forinstallation questions, call 1-877-799-7665 (toll free)weekdays

1 - 4 pm EST Mondays to Friday.

Pool Side Alarm Assembly

The

POOLEYE

poolsidealarmcomeswithacontrolheadandaseparate

sensor tube. Before the unit can be used, the two pieces must be

assembledtogetherasfollows:

Locate the phone jack at the bottom

of the control head, and a phone

plug coming out from one end of

thesensortube.Place this phone

plug into the phone jack.

Gentlypushthetube into the bottom

of the control head. The sensor

tubeendshould fit snugly into the

bottom of the control head.

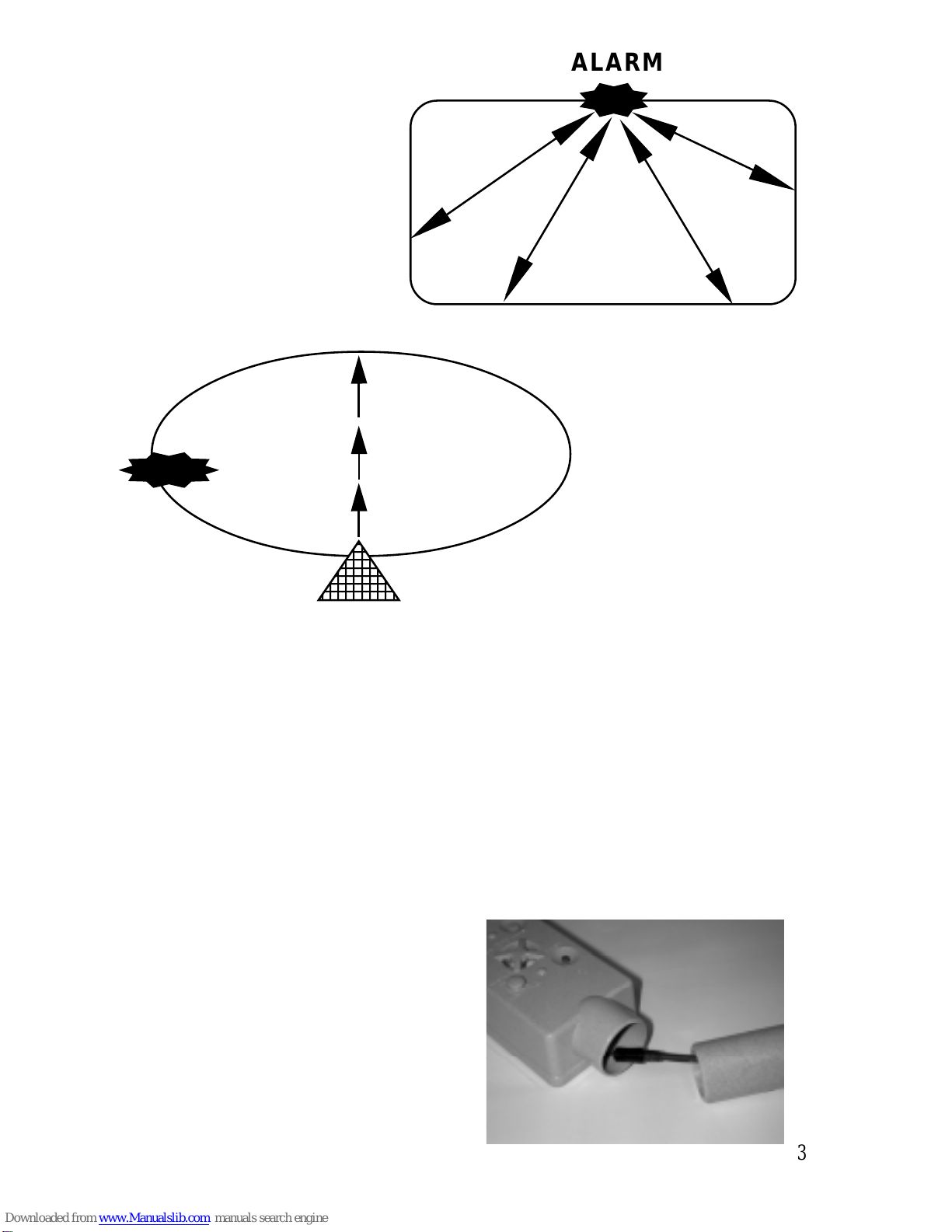

Alarm Placement

Place alarm in a central

location for shortest

distance from all parts of

thepool

ALARM

RETURN

fromfilter

Do not point the eyeball

of the return towards

the center with the

alarm at the side. The

flowfromthereturnwill

interfere, so the alarm

sensor cannot detect

the wave motion

properly.

123456789012

ALARM

Battery Installation

Thepoolsidealarm isdesignedtobepoweredbyastandard9Valkaline

battery.

After installing battery, press the TEST button located at the

front on the control unit.The alarm will sound either one beep, or 5

consecutivebeeps.Thiswilldependwhether the unit is turnedON or

OFF.

Low Battery Indicator

Theunithasabuilt-inmicroprocessorwhich automatically monitors the

9V battery level. When this battery is running low, it will sound a

chirping tone approximately once every 60 seconds. Simply replace

the 9V battery with a new one when this occurs.

Pool Side Alarm Mounting

1. Ladder Mounting

Two pairs of “W” shaped plastic clamps are

provided to mount the unit onto a standard

1.9” round pool

ladder.For a 1.7”or

1.5”diameterround

ladder, use the

adaptorsas shown.

The unit must be

mounted upright

and rigidly to the ladder, otherwise it will not function properly.

2. Deck Mounting

A powder coated stainless steel

bracketandtwosetsof“U”shaped

plastic clamps are used to mount

theunitalongthedeckofin-ground

pools.Themetaldeckcanbeeither

bebolted ontothedeck bythetwo

stainlesssteelscrews,orby4sets

of3MDual-Lockpads. Ifyourpool

has a concrete deck, we suggest

youcoatthedeckwithwater-proof

paintintheareayouwillbeplacing

thetape.Thewater-proofpaintwill

preventcalcium migrationthatwill

attack the adhesive. Ensure the

area is dry and clean before you

mountthemetalbracket.Pressthe

bracketdownfirmly.Theadhesive

will develop a strong bond under

pressure.

Mounting for flat deck

Mounting for sloped deck

3Mpads

Ifthedeck has a sloped edge, attach the two

square plastic pieces to the end of metal

bracket to make it level. Use the thicker

squarepieceforgreater gradient slope. It

is important to make the bracket level so

that the alarm unit can be held vertically.

Clamptheunit onto this metal bracket by the

2setsof“U”shapedplasticclamps.Tighten

the screws, but do not strip the threads.

Place the

unit

such

that the

wide

side of

the

moving

sensor

is parallel to the side of swimming pool wall.

Check the sensor in the water.The sensor is

buoyant and should stay upright. If the

sensor lies on its side, please contact your SMARTPOOL immedi-

ately.The sensor must remain in an upright position while it is in the

water.

If you have to place the unit near the return, heavy water current may

set off the alarm. If this happen, put the sensor cap onto the sensor

cage as shown. Place the sensor cap against the water current.

Please note that sensor cage with a sensor cap

will reduce the sensitivity of the unit. Check the

unit function according to that described in the

Sensitivity Adjust before use.

NOTE:The deflector will reduce sensitivity.Test

the alarm unit as described in

Sensitivity Adjust section before

use

1234567890123456789012345678901212345678901

23456789012345678901234567890121234567890

1234567890123456789012345678901212345678901

1234567890123

Pool Wall

wideside

ofthemoving

sensor is

parallelto the

poolwall

“U” shaped

Plastic Clamps

Turn the unit ON

Press the green ON button and the

unit will sound one short beep to

indicate it is on. The alarm siren

will sound when the sensor picks

up any water wave motion.

Therefore you should wait a few

minutes for the water wave to

settle down before turning on the

unit.

If the alarm goes off immediately after you hit this green ON button,

recheck the mounting of the alarm unit. If the unit is not securely

mounted,pushingthecontrol head will cause the alarm to soundoff.

If the alarm continues to sound off whenever it is turned on, please

read the Sensitivity Adjust section.

Turn the unit OFF

Press and hold both the green ON and

the yellow RESET button

simultaneously for 3 seconds, until

you hear 5 consecutive beeps. The

unitis nowturnedOFF.

Reset the unit

Press the yellow RESET button to

turn OFF the siren.This will reset

the unit to the ON state

automatically.

3 seconds

Sensitivity Adjust

1. Sensitivity adjust switch

The most effective way to adjust the

sensitivity is to move the sensor

adjust piece located at the bottom of

the sensor tube.

Loosenthe two screwsonthebottom of

thesensor.

Move the plastic piece with the pointer

pointed to “H” if you want higher

sensitivity or to “L” if you want lower

sensitivity.Theunitispresetat factory

to“H”

Ifyouhave to placetheunitnear the return waterflow, snapthecaponto

the sensor cage facing the direction of water flow. See Pool Side

alarmMounting.

NOTE:The cap willreducesensitivity.Test theunitasdecribed inAlarm

Unit FunctionTest before use.

2. Depth of immersion

Thepatenteddesignsensorcanpickupunderwater

wave motion caused by an object falling into

water.Thesensitivityof this sensor isdependent

onthedepth of immersion.The unit will be more

sensitiveifitisplacedclosertothe watersurface.

○○○○○○○○○○

Water Level

Alarm unit function test

Fill a 5 Gal pail 1/3 full with water and drop the pail from a height of a

few inches from the surface of water. The wave created should

activate the alarm. If this test is unsucessful, adjust the sensitivity

(refer to Sensitivity Adjust section).

Between each weight drop test, you should turn the unit OFF.

Then wait until the water settles.

Repeat the same

process at all

locations of your

pool.Ifthealarmfails

to sound, move the

alarmunit to another

position and try

again. If you find a

dead zone in your

pool, this may be an

indication that your

poolneeds asecond

alarmunit.

Do not use the unit until the test results are satisfactory.

IMPORANTNOTES:

If the underwater wave motion is unsettled, the alarm siren will

sound when you release the button. In this case, turn OFF the

unit until the water settles down, and then turn the unit ON

again.

Pools larger than 18 feet by 36 feet, L-shaped, or some other free

form pools, may require more than one pool side alarm for

effective monitoring.

The pool side alarm unit should be able to detect an object that

weighs over 15 lbs.

Trouble Shooting

Q. Alarm unit cannot detect underwater wave signal

Check the unit by hitting the TEST button. If the unit does not

give any beep, replace the 9V battery with a new one.

Checkthephone jack connection between the sensor tube and

thealarmunitcontrol head.Makesure it is connected properly.

Check the sensitivity setting on the bottom of the underwater

sensor and the depth of the sensor into the water.

Q.The alarm unit gives frequent false alarms

Check the unit installation. Make sure it is mounted rigidly and

straightupright.Iftheunitcanbe moved sidewise under strong

wind, it indicates the unit is not mounted rigidly.

Check the sensitivity setting. The sensitivity may be set too

high.

Thesensorcan detect any water disturbance including the flow

fromthe filter pump. Place the alarm unit away from thereturn,

or put a deflector cap on the sensor cage.

Q.The poolside alarm unit siren cannot be turned OFF

Push and hold BOTH the green button and yellow button for 3

seconds until you hear 5 consecutive beeps.

Wait until the water settles down before you turn on the unit

again.

Q. Pool alarm sounds off when I use my pool cleaner

Yourpoolcleaner cancreate thesametypeofwaterdisturbance

as that created by a child falling into water.Therefore the pool

alarm will be set off if you activate your automatic pool cleaner

while the alarm is ON.

SmartPool Inc.

575ProspectStreet

Lakewood

NJ08701

Otros manuales para Pooleye PE20

Tabla de contenidos

Idiomas:

Otros manuales de Sistema de seguridad de SmartPool

SmartPool

SmartPool Pooleye PE20 Manual de usuario

SmartPool

SmartPool Pool Eye PE24 Manual de usuario

SmartPool

SmartPool PE-12 Manual de usuario

SmartPool

SmartPool PoolEye PE23 Manual de usuario

SmartPool

SmartPool PoolEye PE22 Manual de usuario

SmartPool

SmartPool PE-21 Manual de usuario

SmartPool

SmartPool YardGuard YG03 Manual de usuario

Manuales populares de Sistema de seguridad de otras marcas

Inner Range

Inner Range Concept 2000 Manual de usuario

Climax

Climax Mobile Lite R32 Instrucciones de montaje

CADDX

CADDX NX-6 Manual de usuario

FBII

FBII XL-31 Series Manual de usuario

Johnson Controls

Johnson Controls PENN Connected PC10 Manual de usuario

Aeotec

Aeotec Siren Gen5 Manual de usuario

Blaupunkt

Blaupunkt SA 2700 Manual de usuario

IDEAL

IDEAL Accenta Manual del propietario

AJAX

AJAX DoubleButton Manual de usuario

Swann

Swann SW-P-MC2 Manual de usuario

Ecolink

Ecolink Siren+Chime Manual de usuario

Digital Monitoring Products

Digital Monitoring Products XR150 Manual de usuario

EDM

EDM Solution 6+6 Wireless-AE Manual de usuario

Highway Safety Group

Highway Safety Group EA401 Manual de usuario

Siren

Siren LED GSM Manual de usuario

Detection Systems

Detection Systems 7090i Instrucciones de montaje

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manual de usuario

Siemens

Siemens FDM273 Manual de usuario
