Smartec STC-2430/1 Manual de usuario
www.smartec-security.eu
1/3¨ Bullet Spy Camera
Smartec STC-2430/1
USER’S MANUAL
Digital Signal Processor: SONY HQ 1
Performance: 540 TV lines of resolution.
Long life and high reliability are achieved by the use of a CCD image
device. This makes the camera 100 percent solid state. No longer is an
image tube needed.
The Minimum illumination 0.5 LUX @ F=2.0
Ease of use in any application is achieved through the small size.
1. Never poiin the camera fowaed the sun
Do not expose the lens directly to the sun or to strong light as this
may damage the pick-up device.
2. Handle this camera with care
Avoid any shock of the camera. Improper handling could damage
the camera.
3. Requires a proper operating environment
This camera is designed for both indoor and out door use. The
allowable temperature range for operation of this camera is
between -10∘C ~ +50∘C and the allowable humidity is 90%
maximum.
4. Check the power source voltage
The power source voltage should be within the specified range.
(Camera must meet the specification)
5. Damage Requiring Service
Unplug this video product from the wall outlet and refer servicing
to qualified service personnel under the following conditions:
FEATURES
CAUTION
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the video
product
c. If the video product has been exposed to rain or water.
d. If the cabinet has been damaged.
e. When the video product exhibits a distinct change in performance,
which indicates a need for service.
Mode NTSC PAL
Digital Signal Processor SONY HQ 1
Pick Up Element 1/3" SONY Super HAD CCD
Number Of Total Pixel 811(H) X 508 (V) 795(H) X 596(V)
Synchronization Modes 1.0Vp-p / 75Ω
Resolution 540 TV Lines
Video Output Internal
Scanning System 2:1 Interlace
Gamma Correction γ=0.45
Minimum Illumination 0.5 LUX @ F2.0
Signal To Noise Ratio 50dB
Auto Gain Control ON
Back Light Compensation ON
A.E.S. AES ON: 1/60s(1/50s)~1/100,000 sec.
Board Lens f=3.6mm / F2.0/ 72.5°
Power Supply 12Vdc
Power Consumption 1.2 W
Operation Temperature -10˚C ~ +50˚C
Storage Temperature -20˚C ~ +60˚C
Storage Humidity MAXIMUM: RH90%
Dimensions 88.39 (L) x 26.4 (Ø) mm
Weight 200g
SPECIFICATION
DIMENSIONS
NOMENCLATURE AND FUNCTION
jCamera mounting screw hole
Screw hole for fixing camera.
kPower input terminal
Connect the power supply of 12Vdc.
lRCA terminal (Yellow)
This is a video output for connecting to a video monitor, etc (75Ω).
mBNC video connector
This is a video connector to connect the RCA terminal to a BNC
video monitor.
k
m
l
j
Tabla de contenidos
Otros manuales de Cámara de seguridad de Smartec
Smartec
Smartec STC- 3680 ULTIMATE Manual de usuario
Smartec
Smartec STC-3002 Manual de usuario
Smartec
Smartec STC-IPM3090A Instrucciones de uso
Smartec

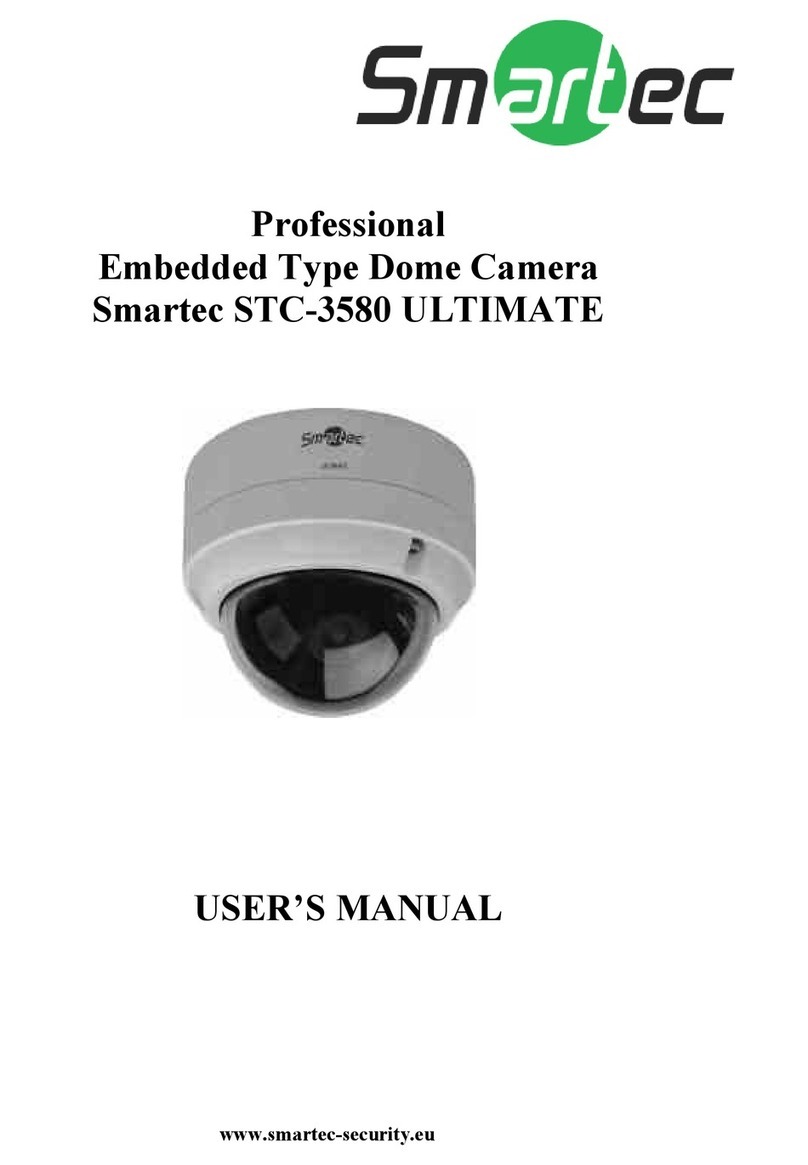

Smartec STC-3580 ULTIMATE Manual de usuario
