SMARTBoard® M685ix2

Interactive whiteboard systems

Configuration and user’s guide

For model SBM685ix2

FCC warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the US Federal Communications Commission

Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instructions, may cause

harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

Trade-mark notice

SMARTBoard, SMARTNotebook, DViT, smarttech, the SMART logo and all SMART taglines are trade-marks or registered trade-marks of

SMARTTechnologiesULC in the US and/or other countries. Windows and InternetExplorer are either registered trade-marks or trade-marks of Microsoft

Corporation in the US and/or other countries. Apple, iMac, Macintosh, Mac, MacOS and MacOSX are trade-marks of Apple Inc., registered in the US and other

countries. Blu-ray is a trade-mark of the Blu-ray Disc Association. Crestron, RoomView and RoomView Connected are either trade-marks or registered trade-

marks of Crestron Electronics, Inc. in the United States and/or other countries. TexasInstruments, BrilliantColor and DLPLink are trade-marks of

TexasInstruments. DLP is a registered trade-mark of TexasInstruments. All other third-party product and company names may be trade-marks of their respective

owners.

translated into any language in any form by any means without the prior written consent of SMARTTechnologiesULC. Information in this manual is subject to

change without notice and does not represent a commitment on the part of SMART.

This product and/or use thereof covered by one or more of the following US patents.

www.smarttech.com/patents

10/2013

Important information

Before you install and use your SMART Board® M685ix2 interactive whiteboard system, read

and understand the safety warnings and precautions in this user’s guide and the important

information document included. These safety warnings and precautions describe the safe and

correct operation of your interactive whiteboard system and its accessories, helping you to

prevent injuries and equipment damage. Ensure that your interactive whiteboard system is

always being used correctly.

In this document, “interactive whiteboard system” refers to the following:

lSMARTBoard M685 interactive whiteboard

lSMARTUX80 projector

lAccessories and optional equipment

The projector included with your system is designed to work only with certain SMARTBoard

interactive whiteboard models. Contact your authorised SMART reseller (smarttech.com/where)

for more information.

Safety warnings, cautions and important

information

Installation

WARNING

lFailure to follow the installation instructions included with your SMART product could

result in personal injury and damage to the product.

lTo reduce the risk of fire or electric shock, do not expose the SMART product to rain or

moisture.

lTwo people are required to mount your SMART product because it may be too heavy for

one person to safely manoeuvre.

When you lift your interactive whiteboard, you and your assistant should stand on either

side of the screen, supporting its weight at the bottom whilst balancing the top with your

other hands.

I M P O R T A N T I N F O R M A T I O N

lWhen mounting the projector boom on a framed or hollow wall, attach the mounting

bracket to a stud to safely support the projector’s weight. If you use only drywall anchors,

the drywall can fail, resulting in possible personal injury, and damage to the product which

may not be covered by your warranty.

lDo not leave cables on the floor where they can be a tripping hazard. If you must run a

cable over the floor, lay it in a flat, straight line and secure it to the floor with tape or a cable

management strip of a contrasting colour. Handle cables carefully and avoid excessive

bending.

C A U T I O N

lDo not operate this unit immediately after moving it from a cold location to a warm

location. When the unit is exposed to such a change in temperature, moisture can

condense on the lens and crucial internal parts. Allow the system to stabilise to room

temperature before operation to prevent possible damage to the unit.

lDo not place the unit in hot locations, such as near heating equipment. Doing so could

cause a malfunction and shorten the life of the projector.

lAvoid setting up and using the SMART product in an area with excessive levels of dust,

humidity and smoke.

lDo not place your SMART product in direct sunlight or near any appliance that generates a

strong magnetic field.

lIf you need to lean the interactive whiteboard against a wall before you mount it, make

sure that it remains in an upright position.

Do not rest the interactive whiteboard on its side or on the top of the frame.

lYou must connect the USB cable that came with your SMARTBoard interactive

whiteboard to a computer that has a USB compliant interface and that bears the USB

logo. In addition, the USB source computer must be compliant with CSA/UL/EN 60950

and bear the CE mark and CSA and/or UL Mark(s) for CSA/UL 60950. This is for operating

safety and to avoid damage to the SMARTBoard interactive whiteboard.

I M P O R T A N T

lThe SMARTBoard M685ix2 interactive whiteboard system textless installation guide is

also available online (smarttech.com/kb/170440).

lMake sure that an electrical socket is near your SMART product and remains easily

accessible during use.

I M P O R T A N T I N F O R M A T I O N

iii

lUsing your SMART product near a TV or radio could cause interference to the images or

sound. If this happens, move the TV or radio away from the projector.

Operation

WARNING

lDo not climb (or allow children to climb) on a wall- or stand-mounted SMARTBoard

interactive whiteboard.

Do not climb on, hang from or suspend objects from the projector boom.

Climbing on the interactive whiteboard or projector boom could result in personal

injury or product damage.

C A U T I O N

lDo not block the projector’s ventilation slots and openings.

I M P O R T A N T

lIf you have peripheral devices that do not use a 3.5 mm phone jack audio in/out, a DB15

VGA video input connector or an HDMI™ video connector, you may need to purchase

third-party adapters.

lKeep your remote control in a safe place because there is no other way to access menu

options.

lDisconnect the product from its power source when it is not used for a long period.

Other precautions

If you own a SMARTproduct other than a SMARTBoard M685ix2 series interactive whiteboard

system, refer to the warnings document that was sent with your product for relevant warnings

and maintenance instructions.

Environmental requirements

Before you install your interactive whiteboard system, review the following environmental

requirements.

Environmental

requirement

Parameter

Operating temperature l5°C to 35°C (41°F to 95°F) from 0m to 1800m (0' to 6000')

l5°C to 30°C (41°F to 86°F) from 1800m to 3000m (6000' to 9800')

I M P O R T A N T I N F O R M A T I O N

Environmental

requirement

Parameter

Storage temperature l-20°C to 50°C (-4°F to 122°F )

Humidity l5% to 95% storage relative humidity, non-condensing

5% to 85% operating relative humidity, non-condensing

Water and fluid

resistance

lIntended for indoor use only. Doesn’t meet any salt-spray or water

ingress requirements.

lDon’t pour or spray liquids directly onto your interactive

whiteboard, the projector or any of its sub-components.

Dust lIntended for use in office and classroom environments. Not for

industrial use where heavy dust and pollutants can cause

malfunctions or impaired operation. Periodic cleaning is required in

areas with heavier dust. See Cleaning the projector on page 25 for

information on cleaning the SMARTUX80 projector.

Electrostatic

discharge (ESD)

lEN61000-4-2 severity level 4 for direct and indirect ESD

lNo malfunction or damage up to 8kV (both polarities) with a

330ohm, 150 pF probe (air discharge)

lUnmated connectors meet no malfunction or damage up to 4kV

(both polarities) for direct (contact) discharge

Cables lAll SMART Board M685ix2 interactive whiteboard system cables

should be shielded to prevent potential accidents and degraded

video and audio quality.

Conducted and

radiated emissions

lEN55022/CISPR 22, Class A

Contents

Important information i

Safety warnings, cautions and important information i

Environmental requirements iii

Chapter 1: About your interactive whiteboard system 1

SMART Board M685ix2 interactive whiteboard system features 2

Included accessories 4

Optional accessories 5

Chapter 2: Installing your interactive whiteboard system 7

Choosing a location 7

Choosing a height 8

Routing the cables 8

Installing SMART software 8

Setting up the projector image 9

Integrating your system with peripheral devices 11

Chapter 3: Using your interactive whiteboard system 13

Using your projector 13

Using your interactive whiteboard 21

Chapter 4: Maintaining your interactive whiteboard system 23

Maintaining your interactive whiteboard 23

Cleaning the projector 25

Focusing and adjusting the projector image 25

Removing and replacing the projector lamp module 25

Resetting the lamp hours 27

Replacing the remote control battery 28

Chapter 5: Troubleshooting your interactive whiteboard system 29

Before you start 30

Determining your interactive whiteboard system’s status 32

Resolving interactive whiteboard issues 33

Resolving projector issues 33

Resolving audio issues 39

Resolving network communication issues 40

Accessing the service menu 40

Transporting your interactive whiteboard system 41

Appendix A: Remotely managing your system through a network interface 43

Webpage management 43

Simple Network Management Protocol (SNMP) 51

C O N T E N T S

Appendix B: Remotely managing your system through an RS-232 serial interface 53

Connecting your room control system to the SMARTUX80 projector 54

Projector programming commands 55

Appendix C: Integrating other devices 75

Video format compatibility 75

Connecting peripheral sources and outputs 78

Appendix D: Remote control code definitions 81

Appendix E: Hardware environmental compliance 83

Waste Electrical and Electronic Equipment and Battery regulations (WEEE and Battery

Directives) 83

Batteries 83

Mercury 83

More information 83

Index 85

Chapter 1

Chapter 1: About your interactive

whiteboard system

SMART Board M685ix2 interactive whiteboard system features 2

SMARTBoard M600 series interactive whiteboard 2

SMARTUX80 projector 3

Included accessories 4

Remote control 4

Pens 5

Optional accessories 5

Hardware mounting kit 5

Your SMART Board M685ix2 interactive whiteboard system combines the following

components:

lSMARTBoard M600 series interactive whiteboard

lSMARTUX80 projector

lAccessories and optional equipment

This chapter describes the features of your interactive whiteboard and provides information about

product parts and accessories.

C H A P T E R 1

About your interactive whiteboard system

SMART Board M685ix2 interactive whiteboard

system features

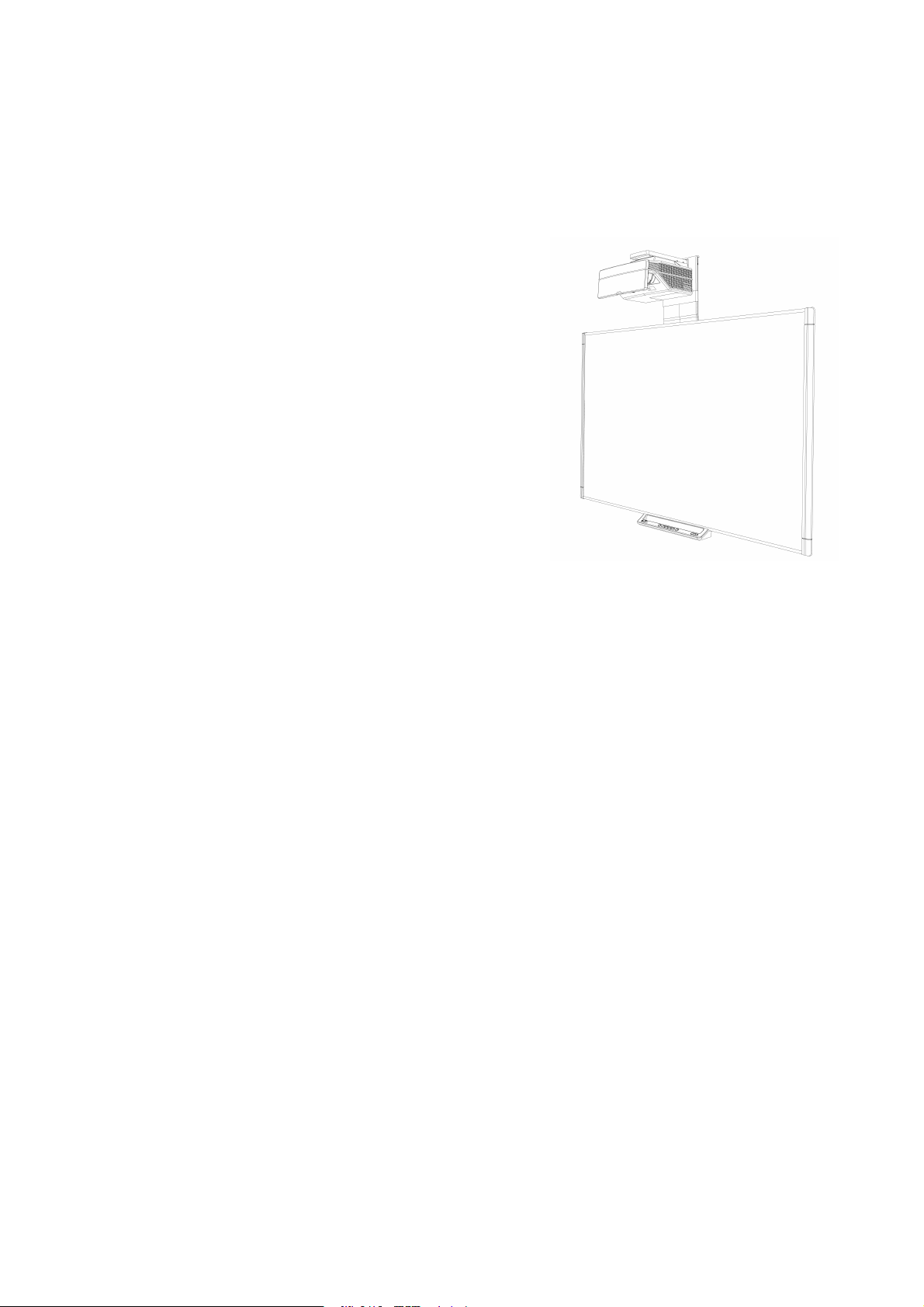

Your SMART Board M685ix2 interactive whiteboard system uses the WXGA (16:10) ultra-short-

throw, high-offset SMARTUX80 projector. It

delivers high-definition, high performance

interactivity that is virtually shadow--free and glare--

free.

The modular and expandable hardware and software

architecture of your interactive whiteboard system

enables you to do everything you can do at your

computer—open and close applications, meet with

others, create new documents or edit existing ones,

visit websites, play and manipulate video clips and

more—just by touching the interactive surface.

The projector also supports video and audio

connections from a variety of devices, including

DVD and Blu-ray™ players, document cameras, and

other high-definition sources and can project media from these sources onto the interactive

screen.

When you use SMART software with your SMART Board M685ix2 interactive whiteboard

system, you can write over any application in digital ink using a pen tray pen or your finger and

then save these notes for future reference and distribution.

SMARTBoard M600 series interactive whiteboard

Your SMARTBoard M600 series interactive whiteboard, featuring SMART’s proprietary DViT®

(DigitalVisionTouch) technology, is the most intuitive touch-sensitive front projection interactive

whiteboard in the world.

The SMARTBoard M600 series interactive whiteboard performs best with the SMARTUX80

projector because of its exceptional colour performance, aspect ratio, input response and short-

throw image distance.

Otros manuales para M685ix2

Tabla de contenidos

Otros manuales de Pizarra interactiva de SMART Board

SMART Board

SMART Board Board E70 Manual de usuario

SMART Board

SMART Board SBID8055i-G5-SMP Manual de servicio

SMART Board

SMART Board 685ix Manual de usuario

SMART Board

SMART Board Board X800i4 Manual de usuario

SMART Board

SMART Board 800i5e-MP series Manual de usuario

SMART Board

SMART Board SB880i5-SMP Manual de usuario

SMART Board

SMART Board SB480iv2 Manual de usuario

SMART Board

SMART Board SB660 64" Manual de usuario

SMART Board

SMART Board 8070i-G4-SMP Manual de funcionamiento

SMART Board

SMART Board 600i4 Manual de usuario

SMART Board

SMART Board SB680-MP Manual de usuario

SMART Board

SMART Board SB880i4 Manual de usuario

SMART Board

SMART Board 800ixe-MP Manual de usuario

SMART Board

SMART Board SmartBoard 600i2 Manual de usuario

SMART Board

SMART Board SB685ix2 Manual de usuario

SMART Board

SMART Board 880i5-SMP Manual de usuario

SMART Board

SMART Board 880-SMP Manual de usuario

SMART Board

SMART Board Board 800 series Manual de usuario

SMART Board

SMART Board Board 600i6 Manual de usuario

SMART Board

SMART Board Board 600i6 Manual de usuario

SMART Board

SMART Board Interactive whiteboard Manual de usuario

SMART Board

SMART Board 600i3 Manual de usuario

SMART Board

SMART Board Board 600 Series Manual de usuario

SMART Board

SMART Board 3000i Manual de usuario

Manuales populares de Pizarra interactiva de otras marcas

SMART

SMART KAPP42 Manual de usuario

HitachiSoft

HitachiSoft StarBoard FX-TRIO-88W Manual de usuario

Buhl

Buhl LyteBoard Manual de usuario

SMART

SMART SBX880 Manual de usuario

Legamaster

Legamaster e-SCREEN ETX Manual de usuario

Seneca

Seneca eno Manual de usuario

BenQ

BenQ RP840G Manual de usuario

SMART

SMART Sympodium IC-150 Manual de usuario

Olivetti

Olivetti OLIBOARD Manual de usuario

Turning Technologies

Turning Technologies MOBIVIEW Manual de usuario

Panasonic

Panasonic UB-5335 Manual de usuario

Dukane

Dukane ITP84 Manual de usuario

Bretford

Bretford EDUIMS Guía de configuración

Panasonic

Panasonic Panaboard UB-5315 Manual de usuario

Plus

Plus M-11S Manual de usuario

TRIUMPH BOARD

TRIUMPH BOARD ULTRA SLIM Manual de usuario

Returnstar Interactive Tech

Returnstar Interactive Tech IQBoard DVT V7.0 Manual de usuario

AVer

AVer CP series Manual de usuario
