SMART Board Board E70 Manual de usuario

SMARTBoard® E70

Interactive flat panel

User’s guide

Product registration

If you register your SMART product, we’ll notify you of new features and software upgrades.

Keep the following information available in case you need to contact SMARTSupport.

Serial number:

Date of purchase:

smarttech.com/kb/170534

FCC warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the manufacturer’s instructions, may cause harmful interference to radio communications. Operation of

this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Trademark notice

SMARTBoard, SMARTNotebook, smarttech, the SMART logo and all SMART taglines are trademarks or registered trademarks of SMARTTechnologiesULC in the U.S.

and/or other countries. Windows is either a registered trademark or a trademark of Microsoft Corporation in the U.S. and/or other countries. All other third-party product and

company names may be trademarks of their respective owners.

into any language in any form by any means without the prior written consent of SMARTTechnologiesULC. Information in this manual is subject to change without notice

and does not represent a commitment on the part of SMART.

This product and/or use thereof covered by one or more of the following U.S. patents.

www.smarttech.com/patents

08/2013

i smarttech.com/kb/170534

Important information

WARNING

lFailure to follow the installation instructions shipped with your SMART product could result in

personal injury and product damage which may not be covered by your warranty.

lDo not open or disassemble the SMART product. You risk electrical shock from the high

voltage inside the casing. Opening the casing also voids your warranty.

lDo not stand (or allow children to stand) on a chair to touch the surface of your SMART

product. Rather, mount the product at the appropriate height.

lTo reduce the risk of fire or electric shock, do not expose your SMART product to rain or

moisture.

lIf your SMART product requires replacement parts, make sure the service technician uses

replacement parts specified by SMARTTechnologies or parts with the same characteristics

as the original.

lEnsure that any cables extending across the floor to your SMART product are properly

bundled and marked to avoid a trip hazard.

lUseonly extension cords and outlets into which this product’s polarized plug can be fully

inserted.

lUse the power cable provided with this product. If a power cable is not supplied with this

product, please contact your supplier. Use only power cables that match the AC voltage of the

power outlet and that comply with your country’s safety standards.

lIf the glass is broken, do not touch the liquid crystal. To prevent injury, handle glass fragments

with care when disposing of them.

lUse only VESA®-approved mounting hardware.

lDo not insert objects inside the cabinet ventilation holes, because they could touch dangerous

voltage points and cause electric shock, fire or product damage which may not be covered by

your warranty.

lDo not place any heavy objects on the power cable. Damage to the cable could cause shock,

fire or product damage which may not be covered by your warranty.

I M P O R T A N T I N F O R M A T I O N

ii smarttech.com/kb/170534

lDisconnect all power cables for your interactive flat panel from the wall outlet and seek

assistance from qualified service personnel when any of the following occurs:

oThe power cable or plug is damaged

oLiquid is spilled into the interactive flat panel

oObjects fall into the interactive flat panel

oThe interactive flat panel is dropped

oStructural damage such as cracking occurs

oThe interactive flat panel behaves unexpectedly when you follow operating instructions

iii smarttech.com/kb/170534

Contents

Important information i

Chapter 1: About your interactive flat panel 1

Feature highlights 1

Included accessories 2

Chapter 2: Installing your interactive flat panel 3

Choosing a mounting location 4

Choosing a mounting height 4

Cable management 4

Connecting your interactive flat panel 5

Configuring your computer’s screen resolution 6

Chapter 3: Using your interactive flat panel 9

Using the remote control 9

Menu control panel 12

On-screen display menu 13

Multi Media mode 14

Chapter 4: Troubleshooting your interactive flat panel 17

Locating the serial number 17

Resolving common touch control and resolution issues with Windows and Mac operating

systems 18

Resolving image issues 21

Configuring and calibrating your SMART Board E70 interactive flat panel with Windows 22

Configuring your touch and display settings for the SMART Board E70 22

Calibrating your SMARTBoard E70 interactive flat panel with Mac OS X 28

Calibrating your SMART Board E70 28

SMARTE70 multiple displays setup Mac 29

Appendix A: Hardware environmental compliance 31

Waste Electrical and Electronic Equipment and Battery regulations (WEEE and Battery

Directives) 31

Batteries 31

More information 31

Index 33

Chapter 1

1 smarttech.com/kb/170534

Chapter 1: About your interactive flat panel

Feature highlights 1

Included accessories 2

Pen and pen tray 2

Remote control 2

Included cables 2

This chapter describes the features of your SMARTBoard® E70 interactive flat panel and provides

information about product parts and accessories.

Feature highlights

Designed specifically for classrooms, the

SMARTBoard E70 interactive flat panel combines a

premium touch experience with the power of

SMARTNotebook™ collaborative learning software

on a 70" display.

The high-definition, shadow-free 70" (177.8 cm) LED

display features low friction coated glass that enables

fingers to glide smoothly over the surface, facilitating a

natural touch experience. The interactive flat panel

also virtually eliminates glare and provides an optimal

view from any angle in the classroom, delivering an

unparalleled viewing and writing experience to offer the best value for classrooms. The multitouch

interactive flat panel features freestyle multi-user interaction anywhere on the display with

Windows®7 or Windows8 operating systems, enabling students to collaborate without limitations.

C H A P T E R 1

About your interactive flat panel

2 smarttech.com/kb/170534

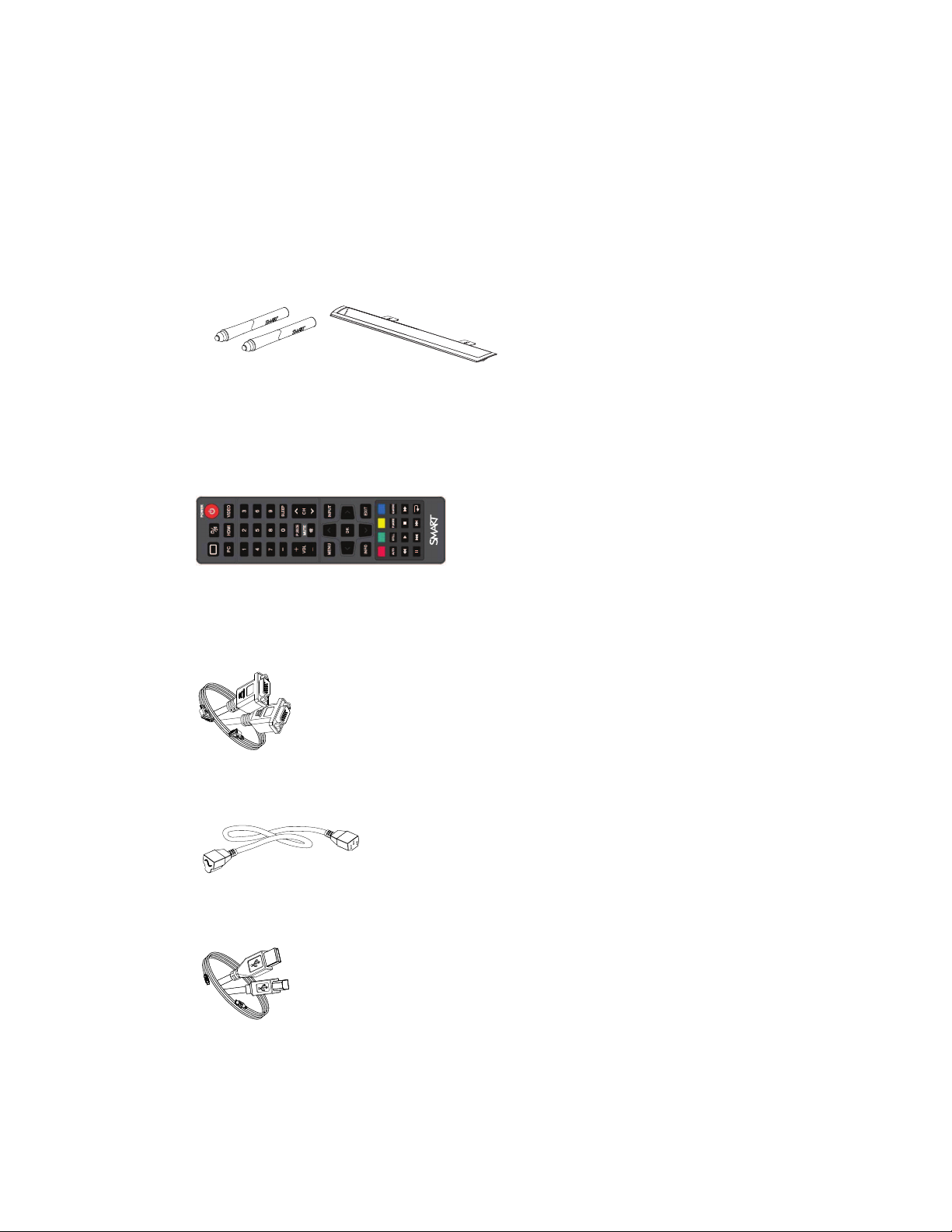

Included accessories

The following accessories are included with your interactive flat panel.

Pen and pen tray

Two pens are included with your interactive flat panel.

Remote control

The remote control enables you to access the on-screen menus and to change the display and input

settings.

Included cables

VGA - RGB video input

Power cable - NA, UK and EU

USB cable - touch interface

Chapter 2

3 smarttech.com/kb/170534

Chapter 2: Installing your interactive flat

panel

Choosing a mounting location 4

Choosing a mounting height 4

Cable management 4

Connecting your interactive flat panel 5

Configuring your computer’s screen resolution 6

Recommended computer screen resolution 6

Windows 7 and Windows 8 operating systems 7

Mac OS operating system software 7

WARNING

The weight of the interactive flat panel is 169.8 lb. (77 kg), refer to your local building code to ensure

the wall and the mount being used can support this installation. Use appropriating hardware in

accordance to building code and always use 3 or more people to lift and install E70 interactive flat

panel.

This chapter provides additional considerations and details for installing your interactive flat panel.

C H A P T E R 2

Installing your interactive flat panel

4 smarttech.com/kb/170534

Choosing a mounting location

Consider the following when you select a location for the interactive flat panel:

lThe wall must be strong enough to support the interactive flat panel and the mounting equipment.

The interactive flat panel weighs 169.8 lb. (77 kg).

lSelect a wall with a flat, regular surface and sufficient clearance to accommodate your

interactive flat panel. For best presentation alignment, mount your interactive flat panel in a

location that’s central to your audience’s viewing direction.

lChoose a location for your interactive flat panel that’s far from bright light sources, such as

windows and strong overhead lighting. Bright light sources can cause distracting shadows on

your interactive flat panel and can cause glare.

For mobile or adjustable installation options, contact your authorized SMART reseller

(smarttech.com/where).

Choosing a mounting height

Mount the interactive flat panel according to audience and/or user(s) height. The flat panel height is

based on the midpoint between the reach of the students and the teacher.

Cable management

When connecting cables from the interactive flat panel to a computer and other peripheral devices,

ensure the cables aren’t a trip hazard. The use of channels and raceways safely hides cables. For

accessories and options, contact your authorized SMART reseller.
