Troubleshooting guide for

the SMART Board™ 6052i

interactive display

Use the following table to find troubleshooting topics related to your issue.

Other troubleshooting resources

•NEC Multisync S521 User’s Manual

•SMART Board 6052i Interactive Display Installation and User’s Guide

Issue Troubleshooting topics

You don’t know how to set up your

interactive display.

See Setting up your interactive display

on page 3.

You can’t see your computer desktop on

your interactive display.

See Resolving blank-screen issues on

page 4.

Your interactive display image is low

quality.

See Resolving low quality image issues

on page 5.

You don’t have touch interactivity with

your interactive display.

See Resolving touch interactivity issues

on page 6.

You can’t draw with digital ink. See Resolving digital ink issues on

page 9.

Your digital ink is low quality or

inconsistent.

See Resolving digital ink quality issues

on page 10.

You don’t hear sound when you play a

video or sound file on your interactive

display.

See Resolving sound issues with

external speakers attached on page 11.

IMPORTANT

There are no built-in speakers on your interactive display. You must connect

external speakers to have sound.

2| TROUBLESHOOTING GUIDE FOR THE SMART BOARD 6052I INTERACTIVE

DISPLAY

Parts of your interactive display

Interactive display bottom terminal panel

1 Main power switch 8 RGB/HV out

2 AC in 9 Video in

3 Display port 10 Video out (BNC)

4 HDMI 11 DVD/HD (RCA)

5 DVI in (DVI-D) 12 S-Video in

6 VGA in 13 Audio in 1, 2, 3

7 RGB/HV in 14 Audio out

Cameras

Touch connection panel

(behind the interactive display)

Control panel

(bottom of interactive display)

Terminal panel

(bottom of interactive display)

Wireless remote

control sensor

and display

status light

LCD screen

Pencil ledge

Pencil

236

911 14

3| TROUBLESHOOTING GUIDE FOR THE SMART BOARD 6052I INTERACTIVE

DISPLAY

Setting up your interactive display

Some interactive display issues are caused by incorrect or insecure cabling

connections. Use the diagram and steps below to resolve these issues.

To set up your

interactive display

1. Connect the supplied VGA cable or an HDMI cable (not supplied) from your

computer’s video output connection to your interactive display’s terminal panel

(see page 2).

2. Connect the supplied USB 2.0 cable from the touch connection panel to a USB

2.0 connector on your computer.

NOTE

USB 1.1 connections result in reduced performance.

3. Connect the supplied power cable from the AC connector in your interactive

display’s bottom terminal panel (see page 2) to the AC power outlet.

4. Connect the supplied power cable from the touch connection panel of your

interactive display to the AC power outlet.

5. Connect the power cable from your computer to the AC power outlet.

6. Turn on the main power switch on the interactive display’s terminal panel.

7. Connect your computer to the Internet, if available.

Display VGA

cable

Display

power cord

Touch connection

panel power cord

Internet

connection

Touch connection

panel USB 2.0 cable

Computer

power cord

Touch connection panel

Terminal

panel

4| TROUBLESHOOTING GUIDE FOR THE SMART BOARD 6052I INTERACTIVE

DISPLAY

Resolving blank-screen issues

Use the following troubleshooting table when you attempt to turn on your interactive

display and you don’t see an image on its screen.

Begin by looking at the display status light in the wireless remote control sensor

screen located in the lower right corner of your interactive display (see page 2).

Symptom Possible causes Actions

You don’t see the display

status light in the wireless

remote control sensor

screen.

Your interactive display

isn’t plugged in.

Connect your interactive

display power cable to a

power connector (see

page 3).

The main power switch is

turned off.

Turn on the main power

switch on the terminal

panel (see page 2).

The display status light in

the wireless remote control

sensor screen is red.

Your interactive display is

turned off.

Press the power button on

the remote or your

interactive display’s control

panel.

When you turn on your

interactive display, you see

a “No input signal”

message and the display

status light turns red again.

Your computer isn’t turned

on.

Turn on your computer.

Your computer isn’t

connected to your

interactive display.

Connect your computer to

your interactive display

with a VGA cable (see

page 3).

The display status light is

green and the screen is

blank.

Your computer is in

standby mode.

Touch the screen.

Press a key on the

keyboard.

Move your mouse.

5| TROUBLESHOOTING GUIDE FOR THE SMART BOARD 6052I INTERACTIVE

DISPLAY

Resolving low quality image issues

Use the following troubleshooting table when the image you see on your interactive

display is low quality or not what you expect.

You can often resolve these issues by tightening video connections. You can also

make display adjustments with the on-screen menu, or perform a factory reset (see

below) to restore all defaults.

For more information on the on-screen menu, see the NEC Multisync S521 User’s

Manual.

To perform a

factory reset

1. Press the Menu button on the remote control.

2. Use the arrow keys to select Pro Advanced.

3. Select FACTORY RESET > Yes.

Symptom Possible causes Actions

The image is too large or

doesn’t completely fill your

interactive display.

Your computer’s video

resolution settings don't

match your display’s native

resolution.

Change your computer’s

screen resolution to the

recommendations in the

NEC Multisync S521

User’s Manual.

The image is unstable,

unfocused or moves.

You have a loose video

connection.

Secure the VGA cable for

both your computer and

your interactive display.

You computer has an

ineffective video display

card.

Connect a different

computer. If this improves

performance, consider

replacing the video card in

the original computer.

The image is too light, too

dark or has other display

issues.

You may have improper

settings in your interactive

display.

Use the On-Screen-

Display menu button on

the remote to adjust picture

settings, or perform a

factory reset.

There is a persistent image

on your screen.

An image was displayed

for too long.

Turn off your interactive

display for as long as the

persistent image was on

the screen.

6| TROUBLESHOOTING GUIDE FOR THE SMART BOARD 6052I INTERACTIVE

DISPLAY

Resolving touch interactivity issues

Use the following troubleshooting table when you can see your computer’s desktop,

but you’re unable to open files easily by touch.

These issues are typically due to loose connections for the touch connection panel

(see page 3).

Symptom Possible causes Actions

When you touch the

screen, no cursor appears

and you can’t move icons.

Your touch connection

panel isn’t connected to

your computer and a

power source.

Ensure you have complete

connections (see page 3).

Your touch connection

panel is unresponsive.

Disconnect the power

supply for the touch

connection panel for five

seconds, and then

reconnect it.

Your SMART Board

services aren’t running.

Click the SMART Icon ,

and then select Control

Panel > Connection

Wizard.

Your computer doesn’t

recognize your interactive

display due to conflicting

Windows® operating

system registry entries.

Refer to See Correcting

Registry or System

Preferences File Issues

(document 135245).

Your cursor is erratic or

jumps locations.

Your touch connection

panel is unresponsive,

possibly due to static.

Unplug the power supply

for the touch connection

panel for five seconds, and

then reconnect it.

7| TROUBLESHOOTING GUIDE FOR THE SMART BOARD 6052I INTERACTIVE

DISPLAY

A cursor appears when

you touch the screen, but it

is in the wrong location.

Your interactive display

isn’t calibrated.

Calibrate your interactive

display. Refer to the

SMART Board 6052i

Interactive Display

Installation and User’s

Guide.

You aren’t touching the

screen at right angles.

See Touching and Drawing

on Your SMART Board

Interactive Whiteboard is

Inaccurate (document

131299) for more details.

An area of the screen

doesn’t respond to your

touch.

Something is blocking the

cameras.

Ensure nothing is taped to

the screen or blocking the

cameras (see page 2).

Bright lights are interfering

with the cameras.

Close any blinds and

shades or dim all halogen

and LED lights.

Touch interactivity is slow

or sluggish.

Your computer doesn’t

meet requirements.

Upgrade your computer or

replace it with a more

powerful computer.

Your computer is running

too many applications.

Close some open

applications.

You haven’t used a USB

2.0 cable to connect your

interactive display to your

computer.

Use a USB 2.0 cable and

ensure it is connected to a

USB 2.0 connector on your

computer.

You are unable to use

multitouch gestures.

Multitouch gestures aren’t

activated.

You aren’t familiar with

gestures.

Refer to Using Touch

Gestures with Your

SMART Board Interactive

Display (document

144789).

You have conflicting

registry entries.

Refer to Correcting

Registry or System

Preferences File Issues

(document 135245).

Symptom Possible causes Actions

8| TROUBLESHOOTING GUIDE FOR THE SMART BOARD 6052I INTERACTIVE

DISPLAY

To troubleshoot using

LED status and

diagnostic lights

1. Observe the diagonostic and status lights on the touch connection panel behind

the interactive display.

2. Use the following table

Diagnostic

LED

Status

LED

Touch connection panel

condition Solution

Off Off Touch connection panel is

turned off or power cable is

disconnected.

Connect the power cable to the

touch connection panel.

Off Flashing

green

Software is starting or

touch connection panel is

initializing.

Don’t touch your panel until

initializing is complete.

Green

Alternating

green and

orange

Green Touch connection panel is

functioning within normal

parameters.

None.

Flashing

green

Green No SMART software

detected.

Start SMART software.

Green

Alternating

green and

orange

Red Error detected. Run the SMART Connection

Wizard’s troubleshooting

procedures to determine the

cause.

Flashing

red

Red No USB connection. Check the cable between the

touch connection panel and

computer.

Flashing

green

Red No SMART software

detected.

Start SMART software, and

then run the SMART

Connection Wizard’s

troubleshooting procedures.

Flashing

orange

Red SMART software isn’t

responding.

Restart your computer.

Diagnostic LED Status LED

9| TROUBLESHOOTING GUIDE FOR THE SMART BOARD 6052I INTERACTIVE

DISPLAY

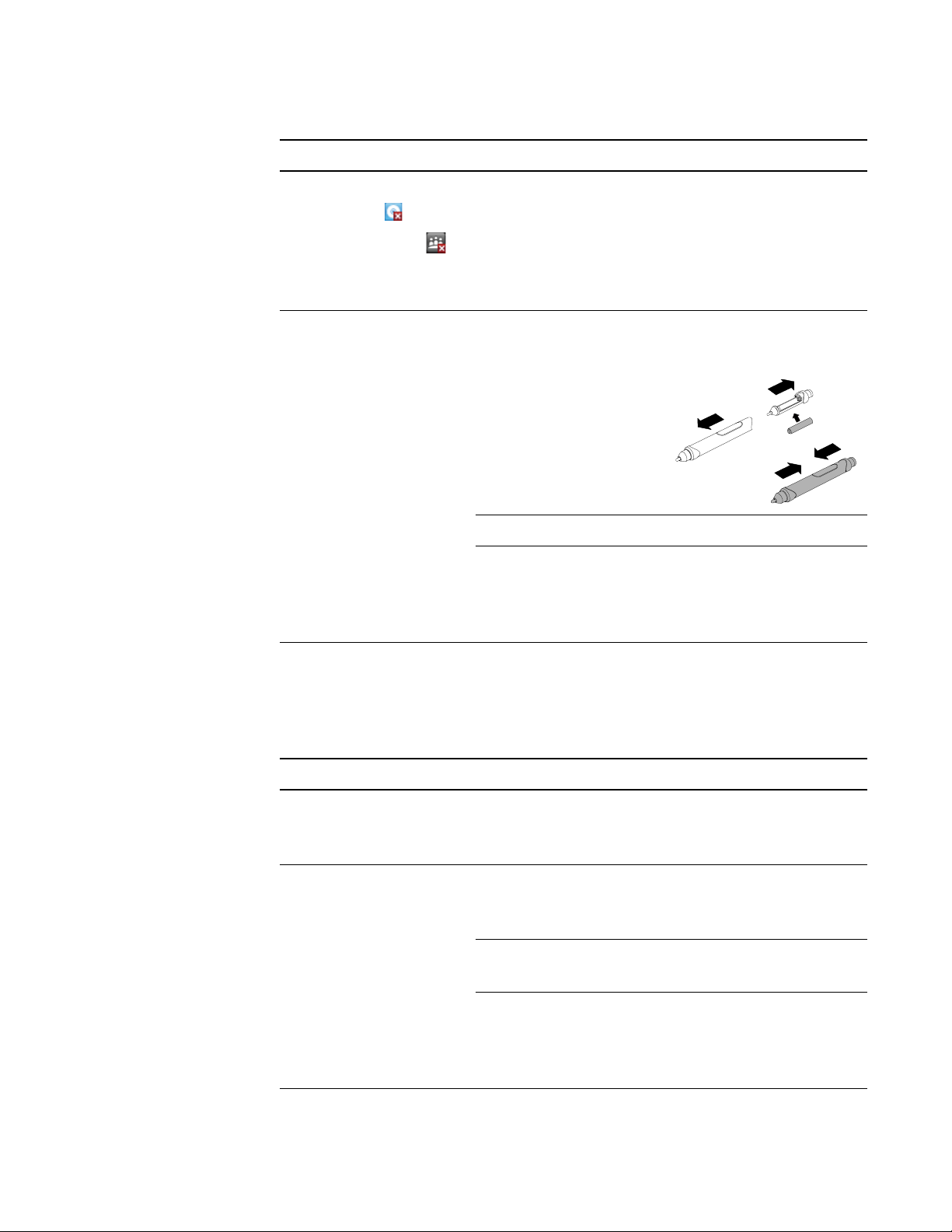

Resolving digital ink issues

Use the following troubleshooting table when you can easily move icons on your

interactive display screen with your finger, but you can’t draw in digital ink with your

pencil.

Green

Alternating

green and

orange

Flashing

orange

Touch connection panel is

updating firmware.

Wait for the update to finish.

Flashing

green

Flashing

orange

No USB connection. Check the cable between the

touch connection panel and the

computer.

CAUTION

To avoid memory loss, do

not disconnect the cable.

Red Flashing

orange

Corrupted firmware. Run the SMART Firmware

Upgrade Wizard.

Off Flashing

orange

Computer is in Standby

mode.

Turn on the computer.

Symptom Possible causes Actions

The SMART Board icon

or the SMART Meeting Pro

icon doesn’t appear in

the notification area

(Windows computers) or

Dock (Mac computers).

SMART software isn’t

running.

Open the SMART Board

Drivers folder in your list of

programs, and then select

SMART Board Tools.

SMART software isn’t

installed.

Download and install

SMART software from the

Software downloads page.

Your interactive display

includes either SMART

Meeting Pro Premium or

SMART Notebook

software.

Diagnostic

LED

Status

LED

Touch connection panel

condition Solution

10 | TROUBLESHOOTING GUIDE FOR THE SMART BOARD 6052I INTERACTIVE

DISPLAY

Resolving digital ink quality issues

Use the following troubleshooting table when digital ink quality is reduced.

There is a red X on your

SMART Board or

SMART Meeting Pro

icon.

Your computer can’t find

your interactive display.

Confirm that your

interactive display’s touch

connection panel is

connected to both your

computer and a power

source (see page 3).

You see the SMART Board

or SMART Meeting Pro

icon, but you can’t draw in

digital ink with the pencil.

The pencil’s batteries are

weak, dead or backwards

in the pencil.

Ensure the pencil batteries

are fresh and oriented

properly.

The pencil nib is worn. Replace the pencil nib.

Either the SMART Board

diagnostics window or

SMART Board control

panel is open.

Close the SMART Board

diagnostics window and

the SMART Board control

panel.

Symptom Possible causes Actions

Gaps appear in digital ink

lines or areas of the screen

are inactive.

The camera view is

obstructed.

Remove anything blocking

the cameras’ views.

You can write in digital ink,

but it is slow or sluggish.

Your computer doesn’t

meet requirements.

Upgrade your computer or

replace it with a more

powerful computer.

Your computer is running

too many applications.

Close some open

applications.

You haven’t used a USB

2.0 cable to connect your

interactive display to your

computer.

Use a USB 2.0 cable and

ensure it is connected to a

USB 2.0 connector on your

computer.

Symptom Possible causes Actions

Tabla de contenidos

Otros manuales de Pizarra interactiva de SMART Board

SMART Board

SMART Board D685ix Manual de usuario

SMART Board

SMART Board Interactive whiteboard Manual de usuario

SMART Board

SMART Board Board 690 Manual de usuario

SMART Board

SMART Board SBID8055i-G5-SMP Manual de usuario

SMART Board

SMART Board X800ix Manual de usuario

SMART Board

SMART Board M600ix3 Manual de usuario

SMART Board

SMART Board SB680-MP Manual de usuario

SMART Board

SMART Board 880i5 Manual de usuario

SMART Board

SMART Board 480i6 Manual de usuario

SMART Board

SMART Board Board 600i5 Manual de usuario

SMART Board

SMART Board 600ix Manual de usuario

SMART Board

SMART Board 600i3 Manual de usuario

SMART Board

SMART Board SmartBoard 600i2 Manual de usuario

SMART Board

SMART Board 800i6 Manual de usuario

SMART Board

SMART Board 800ixe-MP Manual de usuario

SMART Board

SMART Board M685ix2 Manual de usuario

SMART Board

SMART Board 480iv2 Manual de usuario

SMART Board

SMART Board Board E70 Manual de usuario

SMART Board

SMART Board Board 800 series Manual de usuario

SMART Board

SMART Board SB685ix2 Manual de usuario

SMART Board

SMART Board SB880i4 Manual de usuario

SMART Board

SMART Board 6000 series Manual de usuario

SMART Board

SMART Board Board 600i6 Manual de usuario

SMART Board

SMART Board Board E70 Manual de usuario

Manuales populares de Pizarra interactiva de otras marcas

SMART

SMART KAPP42 Manual de usuario

HitachiSoft

HitachiSoft StarBoard FX-TRIO-88W Manual de usuario

Buhl

Buhl LyteBoard Manual de usuario

SMART

SMART SBX880 Manual de usuario

Legamaster

Legamaster e-SCREEN ETX Manual de usuario

Seneca

Seneca eno Manual de usuario

BenQ

BenQ RP840G Manual de usuario

SMART

SMART Sympodium IC-150 Manual de usuario

Olivetti

Olivetti OLIBOARD Manual de usuario

Turning Technologies

Turning Technologies MOBIVIEW Manual de usuario

Panasonic

Panasonic UB-5335 Manual de usuario

Dukane

Dukane ITP84 Manual de usuario

Bretford

Bretford EDUIMS Guía de configuración

Panasonic

Panasonic Panaboard UB-5315 Manual de usuario

Plus

Plus M-11S Manual de usuario

TRIUMPH BOARD

TRIUMPH BOARD ULTRA SLIM Manual de usuario

Returnstar Interactive Tech

Returnstar Interactive Tech IQBoard DVT V7.0 Manual de usuario

AVer

AVer CP series Manual de usuario
