SMART-AVI D2H-4P Quad Manual de usuario

NOTICE

The information contained in this document

is subject to change without notice. SmartAVI

makes no warranty of any kind with regard to

this material, including but not limited to,

implied warranties of merchantability and

fitness for particular purpose.

SmartAVI will not be liable for errors con-

tained herein or for incidental or consequen-

tial damages in connection with the furnish-

ing, performance or use of this material.

No part of this document may be photocop-

ied, reproduced, or translated into another

language without prior written consent from

SmartAVI Technologies, Inc.

800.AVI.2131

Tel: (818) 503-6200 Fax: (818) 503-6208

11651 Vanowen St. North Hollywood, CA 91605

SmartAVI.com

D2H-4P

Designed and Manufactured in the USA

4-Port DisplayPort & USB In and

HDMI Out KVM Switch

Quick Start Guide

4-Port DisplayPort KVM switch

with 4K Ultra-HD HDMI

video output emulation.

WHAT’S IN THE BOX

PART NO. QTY DESCRIPTION

D2H-4P 1 4-Port DisplayPort In and

HDMI Out KVM Switch.

PS5VDC4A 1 Power Supply/Adapter

1 Quick Start Guide

TECHNICAL SPECIFICATIONS

VIDEO

Resolution Up to 4K (3840x2160@30Hz)

HDTV Resolutions 480p, 720p, 1080i, 1080p, 2160i

HDCP Compliant Yes

Input Interface (4) DisplayPort Version 1.2

Output Interface (1) HDMI Version 1.4

Input/Output Max

Cable Length 40 ft.

Max data Rate 6.75 Gbps

Max Pixel Clock 225 MHz

Video Bandwidth Single-link 340MHz [10.2Gbps]

AUDIO (VIA HDMI & DisplayPort)

Frequency

Response 20Hz ~ 20KHz

Stereo Channel

Separation >75dB@20Hz ~ 20KHz

Bandwidth 20Hz~ 25KHz

CONTROL

Front Panel

Select/Switch between Video &

Audio sources and view the current

selected channel.

RS-232 DB9 Female - 115200, N, 8, 1, no

flow control

Hotkeys Keyboard Select/Switch between Video &

Audio sources

POWER

Power

Consumption 10 W

Power External 100-240 VAC

Power Supply 5VDC 4A

CONNECTING THIS PRODUCT

1. Ensure that power is disconnected from D2H-4P.

2. Connect the DisplayPort cables and USB cables (male type-A to male type-B ) from the computers to the

respective ports on the D2H-4P.

3. Optionally connect RS-232 for control functions.

4. Connect the USB keyboard and mouse to the two USB ports on the right .

Note: The 2 USB ports on the right are dedicated for keyboard and mouse with full emulation. The 2 on the

left are for

other USB peripherals (flash drives, printers, etc.)

5. Connect the HDMI Display to the OUT connector on the D2H-4P.

6. Power on the displays, Computers and other devices. Power on the D2H-4P.

OTHER

Approvals UL, RoHS, CE

Operating Humidity 10 to 90 % RH (no condensation)

Storage

Temperature -20° to +60° (+20° to +140° F)

Storage Humidity 10% to 85% (no condensation)

Dimensions 12.125” W x 2” H x 6.25” D

Weight 1.65 lbs.

USB

Signal Type USB 2.0

Input Interface (4) USB Type B female

Device Input

Interface

(2) USB Type A female, Dedicated

Keyboard/Mouse with full emula-

tion

(2) USB Type A female, transpar-

ent

TECHNICAL SPECIFICATIONS (continued)

FEATURES

 KVM control between four connected computers

from a single workstation

 Full HDMI support and backwards compatible

with prior DisplayPort versions

 Full EDID video emulation via HDMI output

 Independent (asynchronous) switching of KVM

and peripheral USB ports.

D2H-4P Front

D2H-4P Back

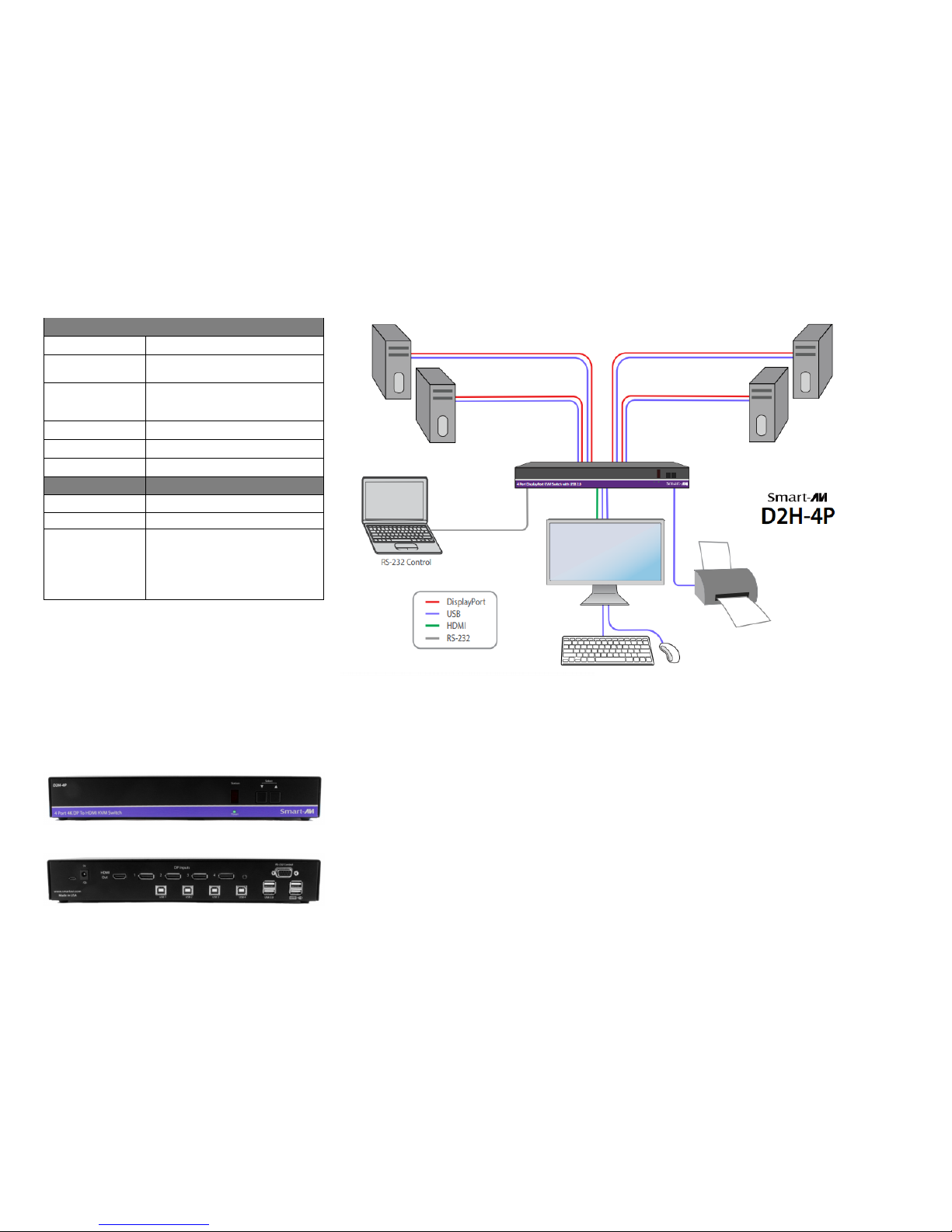

INSTALLATION DIAGRAM
