SMART-AVI NET-IP-PRO Manual de usuario

Made in U.S.A. www.SmartAVI.com 1-800-AVI-2131

NET-IP-PRO

User Manual

Remotely control Smart-AVI product operations over a local area

network or via the Internet from anywhere in the world

Web-Based Control for Smart-AVI Products

TABLE OF CONTENTS

What’s in the box? 2

Introduction 3

Features 3

Technical specifications 3

Connecting to the NET-IP-PRO 4

Initial Setup 5-6

Controlling the NET-IP-PRO via HTTP —Matrix Menu 7

Controlling the NET-IP-PRO via HTTP —Macros 8

Controlling the NET-IP-PRO via HTTP —Device Configuration Menu 8

Controlling the NET-IP-PRO via TELNET 9

Upgrading the NET-IP-PRO 9

Limited warranty statement 10

Applications 3

WHAT'S IN THE BOX?

PART NO. QTY DESCRIPTION

NET-IP-PRO 1 Ethernet / RS-232 Server

PS5VDC2A 1 5VDC2A Power Supply

CCRS232-X 1 Serial male to male cross-over cable

1 Quick Start Guide

INTRODUCTION

The NET-IP-PRO is an RS-232 control module that allows most SmartAVI switching matrixes to be controlled

remotely via HTTP or TELNET. Manage the switching functions of your matrix with ease from anywhere in the

world. With the NET-IP-PRO you can save up to 10 preset input/output configurations for easy access.

TELNET access provides transparent command control of your matrix, perfect for use with automated third-

party control software.

FEATURES

· Supports HTTP and TELNET control

· 10/100 Ethernet Interface

· Up to 10 user-definable configurations

· Password Protected

· Up to 5 Users can Control the Matrixes

· IP Configuration via TCP/IP and RS-232

· Flexible control of several types of matrixes

APPLICATIONS

· Wall Displays

· Digital Signage

· Airports

· Dealer Rooms

· Control Rooms

· Audio/Visual Presentations

· Shopping Centers

· Security

· Point-of-Sale

· Hotels/Resorts

Power Supply 5VDC2A

Dimensions 5”W x 1.625”H x 3.25”D

Weight .35 lbs.

Operating Temp. 32 to 131°F (0 to 55 °C)

Storage Temp. -4 to 185 °F (-20 to 85 °C)

Humidity Up to 95% (no condensation)

TECHNICAL SPECIFICATIONS

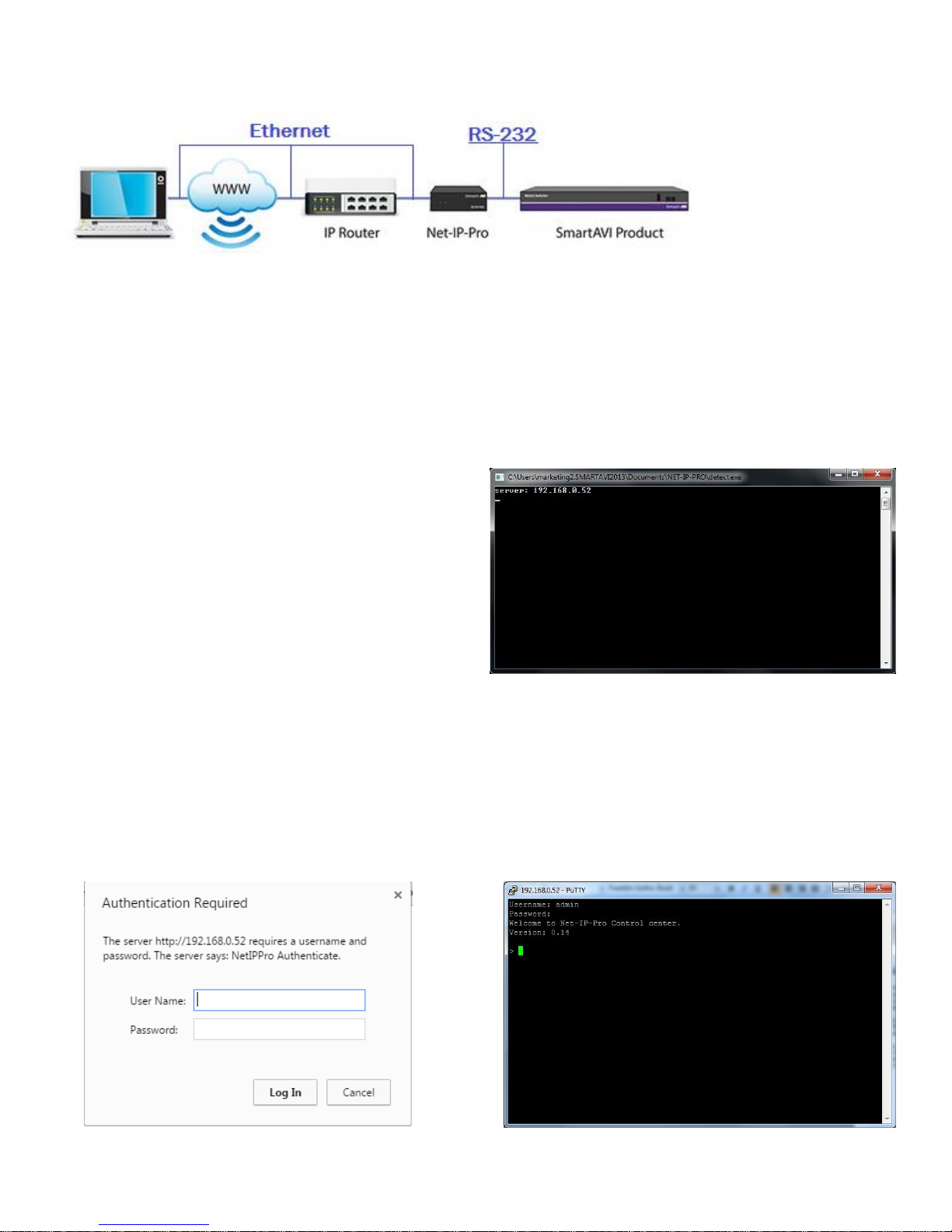

CONNECTING TO THE NET-IP-PRO

1. Power off all devices.

2. Using a CAT5 cable, connect the NET-IP-PRO to your local network.

3. If you have a smart-AVI device use an RS-232 male to male cable to connect the NET-IP-PRO to your smart

-AVI device.

4. Plug the power into the NET-IP-PRO.

After connecting the NET-IP-PRO to the network and plugging in the power supply, you will need to find the

IP address assigned to the NET-IP-PRO in order to connect to it. This can be done with either of the following

two discovery tools available for download on the

Smart-AVI website, www.smartavi.com.

The first, called “detect”will open up a small console

application that will display the IP address of the NET-IP

-PRO as shown in figure 4-1. The IP address you see will

be supplied by your DHCP server and different from the

example in figure 4-1 . After obtaining the IP address

connect to the device with the web application of your

choice by typing that IP address in the web browser or

connect through telnet on port 23. Figure 4.1

An alternative option is to use “detect_gui,”this program will find the IP address of the NET-IP-PRO and then

open up your default web browser connected to the NET-IP-PRO web interface.

Either way once you connect to the NET-IP-PRO you will be prompted to log in. The default user name is

admin and the default password is admin. The user name and password are case sensitive. The log in

screen from a browser connection is shown in figure 4-2 and a telnet log in screen is shown in figure 4-3.

Figure 4-2 Figure 4-3

INITIAL SETUP

Once connected to the NET-IP-PRO, you will see the following menu of options (Figure 5-1):

Administration

Device Config

Matrix

Network Settings

Users

Update Firmware

Web Console

Web Telnet

Logout

Figure 5-1

For the initial setup, click the “Network Settings”tab and manually

assign an IP address to the NET-IP-PRO. This will assure that the

NET-IP-PRO will always have the same IP address. Be sure to

choose an address that will not conflict with any other devices on

the network, and that is not in the range of the DHCP server.

Once you have manually assigned an IP address, the NET-IP-PRO

must be restarted before it will be accessible at that IP address.

Figure 5-2

It is also recommended that you set a password for the NET-IP-PRO at this

point. To change the password (and/or username) of the web interface,

click on the “Administration”tab. Enter the new password and click Submit.

This sets the password for the HTTP interface only.

INITIAL SETUP (Continued)

Connect the NET-IP-PRO to a SmartAVI video matrix using an RS-232 (male-to-male) crossed cable (See figure

6-1) or a straight through cable with a null modem adaptor.

Note:

A crossed cable (Figure 6-1) connects

pin 2 on the transmit end to pin 3 on

the receive end and pin 3 on the trans-

mit end to pin 2 on the receive end .

A straight thru cable connects pin 2 on

the transmit end to pin 2 on the re-

ceive end and pin 3 on the transmit

end to pin 3 on the receive end .

You can use a null modem adapter to

convert a straight through to a crossed

and a crossed to a straight through ca-

ble. Figure 6-1

Figure 6-2

You can access the NET-IP-PRO to control your Smart-AVI Matrix on your local area network (LAN) as shown

in figure 6-2 or from anywhere in the world via the internet.

CONTROLLING THE NET-IP-PRO VIA HTTP

Matrix Menu

The Matrix menu (figure 7-1) al-

lows you to set the cross-points

for the matrix. Cross-points are

used to route signals from the

individual input (signal source) to

individual outputs (displays). The

output channels can only have

one input, but each input can

have several outputs.

To select multiple outputs, in the

row for any input or source, click

the button under the desired out-

puts or displays. Figure 7-1

Clicking Select All sets all the out-

puts to the input of the same row.

See Figure 7-2

Figure 7-2

Clear matrix: Clears the cross point selections from the matrix.

Query matrix from device: Discovers the currently set matrix cross point configuration is for each input and

output and displays it on the matrix screen.

CONTROLLING THE NET-IP-PRO VIA HTTP (Continued)

MACROS

Record this setup as macro: allows you to save and recall cross-point configurations with the push of a but-

ton. To setup a Matrix Macros preset, you must do the following steps:

1. Click on the matrix window to set a cross point; set as many cross points as needed. This will instantly set

the input to the corresponding output as indicated in the matrix.

2. Click on “record this setup as macro”

3. A new item will appear below the matrix under the

“macro action”tab with a default name.

See figure 8-1

4. To set all this newly saved cross point configuration

again in the future with the click of a button, click the cen-

ter button.

5. To rename the configuration to something more famil-

iar, simply type the new name in the text field and click the

up/down arrows to save the name. To delete the item click

the delete button.

DEVICE CONFIGURATION MENU

The Device Config menu allows you to customize the names of the Input and Output. You can simply assign

names to the inputs and outputs by typing the new name in the text field and pressing “Submit names”.

Leaving a preset blank will not exclude it from the Matrix Menu. For example, You could name an input or

source “BluRay01”and an output or display “Front Lobby”. See figure 8-2

Figure 8-2

Figure 8-1

CONTROLLING THE NET-IP-PRO VIA TELNET

Commands may be sent transparently to the matrix via a TELNET connection to the NET-IP-PRO. To use this

function, use a telnet client such as Hyperterminal or PuTTY (see figure 9-1) to connect to the IP address of

the NET-IP-PRO. You will be prompted for a username and password. This will be the same as the login infor-

mation via HTTP. See figure 9-2. Once logged in, the NET-IP-PRO is ready to accept the standard RS-232 com-

mands. For a list of the available commands, please see the user manual for the matrix you are using. Al-

though the commands are not echoed to the client display, the commands are being issued to the matrix.

Should you need commands to be echoed, please see the instructions for your TELNET client.

Figure 9-1

Figure 9-2

UPGRADING THE NET-IP-PRO

To upgrade the NET-IP-PRO with the latest firmware, contact your sales representative at

800-AVI-2131, 818-503-6200 or contact us at www.smartavi.com.

LIMITED WARRANTY STATEMENT

A. Extent of limited warranty

Smart-AVI Technologies, Inc. warrants to the end-user customers that the Smart-AVI product specified above

will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on

the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase.

Smart-AVI limited warranty covers only those defects which arise as a result of normal use of the product,

and do not apply to any:

a. Improper or inadequate maintenance or modifications

b. Operations outside product specifications

c. Mechanical abuse and exposure to severe conditions

If Smart-AVI receives, during applicable warranty period, a notice of defect, Smart-AVI will at its discretion

replace or repair defective product. If Smart-AVI is unable to replace or repair defective product covered by

the Smart-AVI warranty within reasonable period of time, Smart-AVI shall refund the cost of the product.

Smart-AVI shall have no obligation to repair, replace or refund unit until customer returns defective product

to Smart-AVI.

Any replacement product could be new or like new, provided that it has functionality at least equal to that of

the product being replaced.

Smart-AVI limited warranty is valid in any country where the covered product is distributed by Smart-AVI.

B. Limitations of warranty

To the extant allowed by local law, neither Smart-AVI nor its third party suppliers make any other warranty or

condition of any kind whether expressed or implied with respect to the Smart-AVI product, and specifically

disclaim implied warranties or conditions of merchantability, satisfactory quality, and fitness for a particular

purpose.

C. Limitations of liability

To the extent allowed by local law the remedies provided in this warranty statement are the cus-

tomers sole and exclusive remedies.

To the extant allowed by local law, except for the obligations specifically set forth in this warranty statement,

in no event will Smart-AVI or its third party suppliers be liable for direct, indirect, special, incidental, or con-

sequential damages whether based on contract, tort or any other legal theory and whether advised of the

possibility of such damages.

D. Local law

To the extent that this warranty statement is inconsistent with local law, this warranty

statement shall be considered modified to be consistent with such law.
