SMARDY Blue H2 Manual de usuario
0®
Wasserstoffwa
sser
Generator
Hydrogen Generator
H2
Manual
Step2
✔At first commissioning, the SPE memebrane
must be activated. Fill the generator with
approx. 90°C hot water.
✔Start (without the upper bottle closure –
otherwise the gas cylinder could explode due
to the resulting pressure) the device.
✔Repeat this process 10 times (use freshly
boiled water with every process). Then the SPE
membrane is fully activated.
QUICK START GUIDE
Step1
✔Fill the hydrogen generator with a little cold
water and connect to the power supply, fully
charge until the green LED light illuminates
✔Pay attention to a tight screw connection
and if necessary check
or replace the seals in case of
water leakage.
Step3
✔Repeat this process 10 times. Then the SPE
membrane is fully activated.
✔Fill the hydrogen generator with a little cold
water and reconnect to the power supply,
charge until the green LED light illuminates
✔Completely fill the generator with cold
(osmosis, still mineral or nitrate-free tap water)
water. Start the device and enjoy H2
hydrogen-rich water.
ATTENTION: only use still Water!
There should be no carbon dioxide in the water.
** Drink daily up to 0,3 l per 10 kg body weight.
Chapter Overview
•01 –General safety instructions
•02 –Scope of supply
•03 –Charge mode
•04 –Operation
•05 –Internal cleaning
•06 –External cleaning
•07 –Hydrogen water–Not only drinking
•08 –Troubleshooting
•09 –Legal and imprint
✓Only operate the device when you have read and understood
the instruction manual.
✓Before you switch on the device, the water container must be
filled with water. Otherwise the electrolyc cell could be damaged
and this will invalidate the guarantee.
✓You may not fill water of over 90°C.
✓Only use the device with 220 Volt.
✓Ensure that children and pets do not have access to the device.
✓Never submerge the device in water. A damp cloth is sufficient for
cleaning. Do not use chemical cleaning agents.
✓Never drop the device.
✓Preferably use cold water (under 30°C)
✓Do not expose the device to direct solar irradiation or
temperatures under 0 or over 50 degrees.
✓If during the production water leaks out of the device, stop the
operation.
✓Do not place the device in damp or polluted areas.
✓Do not use the power supply, if it is damaged or when the
cable was kinked.
✓Do not place heavy or sharp objects on top of the
power cord.
✓Do not touch any parts that are connected to the mains
power supply with damp fingers.
✓Only use water of best drinking water quality (osmosis, hot
or still mineral water), if you subsequently want to drink
the water.
✓You may not use carbonated water (sparkling water, sparkling
mineral water). In doing so, the device could explode.
✓Do not open either the power supply unit or the base unit and
do not attempt to repair in case of a defect. In the event of a
defect, immediately disconnect the device from the mains
and inform your dealer.
1 - General safety instructions

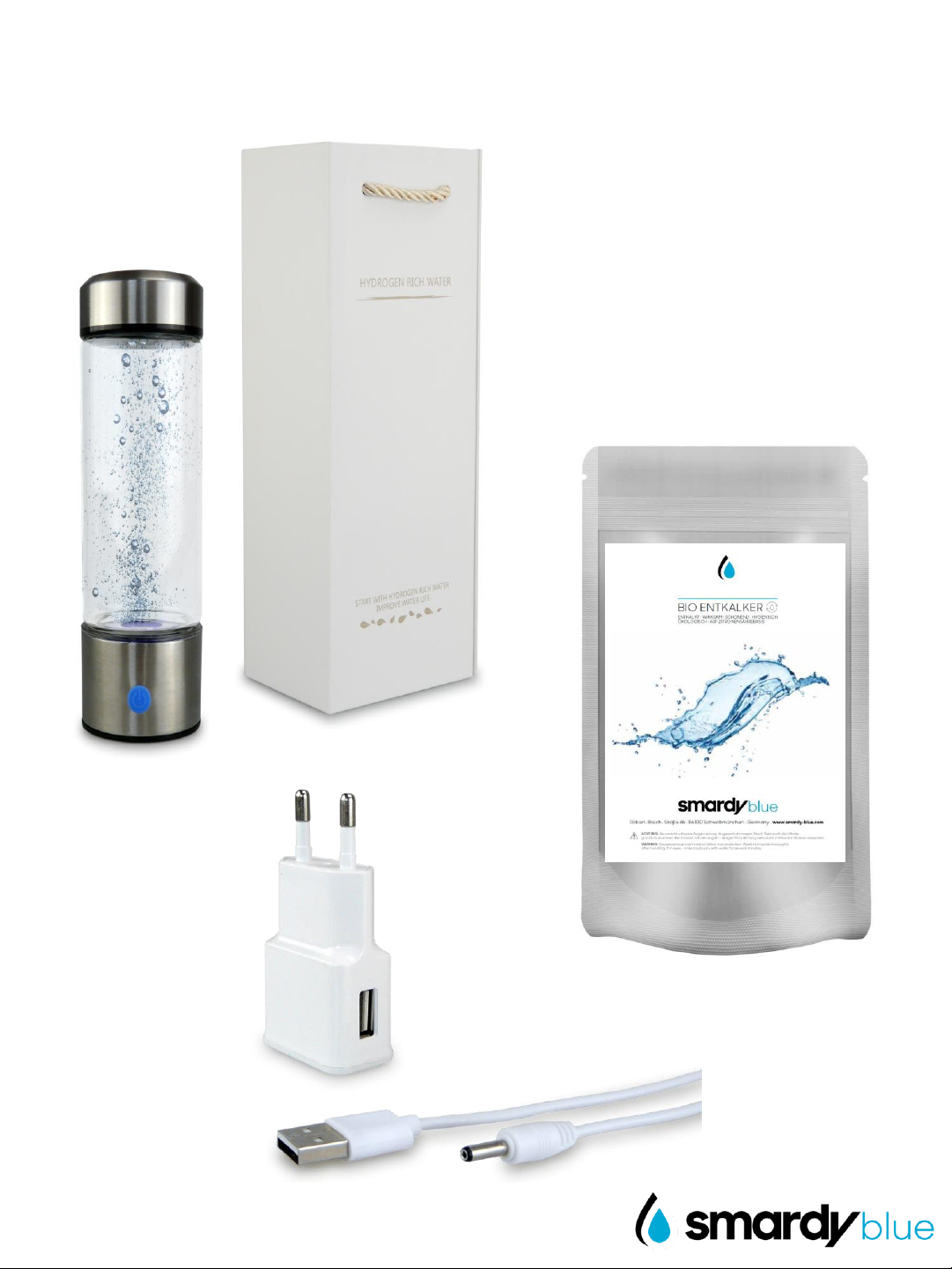

2 –Scope of supply
1. Place the device on a flat and dry surface
2. Fold up the flap over the charging socket at the rear side
3. Connect the narrow end of the USB cable to the charging socket and
the other end to the USB port on the charger. Then plug the charger
into a 220 V socket-
4. During the charging process the light glows red, when the battery is fully
charged, the light glows green.
5. Prior to the first use, the battery must be fully charged. Charging time is
approx. 2,5 hours
03 –Charge mode
Before you switch on, there should be at least 0,1 liter drinking water in
the container.
Without bottle closure. Ideally, the container should be filled
completely because this way it will build up a greater hydrogen
pressure and more hydrogen will dissolve in the water
correspondingly. Ensure screw connection tightness and if necessary
check or replace the seals, in case of water leakage, before putting
the device into operation.
1. By pressing the action button (a) the generator starts, the
process takes 3 minutes.
2. You can prematurely terminate the enrichment by
pressing the action button once again.
3. When the end tone sounds 2x, the process is complete.
04 –Operation
Attention: Only use still water!
There should not be carbon dioxide in the water.
a
05 –Internal cleaning / Maintenance
After approx. one week or when traces of
limescale are visible, the internal part of the
generator and the crosshatchured negative
electrode which produces the hydrogen, must
be cleaned with 1 heaped tablespoon of
dissolved citric acid in hot water (approx. 85 –90
degrees). Please let the citric acid solution take
effect for 1 hour and subsequently rinse the
generator and electrode several times with
warm water.
Completely fill the generator with approx. 85 –
90° C and start, repeat the whole process 2 x,
pour out the water and do not drink.
This cleaning process should also be carried out
if an unpleasant odour in the device is
perceived. In this case the water should be 60 –
80 degrees C hot.
Pay attention to perfect hygiene and remove
traces of limescale with citric acid.
06 –External cleaning / Storage /
Technical data
Wipe the external part of the device with a soft damp cloth.
You can also remove coarse impurities by filling the generator half
with warm water and shaking vigorously.
Store the unit at room temperature and not in direct sunlight.
Dimensions
Diameter 72 mm. height103 mm.
Weight
400 g. (empty) storage capacity 0,4 l
Membrane
USA SPE +
Reserve capacity
approx. 10 applications (3 Min.) –fully charged
Charging time
approx. 2,5 hours. Battery: DC 5 V/ 1000 mAh
Power supply
100–240 V, 50/60 Hz. Output: DC 5 V, 2A
Hydrogen power
water-dependent. 1000 –1500 ppb
Redoz potential
(-) 300 bis (-) 700 mV (CSE)
07 - Hydrogen water –Not only drinking!
•In contrast to basic active water from a classic water ioniser, the Ph-
value of the treated water remains preserved. Hydrogen water can also
be slightly acidic
•Drink daily up to 0,3 l per 10 kg body weight. At high temperatures and /
or heavy physical exertion correspondingly more. Preferably use basic
water.
•Immerse fruits, salads, cut flowers, raw eggs, fish, meat and vegetables
for 15-20 minutes into fresh hydrogen water. Such food refreshes itself as a
result of hydrogen absorption which even penetrates eggshells. Due to
the penetration of hydrogen, the redox potential of foodstuffs drops. Mix
milk powder, diet powder, fitness powder, etc. with hydrogen water.
Dissolve mineral and vitamin mixtures in it. In doing so, the redox potential
will also drop favourably due to the role of the dissolved hydrogen.
•Give your pets (dogs, cats ...) hydrogen-rich water to drink and observe
how the fur and the general health changes positively
