Skywalker SFTH400-A Guía rápida

USER MANUAL

Skywalker Holdings LLC

P.O. Box 574, Brigham City, UT 84302

ASSEMBLY, MAINTENANCE, &

MODEL # SFTH400-A

WARNING

Read all precautions and instructions in

this manual before using this equipment.

Save this manual for future reference.

Maximum user weight 300 lbs.

DL/CR 2032 button cell

battery required (not included)

TABLE OF CONTENTS

WARNING

CHOKING HAZARD- Small

parts not for children

under 3 years.

WARNING

Adult assembly required.

STOP EVERYTHING YOU'RE DOING AND REGISTER YOUR PRODUCT

Find our warranty registration online by typing in: www.skywalkertrampolines.com/registration/

You'll need to have the following information handy:

• Name • Email address

• Address • Product model number

• Phone number • Product serial number

• Date of purchase • Retailer the product was purchased from

HEY WE'VE GOT SOMETHING REALLY IMPORTANT TO SAY

This product can be used with our app. Go to the app store and look for the Sky Fitness app to sync your trampoline

sensor.

Sky Fitness belongs to a family of brands focused on providing active products. Check us out online! We've got

assembly videos (for those of you who prefer movies over books), FAQs (so you know you're not the only one who

needs help) , additional products (including trampolines, sports and playground equipment), and most importantly,

find us on social media! Because we want to be your friend. We'd love to see how you are using our products!

Part List.....................................................................................................................................................................................3

Part Identiﬁcation.........................................................................................................................................................4-6

Exploded Drawing..............................................................................................................................................................7

Assembly............................................................................................................................................................................8-14

Sensor Instruction............................................................................................................................................................15

Warning & Maintenance...............................................................................................................................................16

Limited Warranty..........................................................................................................................................................17-18

@skywalkertrampolines skywalkertrampolines @skywalker_trampolines

@swtrampolines @swtrampolines www.skywalkertrampolines.com

PART LIST

ORDERING REPLACEMENT PARTS

We get it, sometimes things happen, but the fun shouldn’t stop just because you need a new bolt or screw. To order

replacement parts, check out our website at: www.skywalkertrampolines.com or call our toll-free Customer Care

Hot-line at 1-866-603-Jump (5867), Monday - Thursday 8 a.m. to 5 p.m., Friday 8 a.m. to 3 p.m. (excluding holidays).

Our customer service team will ask you a few questions in order to get the replacement part sent out as soon as

possible. We’re not trying to complicate your life, we promise.

When calling, make sure to have the following information ready:

• The model # of the product (see the front cover of this manual)

• The key # and description of the part (see the part list above)

• The quantity of parts needed (only you know the answer to that one)

BEFORE YOU BEGIN

Thanks for choosing Sky Fitness! We’re just as excited as you are to help your family live an active (but most

importantly FUN) lifestyle. This model is one of our favorites, and we’re conﬁdent you’ll love it too. We want to make

things easier for you, so we have listed all the important information that you need to know. Make sure you brush

up on the warnings, instructions, assembly, maintenance, and use of your new product, because there will be a pop

quiz at the end (Okay, not REALLY, but if you’re still reading this, props to you! You’re awesome.).

Key No.

Qty.

Description

Frame Assembly

Horizontal handle

Upper handle

Lower handle

Curl Knob

Knob

M8 x 35mm Carriage Bolt

Spring Washer

M8 Capnut

M8x30mm Bolt

M8x45mm Bolt

Mat (Pre-installed)

End Cap 1 (Pre-installed)

End Cap 2 (Pre-installed)

Adjustable Foot (Pre-installed)

Key No.

Qty.

Description

Frame (Pre-installed)

Leg (Pre-installed)

M6x65 Bolt (Pre-installed)

M6 Nut (Pre-installed)

Elastic with Ball (Pre-installed)

Sensor

Mobile Device Stand (assembly needed)

S5 Wrench

Wrench

M12 Washer

User’s Manual

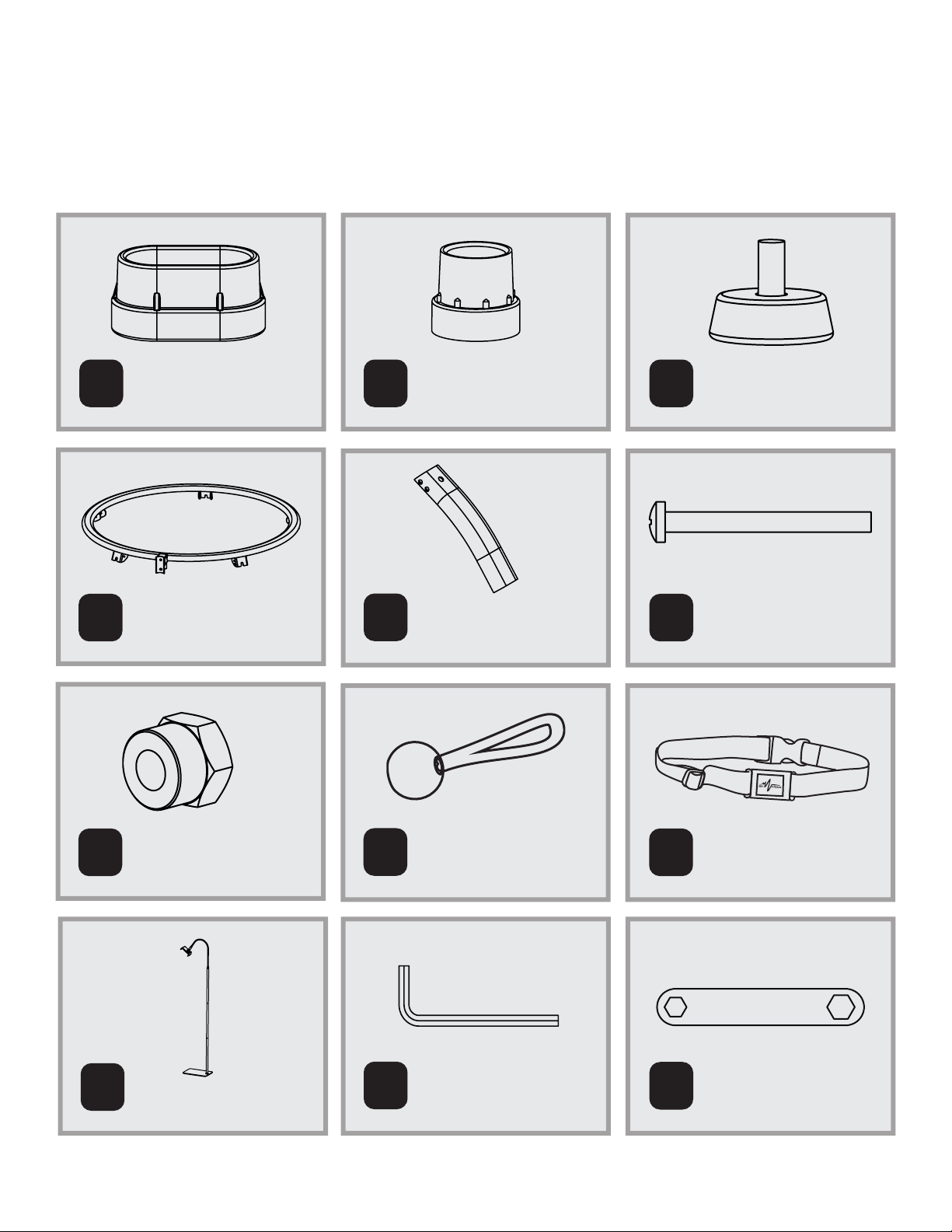

Before you begin, take a look at the drawings below to make sure you have all the parts. The numbers in the squares

to the left (key numbers) will help you identify the parts during assembly.

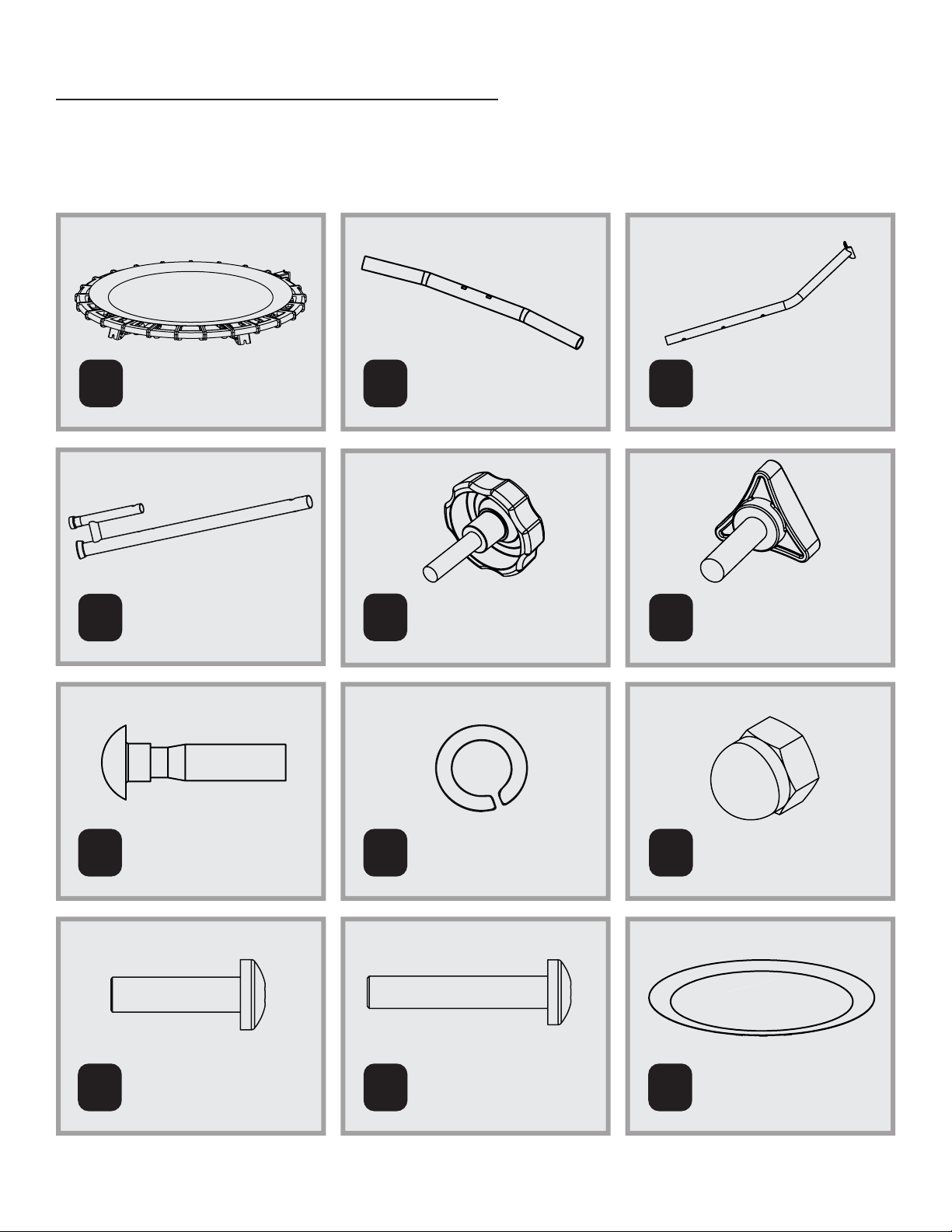

PART IDENTIFICATION

1 2 3

456

Upper Handle (x1)

Curl Knob (x1)

M8 x 35mm Carriage

Bolt (x2) 9

10 11 12

Frame Assembly (x1) Horizontal Handle

(x1)

Lower Handle (x1)

Spring Washer (x5) M8 Capnut (x4)

Knob (x5)

M8x30mm Bolt (x1) M8x45mm Bolt

(x2)

Mat (x1)

Pre-installed

13 14 15

Leg (x5)

Pre-installed

M6x65 Bolt (x5)

Pre-installed

Sensor (x1)

Wrench (x1)

Adjustable Foot (x1)

Pre-installed

End Cap 2 (x1)

Pre-installed

Elastic with Ball (x25)

Pre-installed

Frame (x1)

Pre-installed

M6 Nut (x5)

Pre-installed

Mobile Device Stand

(x1) (assembly needed)

End Cap 1(x5)

Pre-installed

S5 Wrench (x1)

Before you begin, take a look at the drawings below to make sure you have all the parts. The numbers in the squares

to the left (key numbers) will help you identify the parts during assembly.

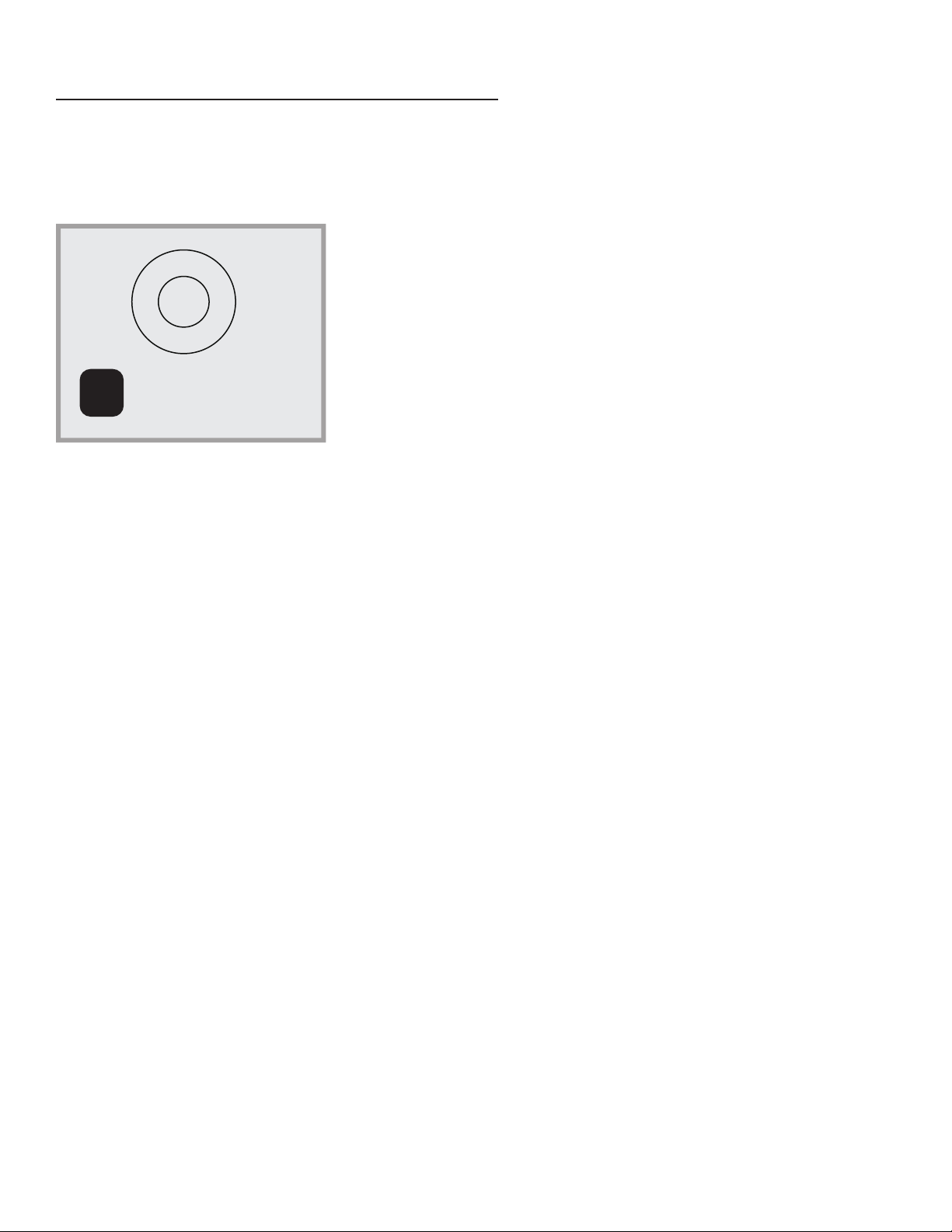

PART IDENTIFICATION

25 M12 Washer (x3)

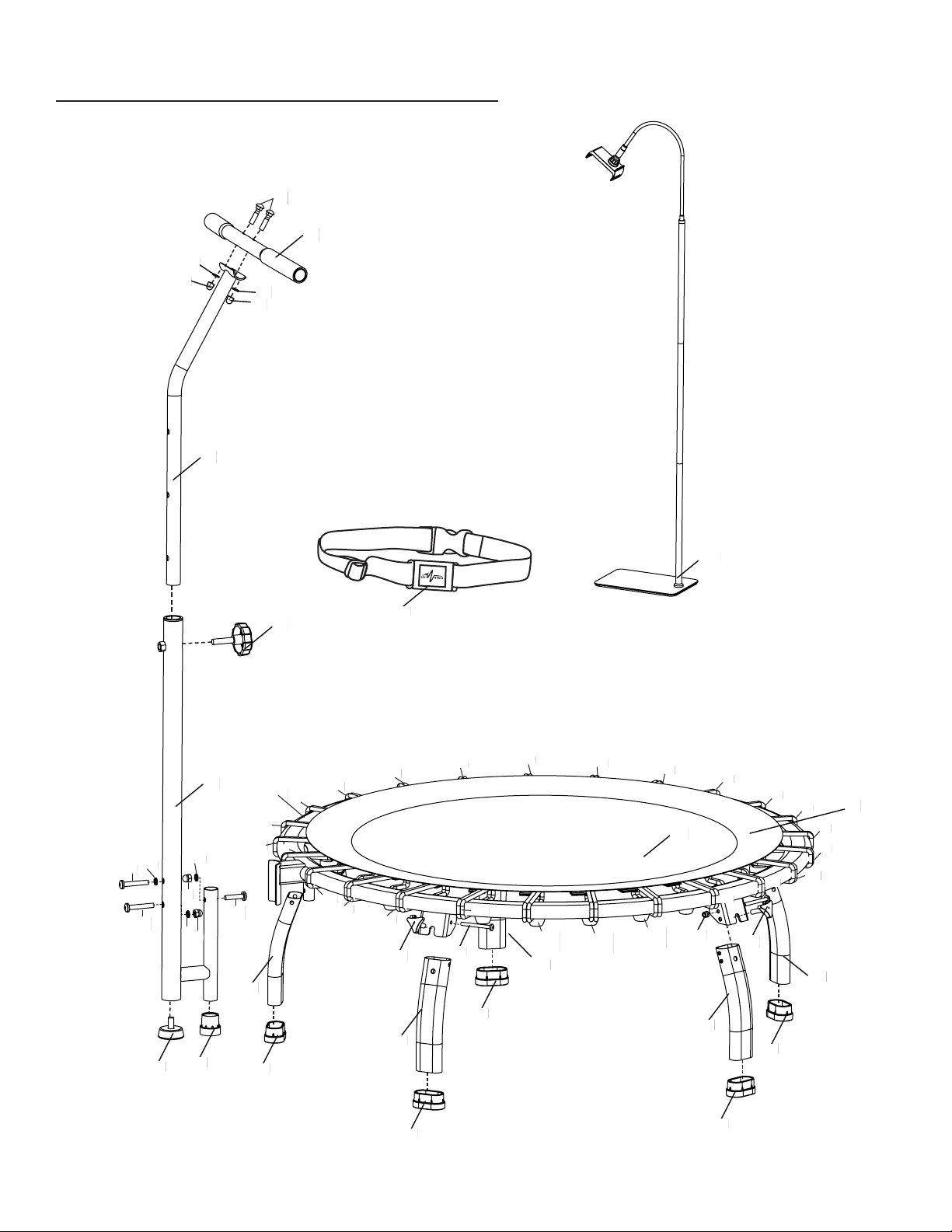

EXPLODED DRAWING

(1)

(12)

(2)

(8)

(9)

(7)

(3)

(4) (16)

(5)

(22)

(21)

(6)

(19)

(6) (18)

(13)

(17)

(20) (20)

(20)

(20) (20)

(20)

(8) (8)

(8)(9)

(9)

(10)

(11)

(20)

(20) (20) (20) (20)

(20)

(17)

(13)

(15) (14)

(17)

READ THIS BEFORE YOU BEGIN

• You’ll probably need 1 adult and 20 minutes to assemble your trampoline (of course, that depends on what model

you have, and whether or not you’re secretly a superhero).

• We’ve provided a wrench to help with assembly, but you’re more than welcome to use your own tools.

• You can use gloves to protect your hands from pinch points during assembly.

• The assembly steps refer to parts by their descriptions and key numbers (see the part list on page 3).

• The assembly steps are written in a speciﬁc order, and if you don’t follow them exactly, you may end up having to

start all over again.

• Most importantly, YOU’VE GOT THIS. YOU’RE THE BEST TRAMPOLINE ASSEMBLER AROUND. This may not be the

easiest thing you’ve ever done, but it will be worth it. Trust us.

And if you’re a visual learner, check out our assembly videos!

ASSEMBLY

STEP 1

(2)

(7)

(8)

(9)

(7)

(3)

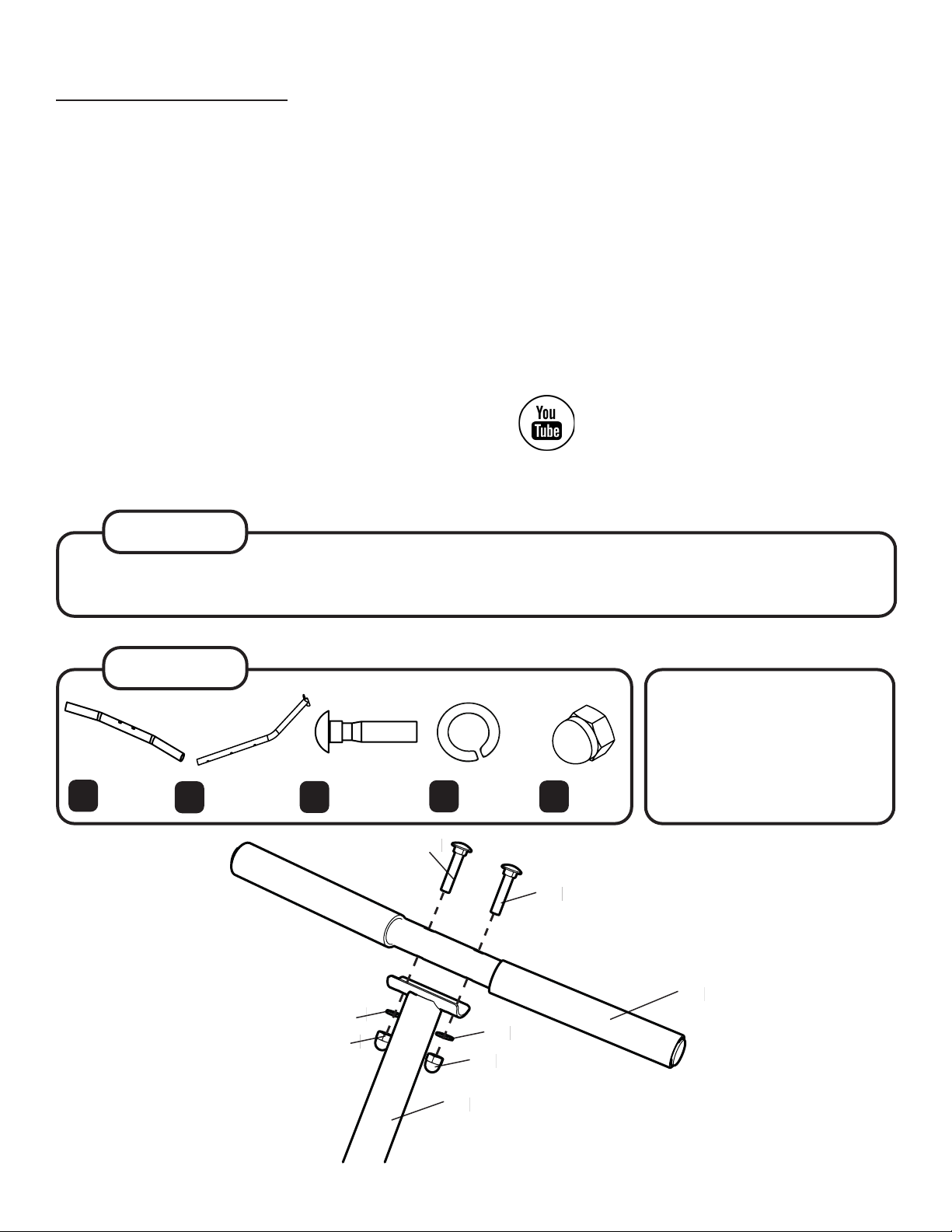

STEP 2

Attach the horizontal handle

(2) to the upper handle (3)

tighten with two M8X35mm

carriage bolts (7), two spring

washers (8) and two M8 cap-

nuts (9).

Upper Handle

(x1)

Horizontal

Handle (x1)

M8x35mm Ca-

rriage Bolt (x2)

Spring

Washer (x2)

M8 Cap-

nut (x2)

skywalkertrampolines

789

(4)

(5) (5)

(3)

Frame Assembly (x1)

(1)

Leg

Push Button

Curl Knob (x1)

Lower Handle

(x1)

STEP 3

STEP 4

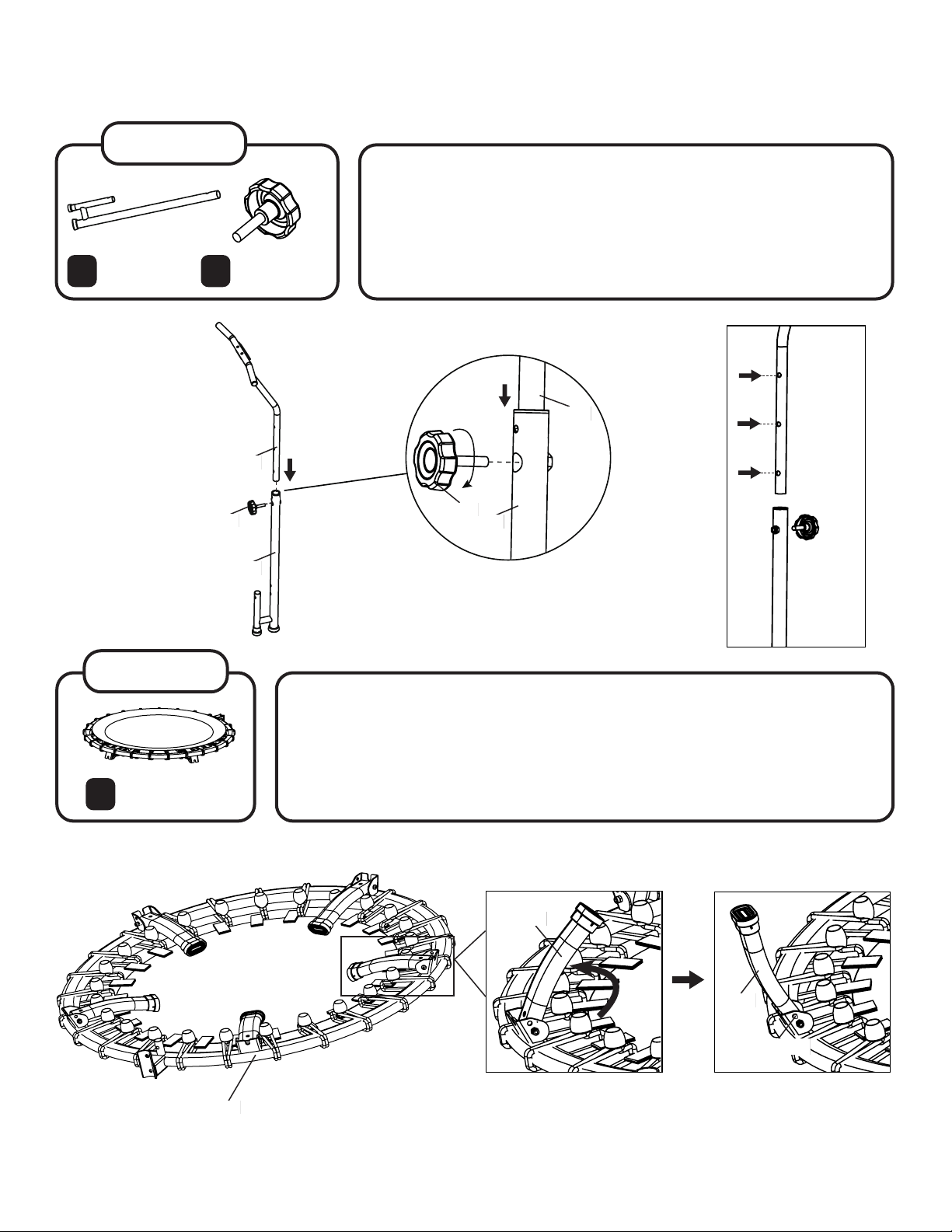

Insert the upper handle (3) into the lower handle (4) and tighten

with the curl knob (6) as shown.

Note: The height of the handle can be adjusted with the three holes

on the upper handle.

Unfold the legs of the frame (1). As the legs unfold, the push buttons will pop

up to lock them into place.

Then turn the trampoline over and stand it on its legs.

Knob (x5)

M8x45mm

Bolt (x2)

ASSEMBLY

STEP 5

Insert a knob (6) into the hole on the top of each leg (17) and twist to tighten.

Note: Make sure the knobs are tight before each use of the trampoline.

(6)

(17)

STEP 6

Spring

Washer (x3)

M8 Capnut

(x2)

810

911

M8x30mm

Bolt (x1)

(11) (8)

(4)

(1)

(11)

(10)

(8) (9)

(9) (8)

(11) (8)

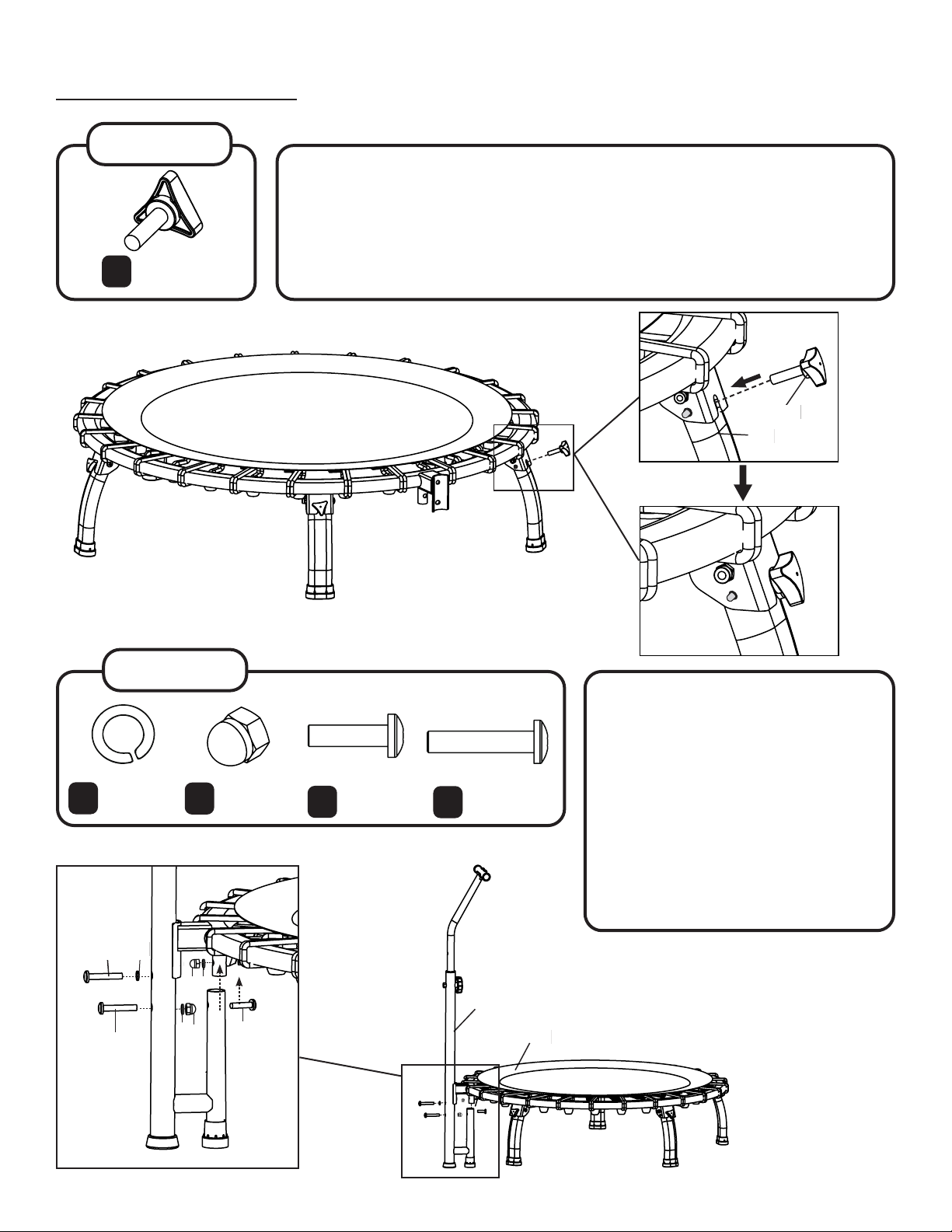

Connect the lower handle (4) to the

trampoline frame by sliding the open

tube of the handle onto the tube on the

underside of the frame (1) and placing

the main tube of the handle snugly

against the curved bracket on the frame.

Tighten together with two M8X45mm

bolts (11), two spring washers (8) and

one M8 capnut (9) at the front of the

lower handle and one M8X30mm bolt

(10), one spring washer and one capnut

underneath the frame as shown.
