Introduction
The SKIPPER ESN200 is a dual channel echosounder.
modern IEC standards for maritime equipment and alarm handling.
Features
and use multiple screens.
Features include:
•
• Possibility of multiple control units
•
• Remotely accessible
•
•
•
•
•
Channels Dual channel echo sounder
Transducer
connectors:
2 Transducer connectors in Electronic / transceiver unit.
Frequencies 8 set frequencies 24,30, 33, 38, 50, 100, 200, 210 kHz
Power Supply DC: 20 - 32 V and/or 115/230VAC
Power
Consumption
Display unit. Nominal 6W
Electronic unit 20W
Display
ESN200-SB
9” Resistive touch. 400NITS
Dimensions: 249 x 155mm
Weight:1.1kg
1 x LAN
3 x NMEA 0183 Outputs (IEC61192-1)
2 x NMEA 0183 Inputs (IEC61192-1)
Electronic unit
JB70E2-SA
Dimension: 115x115x180mm
Weight:1.5kg
2 x LAN (IEC61192-450)
5 x NMEA 0183 Outputs (IEC61192-1)
3 x NMEA 0183 Inputs (IEC61192-1)
1 x AUX in
2 x AUX out
1 x Relay out
Ranges Selectable from 0 - 5 m to 0 - 5000 m
Approved transduc-
ers with expected
depth limits
50/200kHz ETS50200T/G 1.5-450m
200kHz ETN200T: 1,5 - 300m
200kHz ETN200ST/G: 1,5 - 200m
50kHz ETN050T/G: 2 - 450m
38kHz ETN038T/G:2 - 1000*
Measuring Accuracy 2-20m: Accuracy<0.5m Resolution=0.1m
20-200m: Accuracy<5m Resolution=1m
Output power Nominal 700W. Max >1000W
User
functions
Auto mode (for all settings)
Manual control: Gain, Power, TVG, Frequency
Transducer setup by part number
Diagnostic screens / BIT
Dimming (remote or local)
Print/Archive func-
tion
Printers: By use of EPSON 350, OKI 280Elite, Network print-
ers / Review: Service software via LAN
Extended Internal Logging, by USB or SD
Depth alarms BAM compatible (IEC62923) ALF or ALR. Internal sounder.
Relay output and AUX in/out
Options IR31Dim Remote/Automatic dimming unit
CD401MR-SB Multi-repeater
ESN200-SB Extra Displays
Classication MED B approved
Specications

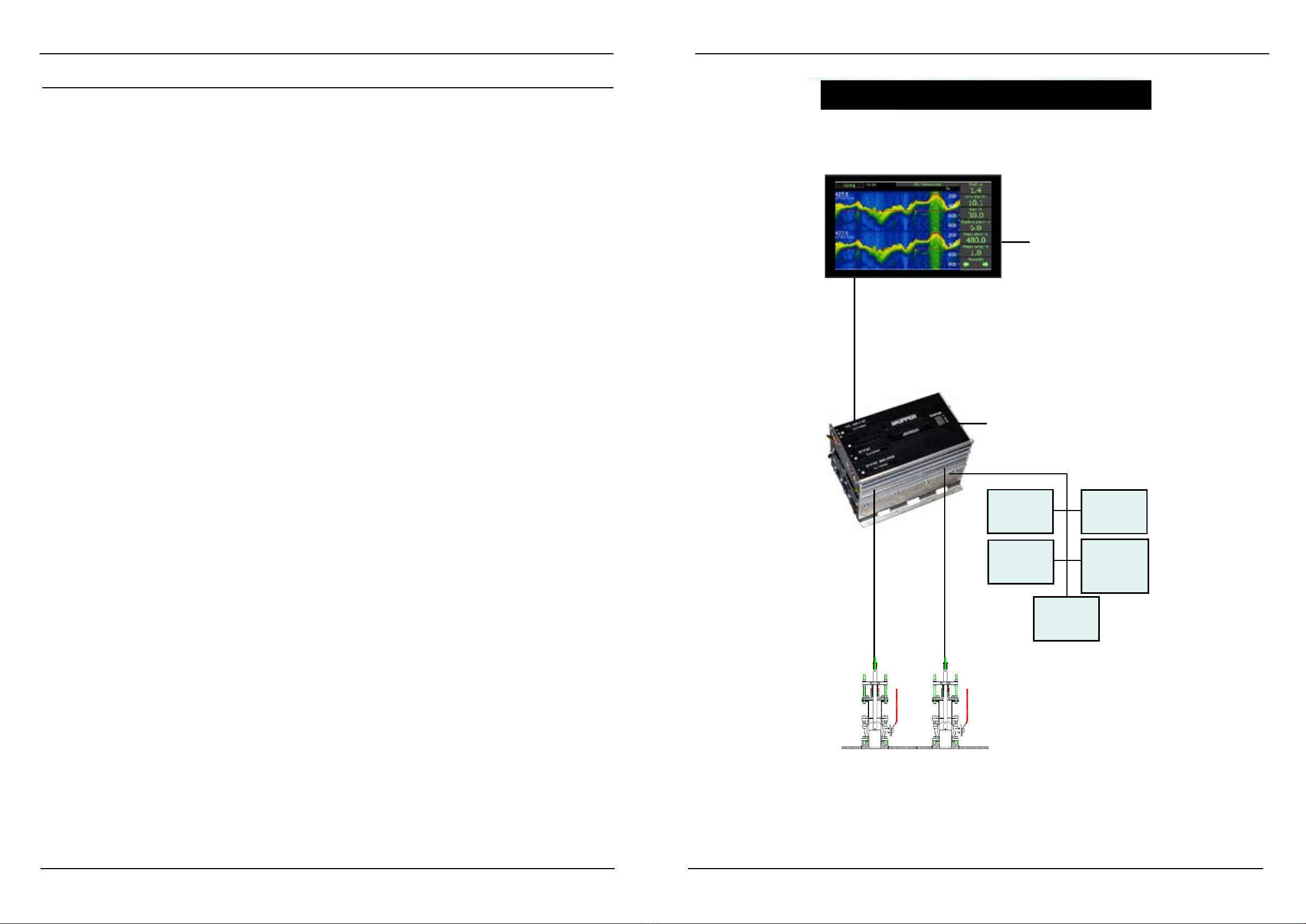

Overview
ESN200
Navigation Echo Sounder
Repeaters
24 V DC
Display unit ESN200-SB
VDR
Conning
Display (also
dimming)
Alarm
Radar
SKIPPER Electronics AS
Norway
E-mail: sales@skipper.no
www.skipper.no
Version: 2018-09-29
Electronic / Transceiver unit
JB70E2-SA
24 V DC - 115/230VAC
LAN communication with Display
(Multiple displays available)
Options for tank,
sea valve (single and double hull)
and retrot.
-
signals and processing the returns to give the appropriate outputs for depth. It contains connec-
