Operating Instructions

Cat. No. 228-9530

SKC Inc.

863 Valley View Road

Eighty Four, PA 15330 USA

Form 40079 Rev 1504

Table of Contents

Quick Guide .........................................................................................1

Description...........................................................................................3

Performance Proﬁle ............................................................................4

Battery Operation ................................................................................6

Operation............................................................................................10

Mounting Sampling Media................................................................12

Calibration and Setting Flow............................................................14

Setup...................................................................................................15

Sampling ............................................................................................17

Advanced Setup ................................................................................19

Maintenance.......................................................................................23

Warranty.............................................................................................23

Ordering Information.........................................................................24

QuickTake 30 Quick Guide

Terms »

Star Button 

Turns on LED, toggles between displays, and exits without saving

Up and Down Arrow Buttons 

Scroll through presets, increase or decrease sampling parameters, and toggle

between setup options

Button Sequence

or = Press individually

[] = Press both simultaneously

= Security code, press in sequence

Programming Sequences »

• To activate pump LED:

Press and hold for 2 seconds.

• To check battery status:

Press .

• To choose a run time preset:

Press or to scroll through presets. Once desired preset displays, press

[] to start sampling.

• To Run or Hold:

Press [].

• To repeat a sample run:

From Done, reset (rSEt), or sampling error (SErr), press [] to return to run

time preset. Press [] to sample.

• To change or calibrate ﬂow:

Note: Flow rate does not appear on LED.

Press or and scroll to a run time preset. Press and hold CAL for 2 seconds.

(Does not require a security code.) Press or to change ﬂow rate until desired

ﬂow appears on calibrator. Press . When Stor displays, press [] to save

setting or to ignore changes to ﬂow setting.

• To interrupt run, terminate a sample, or reset pump:

While in Hold, press . Sample reset (rSEt) will display. Press [] to reset

pump or to ignore reset and return to Hold.

www.skcinc.com

SKC Inc., 863 Valley View Road, Eighty Four, PA 15330

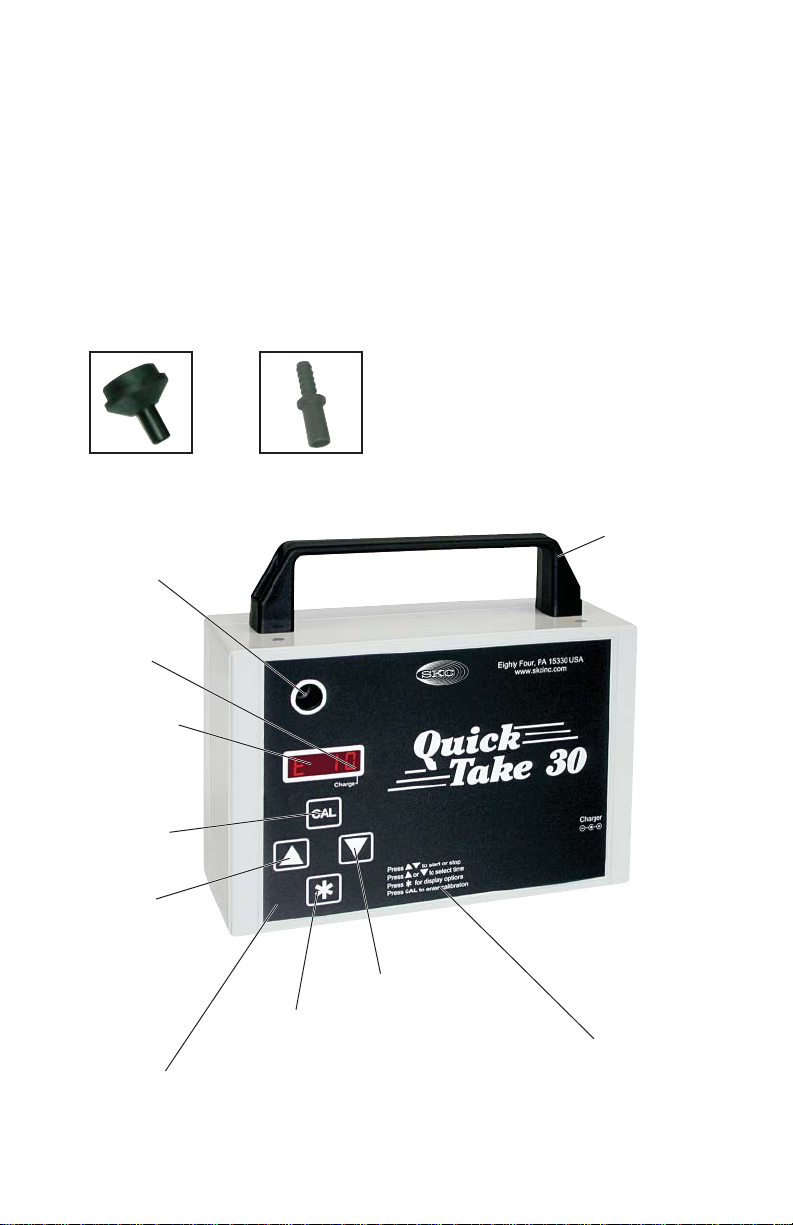

Description

The QuickTake®30 Sample Pump is a portable baery-powered air sampling

pump that maintains constant airﬂow from 10 to 30 L/min for use with impactors,

spore trap cassees such as VersaTrap®, asbestos cassees, microvacuum cassees,

or other samplers requiring ﬂows up to 30 L/min. A diaphragm pump operating

with a closed loop ﬂow control system, the QuickTake 30 maintains true constant

ﬂow. The QuickTake 30 features a programmable timer that provides up to eight

programmable run time presets of 1 to 999 minutes, continuous run with manual

shut-oﬀ, or intermient sampling. A rechargeable lithium-ion baery pack provides

eﬀective run times (see Performance Proﬁle - Typical Cumulative Run Time on page 4).

Handle

for easy

portability

Charging jack

(on side of case,

not shown)

High-contrast

LED display

for readout of

presets, run

time, and

battery status

Calibration

mode button

Up arrow

increases ﬂow

and time and

scrolls through

presets

Inlet

(shown without adapter)

LED

indicates active

battery charging

Down arrow

decreases ﬂow and

time and scrolls

through presets

Star button

activates LED

and toggles

between displays

Speaker

for end of

timed run

alarm

Printed Quick Guide

Tubing AdapterCassette Adapter

Performance Proﬁle

Flow Range: 10 to 30 L/min

Flow Compensation

Accuracy: ± 5% of set ﬂow

Compensating Flow 10 L/min at 90 inches water back pressure

Back Pressure Range: 20 L/min at 50 inches water back pressure

30 L/min at 15 inches water back pressure

Power: • Rechargeable lithium-ion (Li-Ion) battery, 7.4 V, 9.6-Ah

capacity, 71.04 Wh

• Battery with AC charger/adapter, 100-240 V

Battery Recharge Time: Approximately 5 hrs

(varies with baery capacity

and level of discharge)

Typical Cumulative

Spore Trap* (e.g., VersaTrap):5 hrs at 15 L/min (battery only)

Run Time:†

BioStage viable cascade impactor: 4 hrs at 28.3 L/min (battery only)

25-mm, 1.2-μm MCE ﬁlter: 9+ hrs at 10 L/min

To achieve, use QuickTake 30 with a fully

charged battery and AC charger/adapter.

37-mm, 0.8-μm MCE ﬁlter: > 14 hrs at 10 L/min (battery only)

* Sampling times when using spore traps are usually ≤10 min. SKC

recommends reducing length of sample time when using a 30 L/min

ﬂow rate to prevent overloading the media.

† Results obtained using a new pump and new fully charged baeries. Pump and

baery performance may vary.

The AC charger/adapter can be used to extend baery run

time, but it is not a baery eliminator. Therefore, it will

not provide indeﬁnite run times.

Temperature: Operating: 32 to 113 F (0 to 45 C)

Storage: -4 to 95 F (-20 to 35 C)

Charging: 32 to 113 F (0 to 45 C)

Operating Humidity: 0 to 95% non-condensing

Protect sample pump from weather when in use outdoors.

Compare the information in this table to pump compensation range to determine appropriate applications.

Typical Back Pressure of Sampling Media (inches water)

Flow Rate (L/min) 10 12 15 20

Filter/Pore Size (μm)

25-mm MCE, 0.8 65 80 103 148

25-mm MCE, 0.45 138 172 > 200 —

37-mm MCE, 0.8 22 28 36 51

37-mm PVC, 5.0 9 11 15 21

Run Time Features: User-selectable features, user-adjustable presets (see

Advanced Setup)

Preset timed runs: 1, 2, 5, 10, or 15 min

Manually set continuous

run with manual shut-off: 1 to 999 min (repeats 1 to 999-min

runs indeﬁnitely until user stops

pump or power supply is depleted)

Intermittent sampling: See Advanced Setup

Flow Fault Features: If the pump is unable to compensate due to excessive back

pressure, the pump will go into ﬂow fault mode (see page 18 for

details). Flow fault features are enabled as the default setting.

Flow fault may be disabled at the user’s option.

See Advanced Setup.

Flow fault: Flow fault displays immediately

Pump shuts off after 5 seconds

Fault restart: Pump attempts restart every 10 seconds

up to ﬁve times

Media Compatibility: Viable cascade impactors, spore trap cassettes (e.g., VersaTrap),

asbestos cassettes, microvacuum cassettes, and other impaction

samplers that require ﬂows from 10 to 30 L/min

Tubing: Requires 3/8-in ID tubing

Housing: ABS plastic

Dimensions: 9.3 x 8.4 x 3.5 in (23.6 x 21.3 x 8.9 cm)

Weight: 4.8 lbs (2.2 kg)

Indicates a warning, caution, or note

www.skcinc.com

Battery Operation

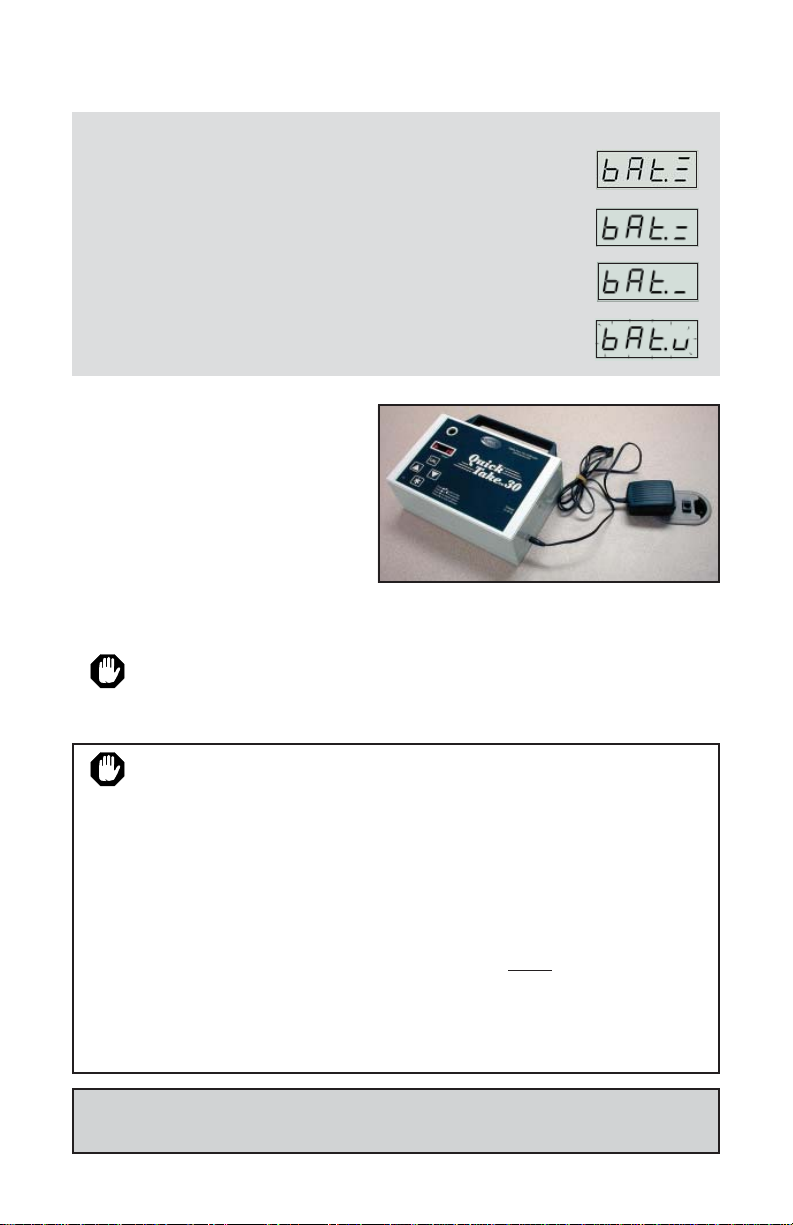

Battery Status Indicators

Full charge; approximately 75% to 100% baery capacity

remaining

Baery is charged enough to operate the pump;

approximately 25% to 75% baery capacity remaining.

Baery charge is low (charge baery); approximately

1% to 25% baery capacity remaining.

Low Baery Fault. Pump will stop running, beep, and

go to sleep in 10 seconds.

Charging the Battery

For a complete charge, ensure the

pump is not running during charging.

Insert the charger plug into the jack on

the pump and the charger into a wall

outlet. A red LED will ﬂash on the

pump display to indicate the unit is

charging. When charging is complete,

the LED will stop flashing and the

pump will go to sleep. The baery charges completely in ﬁve hours. The QuickTake

30 can be operated using AC power. See Operating from AC Power on page 9.

After charging the baery pack, it is good practice to run the pump for

approximately 5 minutes before calibrating. This ensures the baery is in more

steady-state conditions and improves the agreement in pre and post-sampling

calibrations.

• The pump will not sleep during charging. Connecting a sleeping pump to the

charger will wake it up from sleep.

• The AC charger/adapter can be used to extend baery run time, but it is not

a baery eliminator. Therefore, it will not provide indeﬁnite run times.

• Do not operate or charge the pump in hazardous locations.

• Use only the SKC-approved charger for this pump. Use of an unapproved

charger may damage the baery and the pump and voids any warranty.

• The baery pack may be kept on the SKC-approved charger for an indeﬁnite

time.

• Ensure proper orientation of the charging cable before plugging it into the

charging jack. Improper orientation/contact will short circuit the baery and

voids any warranty.

• Short-circuiting the baery pack will render it immediately inoperative.

• Failure to follow warnings and cautions voids any warranty.

See www.skcinc.com/instructions/1756.pdf for more information on

SKC pump batteries.

Removing and Installing a Battery

1. With the back of the pump facing you (serial number

at boom left), use a small ﬂat-head screwdriver

(tweaker) to pry up and remove two strip panels

from the left and right ends of the back of the case.

Removing the pressure-ﬁt panels will reveal four

safety screws.

2. Use a Phillips head or ﬂat-head screwdriver to

loosen the four safety screws.

3. Lift oﬀthe back of the pump case.

4. Use a Phillips head screwdriver to loosen the

two screws (with washers) from the baery

bracket. Use forceps to remove screws and

washers from the case; set the screws aside.

Do not lose washers.

5. Lift the bracket slightly, slide it toward the

case handle, and lift it out of the case.

6. Detach the baery

from the baery

harness by pressing on

the connector tab (left

side of connector) and

pulling both sides of

the connector apart.

Battery harness

connector pulls apart.

Battery harness

connector

Battery

cavity

Bracket

screws

Battery Bracket

Slide bracket toward

case handle and lift out.

Battery harness wires

Case

handle

7. Using a full-size ﬂat-head screwdriver, insert its tip underneath the baery

end nearest the case handle. Maneuver the screwdriver to apply an upward

force to the boom of the baery until the double-sided tape adhesive on its

boom releases its hold and the baery can be lifted from the case.

8. Aach the new baery to the baery harness connector by aligning the two

sides of the connector and pressing them together until they click.

9. Install the baery.

a. If installing a new baery (Cat. No. P75689), remove the protective strip

from double-sided mounting tape on the boom of the new baery to

expose adhesive.

b. If reinstalling the existing baery, remove as much of the previous

adhesive as possible from the boom of the baery. Remove the protective

strip from one side of a new two-inch piece of double-sided mounting

tape (available from SKC as Part No. 51872) and apply to the boom of

the baery. Remove the protective strip from the tape’s remaining side to

expose adhesive.

Ensure the battery harness wires on battery pack are facing away from the

case handle before inserting battery in case.

10. Align the baery in case (as shown above) before allowing the boom of the

baery to come into contact with and adhere to the pump base plate. Press

down gently to ensure the baery pack adheres to the base plate.

11. From the case handle side of the pump, slide the baery bracket into place

until two openings in the bracket are aligned with the two screw holes in the

pump base plate.

12. Use needlenose pliers to align the two screws with washers with the screw

holes. Tighten screws using a small ﬂat-head screwdriver.

13. Replace the back of the pump case (serial number label should be in the lower

left corner) and tighten the four safety screws.

14. Replace the two strip panels and press them down until they are completely

installed.

STOP

Operating from AC Power

The QuickTake 30 may be run using AC power with the baery and AC

charger/adapter. Insert the charger plug into the jack on the pump and the

charger into a standard wall outlet. Operate the pump.

Cautions, Warnings, and Notes

• The charge light on the LED will ﬂash if the baery is charging during AC

operation.

• The AC charger/adapter can be used to extend baery run time, but it

is not a baery eliminator. Therefore, it will not provide indeﬁnite run

times.

• Do not operate or charge the pump in hazardous locations.

• Use only the SKC-approved baery and charger for this pump. Use of an

unapproved baery and/or charger may damage the baery and the pump

and voids any warranty.

• To reduce risk of injury, ﬁre, or electric shock, always follow basic safety

precautions when using this product.

• Do not submerge the pump or subject it to any liquids.

• Protect the sample pump from weather when in use outdoors.

• Tampering with the baery pack or using a repaired or rebuilt baery

pack voids any warranty and UL Listing for intrinsic safety.

• Do not open, disassemble, short circuit, crush, incinerate, or expose the

baery to ﬁre or high temperatures.

• Failure to follow warnings or cautions voids any warranty.

Otros manuales para QuickTake 30

Tabla de contenidos

Otros manuales de Bomba de agua de SKC

SKC

SKC 210-1002MTX Manual de usuario

SKC

SKC 224-PCXR4 Manual de usuario

SKC

SKC 224-PCXR8M Manual de usuario

SKC

SKC 224-44XR Manual de usuario

SKC

SKC Quick Take 15 Manual de usuario

SKC

SKC AirChek 3000 Manual de usuario

SKC

SKC 210-1000 Series Manual de usuario

SKC

SKC Flite 2 Manual de usuario

SKC

SKC Flite4 Manual de usuario

SKC

SKC AirChek Connect Manual de usuario

SKC

SKC AirLite 110-100 Manual de usuario

SKC

SKC TOUCH Instrucciones de funcionamiento

SKC

SKC Vac-U-Go 228-9605 Manual de usuario

SKC

SKC QuickTake 30 Manual de usuario

SKC

SKC 220 Series Manual de usuario

SKC

SKC AirChek XR5000 Manual de usuario

SKC

SKC AirLite 110-100-T Manual de usuario

SKC

SKC AirChek XR5000 Manual de usuario

SKC

SKC AirChek ESSENTIAL Manual de usuario

SKC

SKC 224-50MH Manual de usuario

SKC

SKC AirChek 3000 Manual de usuario

SKC

SKC 224-44XR Manual de usuario

SKC

SKC Leland Legacy Manual de usuario

SKC

SKC Flite 3 Manual de usuario

Manuales populares de Bomba de agua de otras marcas

Neptun

Neptun NPHW 5500 Manual de usuario

Sensidyne

Sensidyne Gilian BDX-II Instrucciones de instalación y funcionamiento

Draper

Draper 47808 Manual de usuario

Trolla

Trolla 12820 Manual de usuario

Sunfab

Sunfab SVH Series Manual de usuario

WilTec

WilTec 50740 Manual de usuario

Fieldmann

Fieldmann FVC 5015 EK Manual de usuario

Everbilt

Everbilt EFSUB5-122HD Manual de usuario

Graco

Graco Husky 3300e Manual de usuario

esotec

esotec 101018 Manual de usuario

moyno

moyno 2000 CC Manual de usuario

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manual de usuario

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guía de solución de problemas

DUROMAX

DUROMAX XP WX Series Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manual de usuario

Franklin Electric

Franklin Electric IPS Manual de usuario

Xylem

Xylem e-1532 Series Manual de usuario

Milton Roy

Milton Roy PRIMEROYAL Manual de usuario
